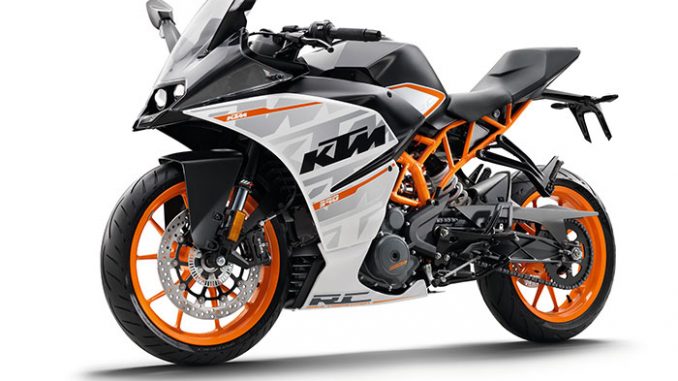

2016 KTM RC390

2016 KTM RC390

2016 KTM RC390

2016 KTM RC390

2016 KTM RC390 Review

2016 KTM RC390 on www.Totalmotorcycle.com

Racing Genes…

A sports bike in its purest form. Reduced to the essentials. Agile, fast, suitable for A2 driving licence and extremely sporty. Whether you are on country roads or the racetrack, the Moto3 genes are perceptible in every manoeuvre and convey pure race feeling. The handling – simply spectacular. The performance – incredible. The power – awesome.

2016 KTM RC390 www.Totalmotorcycle.com Key Features

See Below





2016 KTM RC390 www.Totalmotorcycle.com Features and Benefits

Ergonomics

Seat
The two-part seat offers first class supersport ergonomics with perfect support for rider and pillion. With a seat height of 820mm enables the rider to have a secure stand while also being high enough for sporty use and real big-bike feeling.

Handlebar
The clip on handlebars and switches contribute to a sporty and aggressive riding position combined with advanced control.

Fuel tank
A steel fuel tank with 10l capacity (including 1,5l reserve) has been developed for the RC, perfectly matching the supersport style and vehicle design, together with rider ergonomics. Thanks to the economic engine, the RC achieves even in the sportiest manner of riding a considerable range.

Windshield
The advanced design windshield in combination with the aerodynamic optimized motorcycle front ensures incredible wind protection for rider’s chest and arms.





Outstanding style

Bodywork
The brand new bodywork, footrests and pedals not only provide a unique supersport look but also help the RC to master extreme cornering by allowing a greater leaning angle.

Headlight
The twin headlight opens a new direction for KTM style and perfectly matches with the racing supersport look of RC.

Integrated blinkers
As a special feature, the RC incorporates blinkers into the mirror structure, which not only look sporty but also contribute to the perfect aerodynamics.

Thin tail
Fitting perfectly into the pure racing look, the number plate holder rounds KTM’s high performance bike off.





Racing DNA

Engine
The state-of-the-art, liquid cooled, single-cylinder, four-stroke 375ccm engine with twin overhead camshafts, four valves and electronic fuel injection, already equipped in the Duke 390 provides outstanding power and thanks to the balancer shaft, delivers the highest level of smoothness. Because of the KTM-typical compact design with stacked transmission shafts the engine has an unbelievable low weight of 36kg. Combine that with technical details like a forged piston, Nikasil-cylinder-coating and forced feed lubrication with power-promoting body-evacuation and you get an engine which provides a remarkable 44hp. The engine is equipped with an electric starter powered by a 12V/8Ah battery.

Triple clamps
The forged aluminum triple clamps are eye-catchers and together with the clip on handlebars guarantee a pure supersport racing feeling.

Brakes
KTM in cooperation with Brembo developed a powerful, excellent to dose brake-system which allows the rider to be always in full control of the RC. A four piston radially bolted caliper in combination with a single brake disk (300mm diameter) in the front and a single piston floating caliper with a single brake disk (230mm diameter) for the rear wheel guarantee excellent breaking reaction even in the sportiest manner of riding.



---



2016 KTM RC390 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See Local Dealer for Pricing in USD

Engine

Design

1-cylinder, 4-stroke engine

Displacement

373.2 cm³

Bore

89 mm

Stroke

60 mm

Power in KW

32 kW

Starter

Electric starter

Lubrication

Semi-dry sump

Transmission

6-speed

Primary drive

30:80

Secondary gear ratio

15:45

Cooling

Liquid cooled

Clutch

Wet multi-disc clutch, mechanically actuated

EMS

Bosch EMS

Chassis

Frame design

Steel trellis frame, powder coated

Front suspension

WP upside-down Ø 43 mm

Rear suspension

WP monoshock

Suspension travel (front)

125 mm

Suspension travel (rear)

150 mm

Front brake

Four-piston radial fixed calliper, brake disc

Rear brake

Single-piston floating calliper, brake disc

Front brake disc diameter

300 mm

Rear brake disc diameter

230 mm

ABS

Bosch 9MB two-channel ABS

Chain

X-Ring 5/8 x 1/4″

Steering head angle

66.5 °

Wheelbase

1340 ± 15 mm

Ground clearance

178.5 mm

Seat height

820 mm

Tank capacity (approx.)

10 l



---



2016 KTM RC390 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
373.2 cm³
” Bore
89 mm
” Stroke
60 mm
” Power in KW
32 kW
” Starter
Electric starter
” Lubrication
Semi-dry sump
” Transmission
6-speed
” Primary drive
30:80
” Secondary gear ratio
15:45
” Cooling
Liquid cooled
” Clutch
Wet multi-disc clutch, mechanically actuated
” EMS
Bosch EMS
Chassis
” Frame design
Steel trellis frame, powder coated
” Front suspension
WP upside-down Ø 43 mm
” Rear suspension
WP monoshock
” Suspension travel (front)
125 mm
” Suspension travel (rear)
150 mm
” Front brake
Four-piston radial fixed calliper, brake disc
” Rear brake
Single-piston floating calliper, brake disc
” Front brake disc diameter
300 mm
” Rear brake disc diameter
230 mm
” ABS
Bosch 9MB two-channel ABS
” Chain
X-Ring 5/8 x 1/4″
” Steering head angle
66.5 °
” Wheelbase
1340 ± 15 mm
” Ground clearance
178.5 mm
” Seat height
820 mm
” Tank capacity (approx.)
10 l

---



2016 KTM RC390 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £4999 GBP (On The Road inc 20% Vat)

Engine

Design

1-cylinder, 4-stroke engine

Displacement

373.2 cm³

Bore

89 mm

Stroke

60 mm

Power in KW

32 kW

Starter

Electric starter

Lubrication

Semi-dry sump

Transmission

6-speed

Primary drive

30:80

Secondary gear ratio

15:45

Cooling

Liquid cooled

Clutch

PASC™ antihopping clutch, mechanically operated

EMS

Bosch EMS with RBW

Chassis

Frame design

Steel trellis frame, powder coated

Front suspension

WP upside-down Ø 43 mm

Rear suspension

WP monoshock

Suspension travel (front)

125 mm

Suspension travel (rear)

150 mm

Front brake

Four-piston radial fixed calliper, brake disc

Rear brake

Single-piston floating calliper, brake disc

Front brake disc diameter

320 mm

Rear brake disc diameter

230 mm

ABS

Bosch 9MB two-channel ABS

Chain

X-Ring 5/8 x 1/4″

Steering head angle

66.5 °

Wheelbase

1340 ± 15 mm

Ground clearance

178.5 mm

Seat height

820 mm

Tank capacity (approx.)

10 l

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
