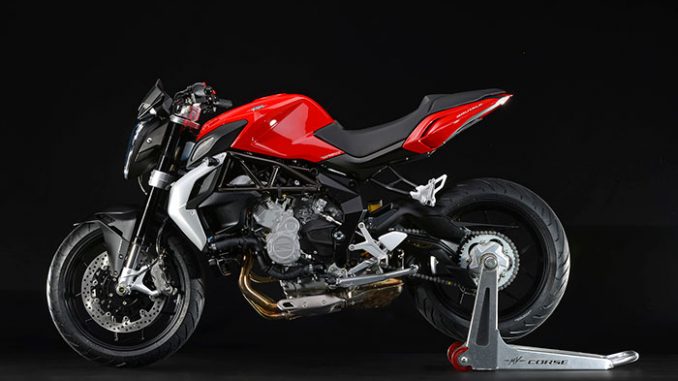

2016 MV Agusta Brutale 675
2016 MV Agusta Brutale 675

2016 MV Agusta Brutale 675
2016 MV Agusta Brutale 675

2016 MV Agusta Brutale 675
2016 MV Agusta Brutale 675

2016 MV Agusta Brutale 675
2016 MV Agusta Brutale 675



2016 MV Agusta Brutale 675 Review

2016 MV Agusta Brutale 675 on www.Totalmotorcycle.com

Incredibly refined…

With the introduction of the Brutale line, MV Agusta has created the reference point of the large displacement naked category offering a product with a truly unique design and superbike level performance.

Today, the Brutale family is about to grow with the introduction of a completely new model that is destined to become the reference in the middle-weight category. The Brutale 675 is born, a bike that pays tribute to the advant guard styling of the original Brutale and offering performance never before available in this market segment.

The incredibly refined mechanical design has been matched with an ultratechnological chassis makes the new Brutale 675 a guaranteed success.

An innovative project, exclusive while at the same time accessible to all passionate motorcyclists with various levels of experience.

This motorcycle is capable of satisfying even the most demanding riders as well as those that are new to the sport. From street to track, the MV Agusta Brutale 675 is able to take on any situation in stride and offer the pleasure, excitement and emotion that is typically MV.

Light, agile and power above and beyond that offered by the competition, the MV Agusta Brutale has a revolutionary engine that is the most advanced in the middle-weight segment. The new in-line three cylinder power plant is derived directly from the F3 and sets new records for compactness and the application of technical solutions only previously seen on MotoGp motorcycles such as advanced electronics with the MVICS (Motor & Vehicle Integrated Control System), a system that integrates the Full Ride By Wire throttle control with integral multi-maps for the engine and traction control. Power output is a staggering 108,5 hp at 12.500 rpm and a torque curve that is more similar to a liter bike rather than a supersport.

The chassis, as is the MV Agusta tradition, is without rivals in this category. The frame is a mix of steel tubing and aluminium components that offers a level of rigidity that is destined to make it the reference in its class. At only 167 kg dry, the MV Agusta Brutale 675 can satisfy even the most demanding of riders. The extremely light weight coupled with the high power output of the engine will allow the Brutale 675 to accompany new riders from the beginning of their adventure on two wheels all the way to the peak of their riding capabilities.


Brutale 675,
naked beauty.

Experience the thrill of the most beautiful naked ever. Brutale
is now also a three-cylinder: lightweight, powerful and agile.
Miraculous as are all MV Agusta’s. A perfect synthesis of form and
function, the Brutale 675 utilises the most advanced technology.
The three-cylinder engine is derived from the F3 675 and is unique
in its class leading electronics coupled to chassis and suspension
of the highest quality. The perfect combination of emotion and
technology has a name: Brutale 675.



Instant Emotions.

Whatever the riding conditions, whatever the route, the Brutale 675 is the new naked sports benchmark: thanks to advanced electronics (including ABS as standard), the feisty engine and a suspension set-up that meets – and exceeds – even the highest expectations. Putting the power down on the tarmac as assuredly and safely as possible.

The single side swingarm is designed to be lightweight, beautiful, and engineered to transmit the power of the engine to the tarmac. It is linked to the beautiful main frame made of a tubular steel trellis with aluminum side plates. The suspension of the Brutale 675 is state of the art, perfectly balanced to meet the most demanding curves as well as supple to devour the roads of the city without ever losing its composure. The chassis components combine to let you savor every moment of the unmistakable riding pleasure of an MV Agusta.

The engine crankcase has “closed deck” and is equipped with counter-rotating crankshaft, a solution used previously only in MotoGP, to provide the best dynamic balance. More balanced equates to more fun. 108.5 hp at maximum power: the three short-stroke cylinders have been tuned to offer extraordinary response to throttle inputs. The engine has been coupled with the most advanced electronics, offering 4 different mode maps in addition to 8 levels for the traction control. Thanks to the revolutionary MVCIS (Motor & Vehicle Integrated Control System) the Brutale 675 is ready to dominate every situation.

Organ pipes: the finest tradition of the MV exhaust system is a marvel of beauty and efficiency. Offering maximum performance without sacrificing, even for a moment, the supreme elegance of MV Agusta while letting you enjoying the acute sound of the compact yet profound three-cylinder engine. Compact, attention to every detail, placed under the swingarm for the benefit of the handling of the bike, the exhaust system is an example of superior design and function.





2016 MV Agusta Brutale 675 www.Totalmotorcycle.com Key Features

In detail, the principle characteristics of the MV Agusta Brutale 675 are:

•Ultra-compact three cylinder engine with counter-rotating crankshaft
•Electronic technology: MVICS (Motor & Vehicle Integrated Control System)
•Traction control with 8 levels of adjustment
•Frame with a mixture of steel and aluminium components
•Single-sided rear swingarm with a Sachs rear shock
•43 mm upside-down front forks
•Racing brakes with radial calipers

AVAILABLE IN COLORS:
•MATT METALLIC BLACK
•PEARL WHITE / MATT METALLIC ANTHRACITE
•RED / MATT METALLIC ANTHRACITE







2016 MV Agusta Brutale 675 www.Totalmotorcycle.com Features and Benefits

Engine and Frame


The in-line 675cc three cylinder engine, which made its debut in the supersport F3, finds an ideal position within the Brutale 675 after receiving a number of modifications that adapts it perfectly to sport/street use that typifies the Brutale.

The Brutale 675 has a maximum power of 108,5 hp at 12.500 rpm and 65 Nm of torque at 12.000 rpm, but even more important is the huge spread of power and torque throughout the entire rev range and the over-rev after max power that allow the rider to hold a gear even longer if required. Even more important than the peak power is the fact that it is very linear and controllable in all situations. Thanks to this configuration, the three cylinder is an engine capable of taking on city traffic as well as screaming up your favorite mountain road. As with the F3, the Brutale 675 utilizes a counter-rotating crankshaft, which has only been seen on MotoGp motorcycles, this important design feature helps the Brutale reach previously unreached levels of dynamic balance and ease of handling.

The compact dimensions and reduced weight of the engine place it at the top of the naked category and make the MV Agusta Brutale 675 truly unique, destined to become a milestone thanks to the technical solutions incorporated such as the closed deck shell mold cast crankcase with integrated cylinders and the MVICS.

Another important detail is the fact that the oil and water pumps and circuits have been completely integrated into the crankcases which has a big impact on efficiency and the clean lines that are fundamental on a naked bike.
Brutale 675, the most powerful Italian three cylinder ever.

The Brutale 675 confirms the fact that MV Agusta is always capable of developing an extremely easy and intuitive chassis while at the same time offering the maximum performance. The upper section is fabricated from steel tubes and connected to the aluminium side plates which mate with the engine.

The realization of all new MV Agusta models is a synergy between the work of the chassis and engine designers. The ultra-short engine allowed the chassis designers to develop an extremely short and agile bike mated with a long single-sided swingarm that helps put the power to the ground.



Design


As with all MV Agusta products, the Brutale 675 is characterized with a truly unique style where even the smallest detail was fretted over. For and function come together to create perfection.

The integration of the fuel tank, seat and tail section is a fulcrum of the design of the Brutale 675 and demonstrates the extreme compactness of the bike. The rider becomes an integrated component of the bike, perfectly inserted into the ultra-short and agile chassis with the narrowest mid-section ever seen on a production supersport that allow all riders to easily place their feet securely on the ground. These details help the rider to immediately become one with the motorcycle and develop the perfect feeling between the Brutale 675 and the pilot. The bike immediately gives the impression that the rider has always ridden this bike as the ergonomics are in perfect harmony with the rider. The tail-section is extremely compact, the headlight is classic Brutale and the digital dashboard all contribute to making the MV Agusta Brutale 675 exceptionally unique.



Electronics


The most advanced electronic engine control system ever seen on a middleweight naked has been designed specifically for this extraordinary new three cylinder. A system of fuel injection that is extremely sophisticated with a 47 mm throttle body for perfect combustion at all rpm’s.

The MVICS system that allows the engine to unleash a record level of power and control in every situation. The rider can select one of the 4 maps available, or customize an additional map to obtain the power delivery desired.

With the MVICS system it was possible to generate a perfect harmony between the power delivery and the traction control which offers 8 levels of adjustment and is accessible through the input on the left handlebar and dashboard interface.



Brakes and Suspensions


The best technology currently available is utilized on the MV Agusta Brutale 675, including Brembo radial calipers and Nissin master cylinders with integrated reservoirs underlining the supersport intentions of the project.

The 320mm front disks are the same as those employed on the F3 and offer incredible stopping power that is also completely controllable in all situations.

The optimum performance of the suspension was a very important point during the development of the Brutale 675. Even a “simple” naked motorcycle needs to have the best that the market offers in terms of suspension performance. The 43 mm upside-down front forks offer feedback that leads the competition and allow the rider to easily take on even the most challenging city streets or tortuous mountain roads with confidence. The rear suspension works through a progressive linkage and has adjustable spring pre-load with 119 mm of rear wheel travel.










2016 MV Agusta Brutale 675 – www.Totalmotorcycle.com North American Specifications/Technical Details
USA MSRP Price: $11998 USD
Canada MSRP Price: $ See Dealer for pricing in CDN

ENGINE
Type Three cylinder, 4 stroke, 12 valve
Timing system “D.O.H.C”
Total displacement 675 cm3 (41.2 cu. in.)
Compression ratio 12.3:1
Starting Electric
Bore x stroke 79 mm x 45.9 mm (3.1 in. x 1.8 in.)
Max. power – r.p.m. (at the crankshaft)** 81 kW (110 hp) at 12500 r.p.m.
Max. torque – r.p.m. 65 Nm (6.63 kgm) at 12000 r.p.m.
Cooling system Cooling with separeted liquid and oil
radiators
Engine management system Integrated ignition – injection system MVICS
(Motor & Vehicle Integrated Control System)
with three injectors Engine control unit
Eldor EM2.0, throttle body full drive by
wire Mikuni, pencil-coil with ion-sensing
technology, control of detonation and misfire
Torque control with four maps, Traction
Control with eight levels of intervention
Electronic quick-shift MV EAS (Electronically Assisted Shift)
Clutch Wet, multi-disc with mechanical drive
Transmission Cassette style; six speed, constant mesh
Primary drive 19/36
Gear ratio
First gear: 13/37
Second gear: 16/34
Third gear: 18/32
Fourth gear: 19/30
Fifth gear: 21/30
Sixth gear: 22/29
Final drive ratio 16/43
ELECTRICAL EQUIPMENT
Voltage 12 V
Alternator 350 W at 5000 r.p.m.
Battery 12 V – 8.6 Ah
DIMENSIONS AND WEIGHT
Wheelbase 1380 mm (54.33 in.)
Overall length 2085 mm (82.09 in.)
Overall width 725 mm (28.54 in.)
Saddle height 810 mm (31.89 in.)
Min. ground clearance 160 mm (6.30 in.)
Trail 95 mm (3.74 in.)
Dry weight 167 kg (368.2 lbs.)
Fuel tank capacity 16.6 l (4.39 U.S. gal.)

PERFORMANCE
Maximum speed* 225.0 km/h (139.8 mph)
FRAME
Type ALS Steel tubular trellis
Rear swing arm pivot plates material Aluminium alloy
FRONT SUSPENSION
Type Marzocchi “UPSIDE DOWN”
telescopic hydraulic fork
Fork dia. 43 mm (1.69 in.)
Fork travel 125 mm (4.92 in.)
REAR SUSPENSION
Type Progressive Sachs, single shock
absorber with spring preload adjustment
Single sided swing arm material Aluminium alloy
Wheel travel 119 mm (4.68 in.)
BRAKES
Front brake Double floating disc with Ø 320 mm (Ø 12.6 in.)
diameter, with steel braking disc and flange
Front brake caliper Brembo radial-type, with 4 pistons
Ø 32 mm (Ø 1.26 in.)
Rear brake Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Rear brake caliper Brembo with 2 pistons – Ø 34 mm (Ø 1.34 in.)
ABS System Bosch 9 Plus with RLM
(Rear wheel Lift-up Mitigation
WHEELS
Front: Material/size Aluminium alloy 3.50 ” x 17 ”
Rear: Material/size Aluminium alloy 5.50 ” x 17 ”
TYRES
Front 120/70 – ZR 17 M/C (58 W)
Rear 180/55 – ZR 17 M/C (73 W)
FAIRING
Material Thermoplastic






2016 MV Agusta Brutale 675 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £8599 GBP (On the road charges of £300 apply to the quoted prices)

ENGINE
Type Three cylinder, 4 stroke, 12 valve
Timing system “D.O.H.C”
Total displacement 675 cm3 (41.2 cu. in.)
Compression ratio 12.3:1
Starting Electric
Bore x stroke 79 mm x 45.9 mm (3.1 in. x 1.8 in.)
Max. power – r.p.m. (at the crankshaft)** 81 kW (110 hp) at 12500 r.p.m.
Max. torque – r.p.m. 65 Nm (6.63 kgm) at 12000 r.p.m.
Cooling system Cooling with separeted liquid and oil
radiators
Engine management system Integrated ignition – injection system MVICS
(Motor & Vehicle Integrated Control System)
with three injectors Engine control unit
Eldor EM2.0, throttle body full drive by
wire Mikuni, pencil-coil with ion-sensing
technology, control of detonation and misfire
Torque control with four maps, Traction
Control with eight levels of intervention
Electronic quick-shift MV EAS (Electronically Assisted Shift)
Clutch Wet, multi-disc with mechanical drive
Transmission Cassette style; six speed, constant mesh
Primary drive 19/36
Gear ratio
First gear: 13/37
Second gear: 16/34
Third gear: 18/32
Fourth gear: 19/30
Fifth gear: 21/30
Sixth gear: 22/29
Final drive ratio 16/43
ELECTRICAL EQUIPMENT
Voltage 12 V
Alternator 350 W at 5000 r.p.m.
Battery 12 V – 8.6 Ah
DIMENSIONS AND WEIGHT
Wheelbase 1380 mm (54.33 in.)
Overall length 2085 mm (82.09 in.)
Overall width 725 mm (28.54 in.)
Saddle height 810 mm (31.89 in.)
Min. ground clearance 160 mm (6.30 in.)
Trail 95 mm (3.74 in.)
Dry weight 167 kg (368.2 lbs.)
Fuel tank capacity 16.6 l (4.39 U.S. gal.)

PERFORMANCE
Maximum speed* 225.0 km/h (139.8 mph)
FRAME
Type ALS Steel tubular trellis
Rear swing arm pivot plates material Aluminium alloy
FRONT SUSPENSION
Type Marzocchi “UPSIDE DOWN”
telescopic hydraulic fork
Fork dia. 43 mm (1.69 in.)
Fork travel 125 mm (4.92 in.)
REAR SUSPENSION
Type Progressive Sachs, single shock
absorber with spring preload adjustment
Single sided swing arm material Aluminium alloy
Wheel travel 119 mm (4.68 in.)
BRAKES
Front brake Double floating disc with Ø 320 mm (Ø 12.6 in.)
diameter, with steel braking disc and flange
Front brake caliper Brembo radial-type, with 4 pistons
Ø 32 mm (Ø 1.26 in.)
Rear brake Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Rear brake caliper Brembo with 2 pistons – Ø 34 mm (Ø 1.34 in.)
ABS System Bosch 9 Plus with RLM
(Rear wheel Lift-up Mitigation
WHEELS
Front: Material/size Aluminium alloy 3.50 ” x 17 ”
Rear: Material/size Aluminium alloy 5.50 ” x 17 ”
TYRES
Front 120/70 – ZR 17 M/C (58 W)
Rear 180/55 – ZR 17 M/C (73 W)
FAIRING
Material Thermoplastic



Prices may vary from country to country due to local import duties and tax

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
