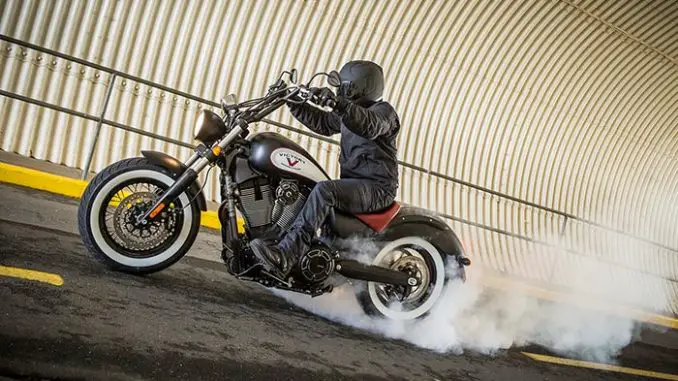

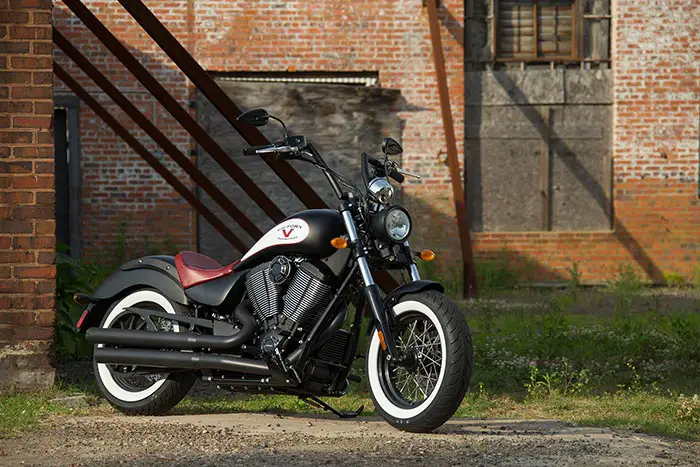

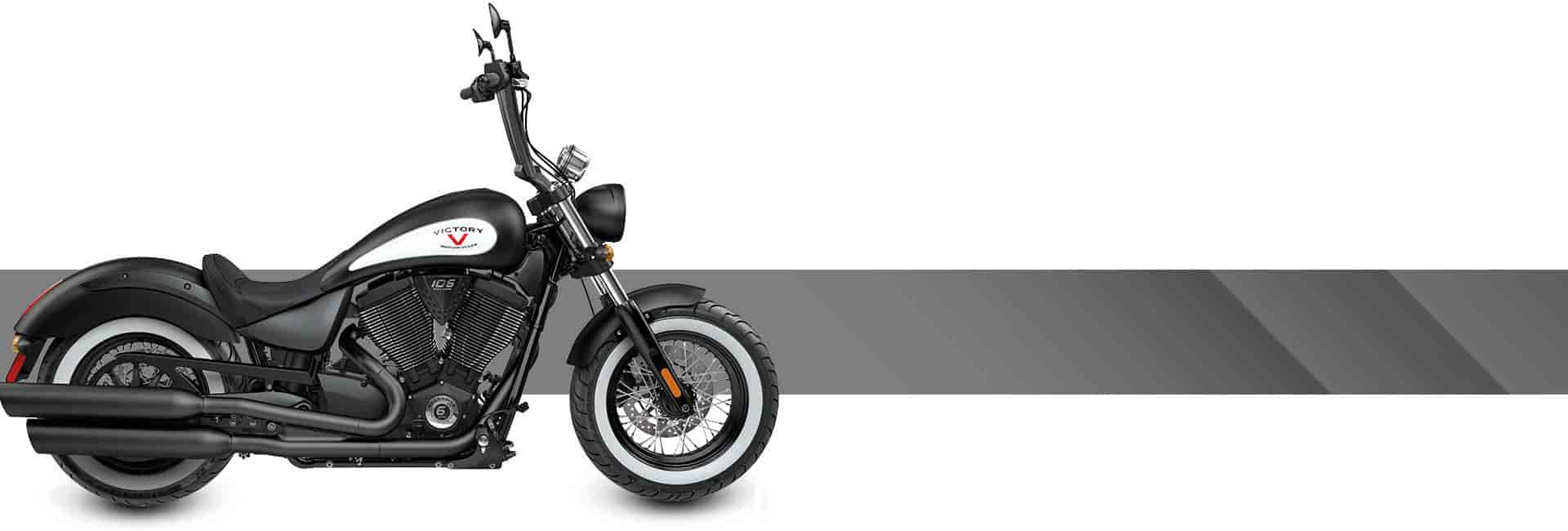

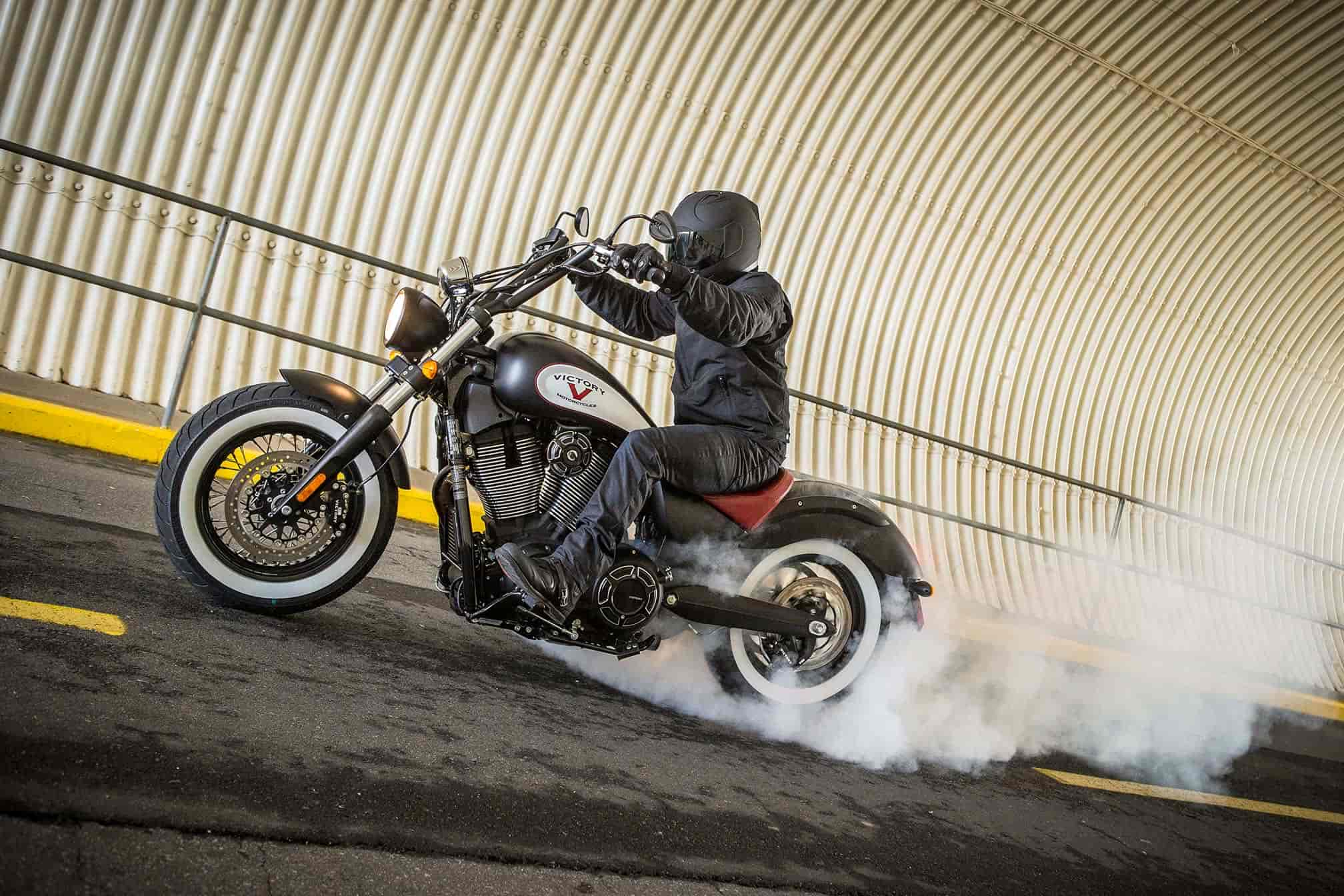

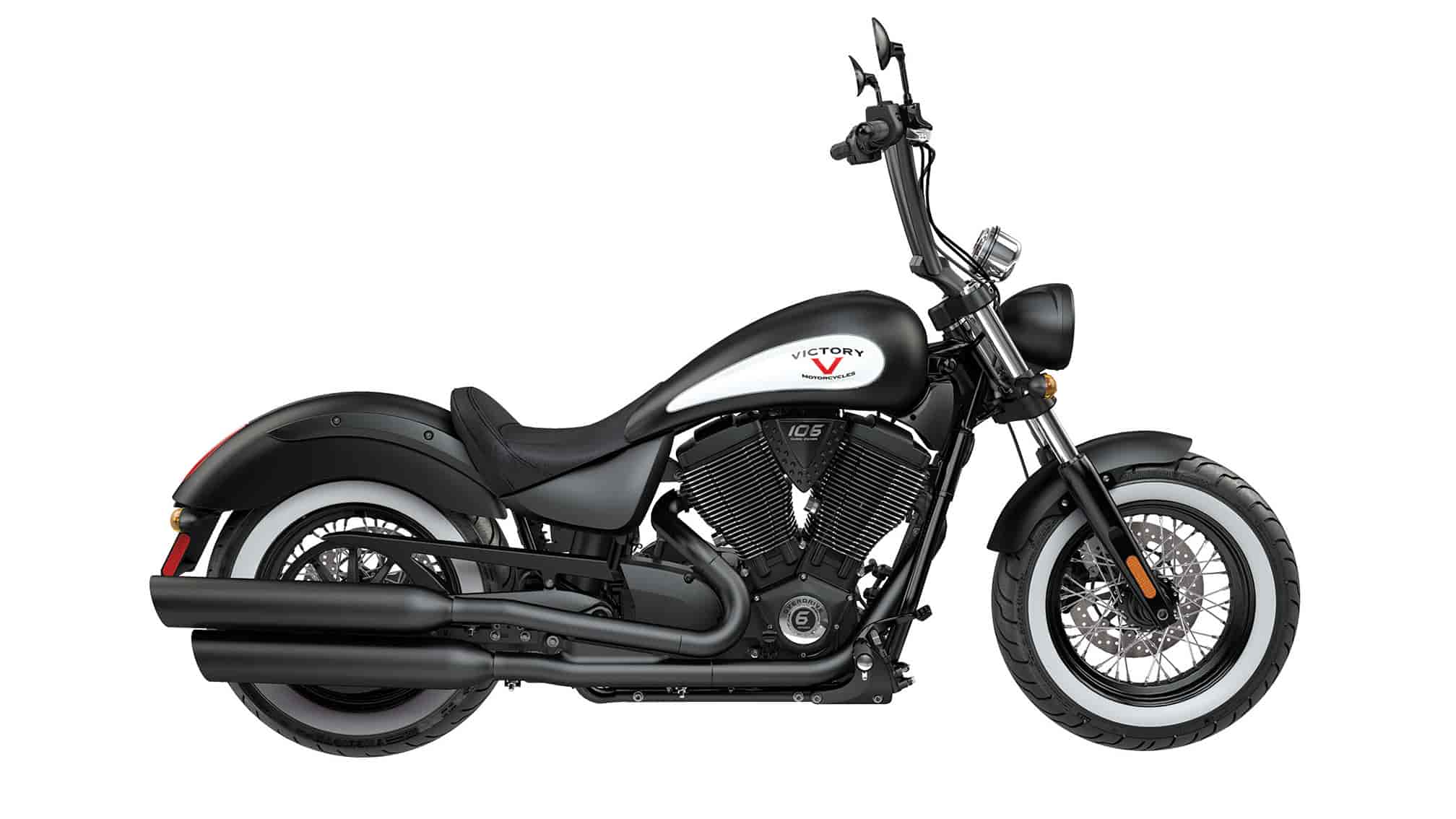

2016 Victory Highball

2016 Victory Highball

2016 Victory Highball

2016 Victory Highball

2016 Victory Highball Review

2016 Victory Highball on www.Totalmotorcycle.com

Cranked up performance. Stripped down style….

Few bikes get unveiled to such an overwhelming response. Riders flocked to this bobber-spirited, high-performance cruiser with as much anticipation for twisting the throttle as they did for its killer looks.

Finally, there’s the High-Ball, a model that is becoming ever more popular as riders start to appreciate its bad bobber style, white rimmed tyres and its ape hangers.



All of the motorcycles in Victory Motorcycles’ cruiser category can now be fitted with performance Akrapovic exhausts.

Owners of the Gunner, Judge, Hammer S, Hammer 8-Ball, Vegas 8-Ball and the High-Ball can simply make a straight swap of their standard exhausts for these new Akrapovic ones.

The exhausts come in either matte black or chrome and have a two-year warranty.

Uroš Rosa, PhD and CEO Akrapovic d.d says: “This is a very a significant event for all of us here at Akrapovic, and we are extremely proud to be the performance exhaust of choice for Victory Motorcycles’ cruiser category. We have a history of creating innovative exhaust solutions using the latest technology, and it is this philosophy that we see in this collaboration. Victory Motorcycles has breathed new life into the American V-Twin cruiser market with its pioneering range of bikes, and we are delighted to align our own unique exhaust knowledge with them. Akrapovic will give part of its world and a whole new character to each and every bike fitted with one of its exhaust systems, and, through the performance, quality, design, technology, and unmistakable sound that we deliver with each exhaust system, all Akrapovic-equipped Victory Motorcycles cruisers will be bikes that stand out from the rest.”

Victory Motorcycles’ head of parts, apparel and accessories, Andreas Geisinger, said: “I was very excited to work with Akrapovic on this exclusive exhaust line for our Victory Motorcycles line up.

“Akrapovic, with their well-known class-leading quality and performance levels, goes perfectly with Victory Motorcycles’ push to produce machines with ‘Modern American Performance’. These handmade exhausts are like works of art.”

No changes to this model for 2016, exactly the same as last year.

” 106 cubic inch Freedom® V-Twin (1731cc)
” 139 Nm at 2,800rpm
” 6-speed overdrive transmission
” 17 litre tank
” Solo seat
” 635mm seat height
” 16 x 3.5″ front wheel with a Dunlop D421 – WWW tyre
” 16 x 3.5″ rear wheel with a Dunlop D421 – WWW tyre
” 306kg dry weight
” ABS standard



2016 Victory Highball www.Totalmotorcycle.com Key Features

Ape Hanger Handlebars

Reach up and grab some attitude with these Ape Hanger Handlebars that are engineered to maximize performance and style.

Short Front Fender

This short front fender blocks rain, gravel, but never distracts from the white wall tires.

106 Cubic-Inch Freedom V-Twin

American Muscle never goes out of style, we just gave it a modern overhaul with our 106 cubic inch Freedom V-Twin that delivers 106 ft-lb of torque.

Ape Hanger Handlebars

Reach up and grab some attitude with these Ape Hanger Handlebars that are engineered to maximize performance and style.





2016 Victory Highball www.Totalmotorcycle.com Features and Benefits


APE HANGER HANDLEBARS It’s impossible to reach up to the High-Ball handlebars and not exude attitude. You’re riding the baddest, most wickedly fun bike on the street, so your smirk and sneer go well with your leather jacket. Stretch out and show the city who’s boss. And if the mood suits you, these bars can also be set back in a lower, relaxed position.

16” WHEELS WITH WHITEWALL TIRES The High-Ball is a fascinating mix of cutting-edge performance technology and some of motorcycling’s most timeless style elements, such as its 16” wheels with whitewall tires. This is exactly how this modern bobber should roll. Along with their classic style, these wheels and tires deliver a great ride and smooth, easy handling.

SHORT FRONT FENDER The High-Ball was designed with a “less is more” approach: If you don’t need it, it’s not here. That includes the bodywork, which is spare and minimal in classic bobber style. The short front fender blocks rain and gravel but doesn’t demand attention. It leaves that for the High-Ball ape hangers, whitewall tires, Freedom® V-Twin, and clean, stylish graphics.

ABS BRAKES Victory Anti-Lock Brakes give a rider greater confidence and peace of mind. When traction is compromised, the ABS immediately and automatically provides reliable braking to help you stop quickly

106 CUBIC-INCH FREEDOM® V-TWIN The Victory Freedom® 106/6 V-Twin is smooth, efficient – and extremely powerful. It’s fuel-injected, counter-balanced and it delivers 110 ft-lb of torque you can use for great cruising or dominating at stoplights. You’ll have instant throttle response and outstanding power you can unleash on demand.

110 FT-LBS OF TORQUE 110 FT-LBS OF TORQUE Do the math: Stripped-down High-Ball + Freedom® 106/6 V-Twin with 110 ft-lb of torque = Incredible high-performance fun. That’s a lot of power for a bike that consists of little more than engine, wheels and rider. Put the power to good use at stoplights, in traffic and wherever else you raise hell.

6-SPEED OVERDRIVE TRANSMISSION Every gear shift is smooth and defined with the Victory 6-speed transmission with true overdrive. It syncs up with the outstanding power of the Victory Freedom® 106/6 V-Twin and its helical-cut gears ensure that each shift is smooth and sure. When you leave the streets behind for interstate cruising, the 6th gear overdrive drops the RPMs and cranks up your High-Ball attitude.

ADD VICTORY ACCESSORIES TO MAKE IT ALL YOURS Add Victory Accessories and customize your Highball™ to suit your individual style. All Victory accessories undergo the same rigorous testing as our motorcycles, so they install easily, fit properly, and deliver outstanding performance.

AKRAPOVIC EXHAUST (ACCESSORY) Designed, developed and manufactured exclusively for Victory Motorcycles, Akrapovic’s new twin silencer Slip-On system has been tuned to deliver optimum performance and enhance the thundering American V-twin soundtrack, for the full range of Victory Cruisers sharing the Freedom 106 (1731cc) motor. Akrapovic Slip-Ons fully satisfy EC noise and emission standards.









---



2016 Victory Highball – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $13,349 USD


Specifications

ABS Not Equipped
Dry Weight 671 lbs / 304 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Cooling Air & Oil
Exhaust Dual-Staggered Slash-Cut with Common Volume
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Transmission Type 6 Speed Overdrive/Constant Mesh
Valve Train 4 Valves per Cylinder, Hydraulic Lifters & Cam Chain Adjusters
Transmission/Primary Drive Gear Drive with Torque Compensator
Transmission/Final Drive Carbon Fiber Reinforced Belt
Compression Ratio 9:4:1
Drive/Driven Clutch Wet Multi-Plate/Diaphragm Spring
Charging System 48 Amps Max Output
Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Front Suspension Telescopic Fork/ 5.1″ (130mm)
Rear Suspension Single Monotube Gas/Preload Adjustable/3.0″ (75mm)

Brakes

Front Brakes Single 300 x 5mm/ Floating Rotor/ 4 Piston Caliper
Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper
Brake System Type Not Linked

Tires / Wheels

Front Tires Dunlop D421 – WWW
Rear Tires Dunlop D421 – WWW
Rear Wheel 16 x 3.5 in
Front Wheel 16 x 3.5 in

DIMENSIONS

Fuel Capacity (Litres) 4.5 gal / 17.0 ltr
Ground Clearance 4.7 in / 120 mm
Seat Height 25.0 in / 635 mm
Wheelbase 64.8 in / 1647 mm
Rake/Trail 32° / 6.7 in / 170 mm
GVWR 1151 lbs / 523 kg
Overall Length (in./mm.) 93.4 in / 2372 mm

Features

Colors (Base) Suede Black



---



2016 Victory Highball – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $15,899 CDN

Specifications

ABS Not Equipped
Dry Weight 671 lbs / 304 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Charging System 48 Amps Max Output
Compression Ratio 9:4:1
Cooling Air & Oil
Drive/Driven Clutch Wet Multi-Plate/Diaphragm Spring
Exhaust Dual-Staggered Slash-Cut with Common Volume
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Transmission/Final Drive Carbon Fiber Reinforced Belt
Transmission/Primary Drive Gear Drive with Torque Compensator
Transmission Type 6 Speed Overdrive/Constant Mesh
Valve Train 4 Valves per Cylinder, Hydraulic Lifters & Cam Chain Adjusters
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Front Suspension Telescopic Fork/ 5.1″ (130mm)
Rear Suspension Single Monotube Gas/Preload Adjustable/3.0″ (75mm)

Brakes

Brake System Type Not Linked
Front Brakes Single 300 x 5mm/ Floating Rotor/ 4 Piston Caliper
Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

Tires / Wheels

Front Tires Dunlop D421 – WWW
Front Wheel 16 x 3.5 in
Rear Tires Dunlop D421 – WWW
Rear Wheel 16 x 3.5 in

DIMENSIONS

Fuel Capacity (Litres) 4.5 gal / 17.0 ltr
GCWR 1151 lbs / 523 kg
Ground Clearance 4.7 in / 120 mm
Rake/Trail 32° / 6.7 in / 170 mm
Seat Height 25.0 in / 635 mm
Wheelbase 64.8 in / 1647 mm
Overall Length (in./mm.) 93.4 in / 2372 mm

Features

Color / Graphics Matte Black
Colors (Base) Suede Black

---



2016 Victory Highball – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £See Dealer GBP (On The Road inc 20% Vat)

Specifications

Dry Weight 674 lbs / 306 kg
Displacement 106 ci / 1731 cc

Engine

Battery 12 volts / 18 amp hours
Charging System 48 amps max output
Clutch Wet, multi-plate
Compression ratio 9.4 : 1
Cooling System Air / oil
Exhaust Staggered slash-cut dual exhaust with crossover
Final Drive Carbon Fiber Reinforced Belt
Fuel Capacity 17.0 ltr
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Primary Drive Gear drive with torque compensator
Transmission 6-speed overdrive constant mesh
Valve train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Bore x Stroke 101 x 108 mm
Engine Type 4-stroke 50° V-Twin

Suspension

Front Suspension Conventional telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 3.0 in / 75 mm travel, preload adjustable spring

Brakes

Brake system type Conventional with ABS Standard
Front braking system 300mm floating rotor with 4-piston caliper
Rear braking system 300mm floating rotor with 2-piston caliper

Tires / Wheels

Front tire 130/90R16 Dunlop D421-WWW
Front Wheel 16 x 3.5 in
Rear tire 140/90R16 Dunlop D421-WWW
Rear Wheel 16 x 3.5 in

Chassis

Ground Clearance 4.7 in / 120 mm
GVWR 1,151 lbs / 523 kg
Rake/trail 32° / 6.7 in / 170 mm
Seat Heigh 25 in / 635 mm
Wheelbase 64.8 in / 1647 mm
Length 93.4 in / 2372 mm
Lean Angle 25°
Oil capacity 4.73 ltr

Features

Colors Matte Black

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
