CARVE THE CANYONS OF THE URBAN GRID.

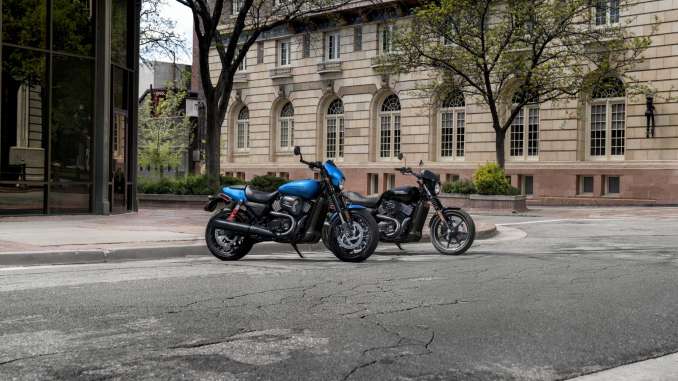

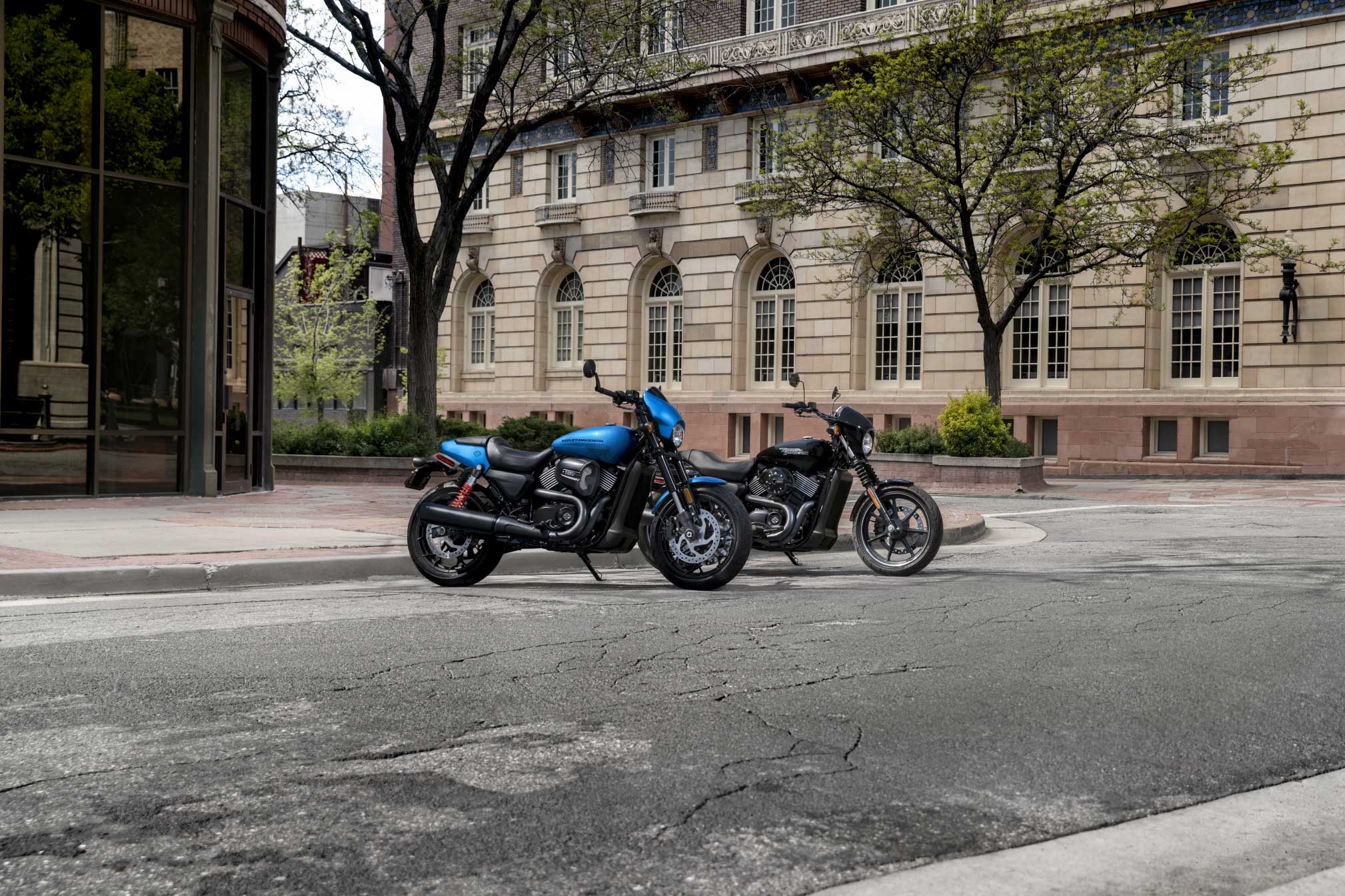

2018 Harley-Davidson Street 750:

From the liquid-cooled Revolution X® engine and confidence-inspiring ABS brakes to the nimble chassis and dialed-in suspension, the Harley-Davidson Street® 750 model was built specifically for city streets. There’s an all-new tank medallion and a two-tone paint option to complement the silver engine fins and wheel pinstripe.

2018 Harley-Davidson Street 750 Totalmotorcycle.com Key Features

Harley-Davidson Street® Story

Harley-Davidson Street® models are designed for the next generation of global riders – urban dwellers looking to express their individuality and independence. The nimble chassis and dialed-in suspension are designed and built to tear up the city streets and the minimalist, blacked-out appearance offers the perfect blank canvas for customization.

And with the lowest price point in the H-D® lineup, The Street™ family makes attaining a Harley-Davidson® motorcycle an easier reality for riders around the world.

2018 Harley-Davidson Street 750 Totalmotorcycle.com Features and Benefits

750cc Liquid-Cooled Revolution X™ Engine

The blacked-out, liquid-cooled V-Twin engine is built to conquer the hot and heavy traffic of urban streets. You can count on smooth response to the progressive throttle when you want to get through any hole that opens up in front of you.

Optional Anti-Lock Brakes (ABS)

The sophisticated, factory-installed ABS gives you confidence in the saddle knowing your bike’s going to behave when you need it.

Light Lift Off Force

Lifting the Harley-Davidson Street® 750 up off the side stand is easy, thanks to its low weight and low center of gravity. It makes pulling out from the curb feel as effortless as putting your thumb to the starter button.

Low Seat Height

The seat height is just 28-inches. And the frame and seat are narrow, which makes for an even easier reach. The advantages of a low seat also shine when the light turns green. It gives you a low center of gravity for confidence when you’re negotiating traffic, just rolling slow through a parking lot looking for a spot.

Specially Tuned Shocks

Specifically tuned and dialed in for the weight of the bike, the geometry of the frame, and the position of the rider. You’ll experience a smooth ride and excellent handling when you encounter rough urban pavement.

Dark, Aggressive, Custom Look

Sports an all-black two-into-one exhaust, black cast aluminum wheels, blacked-out front end with a café inspired speed screen, and a chrome medallion made of steel on the fuel tank.

2018 Harley-Davidson Street 750 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7599 to 8049 USD

PRICING6

Vivid Black $7,599

Color $7,894

Two-Tone $8,049

ENGINE

Engine 1 Liquid-cooled, Revolution X™ V-Twin

Bore 3.35 in.

Stroke 2.6 in.

Displacement 46 cu in

Compression Ratio 11:01

Fuel System 3 Mikuni Single Port Fuel Injection, 38 mm bore

Exhaust Black two into one

DIMENSIONS

Length 87.2 in.

Seat Height, Laden 7 25.7 in.

Seat Height, Unladen 28.3 in.

Ground Clearance 5.7 in.

Rake (steering head) (deg) 32

Trail 4.5 in.

Wheelbase 59.8 in.

Tires, Front Specification 100/80 R17

Tires, Rear Specification 140/75 R15

Fuel Capacity 3.5 gal.

Oil Capacity (w/filter) 3.3 qt.

Weight, As Shipped 492 lb.

Weight, In Running Order 514 lb.

PERFORMANCE

Engine Torque Testing Method J1349

Engine Torque 2 44.5 ft-lb

Engine Torque (rpm) 4,000

Lean Angle, Right (deg.) 28.5

Lean Angle, Left (deg.) 28.5

Fuel Economy: Estimated City/Hwy 5 54.5 mpg

DRIVETRAIN

Primary Drive Gear, 36/68 ratio

Gear Ratios (overall) 1st 14.272

Gear Ratios (overall) 2nd 10.074

Gear Ratios (overall) 3rd 7.446

Gear Ratios (overall) 4th 6.006

Gear Ratios (overall) 5th 5.037

Gear Ratios (overall) 6th 4.533

CHASSIS

Wheels, Front Type 9 Black, 7-Spoke Cast Aluminum with Machined Rim Highlights

Wheels, Rear Type Black, 7-Spoke Cast Aluminum with Machined Rim Highlights

Brakes, Caliper Type 2-piston floated front and rear

ELECTRIC

Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning

Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap

1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2018 Harley-Davidson Street 750 – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $8999 to 9519 CDN

PRICING

• Vivid Black $ 8,999
• Color $ 9,349
• Two-Tone $ 9,519

Dimensions

• Length 2,215 mm
• Seat Height, Unladen 720 mm
• Ground Clearance 145 mm
• Rake (steering head) (deg) 32
• Trail 115 mm
• Wheelbase 1,520 mm
• Tires, Front Specification 100/80 R17
• Tires, Rear Specification 140/75 R15
• Fuel Capacity 13.1 l
• Oil Capacity (w/filter) 3.1 l
• Weight, As Shipped 223 kg
• Weight, In Running Order 233 kg

Engine

• Engine ¹ Liquid-cooled, Revolution X™ V-Twin
• Bore 85 mm
• Stroke 66 mm
• Displacement 749 cc
• Compression Ratio 11:01
• Fuel System ³ Mikuni Single Port Fuel Injection, 38 mm bore
• Exhaust Black two into one

Drivetrain

• Primary Drive Gear, 36/68 ratio
• Gear Ratios (overall) 1st 14.272
• Gear Ratios (overall) 2nd 10.074
• Gear Ratios (overall) 3rd 7.446
• Gear Ratios (overall) 4th 6.006
• Gear Ratios (overall) 5th 5.037
• Gear Ratios (overall) 6th 4.533

Chassis

• Wheels, Front Type Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
• Wheels, Rear Type ⁸ Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
• Brakes, Caliper Type 2-piston floated front and rear

Performance

• Engine Torque Testing Method J1349
• Engine Torque ² 59 Nm
• Engine Torque (rpm) 4,000
• Lean Angle, Right (deg.) 28.5
• Lean Angle, Left (deg.) 28.5
• Fuel Economy: Estimated City/Hwy ⁵ 4.32 l/100 km

Electric

• Lights (as per country regulation), Indicator Lamps ⁷ High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system,gear indication, battery, low fuel warning, cruise control, ABS, miles to empty display, fog/aux lamp indicator, Tire Pressure Monitoring System indicator
• Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap

• 1. Recommended 91 octane or higher fuel (R+M)/2.
• 2. Values shown are nominal. Performance may vary by country and region.
• 3. Standard and optional fuel systems may vary by country.
• 4. See motorcycle owner’s manual for complete details.
• 5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
• 6. Measurement reflects 180 lb. (81.7 kg) operator weight.
• 7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
• 8. Standard and optional wheels may vary by country and region.

2018 Harley-Davidson Street 750 – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £5995 to 6545  GBP (On The Road inc 20% Vat)

PRICING5

Vivid Black £5,995

Colour £6,245

Two-Tone £6,545

ENGINE

Engine 2 Liquid-cooled, Revolution X™ V-Twin

Bore 85 mm

Stroke 66 mm

Displacement 749 cc

Compression Ratio 11:1

Fuel System Mikuni Single Port Fuel Injection, 38 mm bore

Exhaust Black two into one

DIMENSIONS

Length 2,215 mm

Seat Height, Unladen 720 mm

Ground Clearance 145 mm

Rake (steering head) (deg) 32

Trail 115 mm

Wheelbase 1,520 mm

Tyres, Front Specification 100/80 R17

Tyres, Rear Specification 140/75 R15

Fuel Capacity 13.1 l

Oil Capacity (w/filter) 3.1 l

Weight, As Shipped 223 kg

Weight, In Running Order 233 kg.

PERFORMANCE

Engine Torque Testing Method EC 134/2014

Engine Torque 3 59 Nm

Engine Torque (rpm) 4,000

Lean Angle, Right (deg.) 28.5

Lean Angle, Left (deg.) 28.5

Fuel Economy Testing Method EC 134/2014

Fuel Economy: Estimated Hwy/City 4.6 l/100 km

CO2 Emissions Testing Method EC 134/2014

CO2 Emissions 106 g/km

DRIVETRAIN

Primary Drive Gear, 36/68 ratio

Gear Ratios (overall) 1st 14.272

Gear Ratios (overall) 2nd 10.074

Gear Ratios (overall) 3rd 7.446

Gear Ratios (overall) 4th 6.006

Gear Ratios (overall) 5th 5.037

Gear Ratios (overall) 6th 4.533

CHASSIS

Wheels, Front Type 7 Black, 7-Spoke Cast Aluminium with Machined Rim Highlights

Wheels, Rear Type Black, 7-Spoke Cast Aluminium with Machined Rim Highlights

Brakes, Caliper Type 2-piston floated front and rear

ELECTRIC

Lights (as per country regulation), Indicator Lamps 6 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning

Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap

1. Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2. Recommended 95 octane or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. See motorcycle owner’s manual for complete details.
5. Prices shown are suggested retail prices only. Please contact your nearest dealer for further details.
6. Security system includes immobiliser and siren.
7. Standard and optional wheels may vary by country and region.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
