MORE STYLISH, SPICY AND FUN.
2020 Ducati Scrambler Icon
On the Scrambler, modern yet authentic materials are combined to perfection. The aluminium of the, beefier side panels matches the steel of the teardrop tank and the glass of the headlight. Refined features such as the black-painted crankcases and brushed cylinder head fins make the Ducati
The headlight with DRL (Daytime Running Light) boosts bike visibility in traffic, even in daylight, as do the auto-off LED indicators. More ergonomic switchgears make it easier for the rider to scroll through the LCD instrument menu, which now includes fuel level info.
The Ducati Scrambler’s wide handlebars, flat seat and renewed suspension set-up merge to provide a more comfortable and relaxed riding position. Cornering ABS maximises active safety during braking, ensuring riders get full-on riding fun. Riders will also appreciate the softer-feel hydraulic clutch control, while the adjustable lever – like the one on the front brake – ensures the lever-handlebar gap can be adapted to individual needs.
The Ducati Multimedia System lets you ride while listening to your favourite music, answer incoming calls or chat with the passenger on the intercom.
Scrambler even more eye-catching.#Joyvolution!
More stylish, spicy and fun.
The new Icon is here.
Self-Expression
The Ducati Scrambler family is completed thanks to the arrival of the version that best represents the essentialness of this iconic motorcycle: two wheels, a wide handlebar, a simple engine and a ton of fun. It’s called the Ducati Scrambler Icon Dark and it is the gateway to the “800” model range. It represents the perfect starting point for creating your own version of the bike thanks to the wide range of original accessories that suit the “Matte Black” colour of the tank and fenders, just like the extensive catalogue of apparel that completes the Ducati Scrambler world.
The Ducati Scrambler Icon Dark the versions Ducati Scrambler Icon, the Full Throttle, the Café Racer, and the Desert Sled. All the Ducati Scrambler model range is equipped with EURO 5 compliant engines with the same performance of the EURO 4 engines.
2020 Ducati Scrambler Icon Totalmotorcycle.com Key Features
• Colours

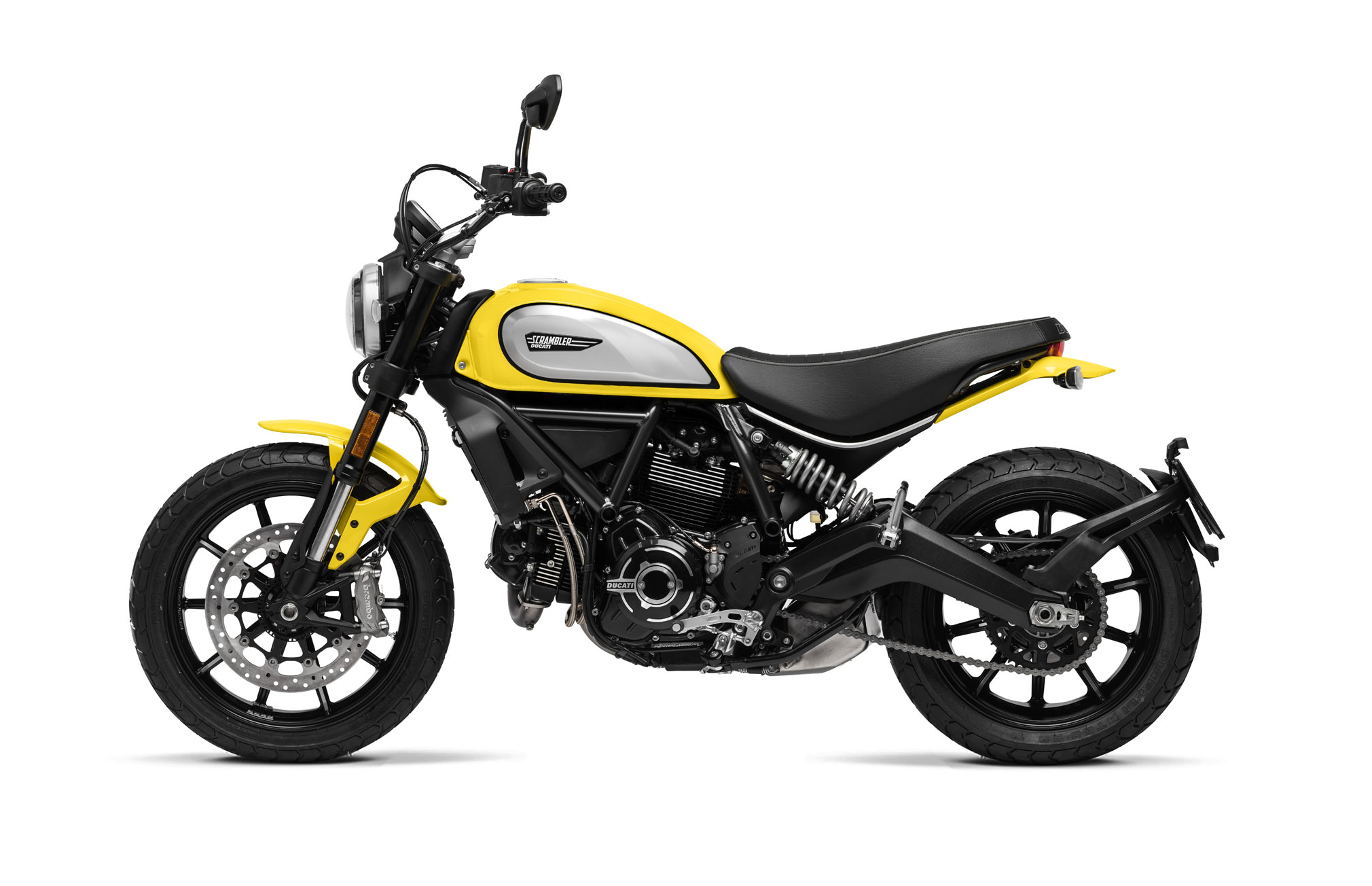

1. “62 Yellow” with black frame and black seat with grey rim

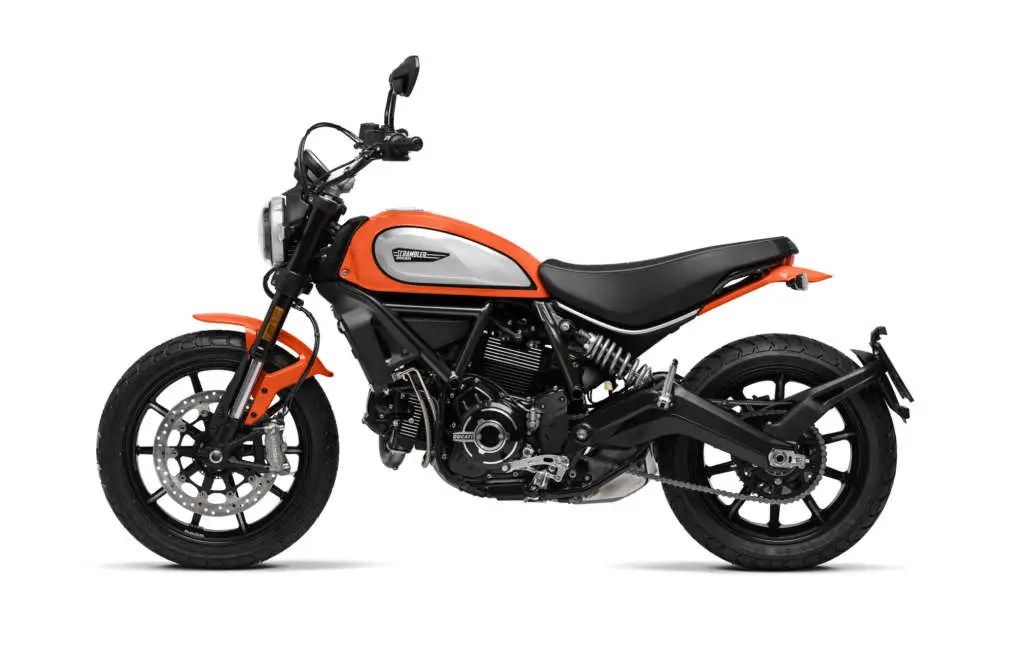

2. “Atomic Tangerine” with black frame and black seat with grey rim
• Features
o Steel teardrop fuel tank with interchangeable aluminium side panels
o Low seat (798 mm) for perfect stationary manoeuvrability
o Low weight (175 kg dry) and low centre of gravity
o Wide handlebar for more relaxed riding position
o Diffused-LED tail light
o LED indicators that turn off automatically
o LCD instruments with selected gear indicator and fuel level
o Ducati Multimedia System ready
o 803 cm³air-cooled L-twin engine
o Machine-finished aluminium belt covers
o Hydraulic clutch control with adjustable lever
o Twin spar steel trellis frame
o Die-cast aluminium swingarm
o Machine-finished 10-spoke alloy wheels, 18’’ front, 17’’ rear
2020 Ducati Scrambler Icon Totalmotorcycle.com Features and Benefits
Nonconformist, affordable and essential, the Ducati Scrambler® is the perfect blend of tradition and innovation. The renewed Ducati Scrambler is more contemporary, more comfortable and safer, ensuring even more carefree ‘Land of Joy’ fun!
Cool New Features
Explore the latest Scrambler®. A legendary bike lives again in a truly contemporary guise thanks to its new design.
Premium LED Lighting – Headlight with glass lens and DRL. LED turn indicators.
Improved Riding Experience – Ducati Multimedia System ready. New selected gear indicator and fuel level. New handlebar switch controls. Hydraulic clutch control with adjustable lever.
New Style Details – New Atomic Tangerine colour. New interchangeable aluminium muscular side panels. Machine-finished aluminium belt covers. New muffler cover.
New Cast Wheels – New aluminium 10-spoke wheels derived from the 1100.
Improved Ergonomics – A brand new seat, flatter and comfortable for the rider and the passenger. Improved suspension set-up.
Engine – New finishing touches to the engine: black cylinder heads and brushed aluminium fins.
Improved Security – Dual-channel Bosch Cornering ABS.
2020 Ducati Scrambler Icon – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See Dealer USD
Canada MSRP Price: $10,799 CDN
Europe/UK MSRP Price: £8295 GBP (On The Road inc 20% Vat)
L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore x stroke
88 x 66 mm
Compression ratio
11:1
Power **
54 kW (73 hp) @ 8,250 rpm
Torque **
67 Nm (49 lb-ft) @ 5,750 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body
Exhaust
Exhaust system with single stainless steel muffler, aluminium silencer cover, catalytic converter and 2 lambda probes
Standard
Euro 4
Consumption – Emissions
5,0 l/100 km – 117 g/km
Gearbox
6 speed
Ratio
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive
Straight cut gears, Ratio 1,85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
Upside down Kayaba 41 mm fork
Front wheel travel
150 mm (5,9 in)
Front wheel
10-spoke in light alloy, 3.00″ x 18″
Front tyre
Pirelli MT 60 RS 110/80 R18
Rear suspension
Kayaba rear shock, pre-load adjustable.
Rear wheel travel
150 mm (5,9 in)
Rear wheel
10-spoke in light alloy, 5.50″ x 17″
Rear tyre
Pirelli MT 60 RS 180/55 R17
Front brake
Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment
Dashboard
LCD
Wheelbase
1.445 mm (56.9 in)
Rake
24°
Trail
112 mm (4,4 in)
Total steering lock
35°
Fuel tank capacity
13,5 l – 3,57 gallon (US)
Dry weight
173 kg (381 lb)
Wet weight***
189 kg (417 lb)
Seat height
798 mm (31,4 in) – low seat 778 mm (30,6 in) available as accessory
Max height
1.150 mm (45,3 in) (brake reservoir)
Max width
855 mm (33,7 in) (mirrors)
Max length
2.100 – 2.165 mm (82.7 – 85.2 in)
Number of seats
Dual seat
Standard equipment
Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins.
ICON equipment
Dedicated logo, dedicate handlebar, matching mudguards, aluminium muffler cover
Warranty
24 months unlimited mileage
Maintenance service intervals
12,000 km (7.500 mi) / 12 months
Valve clearance check
12,000 km (7.500 mi)
2020 Ducati Scrambler Icon – Totalmotorcycle.com Canada Specifications/Technical Details
L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore x stroke
88 x 66 mm
Compression ratio
11:1
Power **
54 kW (73 hp) @ 8,250 rpm
Torque **
67 Nm (49 lb-ft) @ 5,750 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body
Exhaust
Exhaust system with single stainless steel muffler, aluminium silencer cover, catalytic converter and 2 lambda probes
Standard
Euro 4
Consumption – Emissions
5,0 l/100 km – 117 g/km
Gearbox
6 speed
Ratio
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive
Straight cut gears, Ratio 1,85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
Upside down Kayaba 41 mm fork
Front wheel travel
150 mm (5,9 in)
Front wheel
10-spoke in light alloy, 3.00″ x 18″
Front tyre
Pirelli MT 60 RS 110/80 R18
Rear suspension
Kayaba rear shock, pre-load adjustable.
Rear wheel travel
150 mm (5,9 in)
Rear wheel
10-spoke in light alloy, 5.50″ x 17″
Rear tyre
Pirelli MT 60 RS 180/55 R17
Front brake
Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment
Dashboard
LCD
Wheelbase
1.445 mm (56.9 in)
Rake
24°
Trail
112 mm (4,4 in)
Total steering lock
35°
Fuel tank capacity
13,5 l – 3,57 gallon (US)
Dry weight
173 kg (381 lb)
Wet weight***
189 kg (417 lb)
Seat height
798 mm (31,4 in) – low seat 778 mm (30,6 in) available as accessory
Max height
1.150 mm (45,3 in) (brake reservoir)
Max width
855 mm (33,7 in) (mirrors)
Max length
2.100 – 2.165 mm (82.7 – 85.2 in)
Number of seats
Dual seat
Standard equipment
Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins.
ICON equipment
Dedicated logo, dedicate handlebar, matching mudguards, aluminium muffler cover
Warranty
24 months unlimited mileage
Maintenance service intervals
12,000 km (7.500 mi) / 12 months
Valve clearance check
12,000 km (7.500 mi)
2020 Ducati Scrambler Icon – Totalmotorcycle.com European Specifications/Technical Details
L-Twin, Desmodromic distribution, 2 valves per cylinder, air cooled
Displacement
803 cc
Bore x stroke
88 x 66 mm
Compression ratio
11:1
Power **
54 kW (73 hp) @ 8,250 rpm
Torque **
67 Nm (49 lb-ft) @ 5,750 rpm
Fuel injection
Electronic fuel injection, 50 mm throttle body
Exhaust
Exhaust system with single stainless steel muffler, aluminium silencer cover, catalytic converter and 2 lambda probes
Standard
Euro 4
Consumption – Emissions
5,0 l/100 km – 117 g/km
Gearbox
6 speed
Ratio
1=32/13 2=30/18 3=28/21 4=26/23 5=22/22 6=24/26
Primary drive
Straight cut gears, Ratio 1,85:1
Final drive
Chain, front spocket 15, rear sprocket 46
Clutch
Hydraulically controlled slipper and self-servo wet multiplate clutch
Frame
Tubular steel Trellis frame
Front suspension
Upside down Kayaba 41 mm fork
Front wheel travel
150 mm (5,9 in)
Front wheel
10-spoke in light alloy, 3.00″ x 18″
Front tyre
Pirelli MT 60 RS 110/80 R18
Rear suspension
Kayaba rear shock, pre-load adjustable.
Rear wheel travel
150 mm (5,9 in)
Rear wheel
10-spoke in light alloy, 5.50″ x 17″
Rear tyre
Pirelli MT 60 RS 180/55 R17
Front brake
Ø330 mm disc, radial 4-piston calliper with Bosch Cornering ABS as standard equipment
Rear brake
Ø245 mm disc, 1-piston floating calliper with Bosch Cornering ABS as standard equipment
Dashboard
LCD
Wheelbase
1.445 mm (56.9 in)
Rake
24°
Trail
112 mm (4,4 in)
Total steering lock
35°
Fuel tank capacity
13,5 l – 3,57 gallon (US)
Dry weight
173 kg (381 lb)
Wet weight***
189 kg (417 lb)
Seat height
798 mm (31,4 in) – low seat 778 mm (30,6 in) available as accessory
Max height
1.150 mm (45,3 in) (brake reservoir)
Max width
855 mm (33,7 in) (mirrors)
Max length
2.100 – 2.165 mm (82.7 – 85.2 in)
Number of seats
Dual seat
Standard equipment
Steel tank with interchangeable aluminium side panels, headlight with DRL by LED light-guide and interchangeable aluminium cover, LED rear light with diffusion-light, LED turn indicator, LCD instruments with gear and fuel level indications and interchangeable aluminium cover, under-seat storage compartment with USB socket, ABS cornering, machine-finished aluminium belt covers, black engine with brushed fins.
ICON equipment
Dedicated logo, dedicate handlebar, matching mudguards, aluminium muffler cover
Warranty
24 months unlimited mileage
Maintenance service intervals
12,000 km (7.500 mi) / 12 months
Valve clearance check
12,000 km (7.500 mi)
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
