2020 KTM 690 SMC R : HOOLIGAN APPROVED.
2020 KTM 690 SMC R Guide.

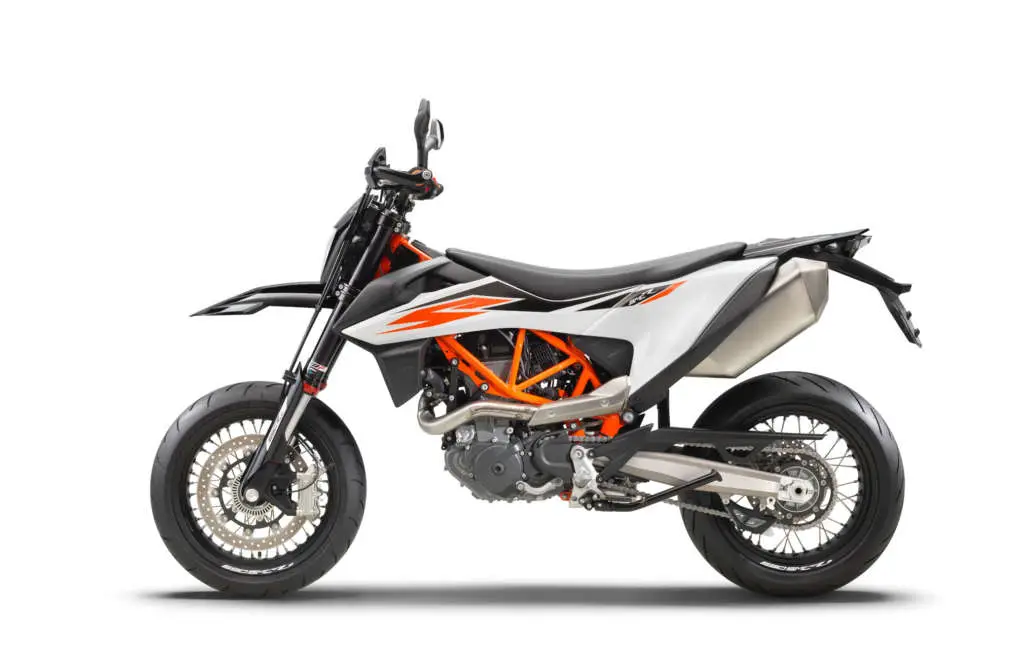

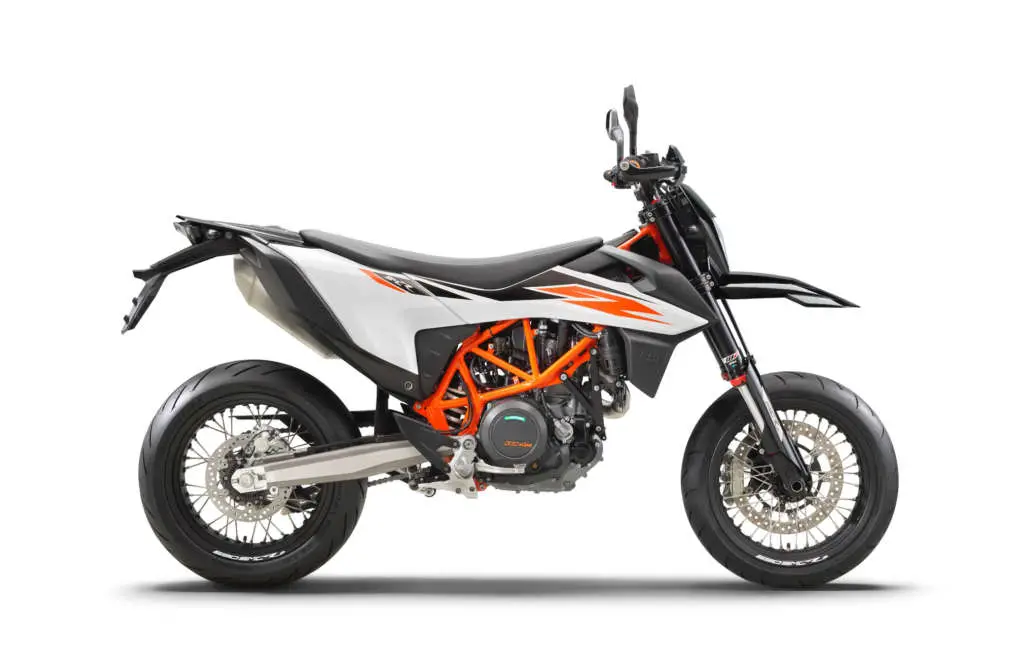

The KTM 690 SMC R raises the bar in the supermotos stakes, thanks in part to a lightweight chassis, a legendary 690 LC4 motor and a sohisticated electronics package. Whether you express your asphalt-sliding talent on mountain roads or on the apexes of your favourite track, you’ll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline. Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.
2020 KTM 690 SMC R Totalmotorcycle.com Key Features
No changes from 2019 model.
2020 KTM 690 SMC R Totalmotorcycle.com Features and Benefits
ENGINE & EXHAUST
The latest 690 LC4 engine is all about smooth, powerful performance with the right mix of character to propel you in and out of corners at warp speed. Every aspect of the LC4 engine design is geared towards providing a more heart pounding riding experience.
ENGINE
THE SUPER SINGLE
The LC4 690 cc single-cylinder engine combines powerful acceleration from the very lowest revs with an outstanding free-revving nature and refined engine running. Another big plus is besides the engine being extremely economical with fuel it also has long service intervals of 10,000 km, keeping running costs low.
AIRBOX
EASY ACCESS FILTER
Accessing the airfilter for maintenance is easy thanks to the airbox being located under the seat. This makes servicing the bike simple, and strees free, at the end of a long day’s ride.
EXHAUST
STAINLESS STEEL EXHAUST
The exhaust system is made using high-quality stainless steel. It’s routed as close as possible to the bike to h
CHASSIS
Developed on supermoto tracks and tested in a wide range of street riding scenarios, the all-new chassis handles superbly and behaves like a champion, no matter how far you push the limit. High-end equipment like WP APEX suspension the latest Brembo brakes will give you the control you need when pushing the limits.
FRAME
STRONG YET LIGHT
The frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.
SUSPENSION
PRECISE HANDLING
Highly rigid forged triple clamps with an offset of 24 mm (adjustable to 22 mm), provide a solid grip on the forks for precise handling. They allow forwards and backwards adjustment of the handlebars in four different positions for optimum rider ergonomics.
WHEELS & TYRES
PURE CONTROL
The KTM wheels use lightweight, CNC machined hubs and high-end black 17” rims to combine maximum strength with minimum weight. They are fitted with Bridgestone S21 tyres for maximum performance on the street, and plenty of grip for racetrack usage.
BRAKES
SERIOUS STOPPING POWER
Sublime class-leading BREMBO brakes combined with lightweight wave discs – 320 mm diameter front and 240 mm on the rear wheel – provide a crucial combination of stopping power and a consistent brake feel.
FUEL TANK
AMPLE FUEL, OPTIMUM FEEL
The completely redesigned larger fuel tank now has a capacity of 13.5 litres. It also acts as a load-bearing part of the chassis, making it stiffer for a more optimal feel.
ERGONOMICS & COMFORT
The 690 SMC R’s ergonomics have been completely redesigned making the bike look sharper and slimmer. This, along with a reduced seat height, promotes better handling and improved comfort while also allowing extreme lean angles for those prepared to really crank it over in turns.
HANDLEBAR
OPTIMUM CONTROL
The lightweight tapered 808 mm wide handlebars are rubber mounted to reduce vibrations. Their width and shape are aimed at providing optimum control in all situations.
FOOTPEGS
SLIM YET COMFORTABLE
The slim profile needed for maximum lean angle is helped by short footrests, while a removable rubber insert ensures comfort with street boots.
SEAT
EASY ACCESS, OPTIMAL CONTROL
The 690 SMC R’s seat height is 890mm for ease of access without sacrificing lean angle, while the seat material is finely grained for grip with leather suits.
SOFTWARE & ELECTRONICS
Gaining full control over your supermoto while maximizing its performance has never been easier with the updated electronics package that includes cornering ABS, and MTC (Motorcycle Traction Control) for optimal street-riding performance. Benefit from the full range of assistance modes with user-friendly adjustability. Quickshifter + allows effortless electronically assisted clutch-free gear shifts, whether changing up or down.
2020 KTM 690 SMC R – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ 11899 USD
Canada MSRP Price: $ 12999 CDN
Europe/UK MSRP Price: £ 9799 (On The Road inc 20% Vat)
ENGINE
DISPLACEMENT
693 cm³
POWER IN KW
55 kW
DESIGN
1-cylinder, 4-stroke engine
BORE
105 mm
STROKE
80 mm
STARTER
Electric starter
LUBRICATION
Forced oil lubrication with 2 oil pumps
TRANSMISSION
6-speed
COOLING
Liquid cooled
CLUTCH
PASC (TM) slipper clutch, hydraulically actuated
EMS
Keihin EMS with RBW, twin ignition
CHASSIS
FRAME DESIGN
Chrome-moly tubular space frame, powder-coated
FRONT SUSPENSION
WP USD Ø 48 mm
REAR SUSPENSION
WP APEX with Pro-Lever linkage
FRONT BRAKE DISC DIAMETER
320 mm
REAR BRAKE DISC DIAMETER
240 mm
ABS
Two-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)
CHAIN
X-Ring 5/8 x 1/4″
STEERING HEAD ANGLE
63.6 °
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
