2021 Honda PCX125 Guide

2021 Honda PCX125

2021 Honda PCX125 2021 Honda PCX125 2021 Honda PCX125 2021 Honda PCX125

2021 Honda PCX125: NICE MOVES.

Introducing the 2021 Honda PCX125…

We’ve taken the PCX125 apart and put it back together again – and improved every part. Smartly updated styling strikes futuristic lines and hides more under seat storage, USB Type-C socket and Smart Key convenience. A brand-new, liquid-cooled 4V engine delivers more power – improving acceleration and top speed – while still returning amazing fuel economy. It’s also equipped with Honda Selectable Torque Control (HSTC) to maintain rear tyre grip, wet or dry. A new frame, wider tyre sizes, longer-travel rear suspension, and ABS braking make for a smooth and confident ride.

FREEDOM OF THE STREETS
You’re busy and you need to get places. The new PCX125 is ready.
First, let’s explain the philosophy behind it, and what’s made it one of Europe’s favourite scooters for over a decade. Personal Comfort with an ‘X’ level – PCX – is provided by the sit-in riding position, underseat storage for a full-face helmet and all-round high build quality. There’s no waiting around for an expensive taxi, or delayed public transport – just hit the start button and go. The slim, agile PCX125 can wriggle through town traffic with ease, taking you where you need to be in style – and on time.

TIME ON YOUR SIDE
One of our best-selling 125cc scooters gets even better.
The PCX125 is designed to get you where you want to be in the city, and look good as it does. Its stunning looks have always grabbed attention, never more so than now, but, hidden away beneath the swooping bodywork, are details that make life that much easier. The ignition is operated by the Smart Key – just put the key in your pocket and ride. It also manages the optional Smart top box, which is unlocked when you’re with your PCX125, and automatically locks when you walk away.

The PCX125 is one of the quiet success stories of Honda’s two-wheeled line-up, having clocked up sales of over 140,000 units in Europe since its arrival in 2010. Its success is down to a formula Honda has had many years’ experience in perfecting: a strong, modern design that allows it to fit elegantly into a style-conscious urban lifestyle, coupled with compact dimensions that ensure it can plot a path through busy traffic – and be parked – with ease.

Also integral to the formula is an ‘X’ level of Personal Comfort (thus PCX) provided by the sit-in riding position, weather protection, underseat storage for a full-face helmet and all-round build quality. And, not to forget, outstanding value for money (both at purchase and throughout ownership) has always helped underpin the PCX’s popularity.

In 2010, the PCX was the first two-wheeler in Europe to feature Idling Stop technology; two years later it became the first scooter in Europe to use Honda’s ultra-efficient enhanced Smart Power (eSP) engine. For 2016 it gained EURO4 compliance and, in 2018, received a major design update, a new chassis and more power for its engine.

It’s a scooter that’s always moved with the times and the 2021 PCX125 leaps forward once again with a new engine and frame combination, increased convenience and comfort, plus a bold evolution of its avant-garde style – all aimed to retain the PCX’s place close to the beating heart of European two-wheeled travel.



The new PCX125 maintains a unique presence but sees its style mature; bolder and crisper, a rolling statement of difference, with redesigned LED lighting. The bodywork also hides extra under seat storage, more floor space and a USB Type-C charger in the glovebox. A new, ‘widescreen’ instrument display presents all the vital information and Honda’s Smart Key now operates the ignition and seat.

Also new is the enhanced Smart Power Plus (eSP+) four-valve engine, which offers more power and torque, and the rider benefit of Honda Selectable Torque Control (HSTC). It mounts in a redesigned tubular steel frame; for improved ride comfort the rear shocks feature extra travel and both front and rear tyre sizes have grown.



The 2021 PCX125 will be available in the following colour options:

Matt Dim Gray Metallic **NEW**

Pearl Jasmine White

Candy Luster Red

Matt Galaxy Black Metallic





2021 Honda PCX125 Totalmotorcycle.com Key Features

The second biggest selling scooter in Europe this year, the new PCX125 for 2021 is driven by a more powerful and fuel efficient eSP+ four valve water-cooled engine that now features Honda Selectable Torque Control (HSTC).

Completely new bodywork brings a futuristic new look, flowing back from the redesigned LED headlight, complete with signature running lights, to the X-shaped rear.

A new lighter steel frame promotes nimble handling, and is paired with longer, larger twin rear shocks and new wheels with bigger tyres for a more comfortable, composed ride. Practicality is enhanced further by increased underseat luggage space (up 2.4 litres to 30.4 litres) and a USB charging port.







2021 Honda PCX125 Totalmotorcycle.com Features and Benefits

Styling & Equipment

  • Bodywork completely redrawn in crisp evolution of the futuristic looks
  • New LED headlight features signature running light
  • More room under the seat; USB charging socket in the glove box
  • Smart Key operation of ignition and seat opening

A consistent design signature of the PCX125 has always been the bodywork – with its strong character line and ‘block’ primary paint colour – flowing together as a whole, front to rear. For the 2021 update the theme continues – but bolder and crisper, with a heightened sense of the futuristic style that has always been part of the PCX appeal.

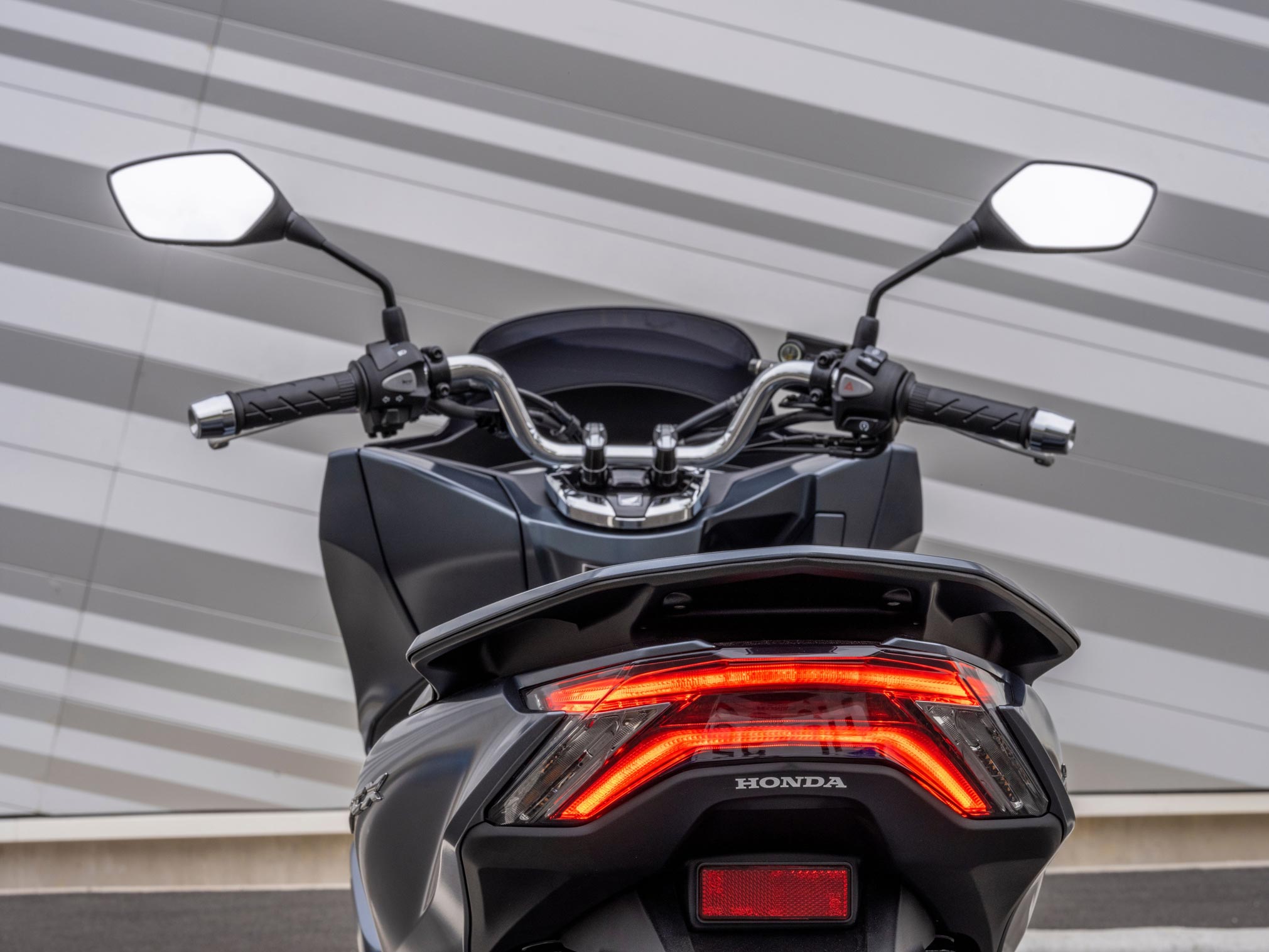

And full, premium LED lighting also sets the PCX125 apart from the crowd. The headlight is new and features a signature running light with 5 narrow flash lines positioned in parallel. It’s matched to an X-shaped taillight using multi-optic technology to give an intense, 3D effect.

All of the lines and angles have been subtly re-carved, to dramatic effect. The front fairing flares in its upper portion but elegantly draws in at the waist; alongside a slightly larger, blacked-out screen this produces improved wind protection without excess bulk.

The seat is contoured for both rider/pillion comfort and easy ground reach; there’s also 30mm extra foot space forward and at the sides. Seat height remains 764mm, but is very manageable with a ‘straddling’ height of 540mm.

The swooping lines also hide more storage capacity under the seat. An extra 2.4L brings the total volume up to 30.4L – perfect for a full-face helmet, and more. There’s also now a USB Type-C socket in the glovebox, replacing the ACC charger of the previous design, ready to plug a smartphone straight into. Even the fuel filler cap cover has been revisited, featuring space to store the fuel cap during re-fuelling.

A Smart Key is also a fresh addition to the PCX125’s armoury. As well as controlling the main ignition switch knob and compartment locking it can also manage the (optional) 35L removable Smart top box. With the Smart Key in the rider’s pocket the box is unlocked, and automatically locks when the rider walks away. It can also be locked from the key.

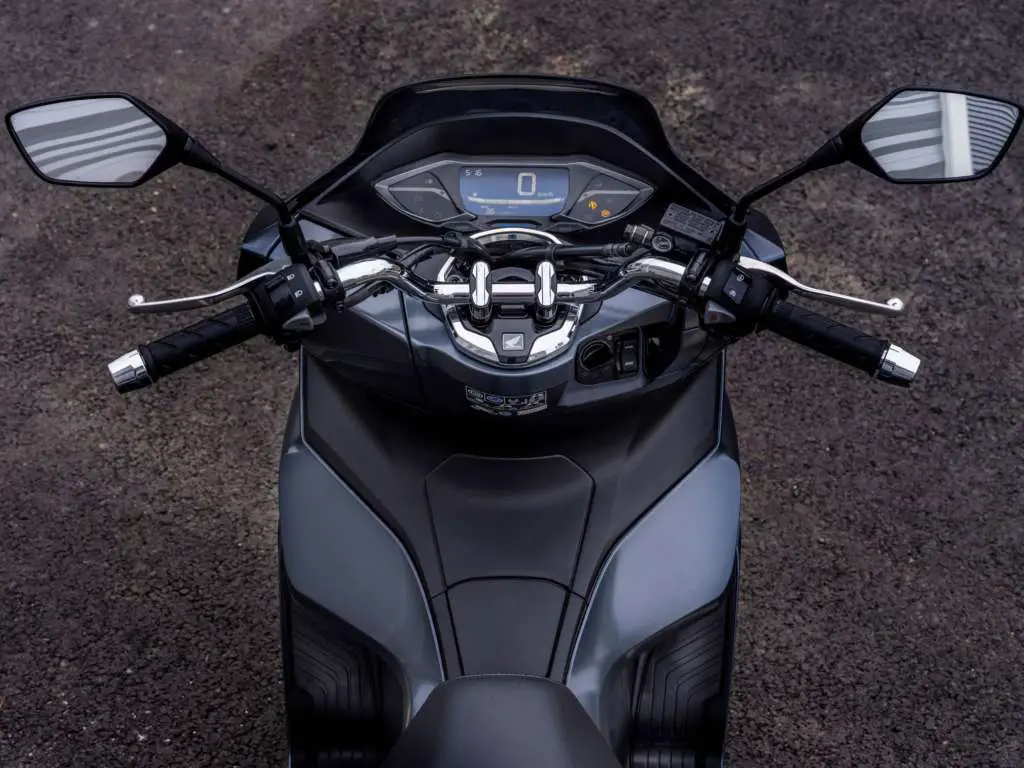

A new, ‘widescreen’ central console instrument layout presents all information neatly and concisely, in an easy-to-read format. An inverted LCD displays the speed, while other information available includes odometer, trip meter, fuel gauge, average fuel consumption and Idling Stop indicator.

Wide, chrome handlebars are a PCX signature. Mounted in traditional clamps (with newly optimised rubber density) they offer excellent leverage around town and are a neat retro touch.

The rear grab rail has been redesigned. The new shape is thinner, saving 310g from the previous design, and provides the passenger with a comfortable and supportive grab handle while on the move.



Engine

  • New, more powerful eSP+ four-valve, water-cooled SOHC engine
  • Honda Selectable Torque Control (HSTC) also applied for 2021
  • The engine features Idling Stop plus EURO5 compliance

The PCX125’s new, enhanced Smart Power Plus (eSP+) four-valve, water-cooled SOHC powerplant delivers 9.2kW @ 8,750rpm, with peak torque of 11.8Nm @ 6,500rpm. Bore and stroke is set at 53.5 x 55.5mm with compression ratio of 11.5:1 (as opposed to 52.4 x 57.9mm and 11:1 of the previous design). The shorter stroke not only allows room for the two extra valves, it reduces sliding friction.

Acceleration from a standing start or roll-on is improved, and the PCX will cruise happily around 90km/h. V-max is 98km/h. And, thanks to the engine’s fuel efficiency of approximately 47.6km/l (WMTC mode), and 8.1L tank, range is approximately 385km between fill ups.

An additional technology, new to the PCX, to boost rider confidence in wet conditions is Honda Selectable Torque Control (HSTC) which works in the background to deftly manage rear wheel traction. A ‘T’ indicator flickers on the dash when HSTC is actively reducing wheelspin, and the system can be turned off completely.

Honda’s eSP+ low-friction technologies are found throughout the engine; clever packaging of items like the oil pump (which is built into the crankcase) help to further ensure efficiency. A compact combustion chamber and PGM-FI fuel injection – with 28mm diameter throttle body, 2mm larger – optimises burning velocity and cooling performance.

An offset cylinder reduces friction caused by contact between piston and bore, efficiently transmitting combustion energy to the crankshaft. A ‘spiny’ cast-iron sleeve – with tiny surface extensions – keeps in check any distortion of the inner bore diameter. This design lowers tension in the piston ring, reducing friction. A new hydraulic cam chain tensioner further improves engine efficiencies by reducing internal vibrations and improving fuel economy.

Piston oil jets – as used by CRF450R competition MX machine – maintain consistent cooling. This allows ignition timing advances and prevents abnormal combustion, such as ‘knocking’. A hydraulic cam chain tensioner lifter inhibits chain vibration, controls noise and reduces friction.

A high-efficiency radiator – integrated into the exterior of the right-side crankcase – employs a small, light fan reducing frictional losses and lowering drag. Rolling resistance within the transmission unit is reduced by the use of three low-friction main bearings, all designed to deal with the loads they individually receive. An optimised clutch – and pulleys – complement the performance increase.

The electronically controlled, brushless ACG starter is an integrated component mounted directly on the end of the crankshaft, serving as starter motor and alternator. It spins the engine directly, eliminating any noise from gear engagement or meshing.

Idling Stop automatically stops the engine running after three seconds at idle when the scooter is stationary and the brakes applied, and re-starts it instantly the throttle grip is twisted. It’s seamless in use thanks to ACG and the swing-back system that returns the crank to its position before air intake, and a decompression mechanism that negates cranking resistance from compression. It has the functionality to ‘read’ the battery charge and turns itself off to avoid excessive drain.

Through the 2021 update the engine cover and swingarm have been redesigned to complement the new bodywork. Revisions to internal structure of the muffler and the repositioning of the catalyser have enhanced gas purification performance, helping the engine secure EURO5 compliance.



Chassis

  • New steel frame offers durability with nimble handling
  • Twin rear shocks feature larger spring diameter and longer stroke, improving comfort
  • Stylish new wheels complement the re-style; larger tyre sizes enhance road holding

The new PCX125 has a redesigned duplex steel cradle frame designed to deliver the durability needed for the rigours of urban life, without losing the in-town maneuverability the PCX has always been famous for, plus its user-friendliness and relaxed riding position.

Wheelbase is set at 1,315mm, with 26° 30’ rake and 80mm trail. Overall kerb weight is 130kg. Both wheels employ a stylish new design to complement the bodywork, and the rear is now a 13-inch diameter, 1-inch smaller. Tyre sizes are also larger, 110/70-14 front and 130/70-13 rear (as opposed to 100/80-14 and 120/70-14).

The 31mm front forks are unchanged with 89mm axle travel, but the rear shock absorbers feature 10mm extra stroke, at 95mm, and use heavier weight springs for a smoother ride on rough city streets.

Stopping power is provided by the twin-piston front caliper and 220mm disc, matched to a 130mm rear drum brake; single-channel ABS operates on the front brake.



Accessories

A range of Genuine Honda Accessories are available for the PCX 125, including  windshield and a 35-litre Smart Top Box.









2021 Honda PCX125 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
Canada MSRP Price: $  CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

TBA





2021 Honda PCX125 – Totalmotorcycle.com Canada Specifications/Technical Details

TBA







2021 Honda PCX125 – Totalmotorcycle.com European Specifications/Technical Details
ENGINE
Type Single-cylinder, water cooled, eSP+ SOHC 4-stroke 4-valve
Displacement 125cc
Bore x Stroke 53.5 x 55.5mm
Compression Ratio 11.5:1
Max. Power Output 9.2kW @ 8,750rpm
Max. Torque 11.8Nm @ 6,500rpm
Oil Capacity 0.9 L
FUEL SYSTEM
Carburation PGM-FI electronic fuel injection
Fuel Tank Capacity 8.1 L
Fuel Consumption 47.6km/litre (without Idling Stop) (WMTC mode)
ELECTRICAL SYSTEM
Starter Electric
Battery Capacity 12V/7AH (10H)
ACG Output 255W
DRIVETRAIN
Clutch Type Automatic, centrifugal, dry type
Transmission Type V-Matic
Final Drive 10.65
FRAME
Type Tubular steel duplex
CHASSIS
Dimensions (L´W´H) 1,935 x 740 x 1,105mm
Wheelbase 1,315mm
Caster Angle 26° 30’
Trail 80mm
Seat Height 764mm
Ground Clearance 135mm
Kerb Weight 130kg
SUSPENSION
Type Front 31mm telescopic fork, 89mm axle travel
Type Rear Twin suspension aluminium swingarm, 95mm  axle travel
WHEELS
Type Front 5-spoke Y-shaped cast aluminum
Type Rear 5-spoke Y-shaped cast aluminum
Rim Size Front 14M/C x MT2.75
Rim Size Rear 13M/C x MT3.50
Tyres Front 110/70-14M/C
Tyres Rear 130/70-13M/C
BRAKES
Type Front 220mm hydraulic disc with combined 2 piston caliper with ABS
Type Rear 130mm drum
INSTRUMENTS & ELECTRICS
Headlight LED
Taillight LED



All specifications are provisional and subject to change without notice.

*Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
