2022 Indian Springfield Dark Horse Guide

2022 Indian Springfield Dark Horse

2022 Indian Springfield Dark Horse 2022 Indian Springfield Dark Horse 2022 Indian Springfield Dark Horse 2022 Indian Springfield Dark Horse 2022 Indian Springfield Dark Horse

2022 Indian Springfield Dark Horse: THE PERFECT LONG HAULER.

Introducing the 2022 Indian Springfield Dark Horse…

Style meets comfort. A nod to the classic Indian Motorcycle style with modern amenities for long-haul comfort.

This is a stylish, confident, supremely comfortable, and powerful bike that’s perfect for weekend drives and has the storage you need for even longer trips.





2022 Indian Springfield Dark Horse Totalmotorcycle.com Key Features

This is a stylish, confident, supremely comfortable, and powerful bike that’s perfect for weekend drives and has the storage you need for even longer trips.



Air-Cooled V-Twin

The award-winning Thunderstroke power plant delivers exceptional torque. And three ride modes—Tour, Standard, and Sport—give your bike the feel that’s right for you.

Classic American Styling

Whether you choose to cover the bike in chrome or black out the finishes, the Indian Springfield embraces the legacy of America’s first motorcycle company.



Superior Handling

With the Indian Springfield’s cast aluminum frame, low seat height, and ergonomic controls, riders will be instantly comfortable—and inspired.



Secure Storage

The hard saddlebags are sturdy and nearly bottomless. Plus, there’s remote locking, so you can know your stuff is always safe.





Thunderstroke and PowerPlus Models

            Models

Indian Motorcycle Thunderstroke and PowerPlus-equipped motorcycles range from baggers to touring models – each offering heritage-inspired design or blacked-out, modern style. Air-cooled baggers and touring models, including Springfield, Chieftain and Roadmaster lineups, pack the Thunderstroke motor, while Challenger models deliver a class-leading 122 horsepower with the liquid-cooled PowerPlus engine. With high-displacement motors, Indian Motorcycle bagger and touring models were engineered to dominate the road. Saddlebags and the Roadmaster tour trunk provide plenty of storage for riding gear and cargo, while wind protection, comfortable ergonomics, floorboards, amenities, and a comfortable two-up seat make these models the ultimate long-distance machines.

This year’s 2022 bagger and touring lineup receives fresh new paint colors across each lineup. Colors like Quartz Gray on the Chieftain Dark Horse and the all-new Spirit Blue over Black Metallic on the Challenger Limited add to each bike’s attitude.



Accessories

To accommodate additional storage needs on longer rides, Indian Motorcycle has released its Spirit Lake Luggage Collection, which includes a Rack Bag, Day Bag and Touring Bag. Each piece features a shoulder strap for convenient carrying off the bike and attaches securely to luggage racks, sissy bars, or the rear of the passenger backrest. Each piece is sold separately but designed as a cohesive collection.

In addition, bagger and touring riders can add personalized style and add visibility to other motorists with all-new rear LED saddlebag lights. Designed to seamlessly integrate with the standard lighting, these Pathfinder Auxiliary LED Saddlebag Lights do not require any drilling, but rather feature a convenient peel-and-stick adhesive for easy and quick install.

New for 2022, Indian Challenger riders can add wind protection with the addition of Hard Lower Fairings. Designed specifically for Challenger models, the Hard Lower Fairings are compatible with all 2020-2022 model year offerings. Riders also have the option to add PowerBand Audio or additional storage compartments within the Hard Lower Fairings.





2022 Indian Springfield Dark Horse Totalmotorcycle.com Features and Benefits

BUILT FOR THE BOLD
The Indian Springfield Dark Horse is for those want more. With a streamlined stance, powerful V-Twin engine, and sinister styling, it rides as powerfully as it looks.

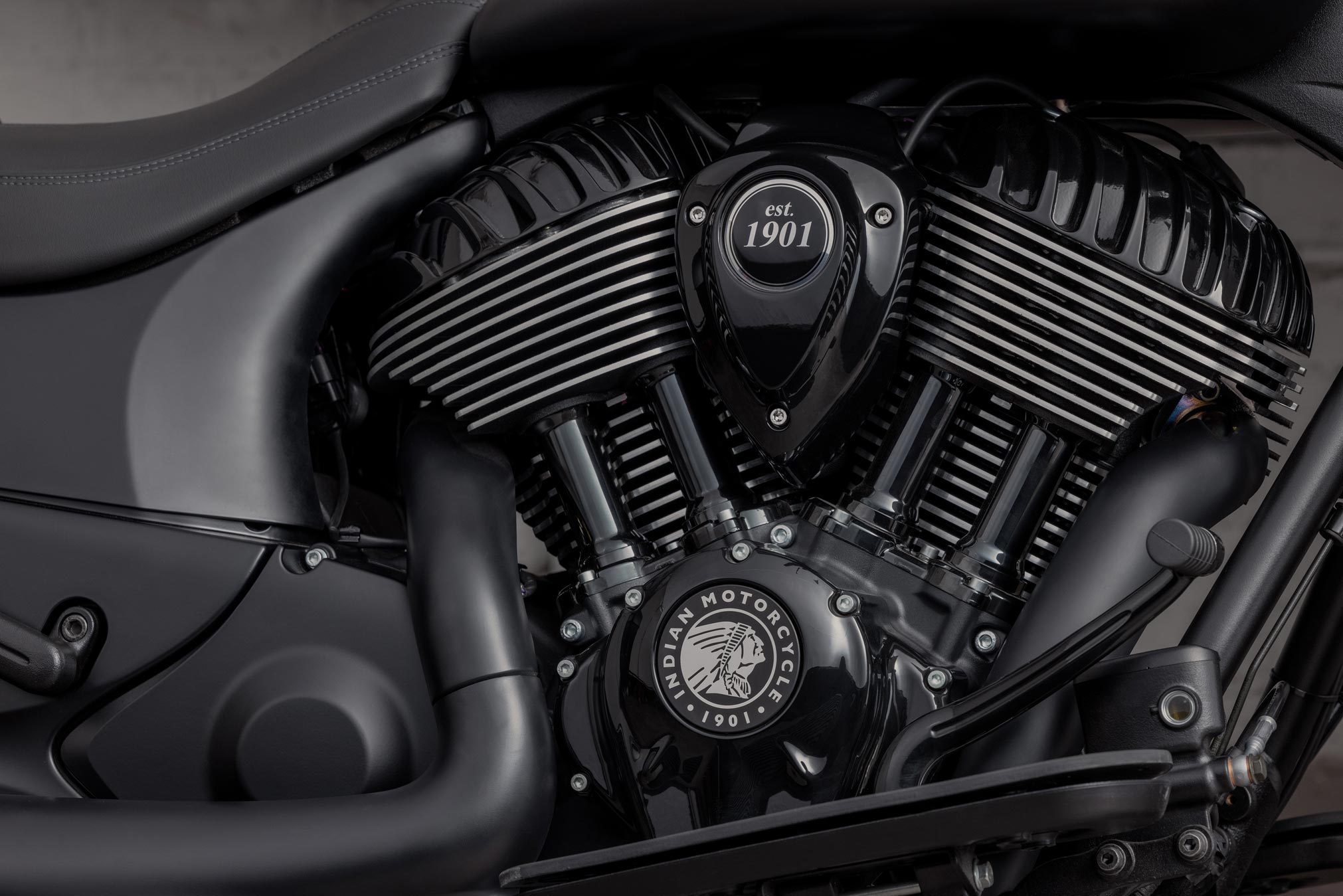

THUNDERSTROKE 116 V-TWIN ENGINE
The air-cooled Thunderstroke 116 engine delivers 171 Nm of torque for exceptional power at low RPM and a smooth ride at any speed.

MID-RISE HANDLEBARS
Adding custom style to the bike, the mid-ride handlebars come standard for a relaxed reach that feels great on the road.

CUSTOM LOOKS
Inspired by the look of custom bikes, an open front fender exposes the 19″ 10-spoke contrast-cut front wheel, with the iconic Indian Motorcycle headdress leading the way.

DEMANDS ATTENTION. COMMANDS THE ROAD.
With its styling and design, the Indian Springfield Dark Horse is impossible to ignore as it roars down the road.

SLAMMED BAGS
Slammed remote-locking hard saddlebags provide secure storage for weekend getaways and combined with mid-rise handlebars create a menacing profile.

STYLED WITH AN EDGE
Exacting attention to detail in paint with premium matte and gloss black finishes front-to-back make a bold statement and mean no compromises from a bike that makes its presence known even standing still.

FEATURES MAKE ALL THE DIFFERENCE
The Springfield Dark Horse comes loaded with ride-enhancing features like, tire pressure monitoring, cruise control, and keyless ignition.

A RIDE THAT KNOWS
Loaded with advanced technology and features, the Springfield Dark Horse combines modern convenience with unmistakable style.

CUSTOMISABLE RIDE
Choose between three ride modes – Tour, Standard, and Sport – for an experience that’s customised to your riding style.

STOP AND GO COMFORT
Rear Cylinder Deactivation automatically shuts off the rear cylinder when the bike is stopped for more comfort in slow-moving traffic. Then when you hit the throttle, the rear cylinder seamlessly kicks back up to full power.

CORNER CARVING POWER
Easy to handle and effortlessly balanced, the Springfield Dark Horse makes quick work of corners with its lightweight cast aluminum frame and improved touring design.









2022 Indian Springfield Dark Horse – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $224999 – $22999 USD
Canada MSRP Price: $27499 to $27999 CDN
Europe/UK MSRP Price: £22395 to 22495 GBP (On The Road inc 20% Vat)

Engine & Drivetrain

Bore x Stroke

4.063″ x 4.449″ (103.2mm x113mm)

Compression Ratio

11:1

Displacement

116 cu in (1,890 cc)

Drive/Driven Clutch

Wet, Multi-Plate, Assist

Electronic Fuel Injection System

Closed loop fuel injection / 54 mm bore

Engine Type

Air-cooled Thunderstroke 116

Exhaust

Split Dual Exhaust w/ Cross-over

Gear Ratio (1st)

9.403 : 1

Gear Ratio (2nd)

6.411 : 1

Gear Ratio (3rd)

4.763 : 1

Gear Ratio (4th)

3.796 : 1

Gear Ratio (5th)

3.243 : 1

Gear Ratio (6th)

2.789 : 1

Peak Torque

126 ft-lbs

Peak Torque RPM

2,900 RPM

Transmission/Final Drive

2.2 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

Dimensions

Fuel Capacity

5.5 gal (20.8 L)

Ground Clearance

5.1 in (130 mm)

GVWR

1,385 lb (628 kg)

Lean Angle

31°

Overall Height

48.3 in / 1226 mm

Overall Length

99.3 in (2,522 mm)

Overall Width

38.3 in / 972 mm

Rake/Trail

25° / 5.2 in (133 mm)

Seat Height

25.6 in (650 mm)

Weight (Empty Tank / Full of Fuel)

758 lbs / 790 lbs (344 kg / 358 kg)

Wheelbase

67.0 in (1,701 mm)

Brakes

Front Brakes

Dual / 300 mm Floating Rotor / 4 Piston Caliper

Rear Brakes

Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Cruisetec 130/60B19 66H

Front Wheel

10-Spoke Contrast Cut 19 in x 3.5 in

Rear Tires

Metzeler Cruisetec 180/60R16 80H

Rear Wheel

10-Spoke Contrast Cut 16 in x 5 in

Suspension

Front Fork Tube Diameter

46 mm

Front Suspension

Telescopic Fork

Front Travel

4.7 in (119 mm)

Rear Suspension

Single Shock w/ Air adjust

Rear Travel

4.5 in (114 mm)

Features

Color/graphics

Black Smoke, Quartz Gray

Factory Warranty

2 Years, Unlimited Miles

Gauges

Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator

Infotainment

N/A

Lights

Halogen Headlamp/Driving, LED Tail/Brake/Turn Signal

Standard Equipment

Remote-Locking Hard Saddlebags, Vinyl Rogue Seat; Tire Pressure Monitoring; Light Bar; ABS, Selectable Ride Modes; Cruise Control; Keyless Ignition











2022 Indian Springfield Dark Horse – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Bore x Stroke

4.063″ x 4.449″ (103.2mm x113mm)

Compression Ratio

11:1

Displacement

116 cu in (1,890 cc)

Drive/Driven Clutch

Wet, Multi-Plate, Assist

Electronic Fuel Injection System

Closed loop fuel injection / 54 mm bore

Engine Type

Air-cooled Thunderstroke 116

Exhaust

Split Dual Exhaust w/ Cross-over

Gear Ratio (1st)

9.403 : 1

Gear Ratio (2nd)

6.411 : 1

Gear Ratio (3rd)

4.763 : 1

Gear Ratio (4th)

3.796 : 1

Gear Ratio (5th)

3.243 : 1

Gear Ratio (6th)

2.789 : 1

Peak Torque

126 ft-lbs

Peak Torque RPM

2,900 RPM

Transmission/Final Drive

2.2 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

Dimensions

Fuel Capacity

5.5 gal (20.8 L)

Ground Clearance

5.1 in (130 mm)

GVWR

1,385 lb (628 kg)

Lean Angle

31°

Overall Height

48.3 in / 1226 mm

Overall Length

99.3 in (2,522 mm)

Overall Width

38.3 in / 972 mm

Rake/Trail

25° / 5.2 in (133 mm)

Seat Height

25.6 in (650 mm)

Weight (Empty Tank / Full of Fuel)

758 lbs / 790 lbs (344 kg / 358 kg)

Wheelbase

67.0 in (1,701 mm)

Brakes

Front Brakes

Dual / 300 mm Floating Rotor / 4 Piston Caliper

Rear Brakes

Single / 300 mm Floating Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Cruisetec 130/60B19 66H

Front Wheel

10-Spoke Contrast Cut 19 in x 3.5 in

Rear Tires

Metzeler Cruisetec 180/60R16 80H

Rear Wheel

10-Spoke Contrast Cut 16 in x 5 in

Suspension

Front Fork Tube Diameter

46 mm

Front Suspension

Telescopic Fork

Front Travel

4.7 in (119 mm)

Rear Suspension

Single Shock w/ Air adjust

Rear Travel

4.5 in (114 mm)

Features

Color/graphics

Black Smoke, Quartz Gray

Factory Warranty

2 Years, Unlimited Miles

Gauges

Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator

Infotainment

N/A

Lights

Halogen Headlamp/Driving, LED Tail/Brake/Turn Signal

Standard Equipment

Remote-Locking Hard Saddlebags, Vinyl Rogue Seat; Tire Pressure Monitoring; Light Bar; ABS, Selectable Ride Modes; Cruise Control; Keyless Ignition









2022 Indian Springfield Dark Horse – Totalmotorcycle.com Europe Specifications/Technical Details

Engine
Engine Type Thunderstroke 116
Displacement 1890 cc
Bore x Stroke 103.2mm x 113mm
Compression Ratio 11.0:1
Electronic Fuel Injection System Closed loop fuel injection / 54 mm bore
Performance
Peak Torque RPM 3000 rpm
Peak Torque 171 Nm

Drivetrain
Primary Drive Gear Drive Wet Clutch
Clutch Wet, Multi-Plate, Assist
Gear Ratio (Overall)
1st 9.403 : 1
2nd 6.411 : 1
3rd 4.763 : 1
4th 3.796 : 1
5th 3.243 : 1
6th 2.789 : 1
Final Drive 2.2 : 1

Suspension
Suspension: Front – Type/Travel Telescopic Fork / 119 mm
Suspension: Rear – Type/Travel Single Shock w/ Air Adjust / 114 mm / 63 mm ride in
Chassis
Brakes/Front Dual / 300 mm Floating Rotor / 4 Piston Caliper
Brakes/Rear Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires/Front Metzeler Cruisetec 130/80B19 66H
Tires/Rear Metzeler Cruisetec 180/60R16 80H
Wheels 10 spoke contrast cut 19″ x 3.5″ / 16″ x 5″
Exhaust Split dual exhaust w/ cross-over

Dimensions
Wheelbase 1701 mm
Seat Height 650 mm
Ground Clearance 130 mm
Overall Length 2522 mm
Overall Width 972 mm
Overall Height 1261 mm
Lean Angle 31°
Rake 25°
Trail 133 mm
Fuel Capacity 20.8 liters
GVWR 628 kg
Weight (Empty tank / full of fuel) 341kg / 355 kg

Features
Color / Graphics Black Smoke, Quartz Gray
Standard
Standard Equipment Remote-Locking Hard Saddlebags, Vinyl Rogue Seat; Tire Pressure Monitoring; Light Bar; ABS; Cruise Control; Keyless Ignition
Electrical
Gauges Tank-mounted electronic speedometer with odometer; dual trip meters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
