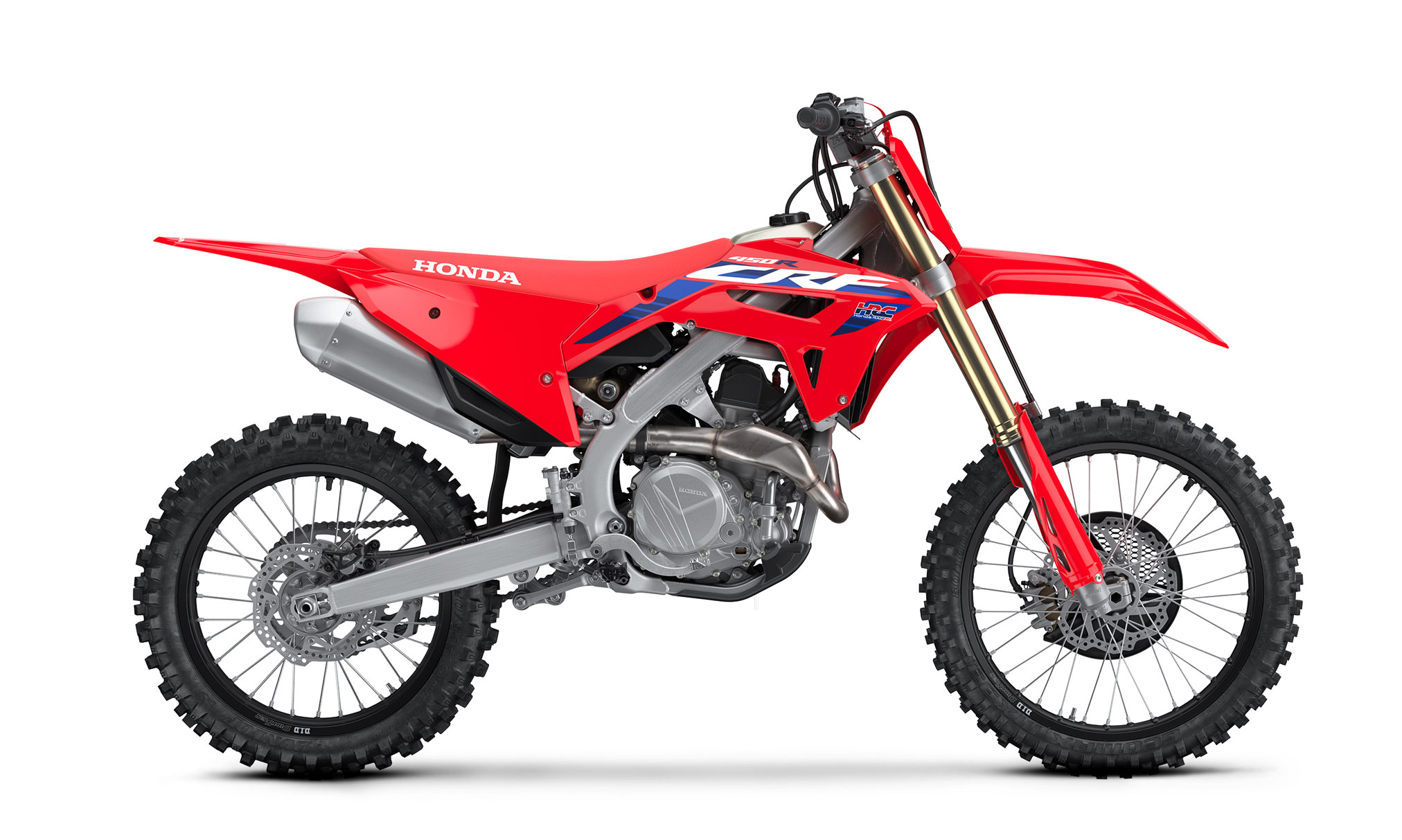

2024 Honda CRF450R
ReviewKey FeaturesFeatures & BenefitsSpecifications
2024 Honda CRF450R 2024 Honda CRF450R

2024 Honda CRF450R: CHOICE OF CHAMPIONS.

Introducing the 2024 Honda CRF450R…

Fresh off the top step of the 2023 AMA Supercross podium and Manufacturer’s Championship, the CRF450R continues to offer elite-level motocross performance for the 2024 model year. Known for its agile character, the premier-class motocrosser is exceptional at changing lines at a moment’s notice or making short work of the tightest corners on the track. The 449.8cc Unicam® engine produces robust power throughout the rev range, while the 44mm throttle body ensures smooth delivery, even at low speeds. Premium Showa® suspension offers a balanced ride and confidence-inspiring composure over the most challenging terrain. Proven at the highest level of the sport by Team Honda HRC’s Chase Sexton and Jett Lawrence, the CRF450R is the ultimate weapon for taking on the demands of modern motocross.

Motorcycle racing is one of the most demanding sports in the world, and when the gate drops you better be totally dialed in—your fitness, your skills, and your equipment. And that’s why the best riders in the world roll up to the start line on a Honda CFR450R. Look at Team Honda HRC’s Chase Sexton, who clinched the 2023 AMA Supercross championship. Or Jett Lawrence on his CRF450R in the motocross nationals. When Honda introduced the first CR250M Elsinore fifty years ago, we changed motocross forever. For 2024, our CRF450R continues the legacy of winning, combining handling, power, suspension and refinement like nothing else on the track. And if you’re looking for the absolute best of the best, check out our CRF450RWE Works Edition. It adds special touches like an exclusive Yoshimura exhaust, Twin Air filter, Throttle Jockey seat cover, Hinson clutch basket and cover, premium DID DirtStar LT-X rims, Kashima and titanium oxide-coated fork, a red cylinder head cover, and hands-on touches like special cylinder-head porting.











2024 Honda CRF450R Totalmotorcycle.com Key Features

  • 450cc liquid-cooled Unicam single-cylinder engine
  • Fuel injection
  • Electric starter
  • Hydraulic clutch
  • Titanium fuel tank
  • Light twin-spar aluminum frame
  • Close-ratio five-speed transmission
  • HRC launch control
  • Selectable engine modes

CRF450R – 50 Years in the making
We’ve been racing motocross for 50 years. The highs, the lows and everything in between, we have had it all and owned every moment. Winning at the weekend is what drives us. And winning is what’s created the new CRF450R and, for 2023 only, the CRF450R 50th Anniversary.

A very special bike marking 50 years of motocross racing.

Honda CRF450R Lightweight Muffler.
Lightweight Muffler Now Made From Tougher Aluminium
A lot can happen out on the track, we know. So, to protect the muffler from boot damage we’ve made it more durable, with zero weight gain.

Honda CRF450R 3-level Launch Control.
Fully Adjustable Launch, Traction and Engine Character
Set your CRF450R how you want it: 3-level Launch Control, Honda Selectable Torque Control (HSTC) and Engine Mode Select Button (EMSB) create a tailored racing package.

Honda CRF450R new graphics and HRC logo.
New Graphics and HRC Logo Mark Out Something Special
The fingerprints of HRC’s factory riders are all over the CRF450R. The new graphics and HRC logo celebrate a historic partnership between racing and development.

Honda CRF450R low down torque.
Increased Torque and Low-Down Power For Faster Corner Exit and Quicker Lap Times
Tim Gajser and Ken Roczen know how to win. When they asked for more low-down torque HRC gave it to them – 10.7% @ 5,000rpm, with smoother low-down power delivery.

Honda CRF450R Aluminium Twin Spar Frame With New Factory Rider Rigidity Balance.
Aluminium Twin Spar Frame With New Factory Rider Rigidity Balance
To match the engine upgrades, HRC has also tuned the frame’s feel to deliver ultimate stability, with precise feedback front and rear for full control.

Honda CRF450R updated suspension.
Updated Suspension Settings For Impressive Stability and Control
The Showa rear shock has an increased spring rate – and more damping – without feeling stiffer; the 49mm USD forks also have a new damping set-up.

More Acceleration Less Effort
So you can drive harder than ever, the engine is armed with narrower intake ports, a longer air funnel and smaller, 44mm diameter throttle body delivering higher-velocity air flow to create more torque and low-down power. New ECU settings and valve timing (straight from Tim Gajser’s #243 HRC machine) create a usable powerplant with Launch Control, HSTC and EMSB to put it completely at your command.

THE WILL TO WIN
Our first production motocross racer, the CR250M Elsinore, took to the track in 1973 and set us on our journey. The new CRF450R is built ready to race; the CRF450R 50th Anniversary celebrates 50 years of battle. And Honda’s will to win.

50 YEARS STRONGER
50 years of racing. Of winning. But always, year after year, stronger. To mark a special milestone, for one year only we’ve created something quite special. The CRF450R 50th Anniversary. It’s loaded with one-off parts; the blue seat, gold wheels and handlebar, and white number boards all pay homage to the mighty CR range of the 1980s, while unique graphics set it apart.



American Honda Announces Return of Championship-Winning CRF Models

  • CRF Performance lineup returns for 2024 with nine great models
  • Four-model CRF Trail family is back, ready to deliver off-road fun
  • Sport-naked CB300R and Pioneer 700 multipurpose side-by-side return

Following one of the most successful AMA Supercross seasons on record, with Team Honda HRC riders Chase Sexton, Hunter Lawrence and Jett Lawrence sweeping all three championships, Honda’s iconic line of CRF Performance and Trail dirt bikes returns for the 2024 model year. Also included in the announcement is the return of the sport-naked CB300R and Pioneer 700 multipurpose side-by-side.

Between the CRF Performance and CRF Trail lineups, Honda offers a wide range of off-road motorcycles that covers nearly every category, from elite-level motocross to family-friendly trail riding. The CRF Performance line includes the CRF450R, CRF450RWE, CRF450R-S, CRF450RX, CRF450X, CRF450RL, CRF250R, CRF250RX and CRF150R, each of which are tailored to push the upper limits in its respective realm of off-road riding and racing. For riders seeking a more relaxed or beginner-friendly experience, the CRF Trail family—including the CRF250F, CRF125F, CRF110F and CRF50F—offer user-friendly design, unmatched reliability, ease of maintenance and hours of fun. In addition to the CRF models, the agile and responsive CB300R brings signature sport-naked styling for 2024, and rounding out the announcement is the middleweight Pioneer 700, a multipurpose side-by-side known for its endless versatility and capability.

“It’s been an unprecedented year for Honda and the CRF Performance line,” said Brandon Wilson, American Honda Manager of Sports & Experiential. “Team Honda HRC has done an incredible job of showcasing just how capable Honda’s dirt bikes are. The knowledge gained from our championship-winning racing efforts trickles down to every model in the lineup, and even to the fun, friendly CRF Trail models, helping owners to make outdoor memories with family and friends.

We’re also pleased to welcome back the CB300R and the Pioneer 700 for 2024. We’re proud to deliver this diverse and capable range of products, offering customers numerous ways to enjoy the outdoors.”







2024 Honda CRF450R Totalmotorcycle.com Features and Benefits

ENGINE / DRIVETRAIN
The CRF450R engine boasts exceptional bottom-end and midrange power and torque, making for a linear delivery that is strong but manageable, even as the rider tires, while peak power is also very good. A five-hole piston oil jet and dual 12mm drum scavenge pump manage lubrication.

Cylinder Head: The design of the Unicam cylinder head, with the decompressor system’s counterweight on the left end of the camshaft, contributes to combustion stability in the extremely low rpm range and for strong-but-manageable power delivery on corner exits, for example, as well as resistance to stalling. Engineers followed the direction of Team Honda HRC by optimizing the cam profile for low-end torque. As before, the cylinder head cover is magnesium, with a thin-wall design for weight savings.

Intake: The CRF450R features a downdraft intake design that delivers strong, efficient power, and a large air boot (4.1 liters on the clean side of the air filter) achieves strong torque at low rpm. Following feedback from HRC, the 44mm throttle body ensures smooth power delivery at low speed. In addition, the narrow intake port shape and long air funnel result in strong low-end torque and crisp throttle response. The airbox is accessed with the removal of a single side panel bolt. The 60º fuel-injector angle enables the spray to reach all the way to the back of the butterfly, thus cooling the upstream side of the intake path for maximum intake efficiency and torque feel.

Exhaust: The engine’s exhaust port is centrally located, has an oval shape and is very straight, optimizing exhaust efficiency and torque characteristics. With the engine’s central exhaust-port location, the exhaust header and muffler are positioned close to the vehicle’s centerline for a slim profile, contributing to freedom of movement for the rider. The muffler is constructed with strong A6061-T6 aluminum for impact resistance and weight savings. A dual resonator design optimizes power, while simultaneously minimizing noise.

Clutch: The clutch is hydraulically actuated and has eight plates and a large volume for good durability with minimal slippage and light lever pull.

Electronics: A gear-position sensor allows the use of three specific ignition maps for first and second, third and fourth, and fifth gears. There are options for Standard, Smooth and Aggressive ignition maps, selectable via an all-new handlebar-mounted switch, enabling simple tuning depending on rider preference or course conditions.

In addition, Honda Selectable Torque Control offers three levels of intervention. HSTC monitors rpm spikes and responds by temporarily reducing torque by retarding ignition timing and controlling PGM-FI to aid rear traction. The three different modes differ in drive-management level, for differing riding conditions or rider preferences:

  • Mode 1: The system intervenes most lightly and waits the longest to do so—useful for reducing wheel-spin and maintaining control in tight corners.
  • Mode 2: A midpoint between modes 1 and 3 in terms of how quickly and assertively the system intervenes.
  • Mode 3: The system intervenes most quickly and assertively, which helps in conditions that are slippery or muddy.

The CRF450R’s handlebar-mounted switch allows selection between three modes, depending on conditions and rider preference. The HSTC system can also be switched off completely.

HRC Launch Control provides the best option for a strong start and also has three modes to choose from:

  • Level 1: 9,500 rpm, for high-traction conditions and/or advanced riders
  • Level 2: 8,500 rpm, for high-traction conditions and/or average riders
  • Level 3: 8,250 rpm, for slippery conditions and/or novice riders

The Engine Mode Select Button (EMSB) alters the engine’s characteristics and three maps are available to suit riding conditions or rider preference:

  • Mode 1: Standard
  • Mode 2: Smooth
  • Mode 3: Aggressive

CHASSIS / SUSPENSION
The motorcycle’s heavier components are positioned centrally and as low as possible for precise cornering without sacrificing high-speed tracking, and to achieve minimal squat under acceleration and negligible pitching during hard braking.

Frame / Swingarm / Subframe: The frame uses narrow main spars and features optimized reinforcement ribbing on the backside of the pivot plate, contributing to the low frame weight of just 18.5 pounds. Frame rigidity is optimized, allowing the front and rear suspension components to move freely and avoid binding, improving stability and bump absorption.

The subframe features a simple design that weighs just 2.0 pounds. The swingarm is narrow, providing good clearance in ruts, with rigidity tuned to maximize rear traction and cornering.

Suspension: The Pro-Link® rear-suspension system uses a Showa shock absorber with adjusters on the right side and an ultra-light steel shock spring. Because of the optimized frame rigidity, the shock moves freely, minimizing harshness, while offering hold-up for big impacts and performance in ruts.

Front suspension comprises a 49mm inverted Showa coil-spring fork and a gas-liquid separation structure. The fork setting is paired with that of the shock, for proper front-rear balance. The upper and lower triple clamps are designed to offer a good rigidity balance for optimum handling and feel through corners.

Wheels: Black D.I.D rims deliver durable performance and good looks. Petal-style brake rotors disperse heat, and a low-expansion front brake hose gives strong feel and consistent stopping power. The CRF450R comes with Dunlop’s excellent Geomax MX33 tires, generally considered to be the industry standard for soft to intermediate terrain. Developed with the help of top motocross pros, MX33s feature technologies that deliver superior grip, slide control, bump absorption and durability.

DESIGN
The CRF450R has slim bodywork, with a smooth junction of the radiator shroud and side panel, facilitating rider movement and cornering. Each radiator shroud is produced in a single piece instead of two separate parts, and Computational Fluid Dynamics (CFD) were used to design air-outlet vents in the shrouds. The radiator grills optimize the number of fins and their angle, maximizing cooling performance.

The seat base has rearward-facing tongues and front-located mounting tabs, easing installation, and using acceleration forces to keep the seat securely in place. The 1.7 gallon fuel tank is made of lightweight titanium.

Only eight fasteners are used to secure all of the main bodywork components—both radiator shrouds, both side panels and the seat, and all of the bolts for the main bodywork parts have 8 mm heads, simplifying maintenance.

A single switch cluster addresses several functions: engine stop, ride-modes and Honda Selectable Torque Control (HSTC). The starter and HRC launch control are on the right side of the Renthal® Fatbar® handlebar. There are two locations for the handlebar clamp, and the clamp can be turned 180º; as a result, four different mounting positions are possible, through a range of 26mm.

HANDLING
LIGHT NARROW FRAME
Great handling starts with a superior frame, and that’s one place where the CRF450R chassis puts you out front. First, it’s light—over a pound and a half lighter than the previous generation’s. By making the frame’s main spars narrow, we save weight, but more importantly we make the chassis more responsive by fine-tuning the lateral rigidity. The result is a bike that gets into, around, and out of corners faster.

NARROW SWINGARM
Designed in conjunction with the frame, by using narrower main members (just like the frame uses narrower main spars), we’ve matched the swingarm’s lateral rigidity to the rest of the chassis. What you get is a balanced, fully integrated approach to frame stiffness, letting you get around corners faster and with better feel.

LIGHTWEIGHT SUBFRAME
The CRF450R subframe is nearly three-quarters of a pound lighter than the last generation’s part. We’ve simplified its construction too.

SEALED BATTERY BOX
Three key features you should know about: The battery box sits low, for improved center of gravity. Second, it’s also easy to service. And third, it’s water-tight, so there’s less to worry about when racing in wet conditions.

TUNED TRIPLE CLAMPS
The CRF450R is a perfectly matched package. With the frame and swingarm featuring an optimized lateral stiffness, and the fork legs featuring a stiff, solid-feel axle fixture, we joined the two with equally refined upper and lower triple clamps. Working in concert, they help improve and balance total rigidity, responsiveness and turning performance.

REAR SUSPENSION
The CRF450R’s frame design lets us fit a special rear shock. The shock’s valving resets fast for better response. In addition, it features a special steel spring that cuts weight without cutting performance. With the RWE, you get additional special A-Kit shock tuning and valving.

SHOWA SPRING FORK
The 49mm Showa fork features a conventional spring design that helps increase the CRF450R’s front-suspension precision, handling and feel. The spring rate provides better bottoming resistance and improved handling. Plus, on the CRF450RWE, the inner rod has a special Kashima coating, and the outer tubes feature a titanium oxide coating.

SINGLE-PIPE EXHAUST
The CRF450R uses a single-pipe header. It routes close to the center of the bike, and its light overall construction helps improve weight distribution. The single muffler uses a pressed-alloy design that lets us shape the muffler body for better rider ergonomics and lighter weight.

YOSHIMURA EXHAUST
The CRF450RWE’s exhaust is another premium item. It uses a stainless header along with a titanium midpipe and muffler made specially for us by Yoshimura. Super light and super trick, the exhaust tucks away for better ergonomics too. The CRF450R uses a single-pipe header. It routes close to the center of the bike, and its light overall construction helps improve weight distribution. The single muffler uses a pressed-alloy design that lets us shape the muffler body for better rider ergonomics and lighter weight.

ENGINEERING
HYDRAULIC CLUTCH
The CRF450R features the first hydraulically actuated dirtbike clutch we’ve offered outside of our works bikes. Made by Nissin, it’s the same design as in our Grand Prix MX machines, and performs better than third-party conversions. You get a clutch-lever pull that’s ten percent lighter at its peak, even though it’s paired with an eight-plate clutch. Plus, you’ll never have to worry about making a clutch-cable adjustment, even during the longest events.

EXCLUSIVE HINSON CLUTCH BASKET
The CRF450RWE gets a premium clutch basket made by Hinson, and a tasty Hinson clutch cover to top it all off.

EIGHT-PLATE CLUTCH ASSEMBLY
While the CRF450R’s hydraulic clutch gets all the attention, make sure you pay attention to the clutch assembly itself. The bike uses an eight-plate design to improve durability and hookup. That means 85 percent less slip at peak horsepower, and 27 percent more total torque transmission through the clutch pack over a seven-plate clutch. Even the spring is super strong for better lockup, but thanks to the hydraulic actuation, clutch-lever pull is lighter.

HRC LAUNCH CONTROL
We’re talking about a special ECU program here: push the button to select the mode, hold the throttle open, release the clutch, and the CRF450R will do the rest, launching you into the first turn with a big advantage. It turns your bike into a holeshot-seeking machine!

Honda SELECTABLE TORQUE CONTROL (HSTC)
The button on the handlebar by the clutch perch activates our Honda Selectable Torque Control (HSTC). You can choose from one of three settings to perfectly dial your bike in depending on how much traction is available.

ENGINE MODE SELECT BUTTON
This simple handlebar-mounted button lets you dial in engine power delivery character with a push of your thumb. Choose between Standard, Smooth and Aggressive, depending on track conditions.

COMPACT FUEL PUMP
No detail is too small for our engineers—especially if they can make it smaller and lighter. That’s why we even made the CRF450R’s fuel pump super compact and super light. Why carry around any extra weight when you don’t have to.

ONE-PIECE RADIATOR SHROUDS
Using computer-aided Computational Fluid Dynamics, our engineers fine-tuned the CRF450R’s radiator shrouds to increase cooling. You can see that they’re a one-piece design, but more important, they promote better cooling for more consistent power, longer into a race, especially when you’re really on the gas and working the engine hard.

REAR BRAKE PADS
Brakes are for more than just stopping: they help you set up the bike in turns and jumps. Which is why we pay so much attention to detail like brake pads. They’re designed to last longer and give you more stopping power—a real win/win to help you win.

260mm FRONT BRAKE
The CRF450R’s large front-brake disc measures a whopping 260mm. You get great brake feel and a pattern that cuts down on weight. Front and rear brake-disc guards are part of the package too.

TITANIUM FUEL TANK
Grams and performance count, and the CRF450R uses a titanium fuel tank. Light and strong, it maintains the same capacity as our previous plastic unit, while freeing up more space and helping to centralize fuel mass.

CONVENIENCE
SEALED AIRBOX AND FILTER
Along with the special air filter, the airbox shape helps deliver more torque. You can access the airbox through the left number plate. And because the CRF450R’s filter has no rubber gasket where it interfaces with the intake boot, cleaning and servicing the filter is faster and less messy.

ELECTRIC STARTER
By ditching the kickstarter entirely, our engineers can make the CRF450R lighter. Electric starters and lithium-ion batteries are so light now and so good that putting them on a bike like this is a win/win combination. And winning is what a CRF450R is all about.

SWITCH ASSEMBLY
Check out the controls on the CRF450R. We’ve made them light and intuitive. Controls used to be your bike’s shifter, clutch, and brakes. Now you have things like launch assist, selectable power modes, and more. We believe they should be easy to use, especially when you’re concentrating on winning.

PERFORMANCE
EXCLUSIVE WORKS EDITION
Simply stated, the best of the best. The CRF450RWE Works Edition includes all the standard CRF450R features, but also gets a special hand-ported cylinder head; Hinson clutch basket and cover; Twin Air filter, Throttle Jockey graphics and seat cover; upgraded DID DirtStar LT-X rims; an exclusive Yoshimura exhaust system including a titanium midpipe and muffler; Kashima and titanium oxide-coated lower fork legs; revalved suspension; an RK gold chain; special ECU settings; and black triple clamps. Available in extremely limited numbers.

450cc UNICAM ENGINE
Honda Unicam cylinder heads combine the best of single- and double-overhead-cam designs. The configuration contributes to a compact engine that saves weight over a comparable dual-overhead-camshaft motor and also permits a narrow included valve angle. This flattens the combustion chamber to facilitate ignition flame propagation, allowing a high compression ratio. Since less space is taken up in the cylinder head, the camshaft sits lower in the head for a more compact engine and a lower center of gravity.

AUTOMATIC DECOMPRESSION SYSTEM
You can’t see this unless you take the engine apart, but you’ll notice it on the track. Last year our engineers redesigned the auto decompression hardware, and also moved it from the right side of the cam to the left. The result is less stalling at extreme low RPM (think deep into a turn without downshifting) as well as better rideability.

CENTRAL-PORT CYLINDER HEAD
The 2024 CRF450R features a special cylinder head. Its biggest feature: an oval-shaped centralized exhaust port. Together with the single-muffler exhaust, it boosts power from 5000 rpm up, and increases exhaust efficiency. Plus, the CRF450RWE gets some exclusive porting touches and engraving. The cylinder head cover is red too, so it really stands out.

TITANIUM INTAKE VALVES
Lightweight titanium intake valves cut down on reciprocating mass and permit the use of smaller valve springs, reducing overall engine height.

FUEL INJECTION SYSTEM
By installing the CRF450R’s fuel injector at a 60-degree angle, the injector sprays fuel all the way back to the throttle butterfly. The engine gets a cooler, denser fuel charge for more power and better torque. It’s little details like this that put the CRF450R up front.

DOWNDRAFT FUEL INJECTION
The CRF450R features a downdraft intake tract and FI body to help increase both power and fuel-metering precision. It’s part of the reason the CRF450R offers such explosive power and massive torque, especially out of the starting gate and in the critical first 100 feet of the race to the first turn.

DOUBLE-SPRAY INJECTOR SETTINGS
The CRF450R’s fuel-injection system sprays twice per intake cycle. That helps increase fuel atomization without adding the weight or complexity of a second injector. The better fuel atomization means more power in the midrange and on overrev—you’ll feel it the first time you race.

DUNLOP MX33 TIRES
These are the tires of choice for serious MX racers right now, so naturally, we fit the best to the 2024 CRF450R. The Dunlops hook up in a wide variety of conditions, and help you put the CRF450R’s improved cornering performance to the ground.

CYLINDER HEAD LAYOUT
The CRF450R uses our latest finger-follower rocker design. The Unicam cylinder head remains one of the most efficient in the MX world, giving you the design and performance of a double-overhead-cam layout but the compactness of a single-overhead-cam design.

13.5:1 COMPRESSION RATIO
Honda engineering at its best: The CRF450R’s cylinder head features a highly refined combustion-chamber shape and generous squish area, allowing an impressive 13.5:1 compression ratio for superior efficiency and power.

SKID PLATE
A factory skid plate is light and offers the engine and lower-frame protection that a racer demands.

COMFORT
SLIM BODYWORK
The CRF450R’s extra-slim bodywork makes it a lot easier to move around on the bike, and that maximizes your riding freedom. When we reduced the total number of fasteners needed to remove the body panels, maintenance off the bike got easier too.

FRESH STYLING
The 2024 CRF450R gets graphics that take their styling cues right off our HRC works bikes. Plus, to keep them looking good, our “in mold” graphics are more durable, especially after repeated track sessions and cleaning. And the CRF450RWE goes one step further, with an exclusive graphics package by Throttle Jockey.

RENTHAL “FATBAR”
The aluminum Renthal Fatbar features a bend that’s even better than the legendary Honda “CR” bar. It’s the new standard of excellence—you’re gonna love it! In addition, the CRF450RWE gets special Renthal grips.

EASY-ACCESS SEAT
Sometimes you need to think out of the box—that’s what we did with the CRF450R’s seat. Compared to earlier designs, we’ve moved the attaching bolts from the rear to the front, and the tongue from the front to the rear. When it’s time for service, removing and installing your CRF450R’s seat is easier than ever. Plus, on the RWE, you get an exclusive Throttle Jockey seat cover.

DETAILED CABLE ROUTING
You may not notice it at first, but routing the CRF450R’s throttle cables and hydraulic clutch line let our engineers shave almost half a pound off the bike. Light is always right!









2024 Honda CRF450R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $9,699 USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £8999 GBP (On The Road inc 20% Vat)

ENGINE
Type 449.8cc liquid-cooled 10º single-cylinder four-stroke
Valve Train Unicam® OHC, four-valve; 38mm intake, titanium; 31mm exhaust, steel
Bore x Stroke 96.0mm x 62.1mm
Compression Ratio 13.5:1
Induction Programmed fuel-injection system (PGM-FI); 44mm throttle bore
Ignition Full transistorized ignition
Starter Push-button electric starter
Transmission Constant-mesh 5-speed; manual
Clutch Multiplate wet, hydraulically actuated (6 springs, 8 plates)
Final Drive #520 chain; 13T/49T
SUSPENSION
Front 49mm fully adjustable leading-axle inverted telescopic Showa coil-spring fork w/ 12.2 in. travel
Rear Pro-Link system; fully adjustable Showa single shock w/ 12.4 in. wheel travel
BRAKES
Front 2-piston caliper (30mm, 27mm) hydraulic; single 260mm disc
Rear 1-piston caliper hydraulic; single 240mm disc
TIRES
Front Dunlop Geomax MX33 80/100-21 w/ tube
Rear Dunlop Geomax MX33 120/80-19 w/ tube
MEASUREMENTS
Rake (Caster Angle) 27.1°
Trail 114mm (4.48 in.)
Length 85.9 in.
Width 32.6 in.
Height 49.9 in.
Ground Clearance 13.2 in.
Seat Height 38.0 in
Wheelbase 58.3 in.
Fuel Capacity 1.7 gal.
Color Red
Curb Weight* 245 lbs.

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Specifications subject to change







2024 Honda CRF450R – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Engine type

Liquid-cooled single-cylinder

Displacement

449 cc

Bore & stroke

96 mm x 62.1 mm

Compression ratio

13.5:1

Valve train

Unicam, 4 valves

Fuel delivery

PGM-FI electronic fuel injection with 44 mm throttle bore

Transmission

Five-speed

Final drive

#520 chain; 13T/49T

Chassis & Suspension

Front suspension

49 mm inverted Showa fork with rebound and compression damping adjustability;
273 mm (10.7 in) travel.

Rear suspension

Pro-Link® system; fully adjustable Showa single shock; 315 mm (12.4 in) travel

Dimensions & Additional Information

Tires

Front: 80/100 – 21
Rear: 120/80 – 19

Brakes

Front: 260 mm disc
Rear: 240 mm disc

Ground clearance

336 mm (13.2 in)

Seat height

965 mm (38 in)

Wheelbase

1,481 mm (58.3 in)

Curb weight

111 kg (244 lb.)

Fuel capacity

6.3 litres

Colour

Extreme Red

Warranty

No warrranty







2024 Honda CRF450R – Totalmotorcycle.com Europe Specifications/Technical Details

Engine

Bore × Stroke (mm) 96.0mm x 62.1mm
Carburation CDI Electronic Fuel injection
Compression Ratio 13.5 : 1
Engine Displacement (cc) 449.7cc
Engine Type Liquid-cooled 4-stroke single cylinder uni-cam
Starter Electric
Oil Capacity (Litres) 1.25 Litres
Wheels

Brakes Front Single 260mm disk
Brakes Rear Single 240mm disk
Suspension Front Showa 49mm USD fork
Suspension Rear Showa monoshock using Honda Pro-Link
Tyres Front Dunlop MX33F
Tyre Size Front 80/100-21-51M
Tyre Size Rear 120/80-19-63M
Tyres Rear Dunlop MX33
Wheels Front Aluminium spoke
Wheels Rear Aluminium spoke
Dimensions and Weights

Caster Angle 27.7°
Dimensions (L×W×H) (mm) 2,183mm x 827mm x 1,267mm
Frame type Aluminium twin tube
Fuel Tank Capacity (Litres) 6.3 litres
Ground Clearance (mm) 336mm
Kerb Weight (kg) 105.8kg
Seat Height (mm) 965mm
Trail (mm) 113.9mm
Wheelbase (mm) 1,481mm
Transmission

Clutch Wet type multi-plate
Final Drive Chain
Transmission Type Constant mesh, 5-speed manual





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10046 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
