Review – Key Features – Features & Benefits – Specifications
2024 Yamaha XMAX: EVERYTHING IS POSSIBLE.
Introducing the new 2024 Yamaha XMAX…
The ultimate Sport Scooter with Y-Connect smartphone connectivity and a liquid‑cooled engine that is both fuel efficient and performance proven.
The XMAX is the ultimate Sport Scooter that is both fuel efficient and performance proven. High-tech features distance the XMAX from your typical bare-bones scooter and is ready to go whenever you are, whether you need to get groceries down the street or venture off into the countryside. Ideal for busting city traffic on weekdays and enjoying a relaxed ride on the weekend, what will you do with your XMAX?
2024 Yamaha XMAX Totalmotorcycle.com Key Features
- Smartphone connectivity
- Garmin compatible navigation system
- 4.2-inch colour TFT infotainment multi-theme screen
- Advanced 292cc Liquid Cooled Engine
- Modern fuel injection featuring a 12-hole injector
- Fully Automatic Continuously Variable Transmission
- Large motorcycle-type front fork that bolts to the steering stem at both the top and bottom triple clamps
- Large 15-inch front and 14-inch rear wheels for enhanced handling and sporty style
- 267mm front and 245mm rear disc brakes
- Yamaha’s Smart Key system eliminates the need to use the key to access the machine
Bold XMAX Styling
Virtually every part of the XMAX’s sleek and sporty exterior is designed to create a more compact and visually impressive machine. Radical X-shaped LED headlights and taillights complement the aggressive styling and instantly distinguish the XMAX from anything else on the road. High-mount LED front indicators add to the streamlined look, while seat design increases comfort and decreases leg reach to the ground for greater accessibility.
Full-Color 4.2-inch TFT Display
The XMAX comes equipped with one of the most impressive dashboards to be found on any Sport Scooter. This comprehensive instrumentation features a 3.2-inch LCD speedometer located above a high-tech 4.2-inch color TFT infotainment display.
Yamaha Y-Connect Smartphone Connectivity
Yamaha Motorcycle Connect (Y-Connect) smartphone connectivity allows riders to connect their smartphone directly to their scooter to enable a wide-range of convenient capabilities including phone and music control, extensive vehicle running information collection and shareability, along with a full Garmin turn-by-turn navigation system facilitated through Garmin’s StreetCross app. Y-Connect rider selections are made via intuitive handlebar-mounted switchgear and displayed on the TFT screen. Best of all, Yamaha Motorcycle Connect, the Y-Connect app and the Garmin StreetCross app are all free-of-charge (available for iOS and Android).
Sporty, Fuel Efficient Engine
Featuring technology used in Yamaha’s high-performance sport bikes, the XMAX’s 292cc single-cylinder Blue Core engine is smooth, efficient and ready for everything from the day-to-day commute to fun rides on the weekend.
Convenience & Technology
With a fully-automatic transmission, the XMAX is exceedingly simple to ride and comes standard with an extensive list of rider aids, including Traction Control and ABS. Combined with a frame designed for light and neutral handling, the XMAX makes for a confidence-inspiring ride on any road.
Luxury + Comfort + Practicality
High-tech features distance the XMAX from your typical bare-bones scooter, including the unique LED lighting and advanced instrumentation. With plenty of lockable onboard storage, a 12V power port to recharge small devices and an adjustable handlebar and windscreen, the XMAX is a ready to go whenever you are, whether you need to get groceries down the street or head across the state.
2024 Yamaha XMAX Totalmotorcycle.com Features and Benefits
ENGINE
Advanced 292cc Engine
The XMAX is powered by an advanced 292cc liquid-cooled, four-valve single that develops smooth, tractable power. The cylinder is crafted from Yamaha’s DiASil aluminum for excellent heat dissipation, with a lightweight forged piston and forged crankshaft. A counterbalancer ensures minimal vibration while the offset cylinder layout and semi-dry-sump lubrication system help reduce friction and drag inside the engine.
Full Automatic Convenience
Thanks to Yamaha’s Continuously Variable Transmission, the XMAX offers the convenience of truly ‘twist and go’ riding, with no gears and no clutch. This gives the XMAX an easy-going riding character that is ideal for busting city traffic on weekdays and enjoying a relaxed ride on the weekend. The CVT system also features a large air-cooling path for the drive belt, reducing heat and engine noise significantly.
Fuel Injection & Traction Control
Modern fuel injection features a 12-hole injector for excellent response, and just like Yamaha’s cutting edge supersport and sport-touring machines, the XMAX features a Traction Control System. The TCS continuously monitors wheel speeds, and if the system detects rear tire slip, the engine smoothly cuts power to help prevent uncontrolled wheelspin.
Impressive Fuel Economy & Range
Thanks to the efficient engine design features and advanced powertrain, the XMAX delivers 75 mpg. Combined with a large 3.4-gallon fuel tank, the XMAX boasts impressive cruising range.
CHASSIS/SUSPENSION
MAX Series DNA
The XMAX pushes the design envelope with advanced sport styling and aggressive, angular cues that set this Yamaha way ahead of the competition with its high-class appearance that elevates the XMAX beyond expectations.
Motorcycle-Type Front Fork
Unlike most scooters, the XMAX features a large motorcycle-type front fork that bolts to the steering stem at both the top and bottom triple clamps. This provides an ideal balance of strength and chassis rigidity, and better damping feel and shock absorption when compared to typical scooter-style forks.
Lightweight Steel Frame
Designed for light and neutral handling character, the XMAX’s steel frame results in a wet weight of only 397 pounds fully fueled which makes for exceptional maneuverability.
Large Wheels & Tires
The XMAX features large 15-inch front and 14-inch rear wheels for enhanced handling and sporty style. The XMAX also mounts the latest Dunlop® Scoot Smart tires for excellent traction in both wet and dry conditions.
Anti-Lock Braking System
With large 267mm front and 245mm rear disc brakes, the XMAX gives the rider controllable braking power. Backed by the security of Yamaha’s anti-lock braking system, you’ll have confidence in all sorts of road conditions.
ADDITIONAL FEATURES
Smart Key System
Yamaha’s Smart Key system eliminates the need to use the key to access the machine. Starting the bike, accessing the storage compartments and fuel tank, and locking the handlebar can all be done using the proximity Smart Key.
Comfort Seat
The seat is designed for exceptional comfort and decreased leg reach to the ground for greater accessibility.
All-Inclusive Storage
Further boosting convenience is a huge underseat storage area that locks securely to keep valuables safe and is large enough for two full-face helmets. LED lighting comes standard, and the fairing also includes two additional storage bays, one of which locks electronically and includes a 12V DC outlet.
Distinctive LED Lighting
Boosting both style and visibility, the XMAX uses LED lighting for sharp, visible taillights and brilliant, roadway illuminating headlights. Radical X-shaped LED headlights and taillights complement the aggressive styling and instantly distinguish the XMAX from anything else on the road. High-mount LED front indicators add to the streamlined look. LEDs also use less power and last much longer than conventional bulbs, reducing maintenance needs.

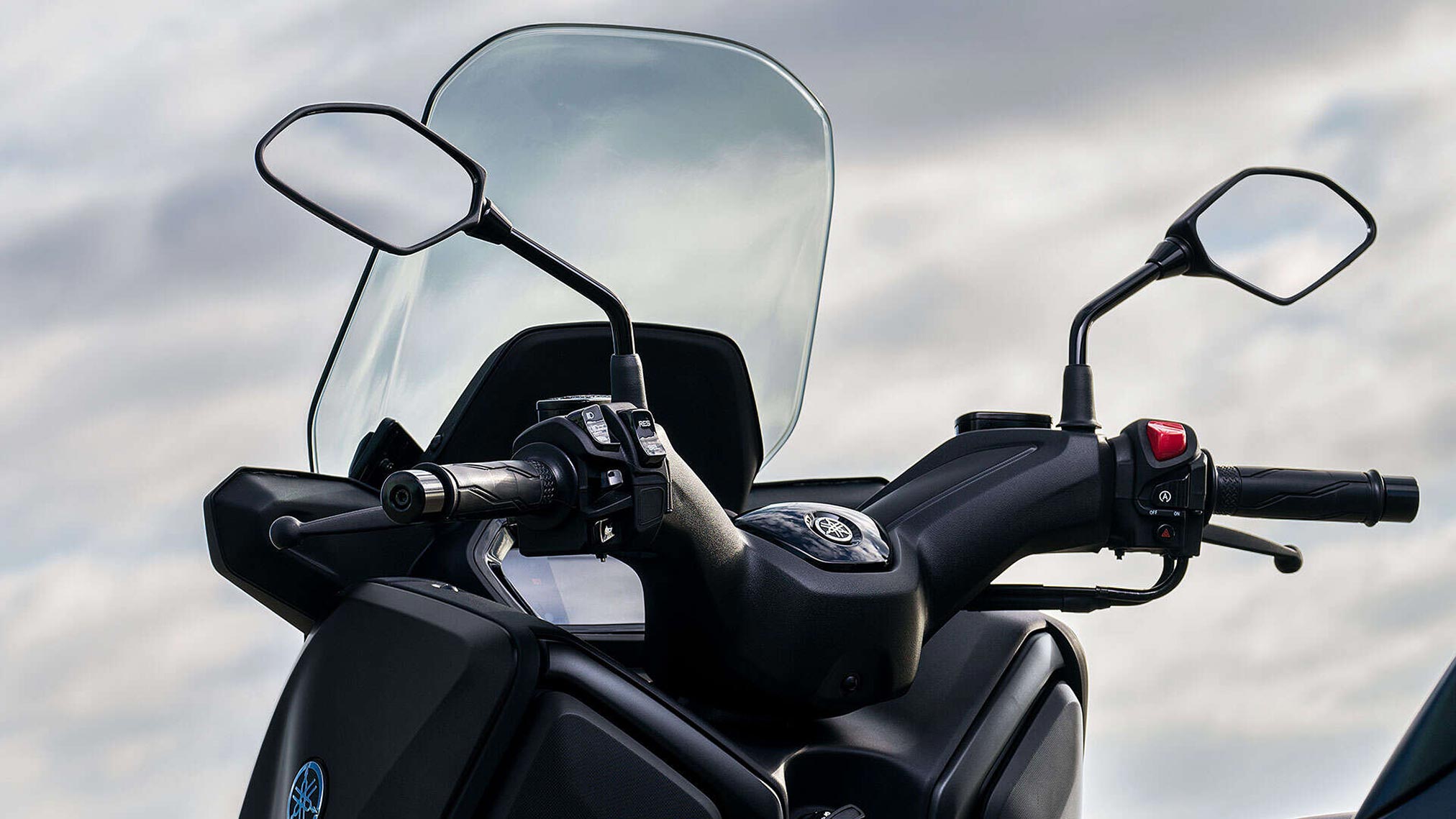

Adjustable Handlebar & Windscreen
The XMAX includes an adjustable handlebar with 20mm of rearward adjustment, and can be changed quickly with zero additional parts. The XMAX also features a two-position windscreen that can be shifted two inches higher for additional wind protection. Finally, the sculpted saddle makes it easier to reach the ground at stops and works with the floorboards for a flexible all-day riding position.
Ready to Accessorize
Personalize your XMAX with a range of Yamaha Genuine Accessories, including luggage, accessory mounts, backrests and more. See the full range of accessories on ShopYamaha.com.
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha XMAX – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $6199 USD
Canada MSRP Price: $7799 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
ENGINE
Engine Type 292cc liquid-cooled 4-stroke, SOHC single cylinder; 4 valves
Bore x Stroke 70.0mm x 75.9mm
Compression Ratio 10.9:1
Fuel Delivery Fuel Injection
Ignition TCI: Transistor Controlled Ignition
Transmission Automatic CVT
Final Drive V-Belt
Fuel Capacity 3.4 gal
CHASSIS
Suspension/Front 33mm telescopic fork; 4.3-in travel
Suspension/Rear Dual shocks; 3.1-in travel
Brakes/Front Hydraulic disc, 267mm; ABS
Brakes/Rear Hydraulic disc, 245mm; ABS
Tires/Front 120/70-15 Dunlop® Scoot Smart
Tires/Rear 140/70-14 Dunlop® Scoot Smart
DIMENSIONS
LxWxH 86.0 in x 30.5 in x 55.7 in – 57.7 in
Seat Height 31.3 in
Wheelbase 60.6 in
Rake (Caster Angle) 26.5°
Trail 3.7 in
Max. Ground Clearance 5.3 in
Fuel Capacity 3.4 gal
Fuel Economy** 76 mpg
Wet Weight*** 397 lb
OTHER
Warranty 1 Year (Limited Factory Warranty)
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha XMAX – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
| ENGINE | Liquid-cooled, SOHC, 4-valve, single |
| DISPLACEMENT | 292cc |
| BORE AND STROKE | 70.2 x 75.9 mm |
| COMPRESSION RATIO | 10.9 : 1 |
| MAXIMUM TORQUE | 1.4 kg-m (10 ft-lb) @ 6,000 rpm |
| FUEL DELIVERY | Fuel Injection |
| ESTIMATED FUEL CONSUMPTION± | 3.14 L/100km / 75 mpg |
| LUBRICATION | Wet Sump |
| IGNITION / STARTING | TCI / Electric Start |
| TRANSMISSION | Fully automatic CVT |
| FINAL DRIVE | V-belt |
CHASSIS
| SUSPENSION (FRONT) | 33mm telescopic fork / 109.2 mm (4.3″) wheel travel |
| SUSPENSION (REAR) | Dual shocks / 78.7 mm (3.1″) wheel travel |
| BRAKES (FRONT) | 267mm disc / twin piston caliper / ABS |
| BRAKES (REAR) | 245mm disc / single piston caliper / ABS |
| TIRES (FRONT) | 120/70-15 |
| TIRES (REAR) | 140/70-14 |
CRITICAL DATA
| LENGTH | 2,184mm (86″) |
| WIDTH | 774.7mm (28.1″) |
| HEIGHT | 1,415mm (55.7″) |
| WHEELBASE | 1,539mm (60.6″) |
| GROUND CLEARANCE | 135mm (5.3″) |
| SEAT HEIGHT | 795mm (31.3″) |
| FUEL CAPACITY | 12.9 litres (2.8 Imp. gallons) |
| WET WEIGHT | 180kg (397 lb) |
| COLOUR(S) | Matte Raven Black |
2024 Yamaha XMAX – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
