2024 Zero FX: LEAN AND MEAN.

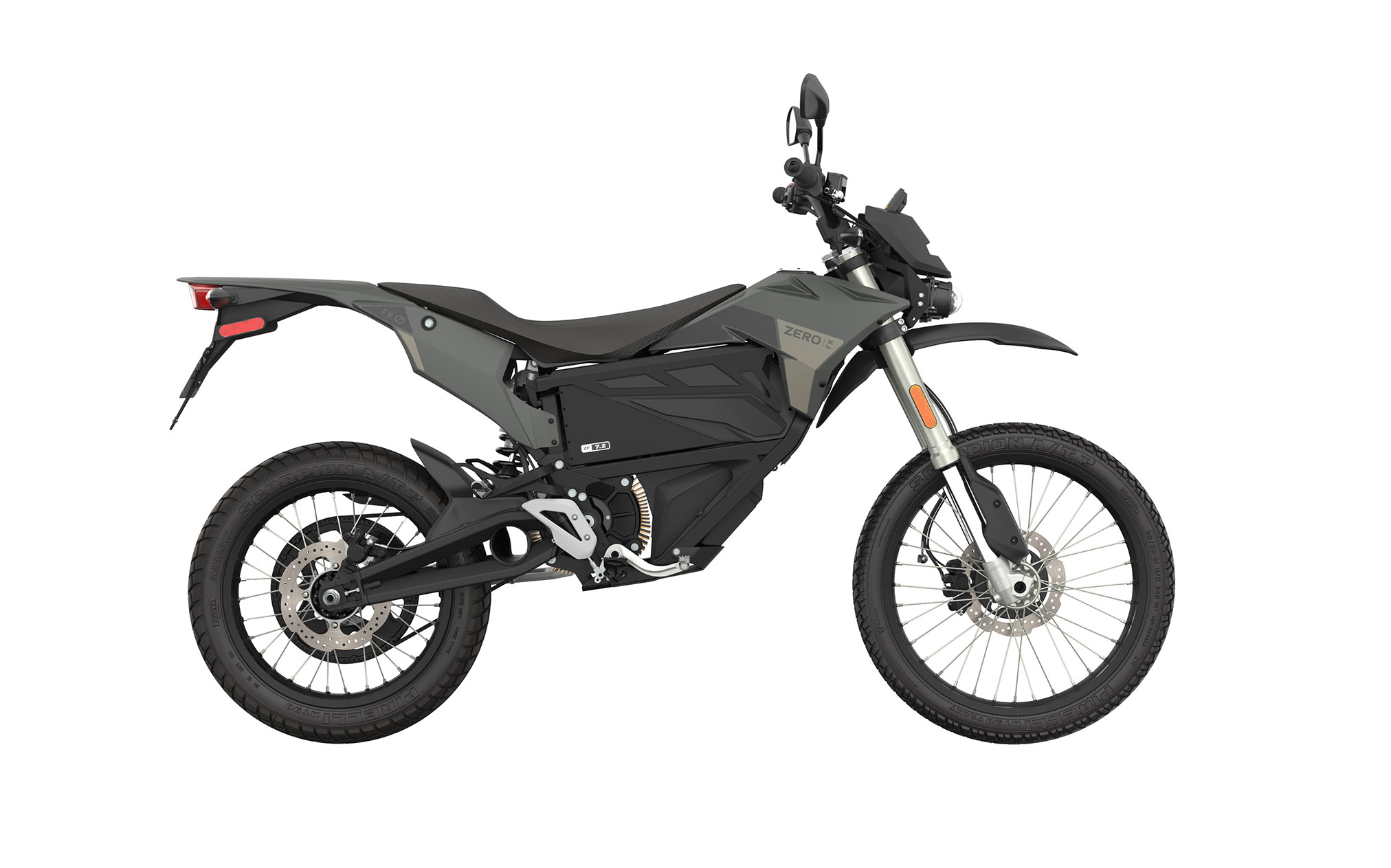

Introducing the 2024 Zero FX…
Unleash the exhilaration of all-terrain adventure with the Zero FX. Built on our rugged off-road heritage, it’s primed for your favorite routes, ready to rocket away when the traffic lights change or the trails call. With its powerful Z-Force® powertrain, resilient suspension, and dual sport capabilities, the Zero FX fearlessly conquers any obstacle in its path. Get ready for an electrifying adventure with unstoppable performance on the Zero FX.
2024 Zero FX Totalmotorcycle.com Key Features
TOP SPEED
85 MPH
PEAK TORQUE
78 FT-LB
CITY RANGE
102 MILES
OPTIMAL CHARGE TIME
1.3 HOURS
2024 Zero FX Totalmotorcycle.com Features and Benefits
TUNED IN TO YOUR RIDE
Crossing from smooth asphalt to gravel fire roads? All good. Change performance profiles at the press of a button to master any terrain. The Zero FX is pre-programmed with Eco or Sport modes and performance can be fully customized using the Zero Motorcycles NextGen app where you can also see detailed ride stats.
CHARGE SIMPLY
Wake up, ready to ride, with a “full tank” every day — no high-power public charge station required. A simple 110 V household outlet satisfies all the needs of the Zero FX’s 650-watt onboard charger. Every outlet is now a “fueling” station. Crave faster refills? Pick up an accessory Quick Charger to cut charge times by over 60%.
CONTROL THROUGH CONNECTION
By pairing through your smartphone, the FX’s full capabilities are unlocked with the Zero NextGen app. Data driven performance is at the tip of your finger when you can monitor everything about your FX from charge times, speed and regeneration levels, and so much more. Plus, the core architecture of the FX and NextGen app ecosystem are built on the Cypher II operating system so the potential for future feature availability is as wide open as the road ahead.
BATTERY
Zero Motorcycles’ Z-Force® batteries are the most power and energy dense in the EV industry. The Z-Force® 7.2 offers a maximum battery capacity of 7.2 kWh that delivers up to 91 miles of city riding. The battery is designed to last and backed by a five-year, unlimited mile warranty. The Zero FX also features Long Term Storage Mode to optimize the battery’s state of charge and further improve long term battery health when the seasons keep you from riding for months at a time.
2024 Zero FX Charger
ONBOARD CHARGER
The Zero FX’s discreetly accessible 650 W onboard charger can be plugged into any household outlet. When you can refuel your FX from anywhere you can charge your cellphone, charge options per square mile are greater than the density of gas stations anywhere in the world. For when you need even faster recharges, charge times can be slashed by using optional Quick Chargers.
2024 Zero FX Motor
MOTOR
The Zero FX powerplant produces up to 78 ft-lb of torque. The air-cooled Interior Permanent Magnet (IPM) motor delivers impressive performance and fierce acceleration, which works in conjunction with regenerative braking to channel energy back into the battery. No heavy, complicated or expensive liquid cooling. No routine maintenance. No fuss. This is the industry’s most efficient, powerful, and compact motor.
2024 Zero FX Chassis
FRAME
The Zero FX’s robust aircraft-grade aluminum frame has been refined for over ten years. A descendant of Zero’s early motocross-style bikes, the frame’s optimized strength-to-weight ratio is the perfect delivery mechanism for the Z-Force® powertrain’s adrenaline pumping acceleration.
2024 Zero FX Brakes
BRAKES
The Bosch anti-lock brake system (ABS) delivers confident braking. Tested for just about any situation you can imagine, the system optimizes deceleration under hard braking. The brakes are equipped with adjustable levers for improved ergonomics. And for those who would like, the ABS can be switched on or off at the rider’s discretion.
2024 Zero FX Dash
DASH
The Zero FX comes equipped with a full-color and optically bonded 5” TFT dash. The FX’s dash projects the specs you need: speed, state of charge, power output, selected riding profile, projected recharge time. Sync with your smartphone to turn it into a secondary customizable dash or view detailed ride stats.
2024 Zero FX Suspension
SUSPENSION
Custom-tuned by Showa specifically for the power and weight of the Zero FX, this suspension is perfect for anything you find in your path. The FX’s rugged 41mm inverted cartridge front forks and 40mm rear shock are enough to handle jagged ruts and rock-strewn trails, while offering 8.6” of front travel and 8.94” of play at the rear.
2024 Zero FX Wheels
WHEELS & TIRES
Rocking through the gnarly bits on a large 21-inch front wheel and capable 18-inch wheel in the back means this mullet is all party, all the time. Wrapped in high-performance Pirelli Scorpion MT-90 rubber, the Zero FX adeptly traverses dirt, rocks, or asphalt.
2024 Zero FX Belt drive
BELT DRIVE
Strip away clutches, gears, shifting, chains and all their weighty complexities. Seamlessly accelerate with pure efficiency as energy quietly transforms into propulsion. The Zero FX is direct drive, and its state-of-the-art motor connects directly to the rear wheel using a carbon fiber belt from Gates Carbon.
2024 Zero FX Headlight
FACE
The Zero FX’s distinctive face features twin projector beam headlamps and an integrated fly screen, leading the way with a visual style matched to the bike’s sharp attitude.
2024 Zero FX – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $12495 USD
Canada MSRP Price: $16995 CAD
Europe/UK MSRP Price: £12300 GBP (On The Road inc 20% Vat)
City
102 miles (164 km)
Low-Speed Highway Commuting
65 miles (104 km)
High-Speed Highway Commuting
57 miles (92 km)
Peak torque
78 ft-lb (106 Nm)
Peak power
46 hp (34 kW) @ 4,300 rpm
Top speed (max)
85 mph (137 km/h)
Top speed (sustained)
70 mph (113 km/h)
Type
Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller
High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
Power pack
Z-Force® Li-Ion intelligent integrated
Max capacity
7.2 kWh
Nominal capacity
6.3 kWh
Charger type
650 W, integrated
Charge time (standard)
9.7 hours (100% charged) / 9.2 hours (95% charged)
— With one accessory charger
4.1 hours (100% charged) / 3.6 hours (95% charged)
— With max accessory chargers
1.8 hours (100% charged) / 1.3 hours (95% charged)
Input
Standard 110 V or 220 V
Transmission
Clutchless direct drive
Final drive
90T / 18T, Poly Chain® HTD® Carbon™ belt
Front suspension
Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension
Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel
8.60 in (218 mm)
Rear suspension travel
8.94 in (227 mm)
Front brakes
Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm disc
Rear brakes
Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire
Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire
Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel
1.85 x 21
Rear wheel
2.50 x 18
Wheelbase
56.6 in (1,438 mm)
Seat height
34.7 in (881 mm)
Rake
25.4°
Trail
4.1 in (104 mm)
Curb weight
289 lb (131 kg)
Carrying capacity
341 lb (155 kg)
Equivalent fuel economy (city)
544 MPGe (0.43 l/100 km)
Typical cost to recharge
$0.81
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
