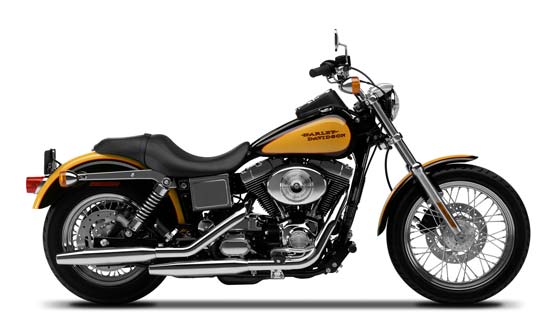

2001 Harley-Davidson FXDL Dyna Low Rider
2001 Harley-Davidson FXDL Dyna Low Rider


– 2001 Harley-Davidson FXDL Dyna Low Rider

A mere 25.2 inches off the ground, Dyna LOW RIDER® is now the lowest Harley® in the line. The raked 32-degree front end, new pull-back riser and low-rise handlebar, newly slammed suspension and new low-slung custom seat are all features that help define the LOW RIDER’s boulevard look. The isolation-mounted Twin Cam 88™ engine offers plenty of torque. Top it all off with a laced wheel option and plenty of eye-catching color options and it’s no wonder the Dyna LOW RIDER has been one of the best-known names in motorcycling for more than 20 years.

Its long looks, low stance, and easy-reach handlebar and foot controls will make the LOW RIDER a very popular choice for custom enthusiasts of all sizes…regardless of inseam.

-Lowest Harley® seat height (25.2 inches)
-Vibration-isolated, Black and Chrome Twin Cam 88™ Engine
-Low-profile suspension
-Low-slung custom seat with tapered passenger pillion
-Raked-out front fork
-Easy-reach, low-rise handlebar
-Easy-reach, mid-mount foot controls
-Tank-mounted speedometer and tachometer
-Highway pegs (not all destinations)

Vehicle specifications and features may vary from country to country depending on local laws, and some models are not available in certain countries.


Length 94.0 in. (2385.7 mm)
Seat Height (measure laden w/ 180 lb. rider) 25.2 in. (639.6 mm)
Seat Height TUV (measure unladen; int’l measure) (665.0 mm)
Ground Clearance 4.6 in. (116.7 mm)
Rake 32.0 degrees
Trail 5.1 in. (129.4 mm)
Wheelbase 65.5 in. (1662.4 mm)
Tires: Dunlop Harley-Davidson Series D401
Front 100/90-19 57H
Rear 130/90B16 73H
Fuel Capacity (includes 0.9 gal. reserve) 4.9 gal. (18.5 L)
Reserve Fuel Capacity 0.9 gal. (3.4 L)
Oil Capacity 3.0 qts. (2.8 L)
Dry Weight 614.0 lbs. (278.8 mm)
Vehicle Weight In Running Order (int’l measure) (296.9 kg)
Gross Vehicle Weight Rating 1085.0 lbs. (492.6 kg)

Engine Twin Cam 88 (vibration isolation-mounted)
Valves Pushrod-operated overhead valves; with hydraulic
self-adjusting lifters; two valves per cylinder
Bore and Stroke 3.75 x 4.0 in. (95.25 x 101.6mm)
Displacement 88 cu. in.(1450 cc)
Compression Ratio 8.9:1
Fuel System Carburetion (40 mm constant velocity with enrichener and accelerator pump)
Air Cleaner/Filter Oval with spun aluminum insert;
high-efficiency, pleated paper filtration
Ignition Single-fire, non-wasted, map-controlled spark ignition system;
electronic breakerless with multiple advance curve matrix
Lubrication System Dry sump, internally mounted, crank driven gerotor
pressure and dual scavenge pump with spin on 10ì pressurized oil filter

Primary Drive Double-row chain; oil bath; mechanical tensioner;
25/36-tooth sprockets (1.44:1)
Final Drive Gates aramid fiber reinforced Poly Chain belt;
32/70-tooth sprockets; 2.188:1
Clutch Multi-plate with diaphragm spring in oil bath
Transmission Five-speed,constant mesh
Gear Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150

Frame Mild steel, rectangular section backbone with twin down-tubes
Swing Arm Mild steel, rectangular section
Front Fork 39mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks New low-profile coil-over with adjustable spring preload
Wheels 13-spoke black/silver cast aluminum alloy (laced option)
Caliper type Four-piston front and rear
Rotor type (diameter x width): Patented, Uniform Expansion Rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension travel:
Front wheel 6.1 in. (155 mm)
Rear wheel 3.3 in. (84 mm)

Engine Torque 82.0 ft. lbs. @ 3500rpm (105.5 NM @ 3000 rpm)
Mileage (per E.P.A. test regulations):
City 42 mpg (17.9 Km/L)
Highway 50 mpg (21.3 KM/L)
Braking at 60 mph (96.6 kph):
Maximum load 165 ft. (49.5 m)
Lean Angle (per SAEJ1168):
Right 28.5 degrees
Left 29 degrees

Battery Sealed 12-volt, 19 amp-hour, 270cca (per Battery Council International rating)
Charging 32-amp permanent magnet alternator (360 watts @ 3,000 rpm, 416 watts peak)
with solid-state regulator
Starting 1.2 kw electric with Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w
Turn signal lights 28w, self-canceling
Running lights Integrated in front turn signals (except where prohibited by law)
Indicator lamps High beam, neutral, oil pressure, engine diagnostic light,
turn signals and security system (optional)

Engine Trim Black powdercoat with chrome covers
Exhaust System Staggered chrome shorty duals with low interconnect
Oil Tank Under-transmission
Front Fender Sport-style with painted brace
Rear Fender Sport wrap-around with chrome supports
Handlebars New low-rise handlebar with pull-back risers
Windshield none
Footpegs Rubber-isolated operator and passenger
Forward Foot Position Frame-mounted highway pegs (not all destinations)
Seat New low-slung custom seat with tapered passenger pillion
Passenger Backrest none
Saddlebags none
Instruments Electronic speedometer with odometer and
resettable tripmeter; tachometer, fuel gauge
Fork Lock Barrel-key on steering head, key common with ignition

Vivid Black, Diamond Ice Pearl, Luxury Rich Red Pearl, Concord Purple Pearl
Chrome Yellow Pearl, Bronze Pearl, New Jade Sunglo Pearl, New Real Teal Pearl
Two-Tone Vivid Black/Chrome Yellow,Two-Tone Luxury Rich Red/Black
New Two-Tone Concord Purple/Diamond Ice, New Two-Tone Luxury Blue/Diamond Ice

Warranty 12 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km); every 5,000 miles (8,000 Km) thereafter.
– Inspections of certain systems and components are required at 2,500 mile (4,000 Km) intervals –
