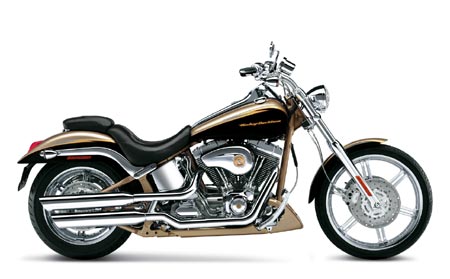

2003 Harley-Davidson FXSTDSE Screamin' Eagle Softail Deuce
2003 Harley-Davidson FXSTDSE Screamin’ Eagle Softail Deuce

2003 Harley-Davidson FXSTDSE Screamin' Eagle Softail Deuce
2003 Harley-Davidson FXSTDSE Screamin’ Eagle Softail Deuce


– 2003 Harley-Davidson FXSTDSE Screamin’ Eagle Softail Deuce

The FXSTDSE sports a custom Centennial Gold and Vivid Black paint, baring its soul with a deep luster carried right down to a color-matched frame. Accented with pinstripes and Gold Leaf graphics that stretch across the tank and front and rear fenders, this bike is ready to hit the road.

Every one of the 1550cc’s in its Twin Cam engine demand that you take it out for a ride. The fuel injected Big Bore Twin Cam 95™ cubic inch powertrain, finished in gleaming Silver and Chrome, provides the power you crave, right from the factory.

But custom paint and exclusive features aren’t all that makes the FXSTDSE unique. Only a limited number of these will ever be produced.

Key FXSTDSE Screamin’ Eagle Deuce™ characteristics

FXSTDSE incorporates all the Softail® Deuce™ model updates for model year 2003, and includes the following additional standard features:

-1550cc Fuel Injected Twin Cam 95 ™ Powertrain finished in Silver and Chrome
-Color-matched Centennial Gold Frame, Swingarm and Front Spoiler
-Color-matched Air Cleaner, Timer, Derby Cover, and Fuel Tank Console Inserts
-100th Anniversary Badges on Fuel Tank Console Insert and Engine Crankcase
-Chrome Slotted Six Spoke Wheels, 21-inch front and 17-inch rear
-Chrome Slotted Six Spoke Rear Sprocket
-Chrome Slotted Floating Brake Rotors
-Dual Front Disc Brakes, Silver Brake Calipers with Billet-style Chrome Inserts
-Chrome Front and Rear Wheel Spacers
-Chrome Bullet Front Axle Covers
-Chrome Smooth-look Fork Stem Covers
-Chrome, Fat 11/4-inch diameter Handlebar with Internal Wiring
-Clear-coated, Braided Stainless Steel Control Cables and Brake Lines
-Silver-faced Speedometer and Mini-Tach
-Chrome Headlight Filler Panel and Handlebar Riser Cover
-Smoked Turn Signal Lenses with Amber Bulbs
-Chrome Lower Triple Tree Cover
-Chrome Bullet Mirrors
-Aileron Custom Hand Grips
-Buckshot Chrome Brake and Clutch Hand Controls
-Chrome Brake Master Cylinder, Clutch Lever, and Chrome Switch Housings
-Chrome Front and Rear Master Cylinder Reservoir Covers
-Chrome Forward Control Mounting Brackets
-Polished Bullet Stainless Shift Linkage
-Chrome Bullet Shift and Rear Brake Lever
-Aileron Chrome and Rubber Footpegs, Brake Pedal Pad and Shifter Peg
-Teardrop-shaped Chrome Air Cleaner Assembly
-Chrome Voltage Regulator
-Chrome Headbolt Covers
-Custom Low-profile Seat and Pillion with Chrome Inserts
-Profile ™ Low Front and Rear Suspension for 1″ lower seat height
-Chrome Swingarm Pivot Bolt Covers
-Chrome Rear Axle Covers
-Chrome Lower Belt Guard
-Slash Down Mufflers with Chrome Heat Shields
-Chrome Valve Stem Caps
-H-D ® Factory Security System with Alarm Siren
-100th Anniversary Indoor Storage Cover
-Custom Color – Centennial Gold and Vivid Black paint with Gold Leaf graphics




2003 Specifications FXSTDSE Screamin’ Eagle® Deuce™

Length 95.4 in. (2422.0 mm)
Seat Height (measure laden w/ 180 lb. rider) 24.7 in. (629.0 mm)
Seat Height (unladen) 26.0 in. (659.6 mm)
Ground Clearance 4.7 in. (119.1 mm)
Rake (degrees) 34.0 degrees
Trail 5.1 in. (129.5 mm)
Wheelbase 66.6 in. (1690.3 mm)
Tires: Dunlop Harley-Davidson Series II
Front – D402 MH90-21 54H
Rear – K591 160/70B17 73V
Fuel Capacity (includes 0.5 gal. reserve) 4.9 gal. (18.5 L)
Reserve Fuel Capacity (warning light @ approx. 1.0 gal.) 0.5 gal. (1.9 L)
Oil Capacity 3.5 qts. (3.3 L)
Dry Weight 677.0 lbs. (307.1 kg)
Vehicle Weight In Running Order (unladen) 712.4 lbs. (323.1 kg)
Gross Vehicle Weight Rating 1125.0 lbs. (510.8 kg)

Engine 45º Screamin’ Eagle® Twin Cam 95B™ (balanced)
Valves Pushrod-operated overhead valves; w/ hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.88 x 4.0 in. (98.43 x 101.6 mm)
Displacement 95 cu. in. (1550 cc)
Compression Ratio 9.4:1
Fuel System Electronic Sequential Port Fuel Injection
(single runner, 45mm throttle bore ESPFI)
Lubrication System Dry sump, internally mounted, crank driven
gerotor pressure and dual scavenge pump
with spin on 10µ pressurized oil filter

Primary Drive Double-row chain, oil bath, mechanical tensioner,
36/25-tooth sprockets (1.44:1)
Final Drive Gates aramid fiber reinforced poly chain belt,
32/70-tooth sprockets (2.188:1)
Clutch Multi-plate with diaphragm spring in oil bath
Transmission Five-speed, constant mesh
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150

Frame Mild steel, rectangular section backbone w/ twin downtubes
Swing Arm Tubular mild steel
Front Fork Wide 41.3 mm custom fork w/ tri-rate springs
Wheels 21 in. (53.34 cm) slotted six-spoke chrome front,
17 in. (43.18 cm) slotted six-spoke chrome rear
Caliper type Dual-piston front and rear
Rotor type (diameter x width): Chrome Floating Brake Rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.82 mm)
Suspension travel:
Front Wheel 5.61 in. (142.5 mm)
(Travel along the length of suspension. Not vertical wheel travel)
Rear Wheel 3.24 in. (82.3 mm)

Engine Torque (per SAEJ607)2:
North America 91 ft. lbs. @ 3500 rpm (123.4 NM @ 3500 rpm)
Lean Angle (per SAEJ1168):
Right 37.3 degrees
Left 35.3 degrees

Battery Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca
(per Battery Council International rating)
Charging 38-amp permanent magnet alternator w/ solid-state regulator
(481 watts @ 3,000 rpm, 494 watts peak)
Starting 1.2 kw electric w/ Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen, 55-watt low beam, 60-watt high beam
Tail/stop lights 8w/28w
Turn signal lights (self-canceling) 28w
Indicator lamps High beam, neutral, oil, turn signals,
engine diagnostics and security system

Engine Trim Silver powdercoated w/ chrome covers
Exhaust System Over/under shotgun duals w/ full muffler shields
Oil Tank Chrome “Horseshoe” w/ chrome external oil lines
Ignition Barrel keyed
Handlebars Chrome, fat 1.25 in. dia. w/ internal wiring
Seat Low profile style w/ chrome inserts
Passenger Backrest Available from Genuine Motor Accessories
Rear Fender Supports Chrome full coverage
Fork Lock Common w/ ignition key
Instruments Silver faced mini-tachometer and
electronic speedometer w/ odometer and
resettable tripmeter w/ diagnostic capabilities and
solid state tell-tale indicator module
Flasher Hazard warning integrated into turn signal module
Foot Supports Forward foot controls w/ custom
levers and rubber inserts

Centennial Gold and Vivid Black w/ Gold Leaf Graphics

Warranty 12 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 Km);
every 5,000 miles (8,000 Km) thereafter.
— Inspections of certain systems and components are required at 2,500 mile (4,000 Km) intervals —
