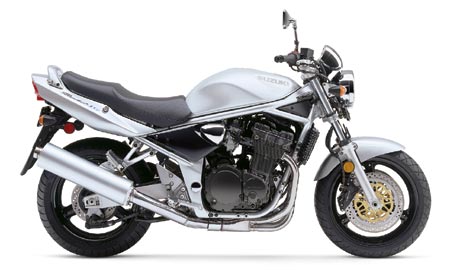

Click photo to enlarge.
It makes a great desktop image.
– 2003 Suzuki GSF 1200 Bandit
Sportbike BANDIT 1200 – 2003 GSF1200K3
– The “naked” version of Suzuki’s versatile big-bore street machine.
– Proven 1157cc, 4-cylinder, air/oil cooled, DOHC 16-valve engine tuned for strong low and midrange power.
– Mikuni BSR36 carburetors with throttle position sensor provide precise ignition timing control for strong low-rpm response.
– Camshaft timing and stainless steel 4-into-1 exhaust system with aluminum muffler enhances low and midrange power.
– High capacity oil cooler for improved heat dissipation and more consistent engine operating temperature.
– Smooth-shifting 5-speed transmission.
– Low-maintenance hydraulic clutch with high-rate springs and large-diameter slave cylinder for improved clutch feel.
– Maintenance-free battery and digital/transistorized ignition.
– Pulsed secondary air-injection system (PAIR) for reduced emissions.
– Color matched, cradle-type frame with large diameter tubing for strength and rigidity.
– Lightweight, box-section aluminum swingarm with high torsional rigidity.
– Step-motor-powered instruments for more precise operation, plus LCD odometer, twin tripmeters and fuel gauge.
– Large 43mm diameter front forks with adjustable preload for stable suspension performance.
– Single-shock rear suspension with seven preload adjustments, 4-way rebound damping and a movable gas/oil separator for consistent damping performance.
– Radial tires mounted on wide cast aluminum wheels.
– Dual disc front brakes with Tokico six-piston calipers for improved stopping power.
– Wide, comfortable seat with low seat height.
– Large capacity fuel tank (20 liter/5.3 gal) for long operating range.
– Easy-to-operate centerstand with an improved leverage ratio to reduce effort.
– Large, one-piece passenger grab bar.
– Slim tail-section with external tie-down hooks and large storage area beneath the seat – large enough for a U-type lock.
– Attractive brushed aluminum chain guard.
Engine: 1157cc, four-stroke, 4-cylinder, DOHC 16 valve, air/oil cooled with TSCC. 98 hp (72 kW)/ 8,500 rpm, 91.7 Nm/ 6,500 rpm.
Warranty: 12 month unlimited mileage limited warranty.
Bore & Stroke: 79.0 x 59.0 mm
Compression ratio: 9.5:1
Fuel System: Mikuni BSR36
Lubrication: Wet sump
Final Drive: #530 chain
Overall Length: 2070mm (81.5 in.)
Overall Width: 765 mm (30.1 in.)
Overall Height: 1220mm (48.0 in.)
Seat Height: 790 mm (31.1 in.)
Ground Clearance: 130 mm (5.1 in.)
Wheelbase: 1430 mm (56.3 in.)
Dry Weight: 220kg (485 lbs.)
FRONT: Telescopic, oil damped, preload adjustable
REAR: Link-type suspension, 7-way adjustable preload, 4-way adjustable rebound
FRONT: Dual hydraulic disc
REAR: Single hydraulic disc
FRONT: 120/70 ZR17
REAR: 180/55 ZR17
Fuel Tank Capacity: 20.0 liter (5.3 gal.) 19.0 liter (5.0 gal.) CA. model
Color: Silver, Green
Specifications are subject to change without notice, in accordance with national regulation and legislations.
