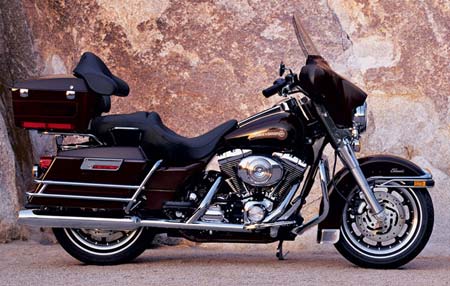

2005 Harley-Davidson Road Glide Classic FLHTC/FLHTCI
Back to 2005 Harley-Davidson Motorcycle Index Page




– 2005 Harley-Davidson Road Glide Classic FLHTC/FLHTCI

The day we built this one, the world officially became a better place. The Electra Glide® Classic was designed on the premise that the long haul shouldn’t have to feel like one. We started with pure Harley-Davidson styling, then added on all the necessities for putting on big miles. Like hard bags and a Tour-Pak® luggage box, 40-watts-per-channel sound with standard CD, big floorboards and a comfort-stitch saddle with passenger backrest. We wanted every inch of the ride to be perfect. So we gave it an air-adjustable suspension, triple-disc brakes, and a fork-mounted batwing fairing complete with all the instruments. In fact, all that’s left is for you to fire up the powerful, reliable EFI or carbureted Twin Cam 88® engine and start taking full advantage of this ever-improving piece of real estate.

————————————-
SPECIFICATIONS:


DIMENSIONS U.S. UNITS
Length 97.5 in.

Seat Height

Laden(1) 27.3 in.

Unladen N/A

Ground Clearance 5.1 in.

Rake Steering Head/Trail 26.0º / 6.2 in.

Wheelbase 63.5 in.

Fuel Capacity(2) 5.0 gals.

Oil Capacity 4.0 qts.

Weight

Dry Weight 776.0 lbs.

Running Order N/A

POWERTRAIN
Engine(3) Twin Cam 88®

Displacement 88.0 in.³

Bore x Stroke 3.75 in. x 4.00 in.

Engine Torque(4)(5) 86.0 ft. lbs. @ 3500 rpm

Fuel System(6) Carburetor or Electronic Sequential Port Fuel Injection (ESPFI )

Compression Ratio 8.9:1

Miles per Gallon(7)

Carb. 46 hwy / 37 city

ESPFI 46 hwy / 39 city

Primary Drive Chain

Gear Ratio (overall)

1st 10.110

2nd 6.958

3rd 4.953

4th 3.862

5th 3.150

WHEELS/TIRES
Wheels(8)

Front Black 9 spoke cast aluminum

Rear Black 9 spoke cast aluminum

Tire Size

Front MT90B16 72H

Rear MU85B16 77H

ELECTRICAL
Electronics Stereo; optional security system

Instruments Electronic speedometer; odometer; resettable tripmeter; diagnostic readout; tachometer; oil pressure; volt meter; air temp

Indicator Lamps Oil pressure; engine diagnostics

CHASSIS
Brakes (diameter x width)

Front 11.5 in. x 0.20 in. dual

Rear 11.5 in. x 0.23 in.

Lean Angle (per SAEJ1168) 30º / 31º

Exhaust System Cross-over dual

COLOR OPTIONS(9)
Vivid black, sierra red pearl, black cherry pearl, lava red sunglo, rich sunglo blue, two-tone chopper blue pearl and brilliant silver pearl, two-tone black cherry pearl and black pearl, two-tone sierra red pearl and brilliant silver pearl, two-tone smokey gold pearl and vivid black


UNIQUE FEATURES
Batwing, fork-mounted fairing with full instrumentation; black powder-coated engine with chrome covers; nylon alloy hard saddlebags and fiberglass King Tour-Pak®; full instrumentation; 40-watt per channel AM/FM/WB/CD sound system; comfort-stitch touring saddle and passenger backrest; electrical power outlet


PRICING(10)
MSRP

Vivid black $17,245

Pearl and Sunglo $17,665

Two-tone $18,055

Anodized N/A

Wheel option $450 (profile laced)

H-D® factory security system $275

ESPFI $400

California emissions

Carb. $265

ESPFI $100

Freight (applies to the 48 contiguous states and Alaska only) $270
