– 2005 Moto Guzzi V11 LeMans Nero Corsa
V11 Le Mans Nero Corsa –Sport Touring redefined. The latest 90º V-Twin with added crossover pipe and increased compression ratio to 9.8:1. Brembo Gold Series brakes and Ohlins suspension. Strikingly rich checkered flag graphics in Midnight Black and Dark Silver with carbon fiber front fender. Add optional Moto Guzzi soft side bags and tank bag and you’ve got a comfortable Sport Touring Bike that will get you to your favorite track day in style.
A bike with the chequered flag at heart

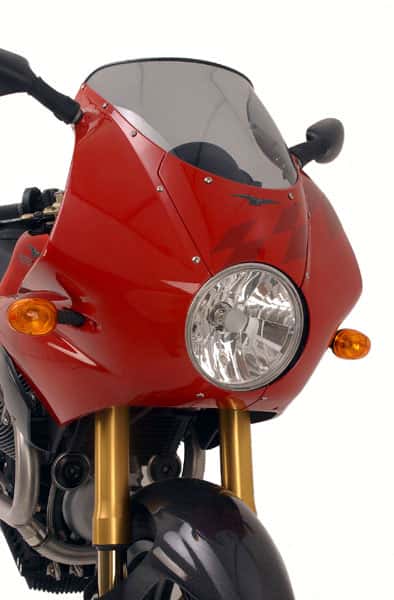

Here is a bike for the connoisseur, to be savoured like a fine wine, mile after mile. Every pulse of its new engine is a pulse of pleasure. The frame guarantees dependable, instant and precise handling. The half fairing provides ample rider protection. The chassis delivers the sort of ride the others can only envy.
The new black and white chequered motif amid the traditional Moto Guzzi red, is an obvious reference to Moto Guzzi’s race winning history. It also clearly states how, at Mandello del Lario, leadership on the road comes directly from success on the track, and embodies all the character, experience and creativity of Italian motorcycling.
Respect for a winning tradition and continuous research and innovation go hand in hand in this classical 1,064cc 90°V-Twin engine with two valves per cylinder and push-rod valve timing. But that is where tradition ends, because the power unit of the 2003 V11 Le Mans “Rosso Corsa” has a new, higher compression ratio, a special balancer pipe linking the exhaust down-pipes and a brand new catalyser conforming to Euro 2 standards. All this means meatier, more consistent power and torque at low and medium revs as well as absolute respect for the environment.
The chassis is new too. The 43mm ? Ã–hlins front fork and Ã–hlins rear shock guarantee razor sharp handling on bends as well as real touring comfort for rider and passenger. More sporting riders will also appreciate the Bitubo steering damper, fitted as standard. The V11 Le Mans “Rosso Corsa” also features ergonomic controls and a new easy-to-read instrument cluster with elegant black numbering that is perfectly legible under all riding conditions.
Engine: 90º V-Twin, 4 stroke
Cylinders: Aluminum alloy with Gilnisil treatment
Pistons: Forged, 2 compression & 1 oil control ring
Cooling system: Air cooled
Displacement: 1064 cc
Bore and stroke: 92 mm x 80 mm
Compression ratio: 9.8:1
Valves & operation: 2 overhead valves with light alloy push-rods
Maximum power: 91 hp @7800 rpm
Maximum torque: 70 ft/lbs @ 6000 rpm
Fuel system: Magneti Marelli IAW Multipoint phased sequential fuel injection
Starting system: Electric
Ignition: Magneti Marelli IAW electronic digital ignition
with inductive spark
Exhaust system: Steel, 2 tubes connected to
2 steel mufflers
Gear box: 6 speed
Lubrication: Wet sump, forced oil, cartridge filter
Transmission: Primary: helical gears
Secondary: shaft drive
Clutch: Double discs, dry, with hydraulic command
Electrical system: 12 V; 12 V alternator; 14 Ah battery
Instruments: Speedometer with tripmeter, tachometer
and warning lights
Frame: Monobeam frame
Trail: 4.05″ (103 mm)
Rake: 25º Front suspension: Ohlins USD fork, 43 mm compression/extension adjustable
Front wheel travel: 4.72″ (120mm)
Rear suspension: Cantilever swing arm with Ohlins mono shock compression/extension/preload adjustable
Rear wheel travel: 5.03″ (128 mm)
Front brakes: Two Brembo ORO Series stainless steel 320 mm floating discs with 4 piston caliper
Rear brakes: Single stainless steel 282 mm fixed disc with Brembo 2 piston caliper
Wheels: Brembo spoke light alloy,
Front: 3.5″ x 17″ Rear: 5.5″ x 17″
Tires: Front: 120/70 17″ Rear: 180/55 17″
Overall length: 84.64″ (2150 mm)
Width: 30.90″ (785 mm)
Height: 47.63″ (1210 mm)
Seat Height: 31.49″ (800 mm)
Ground clearance: 7.00″ (178 mm)
Handlebar Height: 36.61″ (930 mm)
Wheelbase: 58.66″ (1490 mm)
Dry weight: 498.24 lbs (226 Kg)
Fuel capacity: 5.46 gallons (20.7 liters)
Reserve: 1.32 gallons (5 liters)
Available Colors: Two-tone Black and Dark Silver with checkered flag graphics
MSRP: $14,490 USD
Technical specifications and colors are subject to change without notice.
