2006 Harley-Davidson FXDCI Dyna Super Glide Custom
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

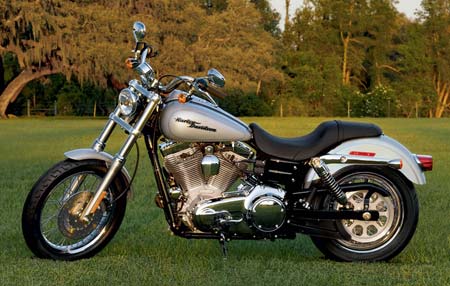

2006 Harley Davidson FXDCI Dyna Super Glide Custom
2006 Harley-Davidson FXDCI Dyna Super Glide Custom

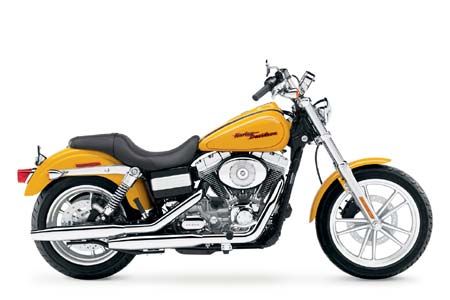

2006 Harley Davidson FXDCI Dyna Super Glide Custom
2006 Harley-Davidson FXDCI Dyna Super Glide Custom



– 2006 Harley-Davidson FXDCI Dyna Super Glide Custom

Want to swing a leg over your very own private chrome island? Then step right up to the Super Glide® Custom. It’s what happens when you mix brute strength with a whole lot of eye appeal. You get smooth-operating power with a vibration-isolated, silver powder-coated, chrome-detailed Twin Cam 88® engine. This year, there are six gears to play with as you lean in and out of curves with ease. We gave the Custom 49mm forks up front. New 160mm rubber in back. And truckloads of shimmering chrome in between. Stretched tank. Top-mounted speedometer. There’s also a low-slung two-up seat. Just in case you prefer your chrome islands not so private.


OVERVIEW
FXD/I Dyna Super Glide® Custom Model Overview
The FXDCI Super Glide Custom gleams night and day with an extra complement of chrome components, including chrome engine covers, chrome headlight cover and speedometer housing. The console is color-matched to the fuel tank and the fuel tank lid ring is chromed. A low-slung seat and silver 10-Spoke Cast Aluminum wheels are new for 2006. A new single floating brake rotor allows more of the front wheel to be visible. Chrome Aluminum Profile Laced wheels are an option. The Super Glide Custom is offered in nine solid and Sunglo colors.

FXDCI Super Glide Custom features:

Vibration-isolated Twin Cam 88 engine with ESPFI
Silver powder-coated engine with chrome covers
Chrome staggered shorty dual exhaust
New 6-speed Cruise Drive transmission
New 49 mm forks
New 29 degree fork angle/29 degree steering head angle
New wrap-around rear fender
New 160 mm rear tire
New silver 10-Spoke Cast Aluminum wheels
New single floating front brake rotor
Top-mounted speedometer with chrome housing
Color-matched fuel tank console
Chrome headlight cover
Chrome fuel lid ring



2006 FXDCI DYNA SUPER GLIDE® CUSTOM Specifictions1

DIMENSIONS
Length 92.6 in. (2353.0 mm)
Seat Height;
Laden2 26.8 in. (680.7 mm)
Unladen 27.8 in. (705.0 mm)
Ground Clearance 6.0 in. (153.0 mm)
Rake (steering head) 29°
Fork Angle 29°
Trail 4.7 in. (119.4 mm)
Wheelbase 64.2 in. (1630.0 mm)
Tires (Dunlop® Harley-Davidson Series):
Front – D401F 100/90-19 57H
Rear – D401 160/70B17 73V
Fuel Capacity3 4.8 gal. (18.2 L)
Reserve Fuel Capacity No reserve due to fuel injection
(warning light @ approx. 1.2 gal.)
Oil Capacity 3.0 qts. (2.8 L)
Weight:
Dry Weight 641 lbs. (291 kg)
Vehicle Weight in Running Order 670 lbs. (304 kg)
Gross Vehicle Weight Rating 1085 lbs. (493 kg)



ENGINE
Engine4 (vibration isolation-mounted) Air-cooled, Twin Cam 88®
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18 mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)



DRIVETRAIN
Primary Drive Chain
Final Drive Belt, 70/32 ratio (68/32 ratio)
Clutch 9-plate, wet
Transmission 6-speed
Overall Ratio:
1st 3.337
2nd 2.313
3rd 1.718
4th 1.391
5th 1.175
6th 1.000



CHASSIS
Frame Mild steel, tubular frame; rectangular section
backbone; stamped, cast and forged junctions;
forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 49 mm w/polished aluminum fork
triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels5 (Chrome Aluminum Profi le Laced option):
Silver 10-spoke Silver Cast Aluminum
Front 19 in. x 2.5 in. (482.6 mm x 57.15 mm)
Rear 17 in. x 4.5 in. (431.8 mm x 102.87 mm)
Brakes:
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front (single fl oating) 11.81 in. x .20 in. (300 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 5.0 in. (127.0 mm)
Rear Wheel 4.1 in. (104.10 mm)



PERFORMANCE
Engine Torque (per SAE J607)6:
North America 85 ft. lbs. @ 3000 rpm (115 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
Right 32°
Left 34°
MPG (EPA urban/highway test)7 44/50 mpg (5.3/4.7 L/100 km)



ELECTRIC
Battery Sealed, maintenance-free, 12V, 19-amp/hour,
270 cca (per Battery Council International Rating)
Charging Single-phase, 45-amp system
(559W @ 13V, 2000 rpm, 599W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift
starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure,
turn signals, engine diagnostics,
security system8 (optional)
Electrical Power Outlet Standard



STYLING/CONVENIENCE
Engine Trim Silver powder-coated w/chrome treatment
Exhaust System Chrome, staggered shorty duals
Oil tank Under transmission
Front Fender Sport style w/painted brace
Rear Fender Sport wrap-around w/chrome supports
Brake and Shift Lever Mid-mount controls
Handlebars Stainless steel, low-rise
Rider Foot Conrols Footpegs
Passenger Foot Controls Footpegs
Seat Two-up
Instruments Electronic speedometer w/odometer and
resettable tripmeter, diagnostic readout, fuel gauge
Fork Lock Barrel key on steering head; key common w/ignition
Hazard Warning Integrated into turn signal controls



COLORS9
Vivid Black, Brilliant Silver Pearl, Black Cherry Pearl, Black Pearl,
Fire Red Pearl, Deep Cobalt Pearl, Glacier White Pearl,
Rich Sunglo Blue, Yellow Pearl



WARRANTY
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter11



1 Harley-Davidson reserves the right to discontinue models or change specifications
at any time without incurring any obligations. Vehicle specifications may vary from
country to country depending on local laws. Some models are not available in
certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures.
Your mileage will vary depending on your personal riding habits, weather conditions,
trip length, vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 Availability may vary from dealer to dealer, and is subject to change without notice.
10 See motorcycle owner’s manual for complete details.
11 Inspections of certain systems and components are required at 2,500 mile
(4,000 km) intervals.
