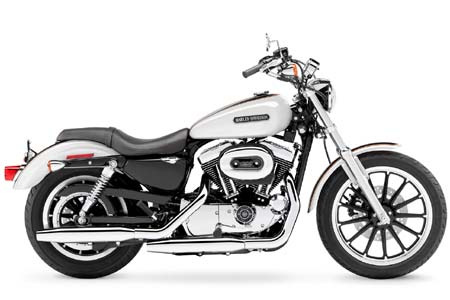

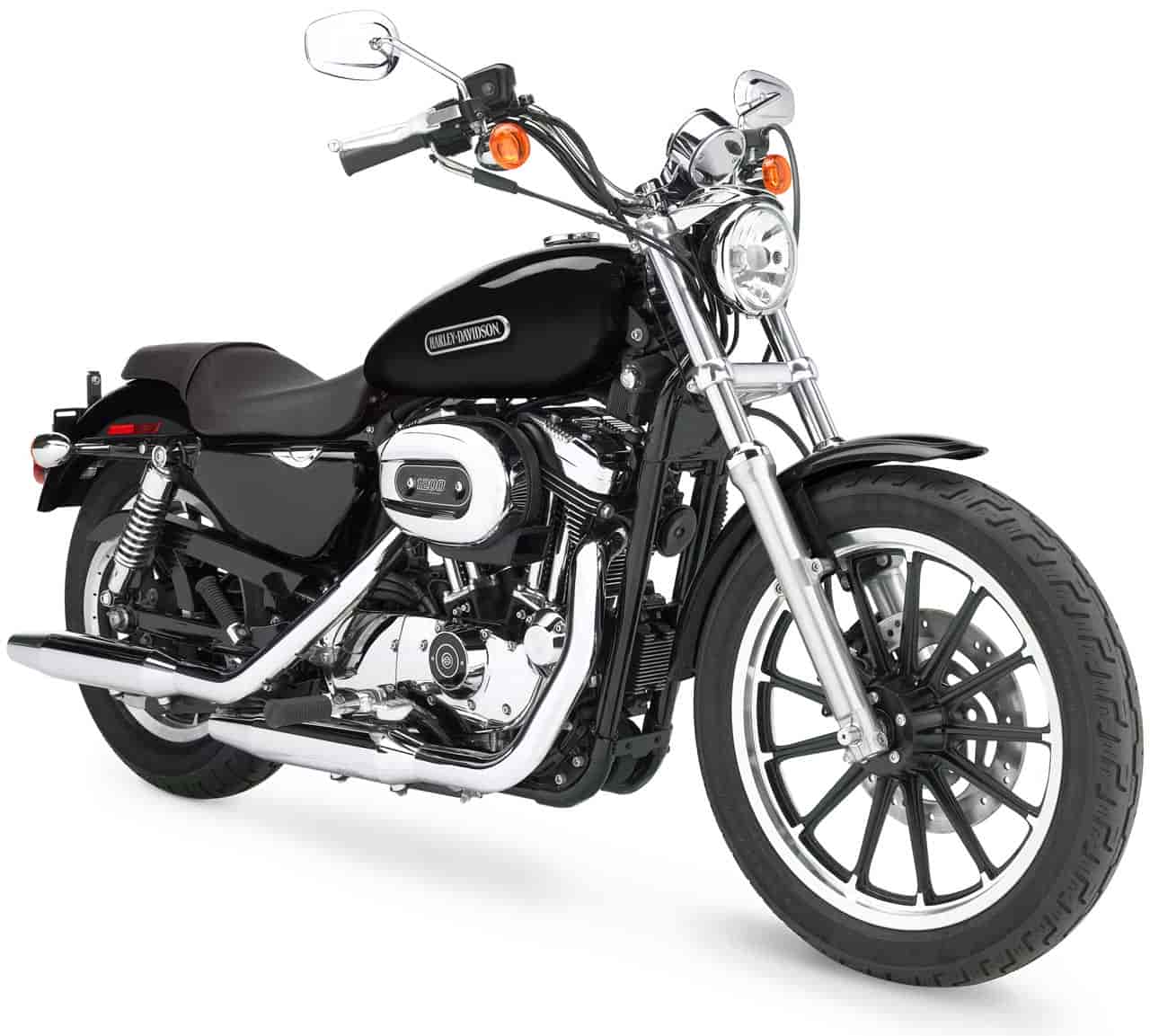

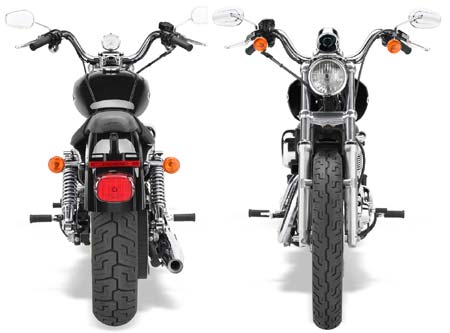

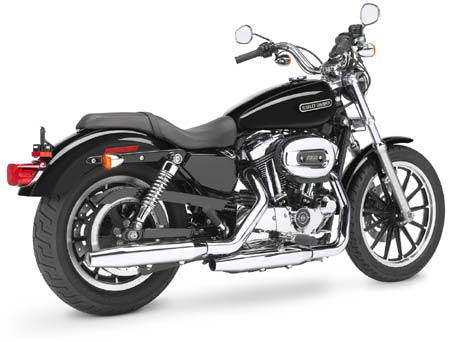

XL 1200L Sportster® 1200 Low Model Overview

Harley-Davidson brings the best of its long heritage of street motorcycle design to the new 2006 XL Sportster 1200L model. Blending a low seat height and mid-mount controls with the powerful torque of the rubber-mounted Evolution V-Twin engine, the XL Sportster 1200L adds another exciting option to the Sportster family. The XL Sportster 1200L has a seat height of 26.25 inches, which is 1.8 inches lower than the XL Sportster 1200R Roadster. In addition, the handlebar grips are moved back an inch further than any other Sportster model and a new two-up Badlander style seat provides a comfortable ride. The 4.5 gallon fuel tank allows the XL Sportster 1200L an extended driving range of more than 200 miles per tank. The XL Sportster 1200L is offered in eight color options, including three unique two-tone paint schemes, all with a new 3-D fuel tank graphic.



XL 1200L Sportster® 1200 Low features:

Rubber-mounted 1200cc XL Evolution engine
Black powder-coated engine with chrome treatment
High-compression, high-flow cylinder heads
High-performance cams
Smoother, quieter transmission
Reduced clutch lever effort
26.25-inch, two-up seat
Low front and rear suspension
Pulled back polished handlebar
Mid-mount foot controls
4.5 gallon fuel tank
Black 13-spoke cast aluminum wheels
Chrome staggered shorty dual exhaust



Specifications1:

Dimensions
Length 90.3 in. (2293.6 mm)
Seat Height:
– Laden2 : 26.25 in. (666.8 mm)
– Unladen: 28.0 in. (711.2 mm)
Ground Clearance 4.4 in. (111.8 mm)
Rake (steering head) 29.6°
Fork Angle 29.6°
Trail 4.6 in. (116.8 mm)
Wheelbase 60.0 in. (1524.0 mm)
Tires (Dunlop® Harley-Davidson Series):
– Front – D401F
– Rear – D401
100/90-19 57H
150/80B16 71H
Fuel Capacity3
(includes 1-gallon reserve)
4.5 gal. (17.0 L)
Reserve Fuel Capacity 1.0 gal. (3.8 L)
Oil Capacity 3.6 qts. (3.4 L)
Weight:
– Dry Weight: 554 lbs. (251 kg)
– Vehicle Weight in Running Order: 575 lbs. (261 kg)
– Gross Vehicle Weight Rating: 1000 lbs. (454 kg)


Engine
Engine4 Air-cooled, Evolution®
Bore x Stroke 3.50 in. x 3.81 in.
(88.85 mm x 96.82 mm)
Displacement 73.20 cu. in. (1200 cu. cm)
Compression Ratio 9.7:1
Fuel System3 Carburetor

Drivetrain
Primary Drive Chain, 57/38 ratio
Final Drive Belt, 68/29 ratio (68/30 ratio)
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio: (U.S.)
– 1st: 9.454
– 2nd: 6.500
– 3rd: 5.040
– 4th: 4.152
– 5th: 3.517

Overall Ratio: (JPN.)
– 1st: 9.004
– 2nd: 6.190
– 3rd: 4.800
– 4th: 3.965
– 5th: 3.400

Overall Ratio: (HDI)
– 1st: 9.139
– 2nd: 6.283
– 3rd: 4.872
– 4th: 4.014
– 5th: 3.400

Chassis
Frame Mild steel, tubular frame, circular sections,
cast junctions
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 39 mm
Rear Shocks Coil-over, dual-adjustable preload
Wheels5 (Steel Laced option): Black, 13-spoke cast aluminum
– Front: 19 in. x 2.5 in. (482.6 mm x 57.15 mm)
– Rear: 16 in. x 3.0 in. (406.4 mm x 76.2 mm)


Brakes:
– Caliper Type: Dual-piston front, single-piston rear
– Rotor Type: Patented, uniform expansion rotors
(diameter x width)
– Front: 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
– Rear: 11.5 in. x .23 in. (292.1 mm x 5.84 mm)


Suspension Travel:
– Front Wheel
– Rear Wheel
4.1 in. (104.6 mm)
2.1 in. (53.8 mm)

Performance
Engine Torque (per SAE J607)6:
– North America 79 ft. lbs. @ 3500 rpm
(107 NM @ 3500 rpm)
Lean Angle (per SAE J1168):
– Right: 31°
– Left: 30°

MPG
(EPA urban/highway test)7
45/52 mpg (5.2/4.5 L/100 km)

Electric
Battery Sealed, maintenance-free, 12V,
12-amp/hour, 200 cca
(per Battery Council International Rating)
Charging Single-phase, 22-amp system
(259W @ 13V, 2000 rpm, 283W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter
motor engagement

Lights (as per country regulation):
– Headlamp
(quartz halogen)
– Tail/Stop Lights
– Turn Signal Lights
– Indicator Lamps
55-watt low beam, 60-watt high beam
8W/28W (5W/21W)
28W (21W) self-canceling
High beam, neutral, low oil pressure,
turn signals, engine diagnostics,

security system8 (optional)

Styling/convenience
Engine Trim Black powder-coated engine with
chrome treatment
Exhaust System Chrome, staggered shorty duals
Brake and Shift Levers Mid-mount controls
Handlebars Stainless steel, pull-back handlebars
Seat Two-up
Instruments Speedometer with odometer, dual
resettable tripmeter, diagnostic readout

Warranty
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km),
every 5,000 miles (8,000 km) thereafter10



Sportster®: XL 1200L Sportster® 1200 Low

1 Harley-Davidson reserves the right to discontinue models or change specifications
at any time without incurring any obligations. Vehicle specifications may
vary from country to country depending on local laws. Some models are not
available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for
XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures.
Your mileage will vary depending on your personal riding habits, weather
conditions, trip length, vehicle conditions, and vehicle configuration. Break-in
mileage will vary.
8 North American security system includes immobilizer; outside North America
the security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.
10 Inspections of certain systems and components are required at 2,500 mile
(4,000 km) intervals
