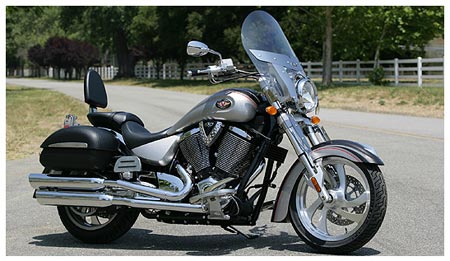

2006 Victory Kingpin
2006 Victory Kingpin

2006 Victory Kingpin
2006 Victory Kingpin

2006 Victory Kingpin
2006 Victory Kingpin

2006 Victory Kingpin
2006 Victory Kingpin



– 2006 Victory Kingpin

THE VICTORY KINGPIN
THE ONLY THING IT FEARS IS STANDING STILL.

One look at the cool, confident Kingpin™ and you know why it’s considered the Godfather of Victory’s lineup. The fuel-injected, 100/6 Freedom V-Twin provides massive amounts of power and torque all throughout the power band. The inverted front fork, rising-rate linkage rear suspension, rubber-mounted handlebars and vibration-absorbing floorboards assure you’ll remember each trip for all the right reasons. While the six-spoke cast aluminum wheels, fully valanced fenders and deeply contoured seat elevate the Kingpin’s polished style to be just as smooth as the Kingpin’s ride. And just in case plenty is not enough, a windshield, saddlebags and touring accessories adorn our badder-than-ever-before Kingpin Deluxe.


FEATURES:

100 CI Freedom V-Twin engine with 6-speed overdrive transmission
Full floorboards
Inverted cartridge forks
Classically styled flared fenders
Luxury touring seat
Windshield & lower wind defectors



TECHNICAL SPECIFICATIONS

ENGINE
Engine Type 4-stroke 50° V-Twin
Cooling System Air/Oil
Displacement 100/1634 cu.in / cc
Bore x Stroke 101×102 mm x mm
Compression Ratio 9.8:1
Valve Train Single overhead camshafts with 4 valves per cylinder,
hydraulic-adjusting cam chains, hydraulic lifters
Fuel System Electronic Fuel Injection with 44mm throttle bodies
Fuel Capacity 4.5/17.0 U.S. gallons/liters
Exhaust Large bore slash-cut dual exhaust with common volume
Oil Capacity 5/4.75 U.S. quarts/L
Charging System 38 amps max output
Battery 12 volts/18 amp hours
Primary Drive Gear drive with torque compensator
Clutch Wet, multi-plate
Transmission 6-speed Overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt

BRAKES
Front Brake 300mm floating rotor with 4-piston caliper
Rear Brake 300mm floating rotor with 2-piston caliper

DIMENSIONS
Length 99.1/2519 in/mm
Wheelbase 65.6/1666 in/mm
Seat Height 26.5/673 in/mm
Ground Clearance 5.8/148 in/mm
Rake/Trail 32.8°/5.44/138 in/mm
Dry Weight 639/290 lbs/kg
GVWR 1170/531 lbs/kg

SUSPENSION
Front Suspension Inverted cartridge telescopic fork,43mmfork tube, 5.1in/
130mm travel
Rear Suspension Single, mono-tube gas/forged and cast aluminum w/
rising-rate linkage/3.9in. (100mm) travel/preload
adjustable spring

TIRES
Front Wheel 18x3in
Rear Wheel 18×5.0in
Front Tire 130 70-18 Dunlop Elite II
Rear Tire 180 55-B18 Dunlop D417

COLORS
Solid Colors Black, Indy Red, Supersonic Blue
Two-Toned Colors Graphite over Turbo Silver, Sedona over Stone Beige
Multiple Colors Silver over Black with Cosmic Flames, Pearl White over
Stone Beige with Cosmic Flames

MSRP
MSRP $15,999
MSRP – CA $16,249
