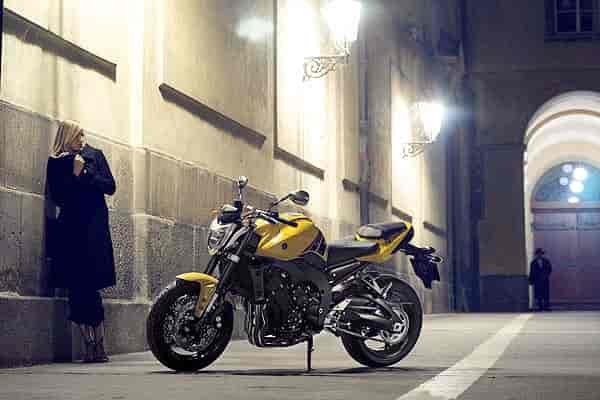

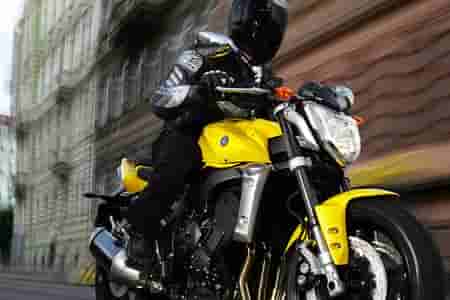

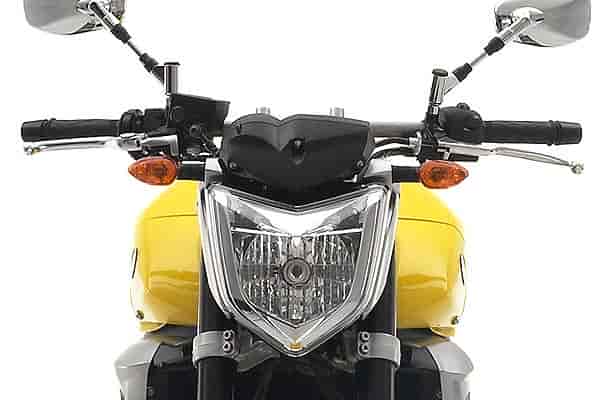

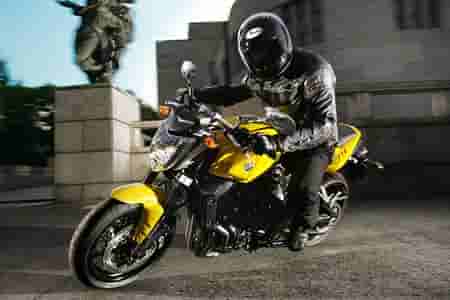

– 2006 Yamaha FZ1 Naked
FZ1 Naked – Europe Model
Along with the FZ1 Fazer, Yamaha are proud to announce the introduction of the all-new FZ1.
Featuring the same R1-based engine and aluminium chassis as the FZ1 Fazer, this muscular one-litre sports bike is built to deliver brutal class leading performance in the mid-range, combined with excllent day-to-day versatility. And with radical new bodywork and compact dimensions, this stylish new roadster has more street presence than anything else in the naked class.
Designed for a wide audience
With its combination of engine, chassis and versatility, the new FZ1 offers levels of performance and looks that are set to become the industry standard in the large-capacity naked sports bike sector.
A major target group for the new FZ1 are those supersport riders who are rediscovering the versatility and excitement of modern sports bikes. Drastic changes in traffic environment in many European countries – including new speed limits and higher insurance costs – are already affecting many supersport riders’ attitudes.
Type Liquid-cooled, 4-stroke, forward inclined parallel cylinder, DOHC
Displacement 998 cc
Bore and stroke 77.0 x 53.6 mm
Compression ratio 11.5:1
Max. power 110.3 kW (150 HP) @ 11,000 rpm
Max. torque 106.0 Nm (10.8 kg-m) @ 8,000 rpm
Lubrication Wet sump
Carburettor/fuel supply Fuel injection
Clutch type Wet, multiple – disc
Ignition TCI (digital)
Starter system Electric
Transmission Constant mesh, 6 speed
Final transmission Chain
Primary reduction ratio 1.512
Secondary reduction ratio 2.647
Gear ratio: 1st, 2nd, 3rd, 4th, 5th, 6th 2.533, 2.062, 1.762, 1.522, 1.350, 1.208
Frame Aluminium die-cast, diamond shaped
Front suspension Telescopic upside down forks
Front wheel travel 130 mm
Rear suspension Swingarm (link suspension)
Rear wheel travel 130 mm
Caster angle 25°
Trial 109 mm
Front brake Dual floating discs, Ã˜ 320 mm
Rear brake Single disc, Ã˜ 245 mm
Front tyre 120/70 ZR17 M/C (58W)
Rear tyre 190/50 ZR17 M/C (73W)
Overall length 2,140 mm
Overall width 770 mm
Overall height 1,205 mm
Seat height 815 mm
Wheelbase 1,460 mm
Min. ground clearance 135 mm
Dry weight 198 kg
Fuel tank capacity (reserve) 18 litres (3.4 litres)
Oil capacity 3.8 litres
Specifications are subject to change without notice, in accordance with national regulation and legislations
