2008 Benelli 49X Quattro NoveX
Back to 2008 Benelli Motorcycle Index Page

Click photos to enlarge for detail.
They make great desktop images.

2008 Benelli 49X Quattro NoveX
2008 Benelli 49X Quattro NoveX

2008 Benelli 49X Quattro NoveX
2008 Benelli 49X Quattro NoveX

2008 Benelli 49X Quattro NoveX
2008 Benelli 49X Quattro NoveX

2008 Benelli 49X Quattro NoveX
2008 Benelli 49X Quattro NoveX

2008 Benelli 49X Quattro NoveX
2008 Benelli 49X Quattro NoveX

2008 Benelli 49X Quattro NoveX
2008 Benelli 49X Quattro NoveX


– 2008 Benelli 49X Quattro NoveX

2008 Benelli 49X Quattro NoveX

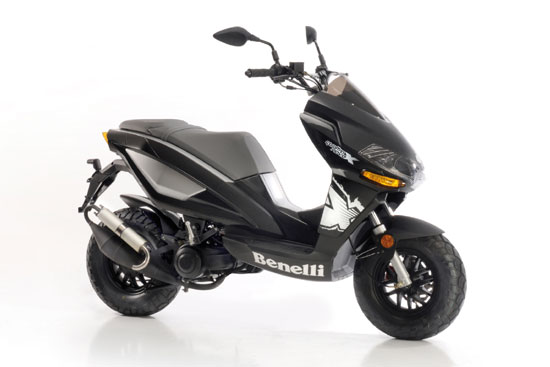

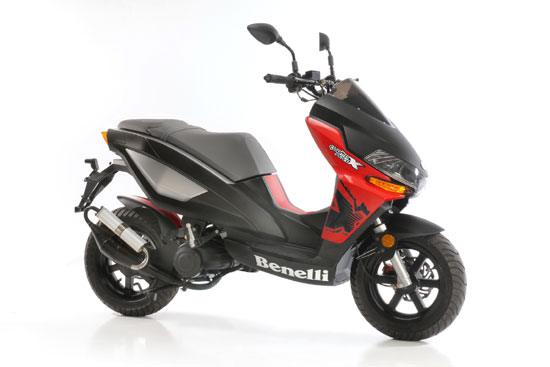

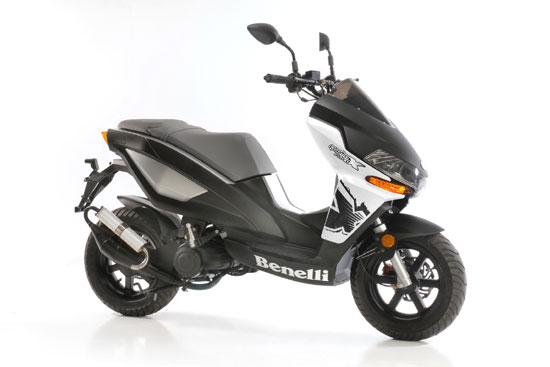

Benelli’s racey little 49X (Quattro Nove) scooter comes in four different colour combinations.


Canada SPECIFICATIONS: 2008 Benelli 49X Quattro NoveX

ENGINE
TYPE 2 stroke single cylinder
CYLINDER CAPACITY 49,26 c.c.
BORE X STROKE 40 X 39,2 mm
COMPRESSION RATIO 7.01
MAXIMUM POWER 2 Kw @ 7000 rpm
MAXIMUM NET TORQUE / RPM 3,70 @ 5000 rpm
LUBRICATION SYSTEM Autolube
COOLING SYSTEM Air cooled
FUEL SYSTEM Carburetor
CLUTCH Automatic
IGNITION Electronic , capacitive discharge
STARTING Electric and kick-starter
GEARBOX Automatic stepless gear change
TRANSMISSION Belt
TYPE-APPROVAL EURO 2

CYCLE PARTS
FRAME High tensil steel triangular trellis
FRONT SUSPENSION Fork 31 mm
FRONT TRAVEL 80 mm
REAR SUSPENSION Hydraulic shock absorber – 5 positions adjustable
REAR TRAVEL 70 mm
RAKE 27°
FRONT BRAKE DIAMETER single disc 190 mm
REAR BRAKE DIAMETER Drum 110 mm
FRONT TYRE 120/90 – 10
REAR TYRE 130/90 – 10

SIZES
LENGHT 1805 mm
WIDTH 695 mm
HEIGHT 1100 mm
SEAT HEIGHT 800 mm
WHEELBASE 1275 mm
DRY WEIGHT 96 kg
FUEL TANK CAPACITY 6,2 lt
FUEL RESERVE 1,5 lt





EUROPE SPECIFICATIONS: 2008 Benelli 49X Quattro NoveX

MSRP: £1499 RRP + OTR

Engine 2 stroke, single cylinder
Bore X Stroke 40 x 26 mm
Engine Displacement 49.26 cc
Cooling Air cooled
Lubrication Autolube
Start-up Electric and kick-start
Ignition Electronic ignition with captive discharge
Clutch Automatic
Gears Automatic stepless gear change
Transmission Belt driven EURO 2
Frame High tensil steel triangular trellis
Front Suspension Fork 31 mm
Rear Suspension Hydraulic shock absorber – 5 positions adjustable
Wheels 5 aluminium spokes; front 3.00 x 13”, rear 3.50 x 12”
Tyres Front: 120/90 – 10
Rear: 130/90 – 10
Brakes Front: single disc 190 mm
Rear: drum 110 mm
Wheelbase 1275 mm
Dimensions 1805 x 1100 x 695 mm (L x H x W)
Seat Height 800 mm
Dry Weight 96 kg

(Benelli Q.J. reserves the right to change technical specifications, equipment, set ups, and colours without prior notice.)
