2008 Harley-Davidson Firefighter FLSTF Fat Boy

You are here: HomeNew 2008 Models — 2008 Harley-Davidson Motorcycle Models

2008 Harley-Davidson Firefighter FLSTF Fat Boy
Back to 2008 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

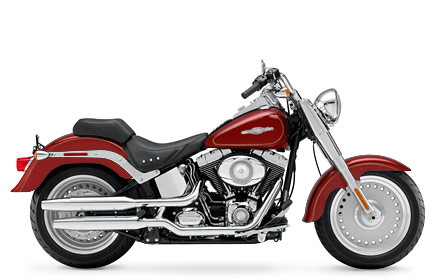

2008 Harley-Davidson Firefighter FLSTF Fat Boy
2008 Harley-Davidson Firefighter FLSTF Fat Boy

2008 Harley-Davidson Peace Officer Tank Medallion

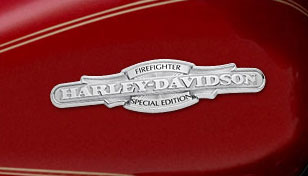

2008 Harley-Davidson Firefighter Tank Medallion

– 2008 Harley-Davidson Firefighter FLSTF Fat Boy

2008 Harley-Davidson Firefighter FLSTF Fat Boy

In order to qualify for purchase, a firefighter must submit a copy of his or her official identification card and a completed order form at an authorized Harley-Davidson dealer.




US SPECIFICATIONS:

2008 Harley-Davidson Firefighter FLSTF Fat Boy



DIMENSIONS U.S. IMPERIAL UNITS

Length 94.3 in.

Seat Height

Laden 25.4 in.

Unladen 27.5 in.

Ground Clearance 5.1 in.

Rake Steering Head/Trail 32.0º / 5.8 in.

Wheelbase 64.5 in.

Fuel Capacity 5.0 gals.

Oil Capacity 3.0 qts.

Weight

Dry Weight 694.0 lbs.

Running Order 714.0 lbs.


POWERTRAIN
Engine Air-cooled, Twin Cam 96B™

Displacement 96.0 in.³

Bore x Stroke 3.75 in. x 4.38 in.

Engine Torque 91.0 ft. lbs. @ 3000 rpm

Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

Compression Ratio 9.2:1

Miles per Gallon

Carb. N/A

ESPFI 50 hwy / 44 city

Primary Drive Chain

Gear Ratio (overall)

1st 9.312

2nd 6.421

3rd 4.774

4th 3.926

5th 3.279

6th 2.790


WHEELS/TIRES
Wheels

Front Silver, Bullet Hole Disc Cast Aluminum

Rear Silver, Bullet Hole Disc Cast Aluminum

Tire Size

Front 140/75R17 67V

Rear 200/55R17 78V


ELECTRICAL

Instruments Redesigned gauges with enhanced features: Electronic speedometer (tank-mounted) with odometer, time of day clock on odometer, resettable tripmeter, fuel gauge with low fuel warning light, low oil pressure indicator light, engine diagnostics readout, brighter/balanced LED lights, 6-speed (overdrive) indicator light.

Indicator Lamps High beam; neutral; low oil pressure; turn signals; engine diagnostics; security system (optional) 6-speed (overdrive), low fuel warnings


CHASSIS
Brakes

Front 4-piston

Rear 2-piston

Lean Angle (per SAEJ1168) 30º / 28º

Exhaust System Chrome, over/under shotgun duals


COLOR OPTIONS
Fire engine red


OPTIONAL EQUIPMENT
Security system


UNIQUE FEATURES
Fat 200mm rear tire; 17-in. front wheel; fat 1-1/4″ internally wired handlebar with giant bare knuckle risers; Silver, Bullet Hole Disc Cast Aluminum wheels; forged and chromed aluminum tank medallion with removable graphic Firefighter Special Edition insert


PRICING
MSRP

Fire engine red $17,728

Wheel Option $450

Chrome Engine Covers Option N/A

H-D® Factory Security System $345

ESPFI Standard

California Emissions

Carb. N/A

ESPFI $100

Freight (applies to the 48 contiguous states and Alaska only) $300



Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary by country and region depending on local laws. Some models are not available in certain countries.

Measurement reflects 180 lb. / 81.7 kg operator weight.

Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL 883 models). Standard and optional fuel systems may vary by country and region.

Standard and optional wheels may vary by country and region.

Values shown are nominal. Performance varies by country.

North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

See motorcycle owner’s manual for complete details.

Inspections of certain systems and components are required at 2,500 mile (4,000) intervals.

Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

U.S. and HDI markets, except Japan: Belt, 32/64 ratio


All models feature 5-speed transmission (Dyna™ models are 6-speed) and carbon fiber belt final drive; 40mm constant velocity carburetor with enrichener and accelerator pump (except Electronic Sequential Port Fuel Injection models); multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited-mileage warranty.

We reserve the right to discontinue models or change specifications at any time without incurring any obligations.

Attention: The vehicle in the configuration shown and many of the accessories for this vehicle are not available for sale or use in several countries outside the U.S. Specifications and vehicle availability may vary from market to market depending on local importation and registration laws. Please check with your local dealer for details.

Specifications may not match those of official certification in some markets due to timing of content release, variance in testing methods, and/or vehicle differences. Customers seeking officially recognized regulatory specifications for their vehicle should refer to certification documents and/or contact their respective retailer or distributor.






DIMENSIONS METRIC UNITS

Length 2395.2 mm

Seat Height

Laden 645.2 mm

Unladen 698.5 mm

Ground Clearance 129.5 mm

Rake Steering Head/Trail 32.0º / 147.3 mm

Wheelbase 1638.3 mm

Fuel Capacity 18.9 L

Oil Capacity 2.85L

Weight

Dry Weight 315.0 kg

Running Order 324.0 kg


POWERTRAIN
Engine Air-cooled, Twin Cam 96B™

Displacement 1584 cm³

Bore x Stroke 95.18 mm x 111.25 mm

Engine Torque 123.0 nm @ 3000 rpm

Fuel System Electronic Sequential Port Fuel Injection (ESPFI)

Compression Ratio 9.2:1

Miles per Gallon

Carb.

ESPFI

Primary Drive Chain

Gear Ratio (overall)

1st 9.312

2nd 6.421

3rd 4.774

4th 3.926

5th 3.279

6th 2.790


WHEELS/TIRES
Wheels

Front Silver, Bullet Hole Disc Cast Aluminum

Rear Silver, Bullet Hole Disc Cast Aluminum

Tire Size

Front 140/75R17 67V

Rear 200/55R17 78V


ELECTRICAL

Instruments Redesigned gauges with enhanced features: Electronic speedometer (tank-mounted) with odometer, time of day clock on odometer, resettable tripmeter, fuel gauge with low fuel warning light, low oil pressure indicator light, engine diagnostics readout, brighter/balanced LED lights, 6-speed (overdrive) indicator light.

Indicator Lamps High beam; neutral; low oil pressure; turn signals; engine diagnostics; security system (optional) 6-speed (overdrive), low fuel warnings


CHASSIS
Brakes

Front 4-piston

Rear 2-piston

Lean Angle (per SAEJ1168) 30º / 28º

Exhaust System Chrome, over/under shotgun duals


COLOR OPTIONS
Fire engine red


OPTIONAL EQUIPMENT
Security system


UNIQUE FEATURES
Fat 200mm rear tire; 17-in. front wheel; fat 1-1/4″ internally wired handlebar with giant bare knuckle risers; Silver, Bullet Hole Disc Cast Aluminum wheels; forged and chromed aluminum tank medallion with removable graphic Firefighter Special Edition insert


PRICING
MSRP

Fire engine red $17,728

Wheel Option $450

Chrome Engine Covers Option N/A

H-D® Factory Security System $345

ESPFI Standard

California Emissions

Carb. N/A

ESPFI $100

Freight (applies to the 48 contiguous states and Alaska only) $300


Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary by country and region depending on local laws. Some models are not available in certain countries.

Measurement reflects 180 lb. / 81.7 kg operator weight.

Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL 883 models). Standard and optional fuel systems may vary by country and region.

Standard and optional wheels may vary by country and region.

Values shown are nominal. Performance varies by country.

North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

See motorcycle owner’s manual for complete details.

Inspections of certain systems and components are required at 2,500 mile (4,000) intervals.

Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

U.S. and HDI markets, except Japan: Belt, 32/64 ratio

All models feature 5-speed transmission (Dyna™ models are 6-speed) and carbon fiber belt final drive; 40mm constant velocity carburetor with enrichener and accelerator pump (except Electronic Sequential Port Fuel Injection models); multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited-mileage warranty.

We reserve the right to discontinue models or change specifications at any time without incurring any obligations.

Attention: The vehicle in the configuration shown and many of the accessories for this vehicle are not available for sale or use in several countries outside the U.S. Specifications and vehicle availability may vary from market to market depending on local importation and registration laws. Please check with your local dealer for details.

Specifications may not match those of official certification in some markets due to timing of content release, variance in testing methods, and/or vehicle differences. Customers seeking officially recognized regulatory specifications for their vehicle should refer to certification documents and/or contact their respective retailer or distributor.
