2009 Benelli Tornado Tre 1130
Back to 2009 Benelli Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

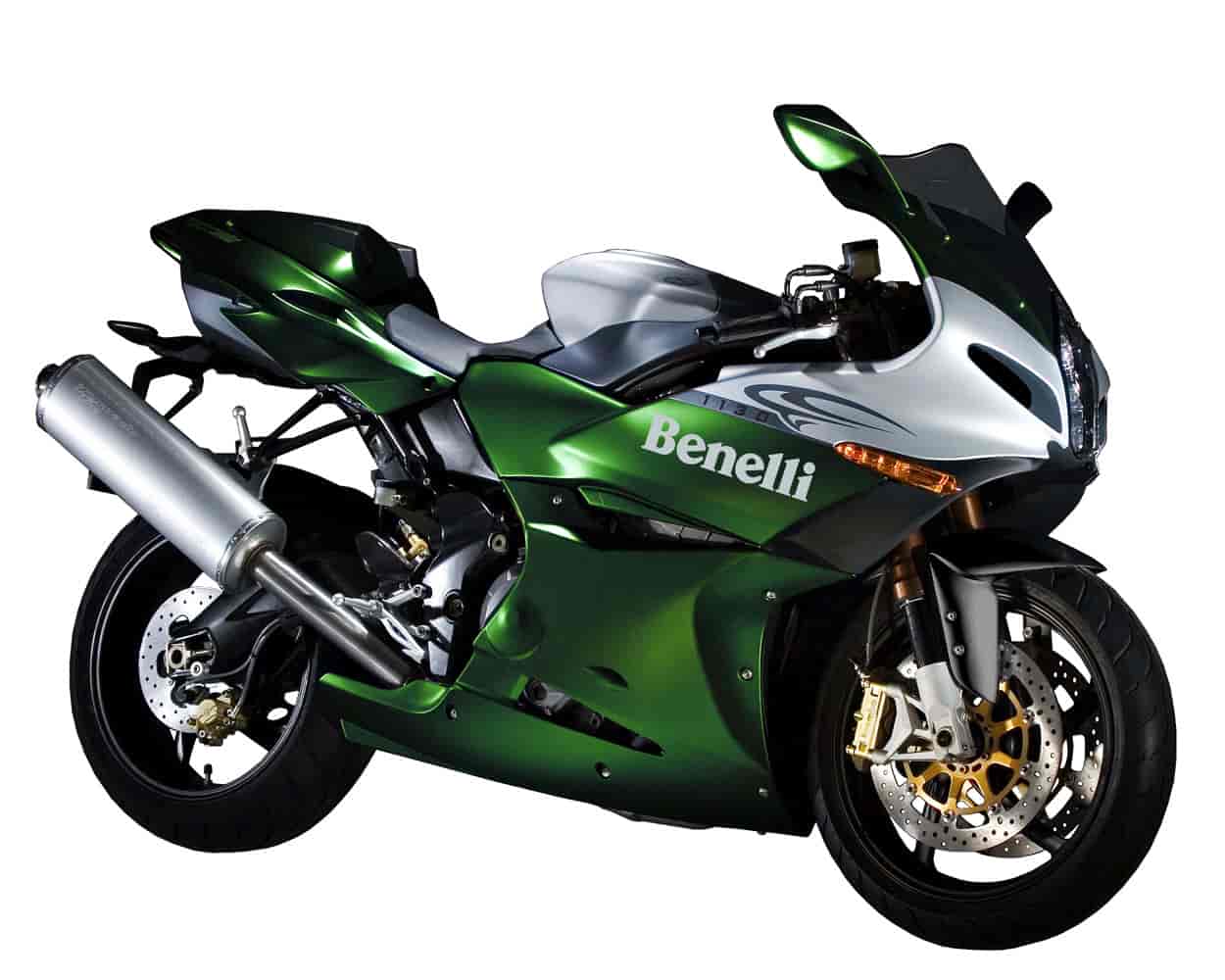

2009 Benelli Tornado Tre 1130

2009 Benelli Tornado Tre 1130

2009 Benelli Tornado Tre 1130

– 2009 Benelli Tornado Tre 1130

2009 Benelli Tornado Tre 1130

A frame designed and developed for racing meets a never ending engine!

With a power and torque perfectly suited to the frame characteristics this bike is destined for elite motorcyclists with high demands.



Project

“A swell of performance”

The Tornado’s frame has been completely revised to meet the new power and torque characteristic of the engine, without loosing any input from the original Tornado project.

REAR RADIATOR
This is one of the characterizing features of the Tornado.
50% of the weight is distributed to the front chasis of the bike in all riding conditions.
The advantage being increased precision when riding and when entering bends.

REAR SUSPENSION
The shock absorber and the links have benefitted from recent racing experience.
The measurements have been slightly modified to make the frame easier to manage adapting it to the new increased power and torque values.

FRAME
Some small improvements,for example the welding system and tube assembly are now more accurate.
The aluminum plates have been modified to make the Tornado 1130 more enjoyable and satisfying to ride.





2009 Benelli Tornado Tre 1130 – USA Specifications
Price $17,899 MSRP
Colors Green with Silver and Black with Silver
Engine Type Liquid cooled in line triple, valve arrangement dohc 12 valve
Bore x Stroke 88 x 62 mm
Displacement 1130cc
Compression Ratio 12.5 to 1
Transmission 6 speed cassette type
Final Drive 525 x-ring chain, engine sprocket Z-16, chain sprocket Z-36.
Chassis weight dry 438 lbs, weight wet 473 lbs
Rake 23.5 degrees, trail 3.74 inches
Wheel Base 55.86 inches
Seat Height 31.89 inches
Fuel Capacity 5.5 gallons
Brakes Brembo
Front 320mm dual floating disc with 4 piston Brembo calipers.
Rear 240mm fixed disc with 2 piston Brembo caliper.
Suspension
Front Fully adjustable 50mm inverted Marzocchi forks w/4.72” travel
Rear Fully adjustable Extreme Technology single shock w/4.72” travel
Performance
Horsepower 160.9 @10,500rpm
Torque 91.5ft/lbs@8,000rpm. Quarter mile,10.50 sec., 0-60mph 3.02 sec.,
0-100mph 5.59 sec.,0-120mph 10.48 sec
Fuel Mileage 28.22 mpg city / 33.70 highway.





2009 Benelli Tornado Tre 1130 – Canada Specifications
ENGINE
TYPE 3 cylinders, 4 stroke, liquid cooled, 12 Valves,
DOHC(double overhead camshaft)
CYLINDER CAPACITY 1131 cc
BORE X STROKE 88 X 62
COMPRESSION RATIO 13, 0:1
MAXIMUM POWER 120Kw = 161 Hp
MAXIMUM NET TORQUE / RPM 124 Nm = 91ftlb
FIRING ORDER 1 > 3 > 2
INTAKE VALVE DIAMETER 33 mm
EXHAUST VALVE DIAMETER 29 mm
INTAKE ENGINE TIMING 21°BTDC57° ATDC
EXHAUST ENGINE TIMING 36°BTDC26° ATDC
MAXIMUM VALVE LIFT Int.9,8 exh.8,75
THROTTLE BODY,DIAMETER Ø53 mm
LUBRICATION SYSTEM Wet sump
FUEL SYSTEM Injection EURO 3
CLUTCH Dry slipper clutch system
IGNITION Digital – inductive type via electronic engine management
STARTING Electric
GEARBOX 6 – speed
TRANSMISSION 525 chain type
PRIMARY RATIO 44 / 79
FINAL RATIO 16 / 36
GEAR RATIOS (SECONDARY) 1°14 / 39
2°18 / 35
3°21 / 32
4°23 / 30
5°24 / 28
6°25 / 27
CYCLE PARTS
FRAME ASD steel tube trellis, with boxed section
FRONT SUSPENSION “Upside down” fork fully adjustable Ø50 mm
FRONT TRAVEL 120 mm
REAR SUSPENSION Box-type structure swingarm
REAR TRAVEL 120 mm
RAKE 23.5°
TRAIL 95 mm
OFFSET 35 mm
FRONT BRAKE DIAMETER Ø320 mm with radial mount caliper
REAR BRAKE DIAMETER Ø240 mm
FRONT TYRE 120-70 / 17
REAR TYRE 190-50/17
SIZES
LENGHT 2039 mm
WIDTH 717 mm
HEIGHT 1153 mm
SEAT HEIGHT 810 mm
WHEELBASE 1419 mm
DRY WEIGHT 199 kg
FUEL TANK CAPACITY 19.1l
FUEL RESERVE 4 l



2009 Benelli Tornado Tre 1130 – Europe/UK Specifications

ENGINE
TYPE In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double overhead camshaft, with balancer shaft
DISPLACEMENT 1131 cc
BORE x STROKE 88 x 62 mm
COMPRESSION RATIO 13:1
RATED OUTPUT 120 kW (161 cv) @ 10500 rpm
MAX. TORQUE 124 Nm (12.7 kgm) @ 8000 rpm
FUEL SUPPLY Electronic injection with three throttle bodies ø53 mm
EXHAUST SYSTEM With catalytic converter
CERTIFICATION Euro 3
CLUTCH Dry clutch anti-hopping system
GEARBOX 6 speed
FINAL DRIVE Chain drive, ratio 17:36
CHASSIS
FRAME Decomposable, front steel trestle, rear aluminium alloy casting
FRONT SUSPENSION ø50 mm upside-down fork, with hydraulic extension / compression and spring preload adjustments
FRONT SUSPENSION STROKE 120 mm
REAR SUSPENSION Aluminium alloy box-type structure swingarm, progressive rear dumper with hydraulic extension / compression and spring preload adjustments
REAR SUSPENSION STROKE 120 mm
FRONT BRAKE Twin floating disk ø320 mm with 4 piston radial calipers
REAR BRAKE Single disk ø240 mm with double piston caliper
FRONT RIM 3.50”x17”
REAR RIM 6.00”x17”
FRONT TYRE 120/70 R17 (120/65 R17)
REAR TYRE 190/50 R17 (180/55 R17)
SIZES
LENGHT 2039 mm
WIDHT EXCLUDING MIRRORS 717 mm
HEIGHT EXCLUDING MIRRORS 1153 mm
SEAT HEIGHT 810 mm
WHEELBASE 1419 mm
UNLADEN WEIGHT* 199 kg
ROAD READY WEIGHT** 295 kg
PERMITTED TOTAL WEIGHT 400 kg
USABLE TANK VOLUME 19 lt
RESERVE 4 lt

* without fluids
** According to guideline 93/93/CEE with all fluids, fuelled with at least 90% of usable tank volume

(Benelli Q.J. reserves the right to change technical specifications, equipment, set ups, and colours without prior notice.)
