2009 KTM 65SX
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

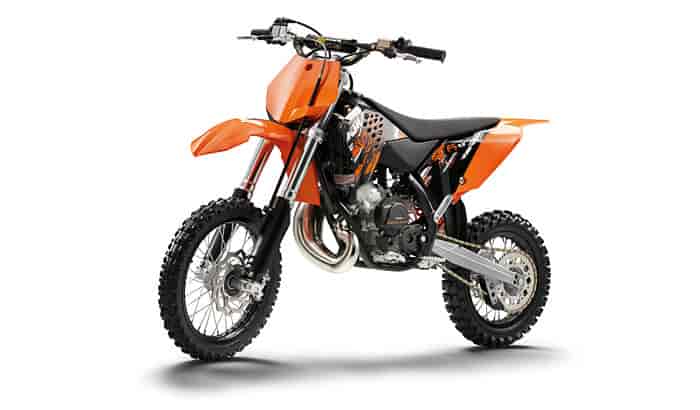

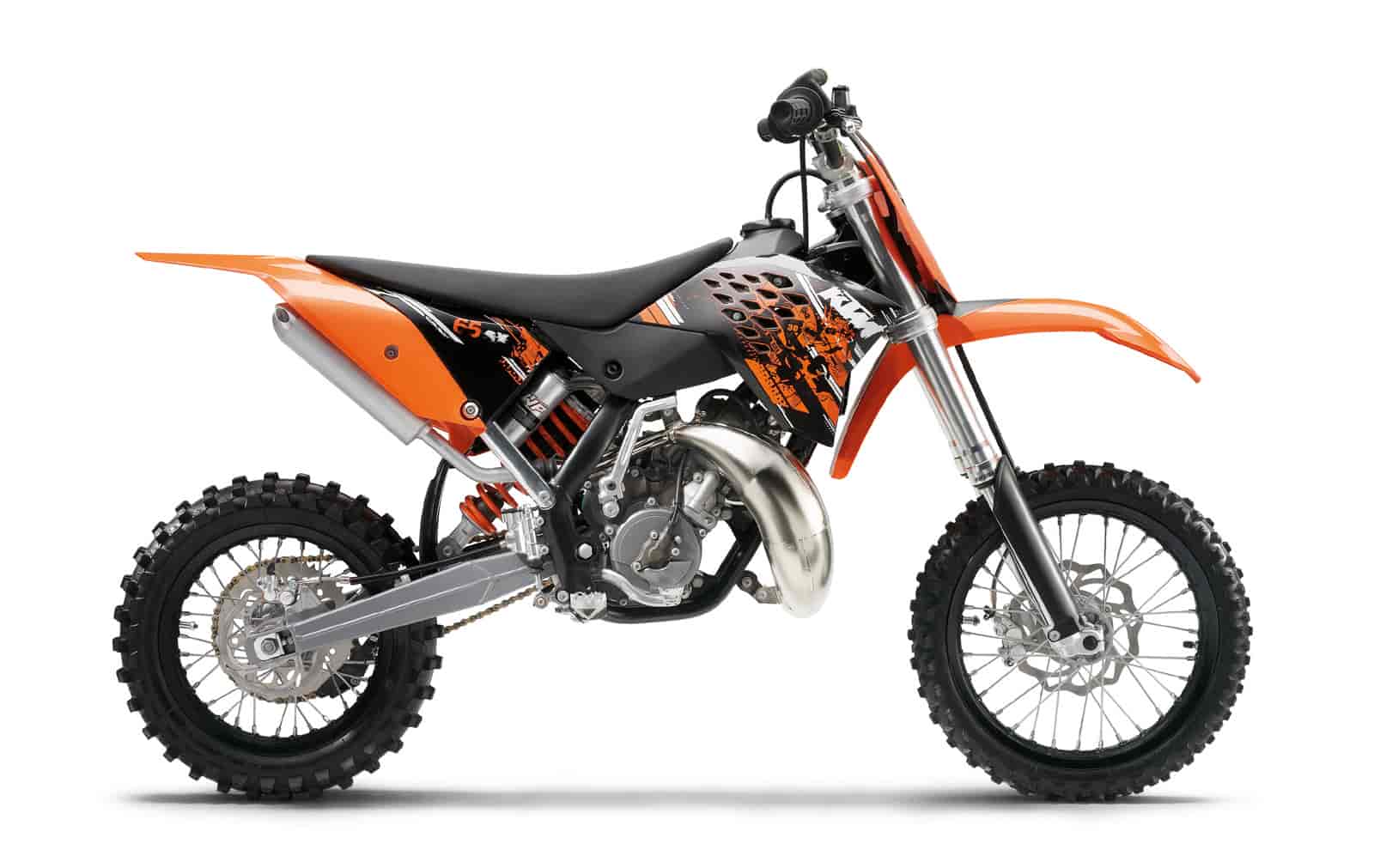

2009 KTM 65SX

2009 KTM 65SX

2009 KTM 65SX

– 2009 KTM 65SX

2009 KTM 65SX

With the 65 SX, the development engineers at KTM have succeeded in setting a real milestone in orange. With it, you get an SX bike which need not hide even from the big motocross riders. An ultra-powerful new engine and trend-setting technical features guarantee you unbeatable power. The sharp bodywork and cool styling give a unique winning look.

A champion of today for the champion of tomorrow – for you!

2009 KTM 65SX – Specifications

Engine type Single cylinder, 2-stroke
Displacement 64.9 cc
Bore x stroke 45 x 40.8 mm (1.77 x 1.61″)
Starter Kickstarter
Transmission 6 gears
Carburetor Mikuni VM 24-505
Control Exhaust control PCEV
Engine lubrication Mixture oil lubrication 1:60
Transmission oil Motorex, SAE 15W-50
Primary drive 61:33
Final drive 11:40
Cooling Liquid cooling
Clutch Wet multi-disc clutch, operated hydraulically
Ignition AET digital


Frame Double grinded central double-cradle-type frame
Subframe Aluminium
Handlebar Pro Taper, Aluminium Ø 22 mm (0.87″)
Front suspension Marzocchi USD Ø 35 mm (1.38″)
Rear suspension WP mono shock
Suspension travel front/rear 220 / 270 mm (8.66 / 10.63″)
Front brake Disc brake Ø 198 mm (7.80″)
Rear brake Disc brake Ø 160 mm (6.3″)
Rims, front/rear 1.6 x 14″; 1.6 x 12″ Alu
Tires, front/rear 60/100 x 14″; 80/100 x 12″
Chain 1/2 x 1/4″
Main silencer Aluminium
Steering head angle 64.5°
Wheel base 1137 mm (44.76″)
Ground clearance (unloaded) 280 mm (11.02″)
Seat height 750 mm (28.54″)
Tank capacity approx. 3.5 liters (0.93 gal)
Weight (no fuel) approx. 55.4 kg (122.13 lbs)
