2009 KTM 950 Super Enduro R

You are here: Home2009 Models — 2009 KTM Motorcycle Models

2009 KTM 950 Super Enduro R
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2009 KTM 950 Super Enduro R
2009 KTM 950 Super Enduro R

2009 KTM 950 Super Enduro R
2009 KTM 950 Super Enduro R

2009 KTM 950 Super Enduro R
2009 KTM 950 Super Enduro R


– 2009 KTM 950 Super Enduro R

2009 KTM 950 Super Enduro R

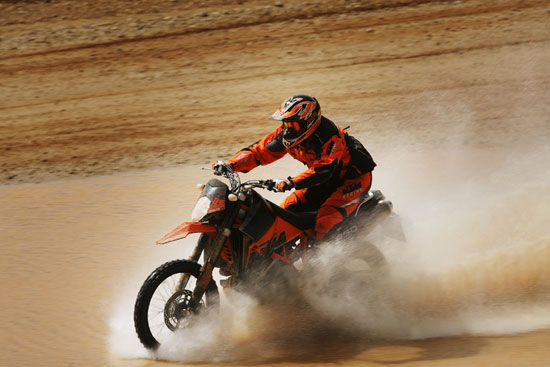

The KTM 950 Super Enduro R is the ideal bike for all those who want to tackle absolutely everything. During chassis tests it dismisses the roughest abuse. Over and over the WP absorber components plunge into action just in time. Even hard-core expert Giovanni is a bit surprised that the 950 Super Enduro R can be as good as new – even after copious amounts of high flying. “I might be worn out, but it seems you can’t kill off that thing!”



2009 KTM 950 Super Enduro R – Specifications

Engine type Twin cylinder, 4-stroke, V 75°
Displacement 942 cc
Bore x stroke 100 / 60 mm (3.94 / 2.36″)
Performance (homologated) 72 kW / 8500 rpm
Max. torque 90 Nm / 7000 rpm
Compression ratio 11.5:1
Starter/Battery Electric Starter / 12 V 11.2 Ah
Transmission 6 gears, dog clutch engagement
Carburetor 2 Keihin constant-pressure carburetor CVRD 43
Control 4 V / DOHC
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication Motorex, fully synthetic, SAE 10W-50
Primary drive 67:35
Final drive 17:45
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Denso battery ignition


Frame Chromium-Molybdenum trellis frame, powder coated
Subframe Aluminium 7020
Handlebar Aluminium, Ø 28 / 22 mm (1.10 / 0.87″), tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock
Suspension travel front/rear 250 / 255 mm (9.84 / 10.04″)
Front brake Brembo 2-piston floating caliper, floating brake disc Ø 300 mm (11.81″)
Rear brake Brembo 2-piston, floating caliper, floating brake disc Ø 240 mm (9.45″)
Rims, front/rear Spoked wheels with aluminium rims, 1.85 x 21″; 2.50 x 18″
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-Ring 5/8 x 5/16″
Battery 12 V / 11.2 Ah
Main silencer Twin stainless steel silencer with catalytic converters
Steering head angle 64,4°
Trail 112 mm (4.41″)
Wheel base 1577 ± 10 mm (62.09″)
Ground clearance (unloaded) 330 mm (12.99″)
Seat height 965 mm (37.99″)
Tank capacity approx. 14.5 liters / 2.5 liters reserve (3.83 / 0.66 gal)
Weight (no fuel) approx. 190 kg (418.88 lbs)
