2009 KTM 990 Supermoto

You are here: Home2009 Models — 2009 KTM Motorcycle Models

2009 KTM 990 Supermoto
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

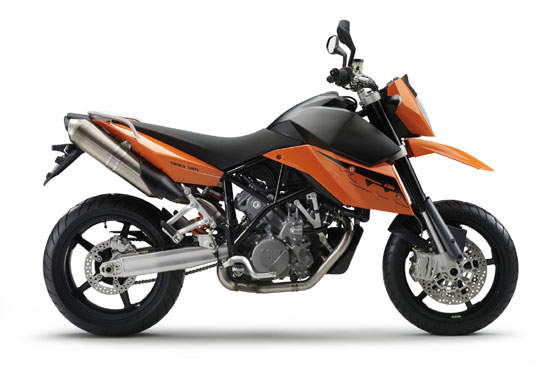

2009 KTM 990 Supermoto
2009 KTM 990 Supermoto

2009 KTM 990 Supermoto
2009 KTM 990 Supermoto

2009 KTM 990 Supermoto
2009 KTM 990 Supermoto

– 2009 KTM 990 Supermoto

2009 KTM 990 Supermoto

With its self confident, bull-like appearance, the KTM 990 Supermoto manages to put on a show – even when on its stand. Set it in motion, and you’re practically unbeatable.

What’s the magic formula that makes our bikes so much fun? It’s no secret. Take the 990 Supermoto. No other manufacturer comes even close to being as consequent as KTM. The extremely compact LC8 engine weighs only 58 kg, making it the lightest Twin in the 1,000 cc class. The stable chromium-molybdenum frame, weighing only 11 kg, is a real lightweight. The short, 1,510 mm wheelbase together with the radical 64.6° steering head angle guarantees an extremely sporty riding experience. The finely tuned WP chassis is as convincing on country roads as it is on the motorway.

In a word: The KTM 990 Supermoto feels as light as a single cylinder and goes like the devil.


2009 KTM 990 Supermoto – Specifications

Engine type Twin cylinder, 4-stroke, V 75°
Displacement 999 cc
Bore x stroke 101 x 62.4 mm (3.98 x 2.46″)
Performance (homologated) 85 kW @ 9000 rpm
Max. torque 97 Nm @ 7000 rpm
Compression ratio 11.5:1
Starter/Battery E-Starter/12 V 11.2 Ah
Transmission 6 gears, dog clutch engagement
Fuel Mixture Generation Keihin EFI, throttle valve Ø 48 mm
Control 4 V/DOHC
Lubrication Pressure lubrication with 2 pumps
Engine lubrication Motorex, fully synthetic, SAE 10W-50
Primary drive 35:67
Final drive 17:41
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Motor Management Keihin EFI, throttle body Ø 48 mm (1.89″)

Frame Chromium-Molybdenum trellis frame, powder-coated
Subframe Aluminium
Handlebar Aluminium, Ø 28/22 mm (1.10/0.87″), tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock
Suspension travel front/rear 200/210 mm (7.87/8.27″)
Front brake 2 x Brembo four piston fixed-caliper, radially bolted, brake disc Ø 305 mm, floating
Rear brake Brembo 2-piston floating caliper, brake disc Ø 240 mm (9.45″)
Rims, front/rear Cast aluminium wheels 3.5 x 17″; 5.5 x 17″
Tires, front/rear 120/70 ZR 17″; 180/55 ZR 17″
Chain X-Ring 5/8 x 5/16″
Main silencer Twin stainless-steel silencer with regulated catalytic converters
Steering head angle 65.1°
Trail 110 mm (4.33″)
Wheel base 1510 ± 15 mm (59.45 ± 0.95″)
Ground clearance (unloaded) 195 mm (7.68″)
Seat height 875 mm (34.45″)
Tank capacity approx. 19 liters (5.02 gal) /3.7liters reserve (0.66 gal)
Weight (no fuel) approx. 191 kg (421.8 lbs)
