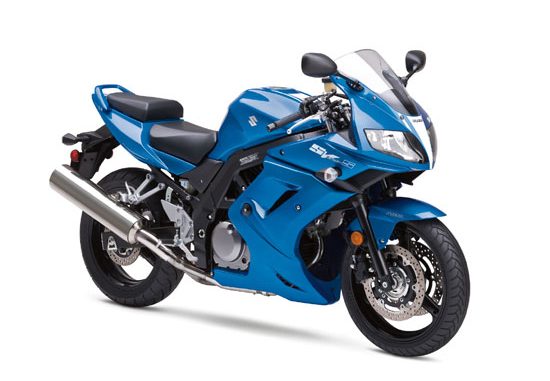

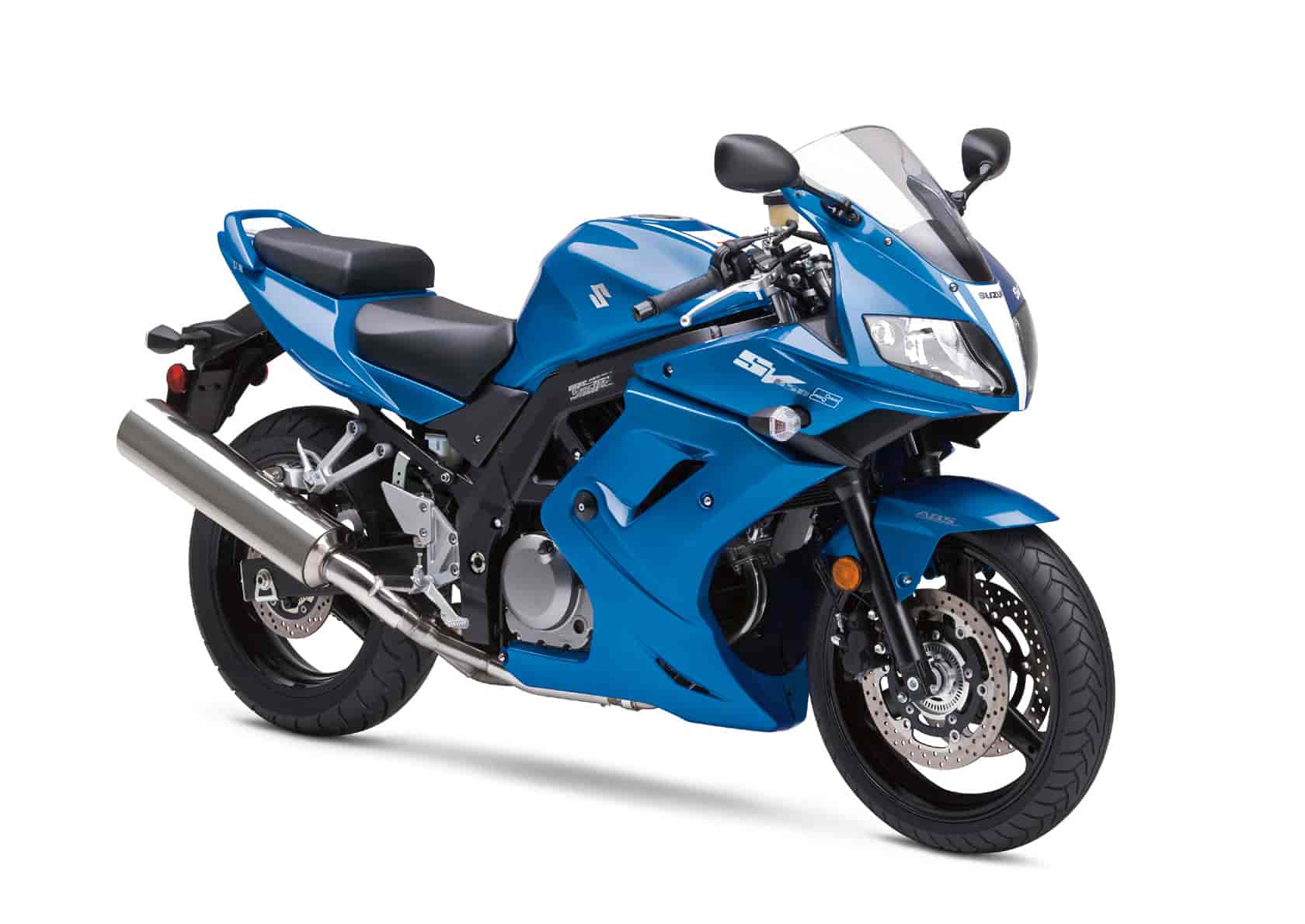

2009 Suzuki SV650SF ABS
2009 Suzuki SV650SF ABS


• 2009 Suzuki SV650SF ABS

2009 Suzuki SV650SF ABS




Key Features

– Antilock Brake System (ABS) monitors brake lever input and wheel speed, and matches stopping power to available traction



Engine Features

– Twin spark plug cylinder heads for optimum combustion and reduced emissions.

– Compact 645cc, 90 degree liquid-cooled V-twin, DOHC 8-valve engine tuned for strong low to mid rpm power

– 90 degree V-twin cylinder layout eliminates primary vibration without a counterbalancer, keeping the engine simple and compact

– Lightweight chain-driven DOHC, shim-under-bucket valve system with 31 mm intake valves and 25.5 mm exhaust valves

– Electronic fuel injection system featuring the Suzuki Dual Throttle Valve System (SDTV) – maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output – includes Auto Fast Idle System (AFIS)

– High capacity liquid-cooling system enhances engine performance and durability – coolant routing is integrated with the clutch cover and engine case for a cleaner look and reduced weight

– Smooth-shifting 6-speed transmission with vertically staggered transmission shafts for a shorter, more compact crankcase

– Plastic outer clutch cover and engine sprocket cover for reduced weight and noise

– Lightweight 2-into-1 exhaust system tuned for strong low and mid-range torque



Chassis Features

– Anti-lock Braking System (ABS) for maximum braking performance in wet riding conditions

– Sleek fairing features dual 60/55W headlights with running lights and folding mirrors

– Narrow, lightweight aluminum truss-style frame constructed with high-vacuum die-cast process for more consistent strength and fewer individual welded sections

– Black-painted frame, swingarm, and wheels for more sport appearance

– 41 mm front fork with 130 mm of wheel travel provides a smooth, compliant ride

– Link-type single-shock rear suspension with 7-way adjustable preload

– Box-section aluminum swingarm is lightweight with high torsional rigidity

– Powerful dual hydraulic disc front brakes with 290 mm floating rotors and adjustable brake lever position

– Single disc rear brake with 240 mm rotor

– Compact instrument cluster includes analog tach, LCD speedometer, odometer/tripmeters, and temperature gauge, plus LCD clock and low fuel warning light

– Steeply-angled tail section houses unique vertically-styled, high visibility LED taillight and compact rear fender

– Large under-seat storage area, passenger grab-bar and tie-down hooks

– Slim 4.5 gallon fuel tank with low fuel warning light

– Hinged fuel tank swings up for easy access to the airbox and throttle bodies

– Wide radial tires mounted on lightweight, 3-spoke cast aluminum wheels






2009 Suzuki SV650SF ABS – USA Specifications
MSRP: $7,499 USD

Model Number SV650SAK9
Type Sportbike
Warranty
Suggested Retail $7499
SEP $0
Engine 645 cc (39.4 cu. in), 4-stroke, liquid-cooled, DOHC, 90? V-twin
Bore & Stroke 81.0 mm (3.189 in) x 62.6 mm (2.465 in)
Compression Ratio 11.5 : 1
Fuel System Fuel injection
Lubrication Wet sump
Ignition Electronic ignition (Transistorized)
Starter Electric
Transmission 6-speed constant mesh
Final Drive DID525V8, 114 links
Overall Length 2120 mm (83.5 in)
Overall Width 730 mm (28.7 in)
Overall Height 1170 mm (46.1 in)
Seat Height 800 mm (31.5 in)
Ground Clearance 155 mm (6.1 in)
Wheelbase 1470 mm (57.9 in)
Curb Weight 203 kg (445 lbs)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Tires Front 120/60ZR17M/C (55W), tubeless
Tires Rear 160/60ZR17M/C (69W), tubeless
Fuel Tank Capacity 17.0 L (4.5/3.7 US/Imp gal)
Color Blue




2009 Suzuki SV650SF ABS – Canada Specifications
MSRP: $TBA CDN

TBA

Prices and specifications subject to change without notice.
