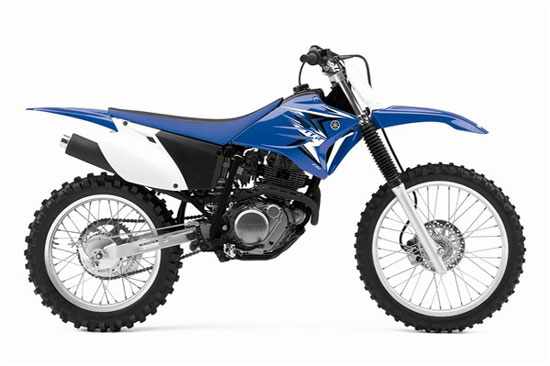

2009 Yamaha TT-R230

• 2009 Yamaha TT-R230

2009 Yamaha TT-R230

Ride more, worry less.

Design-wise, the 2009 Yamaha TT-R230 takes its cus from some of our most rugged competition machines. It’s perfect for novice to intermediate riders, with a compact wheelbase, a low seat, and the convenience of electric starting. The longer travel suspension smoothes out even the roughest terrain.

The 2009 TT-R230, the perfect mix of YZ styling with a user friendly chassis and engine.

Cottage fun or back forty trail riding, the TT-R230 will keep smils on everyones face…including the neighbours. With a compact wheelbase, low seat height and convenient electric starting, this bike is the ideal choice for novice to intermediate riders looking for a fun oriented “recreational” dirt bike.

Climb aboard and be a part of the YZ legacy: the styling and awesome lightweight handling of the TT-R230 are directly inspired by our competition bikes. You’ll tackle any terrain with confidence. The rugged, air-cooled 4-stroke engine with its convenient electric start pumps out plenty of predictable power. And the off road suspension is guaranteed to make short work of rough terrain. Little wonder you’ll want to ride all day.

With a push button electric starter, powerful four-stroke engine, competition-style flat seat/tank junction, long travel suspension, and 11.6 inches of ground clearance. The TT-R 230 is a serious trail bike that is also accessible to a wide range of riders.



Highlights:

– 223cc, 4-stroke single

– Peppy, air-cooled

Key Features:

Engine:

Peppy, air-cooled, 223cc, SOHC, 2-valve, 4-stroke powerplant produces predictable power aimed at easing both beginning and smaller intermediate riders into the fun and excitement of off-road riding.

Convenient, dependable electric starter ensures hassle-free, push-button starting.

CD ignition system is ultra-reliable and never needs maintenance.

Automatic cam chain tensioner reduces maintenance and mechanical noise and extends engine life.

Teikei Y26P carburetor provides crisp throttle response while also providing excellent fuel economy.

WR-style washable foam air filter provides improved engine performance, improved filtering function and easier serviceability. Since the foam filter is washable, it reduces tune-up costs too.

Smooth shifting, manual, 6-speed, close ratio transmission has revised gear ratios for maximum off road fun. The ratios have been optimized for maximum versatility.

Lightweight, upswept exhaust system features a screen-type spark arrestor like those found on the WR series. This style of spark arrestor can be cleaned, thereby reducing tune-up costs. There are heat shields to protect the rider.



Chassis/Suspension:

Diamond-type steel frame features a compact, 1385mm (54.5″) wheelbase to ensure superb maneuverability and responsive handling.

36mm leading axle front fork offers 240mm (9.5″) of wheel travel providing a plush, confidence-inspiring control over rough terrain.

Durable fork boots ensure excellent fork seal and stanchion tube protection.

Rugged box section swingarm features easy-to-use eccentric chain adjusters. The overall design is changed to accommodate the new suspension.

Monocross link single shock rear suspension offers 220mm (8.7″) of wheel travel and delivers smooth, progressive suspension performance.

Rear shock adjusts for spring preload so rider can tailor suspension to weight and terrain.

Ground clearance is 295mm or 11.6 inches for enhanced terrainability.

Front 220mm disc with twin piston caliper ensures fast, fade-free stopping power.

Rear drum brake with easy-to-use wing nut adjusters

21″ front and 18″ rear aluminum rims reduce weight for great handling and suspension performance. Knobby tires provide motocross-spec traction.

Aggressive styling highlights Yamaha’s championship winning YZ racing heritage. The rugged plastic components resist damage in the event of a tip over. The slim design bodywork allows excellent rider maneuverability.

8-litre plastic fuel tank resists damage in the event of a tip over and features an off/on/reserve fuel petcock for peace of mind. The styling has been revised to reflect the championship winning YZ heritage.



Details:

“Bar-type” engine skid plate offers excellent protection to the engine while also enhancing overall frame rigidity for great handling.

Long, flat, YZ-style two-tone seat provides great rider comfortable and allows easy rider movements.

Team Yamaha-inspired colour and graphics.

Motocross-style handlebar with reinforcing crossbar

Wide style serrated folding footpegs provide excellent grip even in wet or muddy conditions.

Folding gear shift lever and rear brake pedal tip

Convenient carburetor-mounted choke

Heavy-duty “O” ring chain

Lightweight WR-type main switch (push button) is handlebar mounted. Red warning light is provided to indicate if the power is active.

Lightweight, sealed (spill proof) low maintenance battery.

All new YZ inspired graphics introduced in 2008.



2009 Yamaha TT-R230 – USA Specifications
MSRP* $3,699 (Team Yamaha Blue/White) Available from October 2008


Engine
Type 223cc air-cooled SOHC 4-stroke, 2 valves

Bore x Stroke 70.0mm x 58.0mm

Compression Ratio 9.5:1

Carburetion Y26P

Ignition DC-CDI

Transmission Constant-mesh 6-speed; multiplate wet clutch

Final Drive Chain


Chassis
Suspension/Front Telescopic fork; 9.5-in travel

Suspension/Rear Single shock; 8.7-in travel

Brakes/Front 194mm single disc

Brakes/Rear 130mm drum

Tires/Front 80/100-21 NHS

Tires/Rear 100/100-18 NHS


Dimensions
Length 81.3 in

Width 31.5 in

Height 46.5 in

Seat Height 34.2 in

Wheelbase 54.5 in

Ground Clearance 11.6 in

Fuel Capacity 2.1 gal

Wet Weight 256 lb


Other
Warranty 90 Day (Limited Factory Warranty)





2009 Yamaha TT-R230 – Canada Specifications
MSRP* $4,349

Engine 4-stroke, air-cooled, SOHC, 2-valve, single
Displacement 223cc
Bore and Stroke 70 x 58mm
Compression Ratio 9.5:1
Maximum Torque 1.72kg-m (12.4 ft-lb)@ 6,500 rpm
Fuel Delivery Teikei Y26P
Ignition Electric start / CDI
Transmission 6-speed w/manual clutch
Drive Train Chain

Suspension (Front) 36mm fork
Suspension (Rear) Adjustable link-type Monocross
Brakes (Front) 220mm disc
Brakes (Rear) Drum
Tires (Front) 80/100-21
Tires (Rear) 100/100-18

Length 2,065mm (81.3″)
Width 800mm (31.5″)
Height 1,180mm (46.5″)
Wheelbase 1,385mm (54.5″)
Seat Height 870mm (34.3″)
Fuel Capacity 8 litres (1.8 imp. gallons)
Wet Weight 116kg (255.2 lb)
Colour(s) Yamaha Blue

*Prices and specifications subject to change without notice.
