2010 Bimota DB5S

Back to 2010 Bimota Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

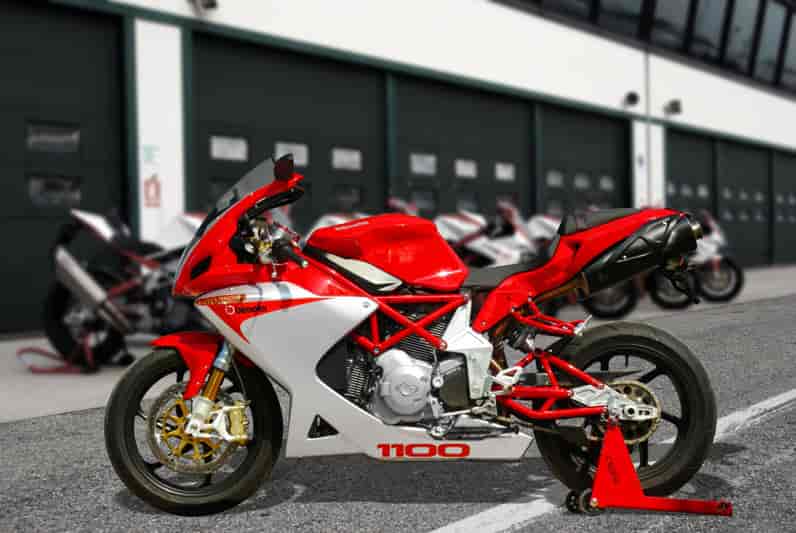

2010 Bimota DB5S

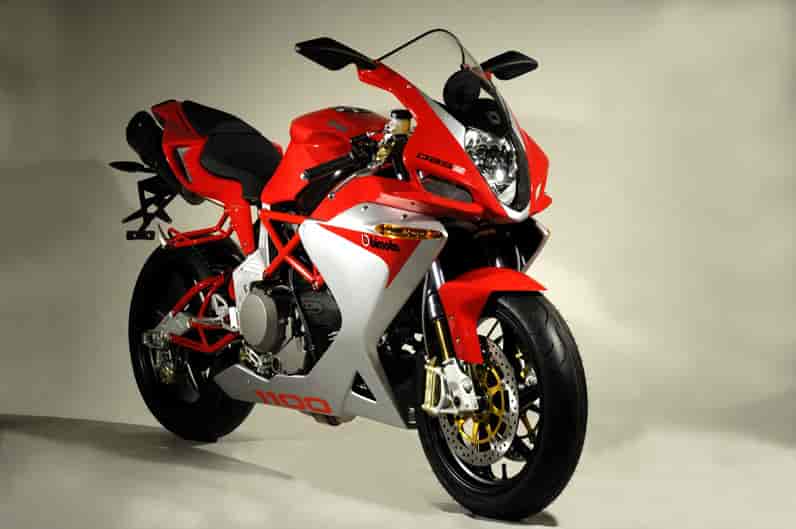

2010 Bimota DB5S

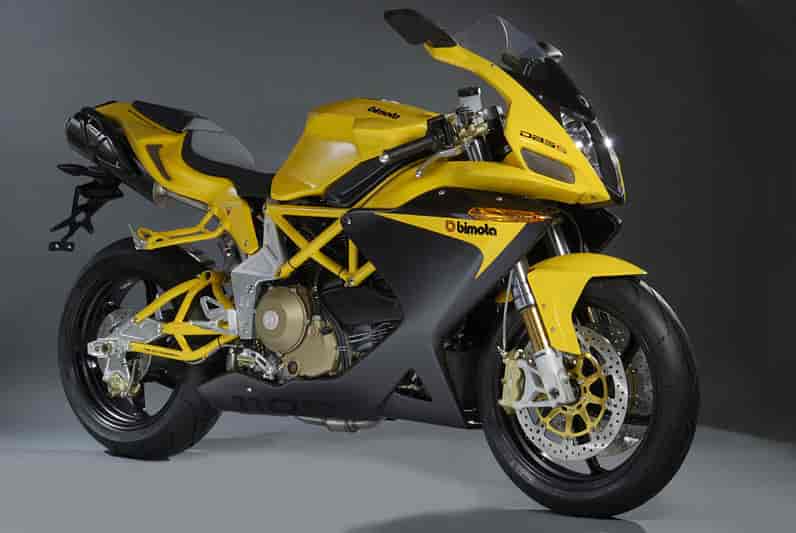

2010 Bimota DB5S

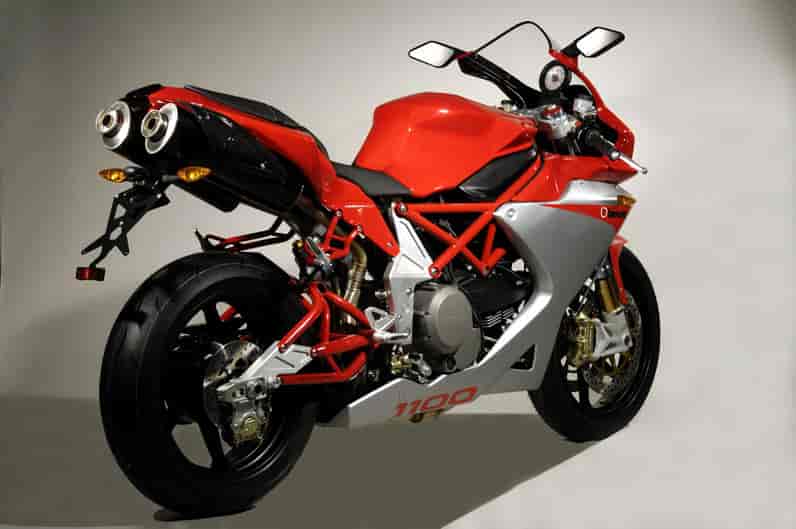

2010 Bimota DB5S

2010 Bimota DB5S
2010 Bimota DB5S

2010 Bimota DB5S
2010 Bimota DB5S


– 2010 Bimota DB5S

2010 Bimota DB5S

The DB5S biposto offers exhilarating performance combined with sport-touring comfort for the rider and passenger.

Derived from its predecessor, the award winning DB5 Mille, the tubular steel frame of the DB5S with machined plates in aircraft alloy envelopes the powerful and reliable Ducati 1100 DS engine. The innovative concept behind the tubular composite swing arm, exclusive to Bimota, confirms our commitment to continuous research and development. As introduced first on the DB5 Mille the revolutionary design of the full front fairing leaves the engine completely exposed.

The compact, lightweight and agile DB5S has been designed with the dedicated sportrider in mind, offering supersport performance and handling on the short and fast paced ride through narrow turns as well as the long trip with two-up.





2010 Bimota DB5S – Specifications
MSRP: $27,945 USD

ENGINE

Type: Ducati 1100DS
Configuration: 90 degree L-Twin
Displacement: 1079cc
Cooling: air/oil
Compression Ratio: 10.5±0.5:1
Valves per Cylinder: 2
Bore x Stroke: 98.0mm x 71.5mm
Redline: 9000rpm
Valve Angle: intake: 28 degree, outlet: 28 degree
Valvetrain Type: Desmodromic
Fuel Pump: Bitron 3.5bar, electronic
Throttle Body: 45mm
Air Filter: Foam
Exhaust System: 2 in 1 in 2, inox
Injection: Magneti Marelli
Lubrication: Wet Sump
Fuel Tank: 4.2gal/1.3gal reserve (16l/5l reserve)

TRANSMISSION

Type: Wet Clutch, multi-disc
Clutch: Hydraulic
Primary Drive: (TBA)
Final Drive: (TBA)
Gear Ratio: (TBA)

CHASSIS

Wheelbase: 56.1in (1425mm)
Swingarm Lenth: 20.3±0.8in (515±20mm)
Seat Height: 31.9in (810mm)
Footpeg Height: 14.6in – 15.2in (370mm – 385mm)
Handlebar Height: 33.9in (860mm)
Steering Stem to Seat Center: 25.2in (640mm)
Front Suspension: 50mm UD Marzocchi TIN Coated Fork, fully adjustable (Preload – External Hydraulic Device, Compression, Rebound), travel 4.7in (120mm)
Front Wheel: 3.50 x 17.0 Alluminium Alloy
Front Brake: Double 320mm Brembo floating discs, Brembo Radial Caliper, 4-piston, 4-pad
Rear Suspension: Extreme Tech monoshock, fully adjustable (Preload – External Hydraulic Device, Compression, Rebound)
Rear Wheel: 5.50 x 17.0 Aluminium Alloy
Rear Wheel Trail: 4.7in (120mm)
Rear Brake: 220mm Brembo Disc , 2-piston, 2-pad
Curb Weight: 417lb (189kg)
