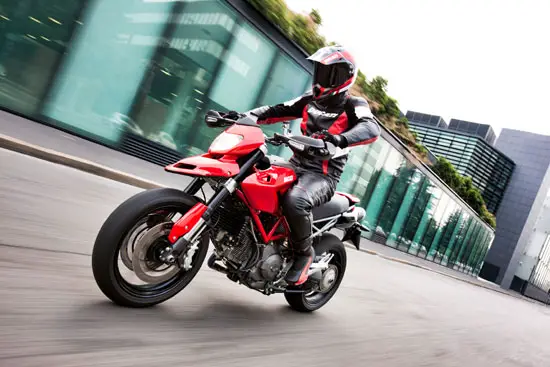

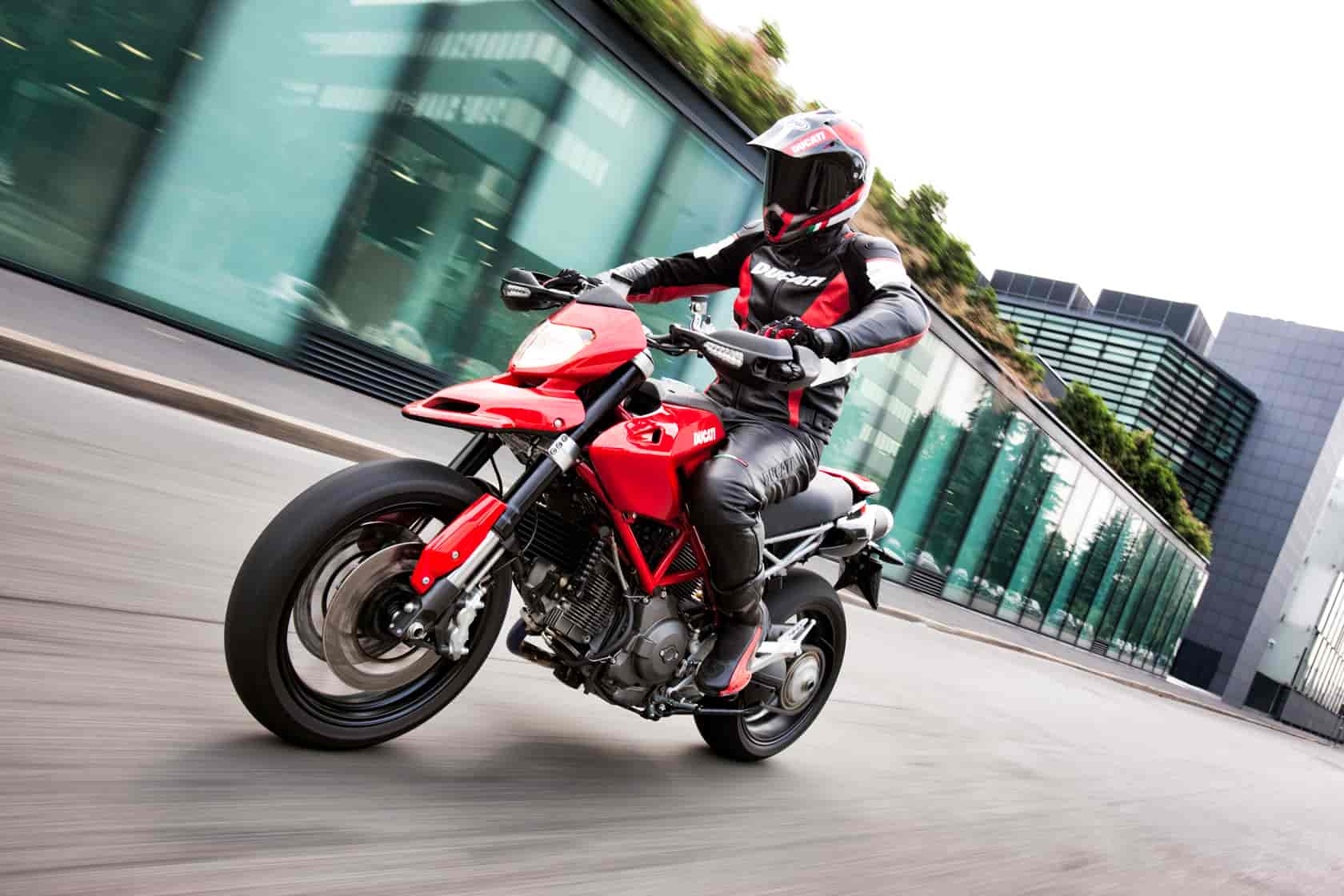

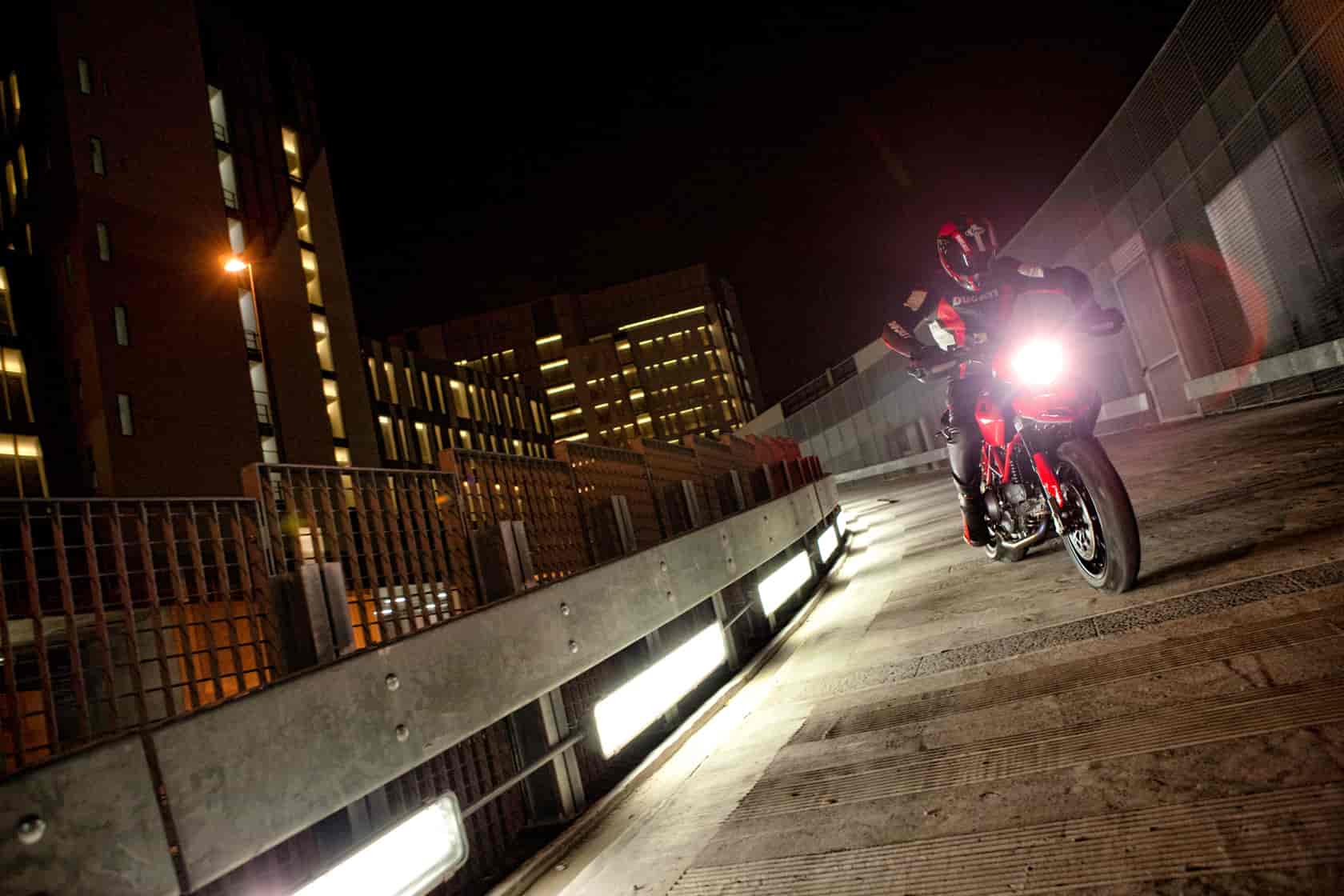

2010 Ducati Hypermotard 1100 EVO
2010 Ducati Hypermotard 1100 EVO

2010 Ducati Hypermotard 1100 EVO
2010 Ducati Hypermotard 1100 EVO

2010 Ducati Hypermotard 1100 EVO
2010 Ducati Hypermotard 1100 EVO

2010 Ducati Hypermotard 1100 EVO
2010 Ducati Hypermotard 1100 EVO

2010 Ducati Hypermotard 1100 EVO
2010 Ducati Hypermotard 1100 EVO

2010 Ducati Hypermotard 1100 EVO
2010 Ducati Hypermotard 1100 EVO

2010 Ducati Hypermotard 1100 EVO
2010 Ducati Hypermotard 1100 EVO



– 2010 Ducati Hypermotard 1100 EVO

2010 Ducati Hypermotard 1100 EVO

Hypermotard evoluzione.

The 1100EVO further enhances the original Hypermotard concept of ‘ruling the road’.

The introduction of the 1100EVO further enhances the original Hypermotard concept of ‘ruling the road’. The wide, tapered section handlebars continue to transfer control of the asphalt to the rider and the full length seat still eases the fore and aft movement for extreme riding. The difference now is that it does it all better than before.

A new super-light dry weight of 172kg (379lb) and an increase of power to 95hp is the result of an intense program of redesigns and refinements intended to be the ‘evolution’ of the Hypermotard.

Continued chassis development to the Hypermotard resulted in an improved frame layout which eliminated almost all of the heavier forged elements used on the previous model. The new rigidly triangulated Trellis frame and track-tested chassis geometry is matched by a state-of-the-art suspension. 50mm Marzocchi forks are gripped by a sturdy triple screw lower fork clamp for precise steering performance. These forks work as impressively as they look, with special high rigidity stainless steel sliders and external adjustability for compression and rebound damping, plus spring pre-load. The rear suspension performs with equal precision by using a fully adjustable ZF Sachs shock mounted to a robust single-sided swingarm.

Lightweight wheels mounted on large diameter axles are fitted with Pirelli Diablo Rosso tyres. Stopping power is controlled by two radially mounted Brembo 4-piston callipers gripping lightweight 305mm twin discs up front, and a 245mm disc at the rear. All of this combines to make stopping as thrilling as accelerating.

The Desmodue 1100 Evoluzione

The lightweight, L-Twin stands at the pinnacle of more than three decades of Desmo air-cooled development and its torquey power delivery has excited riders worldwide. Its latest evolution is positively awesome and makes it the perfect engine to give its name to the Hypermotard 1100EVO.

The 1100cc Desmodue Evoluzione power unit continues to use a bore and stroke of 98×71.5mm, but its long list of refinements have boosted its power by 5hp to 95hp (69.9kW) @ 7500rpm with 76lb-ft (10.5kgm) of torque @ 5750rpm giving it outstanding power delivery, from grunting low rpms to the singing howl at redline.

The 1100’s crankcases are now vacuum cast using the same Vacural® technology employed for the lightweight Superbike engines, a process that achieves significant weight saving and ensures consistent wall thickness and increased strength.

But the crankcases were just the starting point of the evolution. Apart from the new magnesium alternator cover, the 1100 now has a lighter crankshaft assembly by using an 848 Superbike flywheel and the search for further weight reduction even went as far as using lightweight rare-earth magnets for the generator assembly. The result reduced the 1100 power unit’s weight by a staggering 5.2kg (11.5lb) and contributed towards making the Hypermotard 1100EVO even more agile.

Power gains have come not only from the new lightweight crankshaft assembly, but also from an evolution of the top-end of the Desmodue power unit. The cylinder head, which now has improved lubrication and cooling performance, also has a redesigned inlet port shape for optimum flow and a modified combustion chamber shape for improved burn efficiency. This improved efficiency is the result of a higher compression ratio and the change to a single spark per cylinder ignition now managed by high-speed Siemens electronics.

Ensuring a sufficient feed to the higher compression set-up is an improved flow airbox intake duct and increased valve lift for maximum volumetric efficiency.

The incredible valve performances of the Desmodue engine are only possible because of Ducati’s unique Desmodromic system, where valve closure is activated mechanically. At high rpm it would be almost impossible for the valve to follow the steep closure profile of the cam lobe if it were relying upon a normal valve spring. With the Desmo system, the valve is closed mechanically with the same accuracy as it is opened, enabling steep cam profiles and radical cam timings. This system is used on every single Ducati power unit including their world-beating Superbike and Desmosedici MotoGP engines.

In keeping with its extreme character, Ducati continue to use the ‘dry’ racing-style clutch for the Hypermotard 1100, the popular preference of thousands of Ducatisti the world over. The clutch and alternator covers are finished in carbon grey for the 1100EVO and in gold for the 1100EVO SP.

A new oil cooler with 85% more cooling area protects the increased power output of the Hypermotard 1100EVO whether ridden on the open roads or through stop-start urban traffic. Conforming to Euro3 regulations, the 2-1-2 exhaust system is now monitored by twin lambda probes to ensure the most efficient fuel injection under all conditions. The exhaust terminates with Ducati-famous twin under-seat mufflers.

Having more experience and success with twin-cylinder high performance engines than any other manufacturer, the air-cooled L-Twin remains central to Ducati’s philosophy of motorcycling. This experience, plus constant investment in quality by design, advanced materials and engineering techniques, has enabled the distance between service intervals to increase to 12,000km (7,500 miles) making Ducati ownership even more enjoyable than ever.



More Hyper than ever

The Hypermotard family expands for 2010 with the addition of the exciting new Hypermotard 796, the new and enhanced Hypermotard 1100EVO and the extreme Hypermotard 1100EVO SP.

Hot on the heels of its early model year 2010 launch in October, the lightweight 796 is now joined by an evolution of the 1100 model that rolls out at an incredible 7kg (15.5lb) lighter and 5hp more powerful than the original.

And if further weight reduction and more punch wasn’t already enough on a bike that was built to thrill, the Hypermotard 1100EVO SP pushes the limits even further with a model intended to perform on the track as well as the street.

The latest evolution models, in addition to the new 796, represent Ducati’s continued excitement in the Hypermotard concept and their commitment to the family’s future development. Many features of the new models were in response to requests from Ducatisti worldwide and represent the factory’s ongoing ability to respond to direct owner feedback .

The Hypermotard prototype was an instant success when first shown in Milan at the end of 2005 and soon became a top seller when its production started in 2007. Since then, its unique design has excited riders around the world and praise for this thrilling and versatile bike has never stopped – and neither has its evolution.

Now, the range is more Hyper than ever.





Features and Benefits

So what’s all the hype for 2010?

The original Hypermotard was built to thrill, with its dirtbike stance, empowering, asphalt-attacking riding position and enough torque on tap to elicit a smile with each twist of the throttle. But what could really be changed to make it better? Ducati applied their usual engineering process of evolution to an already successful model by improving it in the two most effective ways possible: Less weight and more power.

Lighter Trellis frame

The quick and precise handling that the Hypermotard provides is down to the construction and geometry of its famous Trellis frame. Its ability to handle the abundant torque from the L-Twin engine and its rigidity under powerful Brembo braking are just a few reasons why Ducati’s chassis department would never want to change it. But it could be made lighter. They realised that almost all of the heavy forged sections of the construction could be completely removed without reducing its strength or its performance, so they applied it to the entire family.

Lighter, more powerful engines

While the chassis department were busy reducing the weight of the frame, the engine department went back to the drawing board for the 796 and started with a clean sheet of paper. Their complete redesign of the crankcases rewarded them with an incredible saving of 1.2kg (2.64lb) compared to the 696 castings, and the new 796 crankshaft with 848-style flywheel further reduced the overall engine weight to an impressive 1.9kg (4.2lb) savings over the 696 power unit. And with 81hp (59.6kW) of smooth and flexible power, the 796 is a very credible package.

The 1100 air-cooled Desmodue Evoluzione engine truly is an ‘evolution’ – both in power and weight – and is responsible for the model name extension 1100 EVO. Engineers used the same Vacural® technology employed for the lightweight Superbike engines when they vacuum die-cast the Hypermotard 1100 crankcases, a process that achieves a significant weight saving and ensures consistent wall thickness and increased strength. This process – combined with the lightweight crankshaft assembly that uses an 848-style flywheel and use of lighter rare-earth magnets in the alternator – reduced the 1100 power unit’s weight by a staggering 5.2kg (11.5lb). Couple those savings with a 5hp boost to 95hp (69.9kW) and it becomes clear why there’s all the hype.

Compact and efficient, the Desmodue engine’s hyper-lightweight and narrow L-Twin layout, no wider than a single cylinder, ensures that all Hypermotards remain lean and agile. The air-cooled design eliminates the need for water radiators, hoses, reservoirs and pumps, keeping the motorcycle’s weight down to a minimum and its lines clean and race-like.

New controls and instrumentation

The entire Hypermotard family now inherits the electronic advances made in the compact and user-friendly switchgear and instrumentation first created for the Streetfighter.

The slim-line switch bodies house easy-to-use switches and buttons, and feature a unique weapons-like ‘trigger catch’ that slides down to cover the starter button when the kill-switch is activated. Their minimalist design fits perfectly in the clean and essential lines of the Hypermotard’s sporting image.

Looking clean and purposeful, the display provides an extensive amount of data including speed, revs, time, oil temperature, battery voltage, A & B trips, fuel reserve trip and scheduled maintenance, while the warning lights illuminate for neutral, turn signals, high-beam, rev-limit, oil pressure and fuel reserve. In addition, it can list recorded lap times by using the high-beam flash button as a stopwatch. Both the 1100EVO and 1100EVO SP use a white back-lighting while the 796 uses an orange back-lighting.

The instrument display also doubles as a control panel for the activation of the Ducati Data Analyser (DDA) system, which is available as an accessory from Ducati Performance for the ‘system-ready’ Hypermotard 796 and 1100EVO and supplied as standard equipment on the 1100EVO SP. The DDA-intended USB connection port under all of the Hypermotard seats doubles as a charging point for a handy new battery charger, which is available as an accessory from Ducati Performance.

Hyper mirrors

Ducati pushed motorcycle design limits to find an innovative solution for the original Hypermotard mirrors and these are now used throughout the family. The challenge of maintaining a clean, racing look around the handlebar area motivated the design of the folding mirror concept which is based on the handguards typically found on off-road bikes. Flipped out for high visibility street mode and easily folded in for a quick change to ‘Hypermode’, the mirror handguard assemblies also integrate the LED directional indicators for an even cleaner front-end.

Lighting and indicators

The headlamp uses a highly compact lighting shape which blends with the single piece nose fairing and front fender moulding, while the rear light employs a specially designed strip of LEDs enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece. The same LEDs are intensified under braking. The front directional indicators also employ the latest in LED technology for illumination, and are ingeniously integrated into the handguards which support the foldable rear view mirrors.

Tailpiece

The high intensity LED rear light assembly is moulded into a unique tailpiece positioned high behind the seat. The supporting structure has been designed so that the under tray of the tailpiece is formed perfectly to offer a sturdy pair of pillion grab-handles. This ingenious solution not only helps to merge the rear light into the Hypermotard styling but also provides a safe grip for the passenger.

Footpegs

Rider footpegs on all of the Hypermotard models have removable rubber inserts to expose the serrated metal edge and increase boot grip on the peg during extreme riding. The 1100EVO and 1100EVO SP provide a further minimalist and no-compromise feature by having removable passenger footpegs. This attention to detail enables a clean ‘monoposto’ look when on the track, while allowing a fast and easy change to ‘biposto’ for the street.



Quick glance history

November 2005: Prototype Hypermotard 1100 shown at Milan International Motorcycle Show. Awarded ‘Best of Show’.

November 2007: Production Hypermotard 1100 and 1100 S launched at Milan International Motorcycle show.

June 2007: Hypermotard 1100 and 1100 S arrived in showrooms as an early release model year 2008.

November 2008: Model year 2009 Hypermotard 1100 updated with an additional colour option of pearl white. Hypermotard 1100 S updated with Kayaba forks, an additional colour option of black and DDA kit supplied as standard equipment. The Hypermotard 1100 S takes victory at Pike’s Peak International Hill Climb, Colorado (1200cc category).

October 2009: Release of new model year 2010 Hypermotard 796.

November 2009: Model year 2010 Hypermotard 1100EVO and 1100EVO SP launched at Milan International Motorcycle show.







2010 Ducati Hypermotard 1100 EVO – International Specifications
MSRP: See Dealer

Chassis

Frame
Tubular steel Trellis frame
Wheelbase
1455mm (57.3in)
Rake
24°
Front Suspension
Marzocchi 50mm fully adjustable usd forks
Front Wheel Travel
165mm (6.5in)
Front Wheel
5-spoke in light alloy 3.50×17
Front Tyre
120/70 ZR17
Rear Suspension
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear Wheel Travel
141mm (5.6in)
Rear Wheel
5-spoke light alloy 5.50×17
Rear Tyre
180/55 ZR17
Front Brake
2 x 305mm semi-floating discs, radially mounted Brembo callipers 4-piston, 2-pad
Rear Brake
245mm disc, 2-piston calliper
Fuel Tank Capacity
12.4l – 3.3gallon (US)
Dry Weight
172kg (379lb)

Instruments
Digital unit with displays for: Speedometer, rev counter, lap times, time, oil temp, battery voltage, A & B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Immobilizer system

Warranty
2 years unlimited mileage
Body Colour (Frame/Wheel)

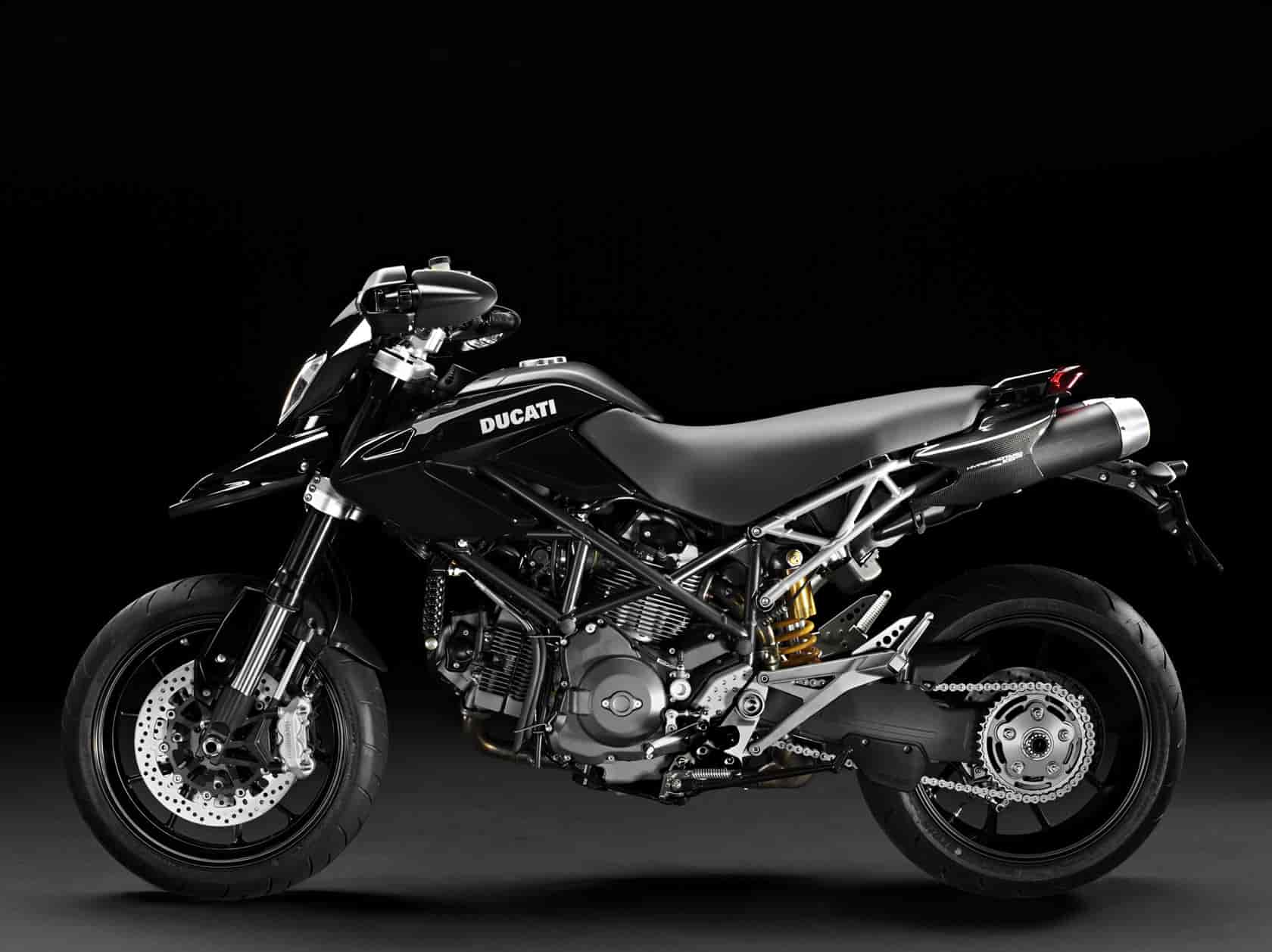

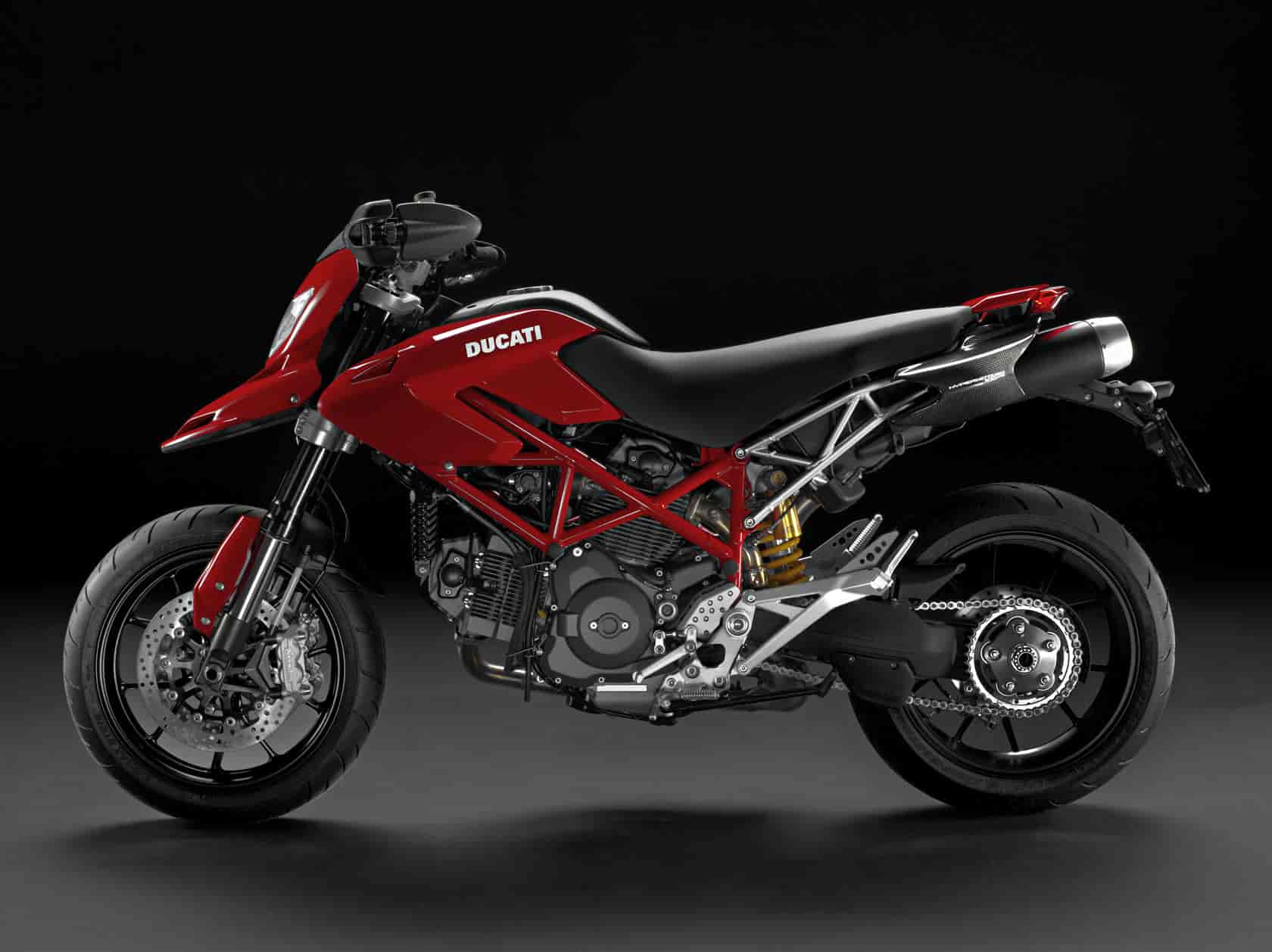

Red (red / black) – Black (racing black / black)
Versions
Dual seat
Seat Height
845mm (33.3in)

DDA
DDA system-ready for Ducati Performance accessory


DTC
Not available on this model


ABS
Not available on this model

Engine
Type
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
Displacement
1078cc
Bore x Stroke
98×71.5mm
Compression Ratio
11.3:1
Power
95hp (69.9kW) @ 7500rpm
Torque
75.9lb-ft 10.5kgm @ 5750rpm
Fuel injection
Siemens electronic fuel injection, 45mm throttle body
Exhaust
Lightweight 2-1-2 system with catalytic converter with twin lambda probes

Transmission
Gearbox
6 speed
Ratio
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=24/28
Primary Drive
Straight cut gears, Ratio 1.84:1
Final Drive
Chain, Front sprocket 15, Rear sprocket 41
Clutch
Dry multiplate with hydraulic control

Emissions
Standard
Euro 3







Media Press Release

DUCATI PRESENTS 2010 INNOVATIONS

Finally unveiled, world preview of the new and eagerly anticipated Multistrada 1200.

Also new for 2010: new “Corse” livery for the 1198, two new Hypermotard 1000evo models and technical advances in the Monster family.

As is tradition prior to the opening of the EICMA show, Ducati has officially revealed the innovations of its 2010 product range.
Dream bikes, the fruit of Italian ingenuity and creativity, and destined to become new points of reference on the international market, are ready to take the spotlight at EICMA 2009, the 67th edition of the International Motorcycle Exhibition, taking place at the Fiera Internazionale di Milano in Rho, from 10 – 15 November.

Before the unveiling of the 2010 line-up, the new Ducati Corse logo was presented to the international press, an evolution of the historic brand in the form of a new graphic, following on from the launch of the new Ducati logo at last year’s EICMA show.

A press conference, eagerly anticipated and rich in content, took place immediately prior to the official opening of the trade show. Gabriele Del Torchio, President of Ducati Motor Holding, met with representatives of the international media to present the company’s recent sporting and commercial results, confirming the Italian manufacturer’s strength and performance, despite the difficulties that the sector is currently experiencing.

“In 2009 Ducati has faced a year of important challenges but also one of important opportunities,” stated Gabriele Del Torchio, President of Ducati, during the conference. “The challenges arrive from a market that has entered a significant worldwide slump and where the segment in which we operate could have dropped by 35% by the end of this year. In this scenario Ducati knew how best to react, so much so that our shares have continuously grown and in 2009 we will register a record share of 7.2% on a worldwide level. This result was achieved by sticking strictly to the objectives we had set ourselves, in relation to the company’s three fundamental pillars. Firstly, product, with the 2010 innovations the clearest demonstration of how we have followed an intelligent plan for continuous renewal. Then the distribution network, constantly renewed and reinforced to improve and expand the service. Thanks also to the recent opening of stores in Shanghai, Mexico City and in Vietnam, Ducati today distributes in 80 countries of the world. Last but not least, the brand. We continue to work on the recognition of our brand name, and above all, on the role that Ducati has as an ambassador of Italian style across the world, a factor that is of fundamental value to us.”

Claudio Domenicali, General Director of Ducati Motor Holding, then presented the many new bikes lining-up in Ducati’s 2010 Model Year.

“We are present at EICMA with a series of important innovations, in accordance with our strategic industrial plan,” declared Claudio Domenicali, Ducati’s General Director, while presenting the 2010 Model Year. “The new Multistrada 1200 provides Ducati with an important opportunity to penetrate what is, for us, a completely new market segment, with a totally innovative concept, in terms of performance, usability and technological content. Four bikes in one, with four different riding modes, traction control and electronic suspension but, most importantly, a true Ducati, in its style, design and advanced technology, derived directly from Ducati’s racing experience on tracks across the world. The Hypermotard 796 e 1100 evo, the new “Corse” liveries for the 1198 S and 1198 R, as well as countless technical and style updates, complete the 2010 line-up of which we are so proud.”

The undeniable star is the eagerly awaited Ducati Multistrada 1200, already in the running to take the prize for “best bike in show.”

Faithful to the original intuition, which combined sport bike technology with comfort and versatility, Ducati now extends the concept further with a brand new Multistrada 1200 designed to satisfy the demands of all motorcyclists. Ducati have designed a motorcycle to tackle all kinds of journey and road surface using technology derived from the Bologna made race bikes in MotoGP and World Superbike.

A bike with no limits, that can transform itself to suit the rider’s demands, from a supersport to a tourer for long journeys with a passenger and luggage, to an everyday bike which can breeze through the daily commute and also tackle off-road routes with the agility of an enduro; in other words, four bikes in one!

Ducati have once again pushed the limits of motorcycle design by adding Italian innovation to the elegance, style and technology which characterise the motorcycles that leave the Bologna factory.

All it needed was a heart, the perfect engine to fulfill the potential of this new design. The obvious starting point was the World Championship-winning engine, the Testastretta, used on the Superbike 1198. Engineers in Bologna have succeeded in harnessing the immense power of this engine, making it smooth and adaptable to any situation. The new Testastretta 11° engine is thus born, and represents a milestone in combining performance with usability.

2010 Special Editions celebrate the historic Ducati Corse logo change and two world titles in Superbike and Superstock. The 1198 S Corse Special Edition and 1198 R Corse Special Edition, both equipped with factory team-style aluminium fuel tanks, Ducati Traction Control and a special celebratory Ducati Corse livery, now complement the lightweight and agile 848 now in Dark colour scheme, the awesomely powerful 1198, and the high-spec 1198 S to complete the 2010 Superbike model line-up.

There are more exciting new products in the Ducati Hypermotard range that now becomes a fully-fledged family of bikes in 2010. No longer just one, but three versions, designed to suit different needs, but each with the same specific objective: to provide excitement and fun. So here is the new, agile Hypermotard 796, which joins the new and even more powerful Hypermotard 1100EVO as well as the extreme version, the as yet unseen Hypermotard 1100 EVO SP.

Hot on the heels of its early model year 2010 launch in October, the lightweight 796 is now joined by an evolution of the 1100 model that rolls out at an incredible 7kg (15.5lb) lighter and 5hp more powerful than the original.
And if further weight reduction and more punch wasn’t already enough on a bike that was built to thrill, the Hypermotard 1100EVO SP pushes the limits even further with a model intended to perform on the track as well as the street.

The exciting introduction to the Monster family for 2010 are the ABS equipped versions of the 696 and 1100 (basic and S), the first time that Ducati has ever equipped the Monster family with a safety-enhancing anti-lock braking system.

Other 2010 introductions to the Monster family include new exhaust guards, which feature a longer shape and provide improved heat protection.

Brand new crankcases for the 696, which are an impressive 1.2kg (2.6lb) lighter and, furthermore, the user-friendliness of the controls has been improved with 4-point adjustable clutch and brake levers to suit all hand sizes.

In addition, Ducati presents many new accessories, special components and a new collection of Ducati clothing.
