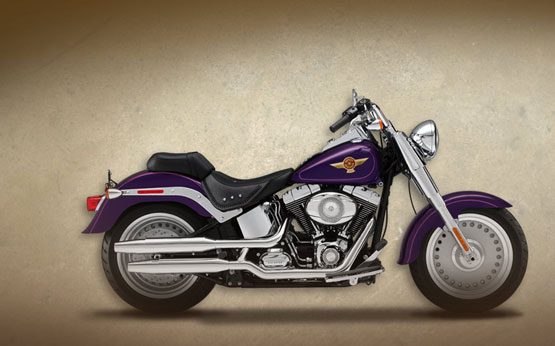

2010 Harley-Davidson Shrine Fat Boy
2010 Harley-Davidson Shrine Fat Boy

2010 Harley-Davidson Shrine Fat Boy
2010 Harley-Davidson Shrine Fat Boy

– 2010 Harley-Davidson Shrine Fat Boy

2010 Harley-Davidson Shrine Fat Boy

FLSTC HERITAGE SOFTAIL® CLASSIC
PEACE OFFICER SPECIAL EDITION

Motorcycles designed to honor those who serve.

Harley-Davidson Special Edition motorcycles are offered as a proud tribute to law enforcement and firefighter personnel. Featuring distinctive designs and special graphics, these machines allow riders to travel in style while displaying their professional pride in a unique and satisfying way.






Key Features

1584cc Twin Cam 96B Counter-Balanced Engine – Black, powder-coated 1584cc Twin Cam 96B counter-balanced engine with chrome rocker covers. Rigid mounted and air cooled.

New “Horseshoe” oil tank – Chrome “horseshoe” oil tank with chrome external oil lines.

New Helical Cut 5th Gear – 6 Speed Cruise Drive transmission with a helical cut 5th gear for smoother shifting and improved transmission sound.

Rear tire – 200mm wide, 17 inch rear tire for a distinctive, beefy look.









2010 Harley-Davidson Shrine Fat Boy – Specifications
MSRP: See Local Dealer For Pricing

DIMENSIONS
Length 94.3 in. / 2395.22 mm
Seat Height Laden1 25.4 in. / 645.16 mm
Unladen1 27.5 in. / 698.5 mm

Ground Clearance 5.1 in. / 129.54 mm
Rake Steering Head 31 °
Trail 5.8 in. / 147.32 mm
Wheelbase 64.5 in. / 1638.3 mm
Fuel Capacity 5 gal. / 18.925 L
Oil Capacity 3.5 qt. / 3.311 L
WeightDry Weight 694 lbs. / 314.7984 kg
Running Order 725.25 lbs. / 328.97 kg

POWERTRAIN

Engine2 Air-cooled, Twin Cam 96B™
Air-cooled, Twin Cam 96B™
Displacement 96 cu. in. / 1584 cc
Bore x Stroke 3.75 in. / 4.38 – 95.25 mm / 111.252
Engine Torque J1349
Engine Torque3 93.67 ft. lbs. @ 3000 rpm / 126.9978 Nm @ 3000 rpm
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Primary Drive Chain, 34/46 ratio
Fuel EconomyFuel Economy City5 35 mpg – 6.72 l/100km
Fuel Economy Hwy5 54 mpg – 4.3556 l/100km

Gear Ratio (overall)

1st 9.311
2nd 6.454
3rd 4.793
4th 3.882
5th 3.307
6th 2.79

WHEELS/TIRES

WheelsFront6
Silver, Bullet Hole Disc Cast Aluminum
Wheel Option6
Mirror Polished Chrome, Bullet Hole Disc Cast Aluminum (front and rear)
Rear6
Silver, Bullet Hole Disc Cast Aluminum

Tire Size
Front 140/75R17 67V
Rear 200/55R17 78V

ELECTRICAL

Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Indicator Lamps7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

CHASSIS

Brakes 4-piston front and 2-piston rear
Lean Angle 27 / 26 °
Exhaust System Chrome, over/under shotgun exhaust with dual mufflers

COLOR OPTIONS

Color Options Arctic White, Concord Purple (Jesters only) and the 2010 standard color pallette available for each model


1
Measurement reflects 180 lb. (81.7 kg) operator weight.
2
Recommended 91 octane or higher fuel (R+M)/2.
3
Values shown are nominal. Performance may vary by country and region.
4
Standard and optional fuel systems may vary by country and region.
5
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6
Standard and optional wheels may vary by country and region.
7
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
