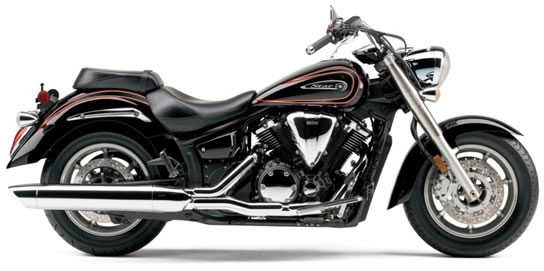

2010 Yamaha V-Star 1300
2010 Yamaha V-Star 1300

– 2010 Yamaha V-Star 1300

2010 Yamaha V-Star 1300

Solid performance. Great looks

Powered by a 1304cc, fuel injected, liquid-cooled, V-Twin engine; the 2010 Yamaha V-Star 1300 boasts class leading performance, handling and comfort. For 2010, the engineers have revised the seat, handlebars and riding position for improved rider comfort. They also improved some styling highlights too.

Yamaha has taken the traditional cruiser into a bold new territory with the eye catching V-Star 1300. Traditional yet modern, classic yet avant-garde. From the throaty exhaust note to the pulse feel of the fuel injected V-twin engine, the V-Star 1300 offers something we call “sensual performance”. The perfect blend of soul stirring power, handling and comfort highlights the Man-Machine relationship which is so important to owner satisfaction.




Highlights:

Fuel Consumption * 18kpl/51mpg(Imp)

1304cc, liquid-cooled, V-twin

Throttle body fuel injection




New for 2010:

” New chromed drive belt cover

” New 3D fuel tank emblems

” New, more stylish fuel pump (left side of engine)

” New handlebar shape

” New seat

” Revised riding position

” New chromed headlight body






Features and Benefits (Canada)

Engine:

” 1304cc (80 cubic inch), liquid-cooled, short stroke, SOHC, 4-valve, 60° V-twin powerplant pumps out incredible amounts of class leading power and torque for unparalleled acceleration and cruising performance.

” Electric starting system features a mechanical centrifugal decompression device in the exhaust camshafts for easy, no-hassle starting.

” Liquid-cooling not only allows for higher state of tune because it maintains more stable operating temperatures, but also reduces mechanical noise for a quieter engine.

” In an effort to maintain the classic air-cooled appearance of the engine, cooling fins have been added as a styling touch.

” The short stroke engine design reduces the “height” of the engine, while the 60 degree “V” makes the engine more compact thereby centralizing mass and lowering the center of gravity for lighter more responsive handling.

” Classic V-twin “pulse feeling” and engine character highlight this new powerplant while annoying vibration has been eliminated.

” One-piece cylinder heads feature 4-valves per cylinder to provide optimum breathing efficiency for maximum power output. Each head is fitted with a single long reach spark plug.

” Stylish chromed cylinder head covers.

” The SOHC valve train features 36mm intake and 32mm exhaust valves with single springs for great power and torque. Valves angles are set at 20 degrees from centre. Specially designed roller rockers activate the valves. The rocker system allows a greater amount of valve lift without producing excessive camshaft wear and friction. The slipper portion of the rocker arm features a needle bearing to further reduce wear and slide resistance. The camshafts have been specially designed for use with roller rockers.

” Optimized squish area forces the fuel / air mixture toward the centre of the combustion chamber for more complete combustion and hence improved power and cleaner emissions.

” The water pump is integrated with the oil pump and is located inside the engine cases to keep a cleaner, more traditional air-cooled look to the powerplant. The engine is a wet sump design.

” The radiator is mounted between the front frame down tubes to minimize its appearance especially when viewing the machine from the side. Even the rad hoses have been discreetely placed for a cleaner appearance. An electric fan aids in cooling in stop and go traffic. Special cooling louvers direct air to the rad.

” Automatic hydraulic cam chain tensioners reduces mechanical noise and extend engine life.

” Ceramic composite-plated cylinders reduce weight, increase cylinder life and provide uniform heat dissipation. The cylinders have a tapered “V” appearance to highlight the V-twin design. Cylinder bore is 100mm.

” Forged pistons offer great durability and reduced weight for faster engine response.

” Crankshaft features a single crank pin design. The crankshaft turns counter clockwise. This specially designed crank helps to enhance the pulse feeling and engine character.

” Forged connecting rods ride on a single crank pin for that true V-twin sound and feel.

” Single axis, left and right dual engine counter balancers reduce vibration to a minimum while maximizing rider comfort.

” Crankcase design features internal oil and coolant lines for a clean, air-cooled engine appearance. There are special piston coolers that spray oil at the under side of the pistons.

” Easy access, spin on type oil filter is located under the engine. There is no need to remove any parts to access the oil filter.

” Classic side mounted 3.7 liter airbox houses a high-flow viscous paper-type filter and adds that special styling touch too.

” Mikuni Dual bore, 40mm returnless-type throttle body fuel injection system with TPS (Throttle Position Sensor) and ISC (Idle Speed Control) . This is a “closed loop” system that utilizes an oxygen sensor. The oxygen sensor feeds back info to the ECU which in turn adjusts the fuel/air mixture for maximum power with minimum emissions. The oxygen sensor is located before the mufflers, so the use of slip-ons will not affect this system. Each injector features 12 holes and a dual spray pattern for better fuel atomization and more complete combustion chamber filling. There is one injector per cylinder. Fuel injection benefits include improved fuel economy, chokeless operation, reduced emissions, and smoother running.

” High pressure fuel pump is located in a separate sub tank below the seat.

” New, more compact and stylish fuel pump cover on left hand side of the engine.

” 2 into 1 exhaust system features a 3-way honeycomb catalyzier at the entry point to the muffler. The catalyzier reduces harmful exhaust emissions, while the muffler produces a throaty V-Twin growl. The rear portion of the muffler features a “slash cut” end

” Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds. The engine is spinning at 3,400 rpm at 110 km/hr.

” Clean, quiet belt drive system is extremely low maintenance and simplifies customization. The belt is unique to the XVS1300 and features a carbon core for strength.

” The 7-spoke rear pulley has been styled to match the cast wheels.

” Air Induction System (A.I.S.) reduces harmful exhaust emissions (CO + HC).

” One piece classic heel-and-toe shifter adds versatility and enhances the overall cruising experience.


Suspension/Chassis

” Double cradle steel frame offers roomy ergonomics, and great handling. This frame utilizes a rigid engine mounting system to optimize the overall rigidity balance for superior handling. The rake is 32 degrees, while the lean angle is a sporty 36 degrees.

” Steel swingarm matches the frame and provides superior performance in a wide variety of conditions, while also making a bold styling statement.

” Long 1,690mm (66.5″) wheelbase creates a long, low retro profile and solid stable handling. This chassis is longer than the XVS1100 by 45mm and offers a 48% / 52 % front to rear weight distribution.

” The long low design means spacious ergonomics with lots of leg room, which maximizes both rider and passenger comfort.

” 41mm KYB front fork features stylish large-diameter brushed-finished fork covers. Wheel travel is 130mm (5.1″) for a smooth, comfortable ride.

” Monocross style, spring preload-adjustable, single-shock, link rear suspension centralizes mass for agile handling. The linkage system provides a rising rate effect that provides excellent compliance on both small and large bumps.

” Rear shock is vertically mounted behind the engine and is tucked out of sight for that classic, hardtail look. Rear wheel travel is 110mm (4.3″).

” Dual 298 mm, floating front discs are squeezed by compact twin piston front calipers.

” 298 mm rear disc brake is squeezed by single piston caliper mounted to the underside of the swingarm. This design not only helps to hide the caliper but also lowers the center of gravity for better handling.

” Lightweight 7-spoke cast aluminum wheels are fitted wide tubeless tires. The “mag” stylish wheels are both easy to clean and never require maintaince. The rear drive pulley matches the wheels.

” Full-size, “tapered” floating-type rider floorboards are roomy and comfortably positioned while also helping reduce vibration. There is a replaceable “scraper” area on the lower edge of the footboard.

” 1 inch, rubber mounted handlebars are easy to reach and help to reduce vibration as well.

” New re-shaped handlebar improves rider comfort and reduces the “stretch” to the bars.

” Front and rear fenders are steel for easy customization and painting if desired.

” 18.5 liter teardrop shaped fuel tank with flush mounted filler cap. Fuel tank seam is hidden for that clean, custom look. Reserve portion is 4.5 litres.

” Generous rider and passenger seats offer plenty of room and support for all day riding comfort. New rider seat shape improves rider comfort and reduces seat height. Seat height is only 690mm or 27.2 inches off the ground.

” Overall rider position and in turn rider comfort has been improved thanks to the new handlebar and seat shape. Handlebar-mounted chromed instrument features a stylish design. Readouts include: analog speedometer, digital odometer, dual tripmeters, low fuel tripmeter, clock and low fuel warning light. Stylish red background illumination.

” Handlebar switch gear allows the operator to change instrument meter functions via buttons on the back of the RHS handlebar switch, thereby eliminating the need to take your hands off the bars to adjust the main instrument functions.

” Revised 60/55 watt high intensity halogen headlight emphasizes the “wild streamline”, mass forward styling design. The newly chromed headlight body is adjustable up and down plus left and right via remote adjusters. There are also two 35 watt accessory light connectors inside the headlight shell for accessory passing lamps.

” New chromed drive belt cover is not only easier to clean but improves appearance too.


Details

” Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.

” New 3D fuel tank emblems enhance quality and attention to detail.

” Extra wide front brake and clutch levers provide a quality feel.

” Steering lock is integrated into the main ignition switch for extra convenience.

” Handy, under seat helmet holder

” Low-maintenance, sealed battery ensures fuss-free, dependable starting.

” Self-cancelling turn signals feature stylish clear lenses.

” High output 460 watt generator






2010 Yamaha V-Star 1300 – USA Specifications

Model not available in the USA.






2010 Yamaha V-Star 1300 – Canada Specifications
MSRP: $12,599 CDN

Engine Liquid-cooled, SOHC , 8-valve, 60°, V-twin
Displacement 1,304 cc (80 cubic inch)
Bore and Stroke 100 x 83 mm
Compression Ratio 9.5:1
Maximum Torque 11.3 kg-m (81.8 ft-lb) @ 4,000 rpm
Fuel Delivery Mikuni Dual bore 40 mm F.I.
Estimated Fuel Consumption* 18kpl / 51mpg (Imp.)
Ignition / Starting Digital TCI / Electric
Transmission 5-speed
Final Drive Belt


Suspension (Front) 41mm fork
Suspension (Rear) Adjustable link Monocross
Brakes (Front) Dual 298 mm discs
Brakes (Rear) 298 mm disc
Tires (Front) 130/90-16 (bias ply tire)
Tires (Rear) 170/70-16 (bias ply tire)


Length 2,490 mm (98″)
Width 1000 mm (39.3″)
Height 1145 mm (45.1″)
Wheelbase 1,690 mm (66.5″)
Seat Height 690 mm (27.2″)
Fuel Capacity 18.5 litres (3.7 imp. gallons)
Wet Weight 303 kg (666.6 lb)

Colour(s) Metallic Black


* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
