– 2011 Suzuki GSX650F ABS

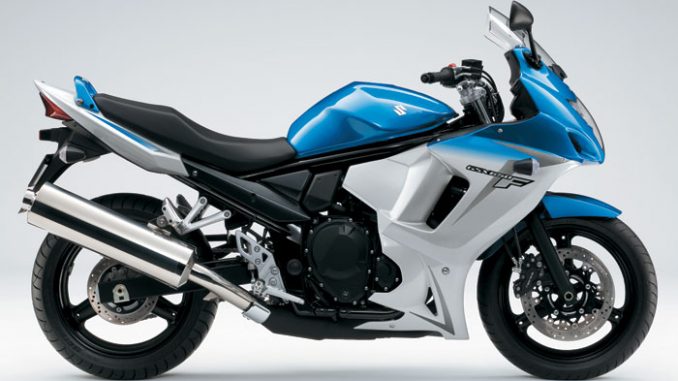

2011 Suzuki GSX650F ABS
Here’s fuel-injected proof that sportbikes don’t have to be one-dimensional. Introducing the GSX650F, featuring an ideal balance of sportbike excitement and all-around versatile performance. Available with standard ABS braking.
It offers crisp handling, so you can turn any winding road into a ride to remember. Its liquid-cooled four-cylinder engine is tuned for strong low-end and midrange power, for smooth and easy riding around town. Whether you’re on the back roads or the open highway, you’ll appreciate the GSX650F’s comfortable design, including a more upright seating position that makes all-day rides a pleasure.
And the GSX650F has one more feature that you’ll appreciate – a price tag that will leave you smiling.
2011 Suzuki GSX650F ABS Features
Standard ABS braking and Electronic Fuel Injection.
Dual Throttle EFI
Suzuki Dual Throttle Valve fuel injection system for smooth acceleration. Fuel injectors are compact and lightweight with 4 hole injectors for optimum fuel atomization and greater power output
A large capacity exhaust system utilizes a high capacity catalyzer and an oxygen sensor to meet strict Euro 3 and Tier 2 emissions requirements while still providing strong performance throughout the rpm range
Cam profiles are chosen with an emphasis on low-to-mid range power output and help to deliver highly accessible performance that is well suited to an entry level rider
Compact, liquid-cooled, fuel injected, DOHC 656cc engine utilizing a bore and stroke of 65.5 mm x 48.7 mm and featuring strong and easily accessible power and torque
Piston rings are manufactured with ion plating treatment using Physical Vapor Deposition (PVD) for a smoother surface, increased durability and reduced friction and reduced oil consumption
Suzuki Composite Electrochemical Material (SCEM) coated cylinders deliver high heat dissipation and allow for better ring seal while reducing blow-by and mechanical losses
The cylinder head achieves a narrow valve angle of 17 degrees intake and exhaust for high intake and exhaust efficiency
The GSX650F keeps cool with a high efficiency radiator combined with a 190mm electric cooling fan controlled by the ECM and a high output water pump with a bearing-less design for reduced weight.
Six speed transmission works smoothly with a hydraulic clutch for crisp shifting in a variety of riding conditions.
41mm forks are designed for a smooth ride and are preload adjustable for a variety of riding conditions
A stylish full fairing design with styling cues taken from the high performance GSX-R series for a sport-inspired look with full fairing protection for the rider
GSX-R inspired instrument cluster includes a step motor driven tachometer, multi-function LCD for dual trip meters, reserve trip meter, clock, fuel gauge, and a useful gear position indicator with GSX-R inspired shift light.
Rebound and preload adjustable rear shock works in conjunction with a link-type rear suspension for excellent road holding performance.
Wide, comfortable one piece seat with low seat height for increased rider and passenger comfort
Compact fuel tank is designed for an easy reach to the handlebar with a narrow mid section while still retaining a full 19.0 L (4.2 Imp gal) of fuel capacity.
Double cradle steel frame provides excellent balance, nimble handling a unmatched rider comfort with a sporty overall feel.
Handlebar is rubber mounted for reduced vibration
Tokico 4 piston front brake calipers are used with 310mm floating discs for optimum braking performance and combined with a pin slide two piston rear caliper and a 240mm rear brake disc
2011 Suzuki GSX650F ABS – United States of America Specifications
USA MSRP – $NA USD
Model may not be available in the USA
2011 Suzuki GSX650F ABS – Canadian Specifications
Canada MSRP – See dealer for pricing.
Colour Blue/Silver, White/Black
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Curb Weight 245 kg (541 lbs)
Final Drive Chain
Fuel Tank Capacity 19.0 L (5.0/4.2 US/Imp gal)
Ground Clearance 125 mm (4.9 in)
Overall Length 2130 mm (83.9 in)
Overall Width 760 mm (29.9 in)
Seat Height 770 mm (30.3 in)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 120/70ZR17M/C (58W) tubeless
Tires Rear 160/60ZR17M/C (69W), tubeless
Transmission 6-speed constant mesh
Wheelbase 1470 mm (57.9 in)
Bore Stroke 65.5 mm (2.579 in) x 48.7 mm (1.917 in)
Compression Ratio 11.5 : 1
Engine 656cc (40.0 cu. In), 4-stroke, liquid-cooled, DOHC
Fuel System Fuel injection
Ignition Electronic ignition (Transistorized)
Lubrication Wet sump
Warranty 12 Month unlimited mileage limited warranty
American Suzuki Motor Corporation makes every effort to present the most current specifications and product features. Because of our policy of continual improvement, changes may be made in equipment, availability, specifications and features without notice or obligation.
