2011 Yamaha BWs 125 / Zuma 125

Back to 2011 Yamaha Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

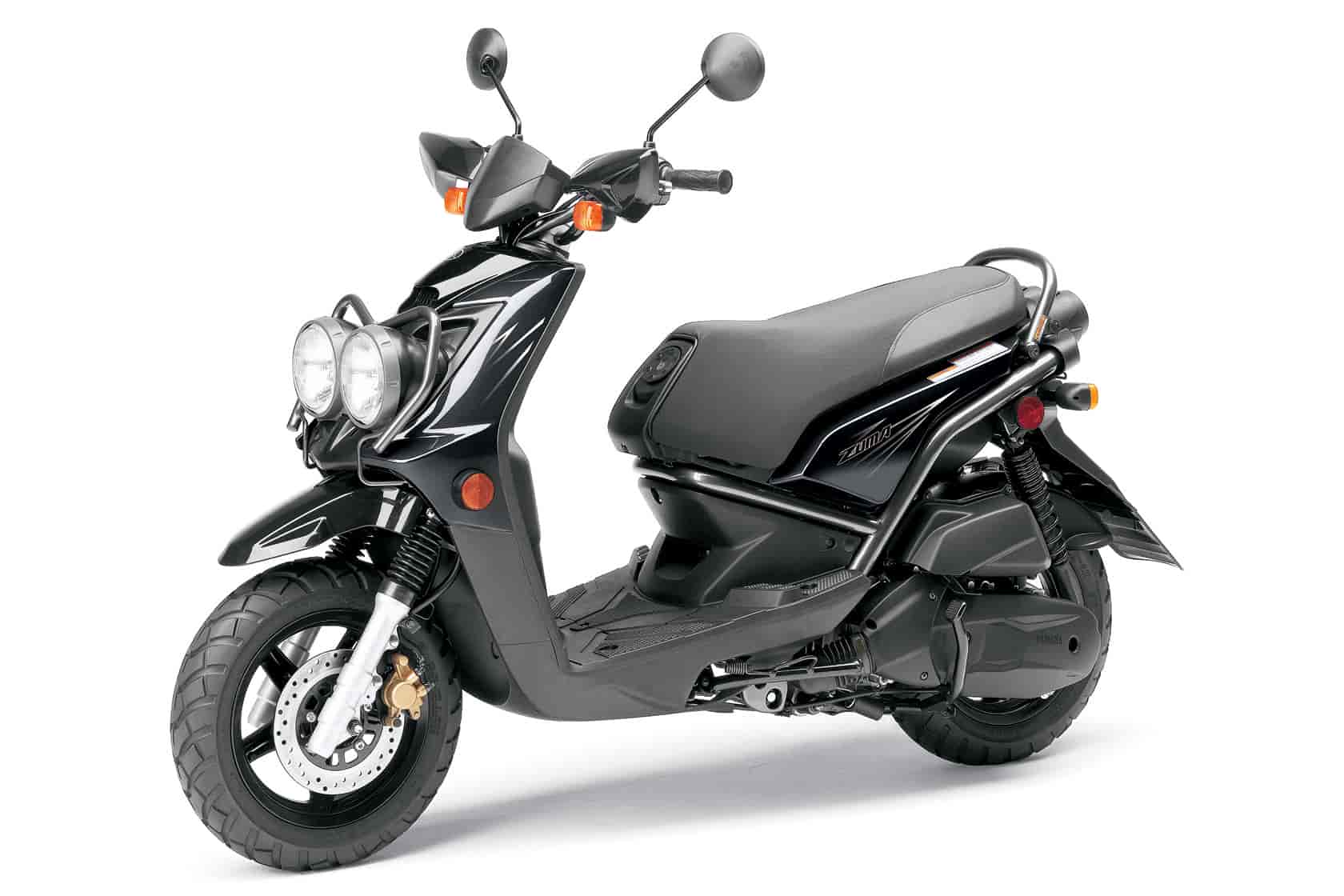

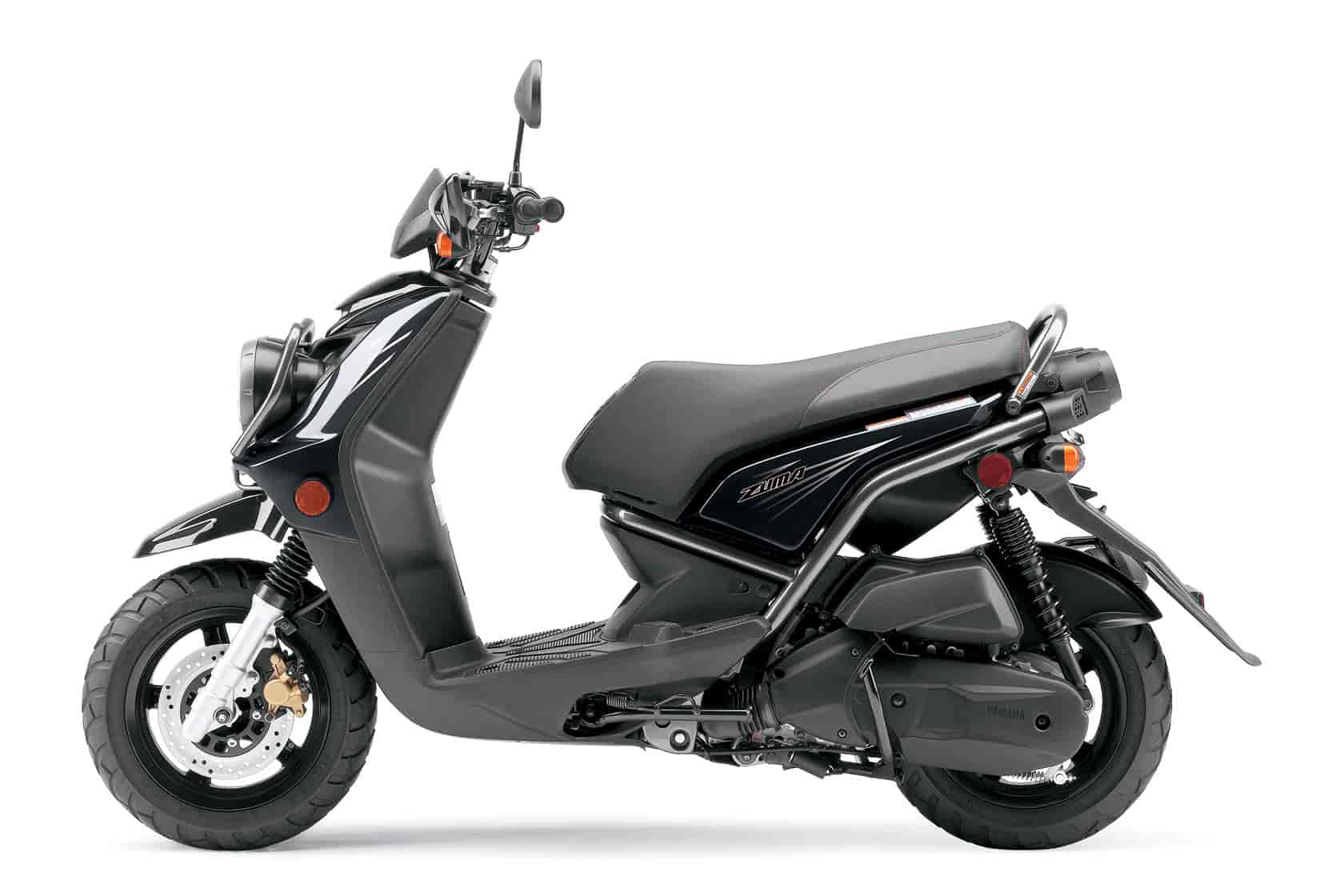

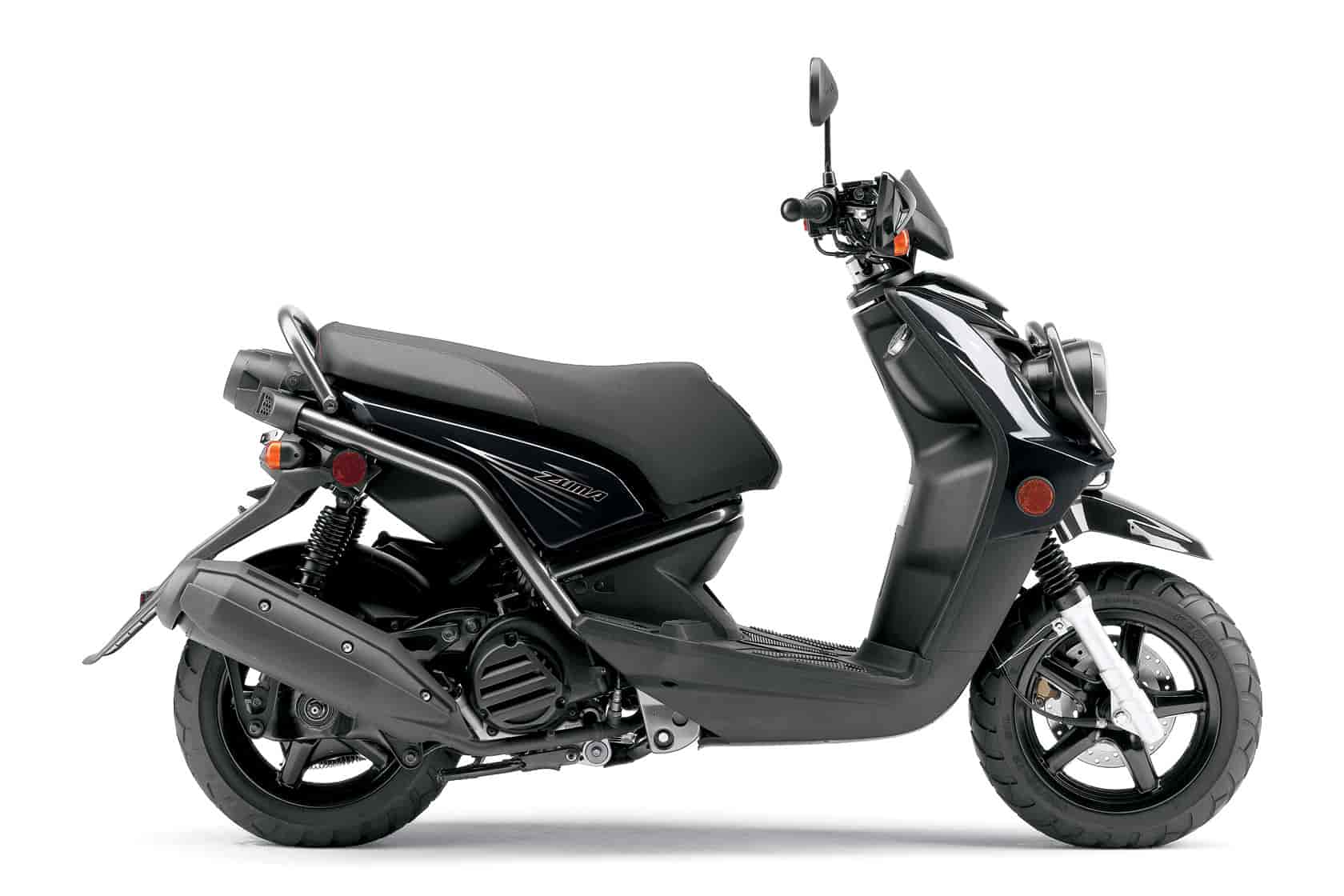

2011 Yamaha BWs 125 / Zuma 125
2011 Yamaha BWs 125 / Zuma 125

2011 Yamaha BWs 125 / Zuma 125
2011 Yamaha BWs 125 / Zuma 125

2011 Yamaha BWs 125 / Zuma 125
2011 Yamaha BWs 125 / Zuma 125


– 2011 Yamaha BWs 125 / Zuma 125

2011 Yamaha BWs 125 / Zuma 125

The 125cc 4-stroke Zuma (BWs 125 in Canada) – at home on unpaved roads with the attitude you want for the street.

Check out the fun loving, sporty, 2011 Yamaha BWs 125 / Zuma 125. The ever popular BWs 50 / Zuma has a larger sibling. The increased engine displacement and more roomy design expands the functionality of the BWs 125 / Zuma 125, making it a great urban and suburban commuter or fun riding machine.

Ready to zoom.

The biggest Zuma / BWs brings it all into the modern era with a clean, fuel injected four value engine that cranks out plenty of power. With its telescopic front fork, fat tires and rugged attitude, the 2011 Yamaha Zuma 125 / 2011 Yamaha BWs 125 is designed to get you and a friend there for years to come.

The BWs125/Zuma 125 is powered by a peppy, reliable 125cc, 4-stroke engine.

Featuring a gas sipping fuel injection system, an environmentally friendly catalyzer exhaust and a fully automatic gas it and go transmission, the 2011 Yamaha Zuma 125 / 2011 Yamaha BWs 12 is economical to operate and a ton of fun to ride. Two-up seating means you can share the fun with a friend. The single cylinder 125cc, 4-valve engine provides plenty of power while the fully automatic transmission and electric starting make it a snap to operate.

“Responsive, quick and agile, the 2011 Yamaha Zuma 125 / 2011 Yamaha BWs 125 is one of the sportiest scooters in the industry, featuring toned-down versions of the same remarkable qualities of its sporty big brother, the T-Max 500. With its equipment, qualities and bad-boy attitude, the 2011 Yamaha Zuma 125 / 2011 Yamaha BWs 12 is an ideal urban solution for the young at heart.”





2011 Yamaha BWs 125 / Zuma 125 model Features

Fuel Consumption * 37.5kpl/107mpg(Imp)

124cc, fuel injected, 4-stroke power

rugged chassis design & 2-up seating





ENGINE

Peppy, 125cc, air-cooled (with fan assist), SOHC, 4-valve, 4-stroke engine produces solid, predictable power and excellent fuel economy.

Fuel consumption of 37.5kpl/107mpg. Your actual consumption may vary.

Fan-assisted cooling system maintains consistent engine temperatures, even while idling at stoplights or in stop and go traffic for maximum efficiency and extended engine life.

Fast, dependable push button electric starting

Maintenance-free CDI ignition system provides a precise, high-voltage spark for seamless engine performance, sure starts and excellent reliability.

16 bit ECU (electronic control unit) is used to control the fuel injection and ignition systems.

Four valve cylinder head design utilizes two intake valves and two exhaust valves for maximum breathing efficiency and great power output. Valves are operated by rocker arms.

Both the intake and exhaust valves feature a special “carbon cutter” design which removes any carbon build up from the valve stem, keeping the engine operating at maximum efficiency, even during extended slow speed use (carbon build up on the valve stem can lead to sticky valves and poor performance).

The light weight aluminium cylinder features a ceramic composite plating on the cylinder bore which insures uniform heat dissipation, reduced friction, reduced weight and an extended service life.

A wet sump-type oil delivery system is utilized. A special centrifugal oil filtering system is used. This type of oil “filter” automatically removes any particles found in the oil and never requires cleaning or maintenance.

A flat top “gravity” cast lightweight aluminium piston is used to provide fast engine response.

Automatic cam chain tensioner reduces both mechanical noise and maintenance time

33mm throttle body fuel injection provides crisp throttle response, reduced fuel consumption, reduced emissions and reduced weight. Other fuel injection benefits include no choke or idle adjustment to fuss with … it is all controlled automatically.

The single fuel injector uses a 6-hole design for better fuel / air atomization for strong engine performance. The fuel injector is located down stream of throttle body in the intake manifold

The fuel injection system is a “closed loop system” which means there is an oxygen sensor in the exhaust that monitors the exhaust emissions and constantly regulates / adjusts the fuel mixture for optimum performance and reduced emissions

Oil coated paper-type air filter is used. The air box is designed for excellent performance and reduced intake noise.

Fully automatic, V-belt, C.V.transmission ensures easy “twist-the-throttle-and-go operation”. There is no hand clutch or gear shifting to worry about. A wide range reduction ratio is used for peppy performance. Washable foam air filter allows cooling air to enter the belt case for reduced heat and extended V-belt life.

AC magneto produces 170 watts of power.

Stylish upswept muffler contains a catalytic converter to reduce harmful hydrocarbons and nitrous oxide exhaust emissions. The muffler produces a quiet exhaust note.




CHASSIS/SUSPENSION

Rugged “underbone-style” steel frame means it is easy to get on and off the BWs, plus it also features a special anti corrosion paint process

Plate type steel swingarm helps to maintain a comfortable ride on paved or unpaved roads

27mm hydraulic front fork delivers excellent bump-absorbing performance and comfort. Wheel travel is 78mm (3.1″).

Dual-shock rear suspension provides a plush, comfortable ride. Wheel travel is 71mm (2.8″).

220mm hydraulic front disc brake with single piston caliper and semi metallic pads provides excellent stopping power.

150mm rear drum brake supplies strong, reliable stopping power.

Rugged, yet lightweight die cast aluminium 5-spoke “mag style” wheels are fitted with wide, aggressive tubeless tires.

Roomy two-person seat ensures excellent rider and passenger comfort. The seat locks for added security

Ultra convenient 20 litre, under seat storage compartment can hold selected full-face helmets or other items.
Note: This compartment will not hold all full face helmets.

6 litre fuel tank features an integrated electric fuel pump. Gas cap locks for peace of mind

Dual 60/65-watt, multi-reflector, quartz headlights maximizes night time visibility and enhances the BWs rally styling.

Full-size floorboards and wide front apron provide excellent splash and wind protection as well as highlighting the BWs aggressive sports styling.

Sporty instrument panel includes analog speedometer, odometer and electric fuel gauge, plus a range of warning lights.





ADDITIONAL FEATURES

Aggressive rally sports styling

Hand guards help protect hands from the cold and add a special styling touch too.

Stylish headlight guard

Convenient passenger grab rail

Push-to-cancel-type turn signals enhance ease of use.

Easy-to-use centre stand plus side stand. Side-stand safety lock-out switch prevents unit from being ridden when side stand is down.

Anti-theft 3-in-1 main ignition switch combines the ignition, fork lock and under seat storage compartment lock in one convenient switch. This switch also features a special “key hole cover” that blocks access to the key slot to avoid “jimmy starts” using a screw or similar tool.

Low-maintenance, sealed battery

Lean angle sensor will stop the engine in the event of a tip over

Heat shield on muffler protects rider and passenger from hot components.

Flexible turn signals in the event of a tip-over

Front and rear side reflectors help maximize conspicuity in city traffic.






2011 Yamaha Zuma 125 – USA Specifications
MSRP:
$3,250 (Raven) Available from November 2010


Engine
Type 125cc forced air-cooled 4-stroke single; SOHC, 4-valve

Bore x Stroke 52.4 x 57.9 mm

Compression Ratio 10:1

Fuel Delivery Electronic Fuel Injection

Clutch Type Dry centrifugal automatic clutch

Transmission V-belt automatic


Chassis
Suspension / Front 27mm telescopic forks

Suspension / Rear Dual shock

Brakes / Front 220mm disc

Brakes / Rear Drum

Tires / Front 120/70-12 51L

Tires / Rear 130/70-12 56L


Dimensions
Length 75.2 in

Width 30.1 in

Height 43.8 in

Seat Height 30.7 in

Wheelbase 50.8 in

Ground Clearance 3.7 in

Fuel Capacity 1.6 gal

Fuel Economy** 89 MPG

Wet Weight*** 207 lb


Other
Warranty 1 Year (Limited Factory Warranty)








2011 Yamaha BWs 125 – Canada Specifications
MSRP: $4,299 CDN

Engine 4-stroke, air-cooled (fan assist), SOHC, 4-valve, single
Displacement 125 cc
Bore and Stroke 52.4 x 57.9mm
Compression Ratio 10 : 1
Maximum Torque 1.0 kg-m (7 ft-lb.) @ 6,000 rpm
Fuel Delivery 24mm throttle body fuel injection
Estimated Fuel Consumption* 38kpl / 107mpg (Imp.)
Lubrication Wet Sump
Ignition / Starting TCI / Electric Start
Transmission Fully Automatic
Final Drive V-belt / Spur gear


Suspension (Front) 33mm fork
Suspension (Rear) Dual shock unit swingarm
Brakes (Front) 220mm disc
Brakes (Rear) Drum
Tires (Front) 120/70-12
Tires (Rear) 130/70-12


Length 1,910mm (75.2”)
Width 765mm (30.1”)
Height 1,110mm (43.7”)
Wheelbase 1,290mm (50.8”)
Ground Clearance 125mm (4.9″)
Seat Height 780mm (30.7”)
Fuel Capacity 6 litres (1.3 Imp. gal.)
Wet Weight 122 kg (268.4 lb)
Colour(s) Metallic Black


* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
