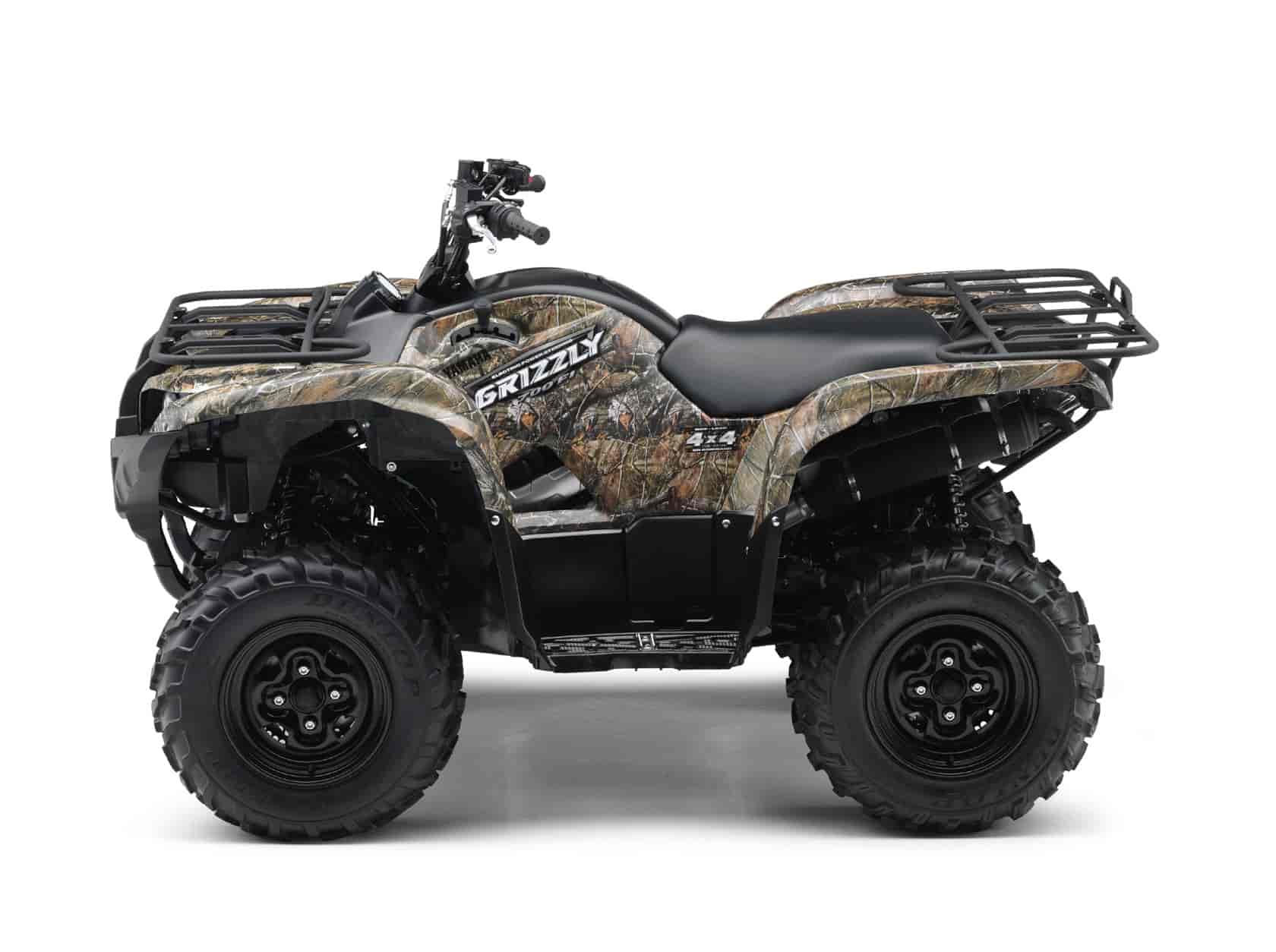

2009 Yamaha Grizzly 700 FI Camo AP HD

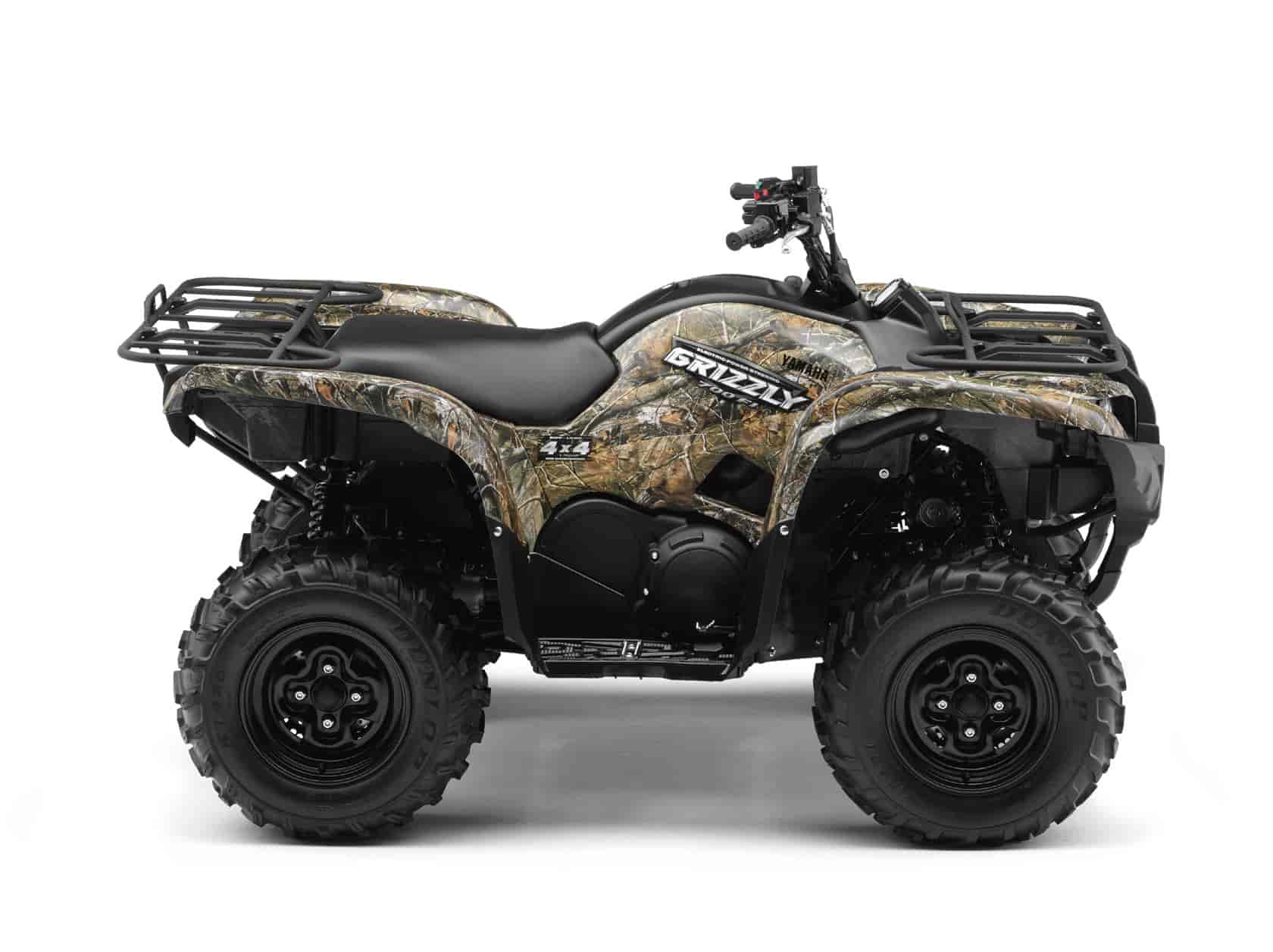

2009 Yamaha Grizzly 700 FI Camo AP HD

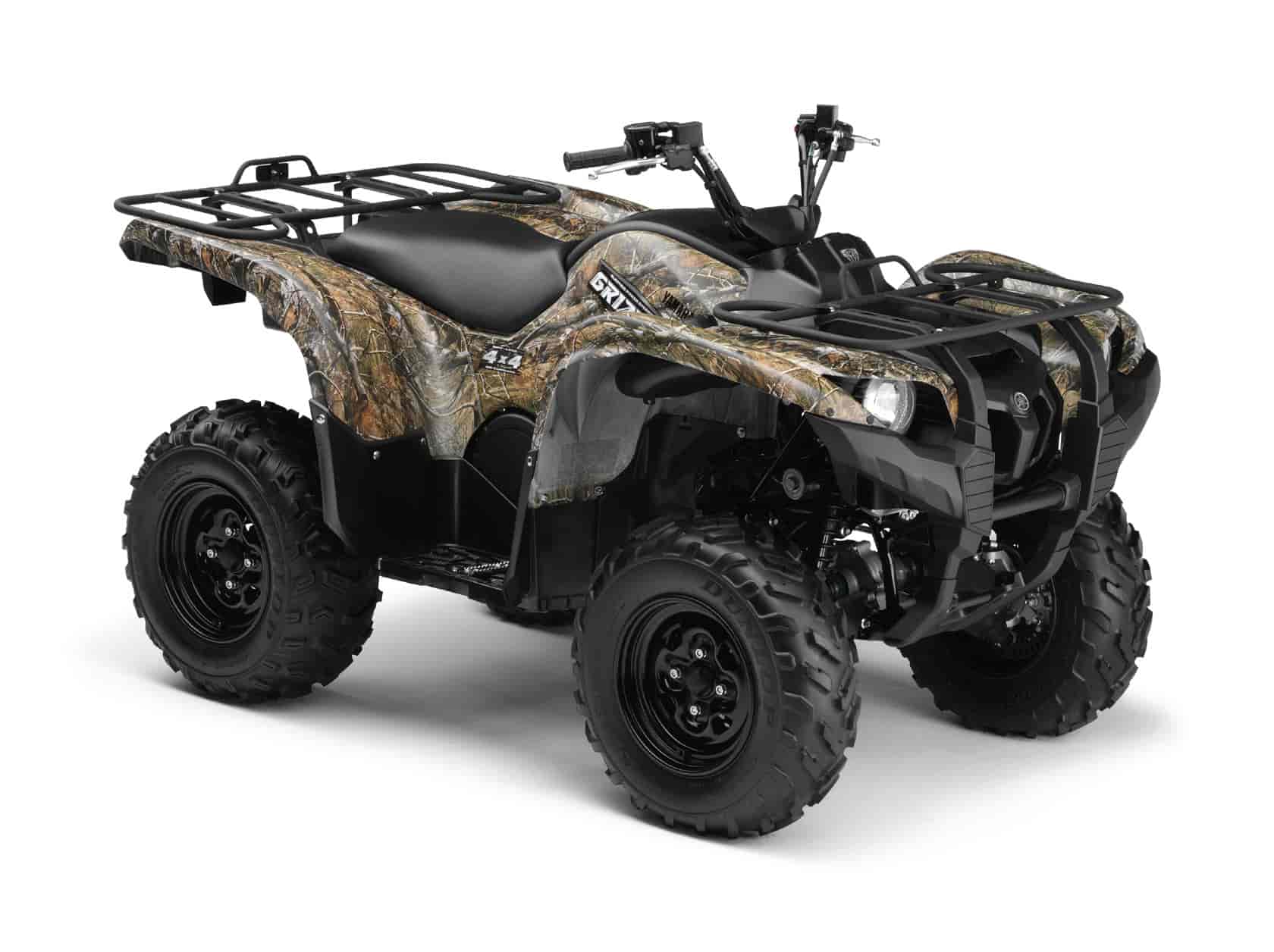

2009 Yamaha Grizzly 700 FI Camo AP HD
2009 Yamaha Grizzly 700 FI Camo AP HD
– 2009 Yamaha Grizzly 700 FI Camo AP HD
2009 Yamaha Grizzly 700 FI Camo AP HD
Still one of the best selling ATV’s in Canada. Since 1998 Yamaha’s Grizzly has dominated the ATV food chain. For 2007 the Grizzly was redesigned and then equipped with the Industry’s first “Electric Power Steering”. For 2009, you can save a few dollars and get a “standard” version without the EPS.
Now available in the new Realtree AP HD camouflage.
Identical to the EPS Grizzly in every way but one. This new “standard” version of the Grizzly 700 offers you all of the same ground breaking features as the original, only minus the Electric Power Steering.
Loaded with exclusive Yamaha features such as the “wide-arc” front a-arms, 4-wheel disc brakes, fully automatic Ultramatic transmission and push-button On-Command 4-wheel drive system, that have made the Grizzly 700 so successful. While the focus remains on lightweight handling and lightening response, this non-EPS version simply comes with a little bit better price tag.
Highlights:
Raptor based 686cc fuel injected engine.
4-wheel disc brakes
“Wide-arc” front a-arms
Features and Benefits:
The Grizzly 700 is powered by a fuel injected 686cc 4-stroke engine derived from the class leading Raptor 700R. It is fuel injected for easy starting and crisp throttle response, but has been re-worked for even more low-end torque to match this bear’s personality.
Increased power is nothing if it comes with a bunch of additional weight. Considering the Grizzly 700 can be as much as 150 lbs lighter than the competitors 800’s, this bear’s power to weight ratio offers some hefty advantages over some of the bigger and bulkier ATVs. Less weight has an effect on everything from handling and acceleration to hill climbing and mud prowess. Imagine if you will adding six or seven cinder blocks to the racks of this Grizzly, and you get the idea of how heavy some of those 800’s are!
Slowing your big-bore ATV down shouldn’t involve standing on the brake pedal while squeezing the lever with all your might. 4-wheel disc brakes combined with full-time engine braking means slowing this Grizzly down requires less effort. And since the front and rear brakes can be operated independently, you have more control over how you brake depending on the situation.
Push-button servo-controlled “On-Command” system allows you to switch between 2WD, limited-slip 4WD and fully locked differential 4WD – all with the simple push of a dash mounted button. Real 4-wheel drive when you need it. With Diff-lock engaged, there’s no need to wait for one wheel to spin. You have traction to all 4 wheels, immediately. This puts you in total control… you decide when you need 4 wheel drive… the machine doesn’t decide for you.
Revolutionary Ultramatic™ fully automatic transmission is the first automatic transmission to feature true engine braking. All four wheels receive engine braking in 4WD mode. Dual-range transmission with reverse. Low range has approximately 1.5 times the pulling power of high range.
A full tank of fuel carries a lot of weight with it. So we relocated the tank under the seat and the airbox up high where the tank used to be. This lowers the center of gravity which improves handling, stability and hill climbing capability. But it also raises the airbox reducing the chance of water and debris from getting into the engine.
While we moved the airbox, we also rerouted the V-belt intake and exhaust ducts, reducing the opportunity for water and debris to enter the V-Belt housing.
The wheel center does not change but allows for a shorter frame which improves approach/departure angles, and allows the use of stronger ball joints (more clearance).
Roller bearing rocker arms for reduced friction and improved engine performance
Carburized Chrome-Moly connecting rod for improved durability
Airbox design has a centrifugal debris trap to improve air flow.
Flat type foam air filter for easy cleaning
Straight drive shaft layout for reduced vibration and improved durability.
Gull-wing front a-arms for improved ground clearance.
Air cushion seat to provide comfort on those long rides.
Floor boardswith large holes for mud evacuation, and special rungs to avoid buildup from underneath.
Water resistant storage
Centralize wiring layout, positioned for improved protection against the elements.
LCD Gauge includes Odometer, Trip 1, Trip 2, Clock, Fuel gauge and Gear position
Warning indicators: Engine, Water Temp., Reverse, Neutral, Parking, High Range, Low Range and LCD Drive / Differential Lock map .
35W Halogen headlight bulbs
Neodymium hi-power magnet for improved output, charging capacity and light weight.
Forged Aluminum steering knuckle
Gate type transmission shifter for improved shift feel.
Cartridge type oil filter located to the front of the engine for improved cooling and simplified maintenance
Carburized Chrome-Moly connecting rod for improved durability
2009 Yamaha Grizzly 700 FI Camo AP HD – USA Specifications
MSRP* $9,049 (Realtree® AP HD® Camouflage) Available from July 2008
Engine
Type 686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke 102.0mm x 84.0mm
Compression Ratio 9.2:1
Carburetion Yamaha Fuel Injection (YFI), 44mm
Ignition 32 Bit ECU
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
Chassis
Suspension/Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel
Suspension/Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel
Brakes/Front Dual hydraulic disc
Brakes/Rear Dual hydraulic disc
Tires/Front AT25 x 8-12 w/aluminum wheels
Tires/Rear AT25 x 10-12 w/aluminum wheels
Dimensions
L x W x H 81.3 x 46.5 x 48.8 in
Seat Height 35.6 in
Wheelbase 49.2 in
Turning Radius 126 in
Ground Clearance 11.8 in
Fuel Capacity 5.3 gal
Dry Weight 600 lb
Rack Capacity 99 lb Fr./187 lb Rr.
Towing Capacity 1322 lb
Other
Instrumentation Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hourmeter, clock, fuel gauge, gear position, EPS and EFI function
Lighting Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
2009 Yamaha Grizzly 700 FI Camo AP HD – Canada Specifications
Canadian MSRP $11,399
Engine 4-stroke, SOHC, liquid cooled, 4-valve, single
Displacement 686 cc
Bore and Stroke 102 x 84mm
Compression Ratio 9.2: 1
Carburetion Mikuni Electronic Fuel Injection w/44mm Big Bore throttle bodies and TPS
Ignition computerized DC-CDI
Starting electric w/auto-decompression
Lubrication wet sump
Oil Capacity 2.4L
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
Suspension (Front) independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Suspension (Rear) independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Brakes (Front) Hydraulic Discs
Brakes (Rear) Hydraulic Discs
Tires (Front) Dunlop KT421 tubeless, AT25 x 8-12
Tires (Rear) Dunlop KT425 tubeless, AT25 x 10-12
Length 2065 mm (81.3″)
Width 1180 mm (46.5″)
Height 1240 mm (48.8″)
Wheelbase 1250 mm (49.2″)
Ground Clearance 300 mm (11.8″)
Seat Height 905 mm (35.6″)
Dry Weight 270 kg (600 lb)
Fuel Capacity 20 litres (5.3 U.S. gal)
Towing Capacity 600 kg (1,322 lb)
Colour(s) Realtree® AP HD™ Camouflage
