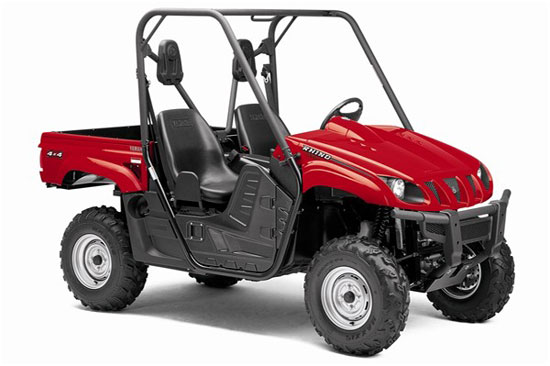

2009 Yamaha Rhino 450 4x4
2009 Yamaha Rhino 450 4×4

2009 Yamaha Rhino 450 4x4
2009 Yamaha Rhino 450 4×4

2009 Yamaha Rhino 450 4x4
2009 Yamaha Rhino 450 4×4

– 2009 Yamaha Rhino 450 4×4

2009 Yamaha Rhino 450 4×4

The 2009 Yamaha Rhino 450 is based on the proven Rhino 660 platform with a smaller 421cc engine. Discover the versatility and go anywhere performance of our newest Rhino.

The Rhino 450 offers all the comfort and terrainability that the Yamaha Rhino has become famous for.

A proven Kodiak based 421cc, liquid-cooled engine powers this rugged machine. Based on the Rhino 660, the newest member of the family provides all the roominess and load capacity of its bigger brother. Discover the fun, convenience and comfort of the Rhino 450, at a price that will put a smile on your face.

All the big Rhino features in a value-packed, heavy-duty side-by-side package.



Seating for two, in an economy package

2WD / 4WD / 4WD lock


Features and Benefits:

Key Features:
This groundbreaking off-road recreational side-by-side is like nothing else on the market—a way to get out there in style and comfort with a friend and your gear.
Comfortable interior with automotive-type controls: Steering wheel, left-side foot brake pedal/right-side foot accelerator pedal, center-mounted console shifter and parking brake lever, turn-to-start ignition switch, indicator lights and 12-volt accessory outlet.
421cc liquid-/oil-cooled, four-stroke engine and light weight add up to great all-around performance, excellent terrainability and great fuel efficiency.
Industry-exclusive fully automatic Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. Maintaining constant belt tension reduces wear, gives instant throttle response and provides industry-exclusive all-wheel downhill engine braking.
Industry-exclusive three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD—all with the simple push of a button.
Fully independent four-wheel suspension: Double-wishbones front and rear deliver 7.3 inches of wheel travel, and five-way preload-adjustable shocks provide maximum tire contact and comfort while navigating rough terrain.
Thick bucket seats and that great long-travel suspension system work together to provide the smoothest ride in the industry.

Super-reliable overhead-cam 421cc liquid-cooled engine produces abundant low-rev torque, fat midrange and serious top-end muscle.
Dual-range (Hi/Lo) drive with reverse taps into more pulling power in low and more performance in high than any machine in its class.
Console-mounted dual-range (H/L/N/R) shift lever.
33mm Mikuni BSR carburetor and high-output DC-CDI ignition serve up great throttle response and excellent fuel efficiency.
Sealed drive case keeps out water and debris, and a hand-operated side cover drain lets out what little gets in.
Specially designed full stainless steel-exhaust system features aluminum heat shields and a screen-type spark arrestor for superb power characteristics with minimum noise output.
Large-capacity aluminum radiator and oil cooler with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
Easy-access, tool-free air filter box.

CAD-designed steel frame is lightweight and features outstanding durability with superior rigidity for superb handling.
Light, responsive rack-and-pinion steering features a fully sealed steering column and double U-jointed steering linkage for smooth operation and class-leading turning radius—even in 4WD.
Large-diameter ventilated hydraulic front disc brakes and shaft-mounted hydraulic rear disc provide outstanding stopping power in a variety of conditions.
12.1-inch ground clearance delivers maximum underbelly protection while enhancing terrainability.
Low-maintenance front shaft drive features gear case and electronic servo-activated 2WD/4WD/Diff lock via the On-Command system. Direct rear shaft drive eliminates the U-joint for greater durability and more efficient power transfer at all rpm.
Heavy-duty CV joint guards protect against rock and debris damage.
Stamped steel dump bed is rated to haul 400 pounds of gear. Center-mounted 2-inch receiver trailer hitch comes standard and can tow over 1200 pounds.

Additional Features:
Comfortable passenger grab handles.
Large, specially designed seats are extra plush and supportive for all-day driver and passenger comfort.
Tough, rotomolded doors keep mud, water and dirt on the trail where they belong.
Operator and passenger seat belts.
Dual 30-watt multi-reflector Krypton bulb headlights with high/low beams feature stylishly sleek cat-eye design; dual 5-watt/21-watt tail/brake lights.
Large, 7.9-gallon fuel tank features a fuel level gauge.
Large style headrests for good looks and comfort.
Tough wrinkle-finish coating on the upper frame.
Maintenance-free battery provides power, even in cold weather.
Built in Newnan, GA, USA.
Optional digital instrument panel boasts multifunction LCD display with speedometer, odometer, dual tripmeters, hour meter, 4WD status, transmission position, and clock.


2009 Yamaha Rhino 450 4×4 – USA Specifications
MSRP* $8,499 (Red) Available from June 2008
$8,499 (Hunter Green) Available from June 2008
$9,049 (Realtree® AP HD® Camouflage) Available from June 2008

Type 421cc liquid-cooled w/fan, 4-stroke; SOHC, 4 valves

Bore x Stroke 84.5mm x 75mm

Compression Ratio 10.0:1

Carburetion Mikuni 33mm BSR

Ignition DC – CDI

Starting System Electric

Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R

Drive Train Yamaha On-Command® pushbutton;3-way locking differential; 2WD,4WD, locked 4WD; shaft drive

Suspension/Front Independent double wishbone; 5-way preload adjustment, 7.3-in travel

Suspension/Rear Independent double wishbone; 5-way preload adjustment, 7.3-in travel

Brakes/Front Dual hydraulic disc, twin piston

Brakes/Rear Hydraulic disc, self-adjusting, shaft mounted

Tires/Front AT25x8-12 NHS

Tires/Rear AT25x10-12 NHS

L x W x H 113.6” x 54.4” x 73.0”

Wheelbase 75.2 in

Turning Radius 153.5 in

Ground Clearance 12.1 in

Fuel Capacity 7.9 gal

Dry Weight 1031 lb

Bed Capacity 400 lb

Towing Capacity 1212 lb

Instrumentation Fuel sight gauge, 4WD Indicator lights (optional digital speedo/fuel)

Lighting Dual 30W Krypton multi-reflector headlights & dual 21/5W brake light

Warranty 6 Month (Limited Factory Warranty)


2009 Yamaha Rhino 450 4×4 – Canada Specifications
Canadian MSRP $11,999

Engine 421cc, liquid cooled, SOHC 2-valve, 4-stroke, single
Bore and Stroke 84 x 75mm
Compression Ratio 10:1
Fuel Delivery Mikuni BSR33
Ignition DC-CDI
Starting Electric
Lubrication Wet sump
Transmission Ultramatic V-Belt auto w/engine braking hi/lo/rev
Drive Train On-command 2WD / 4WD / 4WD diff lock/shaft drives

Suspension (Front) Adjustable Independent Double Wishbone, 185mm (7.3”) of wheel travel.
Suspension (Rear) Adjustable Independent Double Wishbone, 185mm (7.3”) of wheel travel.
Brakes (Front) Dual 200mm hydraulic discs
Brakes (Rear) Drive shaft mounted 165mm hydraulic disc
Tires (Front) AT25 x 8-12 NHS
Tires (Rear) AT25 x 10-12 NHS

Length 2,885mm (113.6”)
Width 1,385mm (54.5”)
Height 1,853mm (73”)
Wheelbase 1,910mm (75.2”)
Turning radius 3,900mm (153.5”)
Ground Clearance 273mm (10.8”)
Fuel Capacity 30 litres (6.6
Dry Weight 471 kg (1,031 lbs)
Bed Capacity 181kg (400 lbs)
Towing Capacity 550kg (1212 lbs)
Warranty Private use – 6 months / unlimited mileage
Commercial use – 90 days / unlimited mileage
Colour(s) Dark Green
