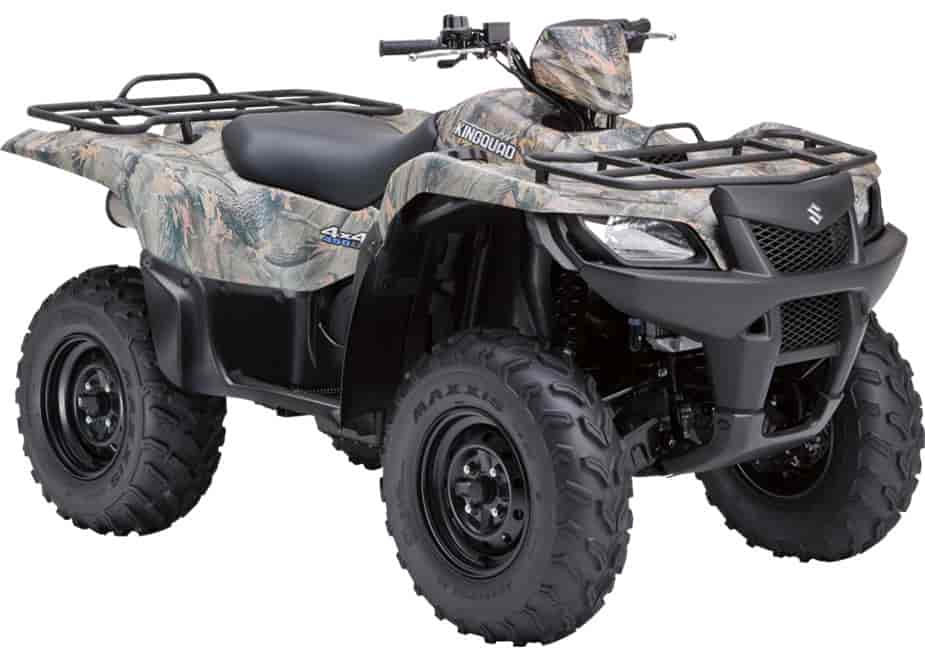

2010 Suzuki KingQuad 450AXi Camo
2010 Suzuki KingQuad 450AXi Camo

– 2010 Suzuki KingQuad 450AXi Camo

2010 Suzuki KingQuad 450AXi Camo

The Suzuki KingQuad 450AXi 4X4 sets the standard for all-around performance in a 450-class ATV. With Suzuki electronic fuel-injection, the engine offers quick acceleration and outstanding torque. Fully independent suspension plus a locking front differential are just two of its top-line features.


Key Features

Special version KingQuad 450 featuring Realtree Hardwoods HD Enhanced camouflage bodywork – Exclusive to Suzuki


Engine Features

Compact 4-valve cylinder head with large intake valves and straight intake ports for increased efficiency

High capacity aluminum radiator with large diameter cooling fan for stable engine operating temperature

Powerful 454cc, SOHC, single-cylinder, liquid-cooled engine designed for a wide powerband and strong performance

QuadMatic™ CVT-type automatic transmission designed for maximum versatility and convenience – fender-mounted gate-type shifter operation for high/low forward ranges, plus neutral and reverse

Spin-on-type oil filter – simplifies oil change maintenance

Sportbike-derived chain-and-gear camshaft drive system allows a short/narrow cylinder head design and reduced overall engine height

Suzuki fuel injection system featuring high-performance motorcycle technology provides excellent throttle response, fuel efficiency and quick engine starts under all operating conditions

Uses a cylinder canted forward for lower center of gravity, reduced engine height and lower seat height


Transmission Features

Advanced engine brake system minimizes free-wheeling to reduce downhill speed

Compact torque-sensing limited-slip front differential offers more powerful traction plus light steering effort, including a differential-lock system that provides serious four-wheel-drive traction.

Electric 2WD, 4WD and differential-lock 4WD – convenient handlebar-mounted push-button controls allow the rider to easily select the right setting for any traction condition

Sealed, multi-plate rear brake system – clutch-type design provides high durability, reduced unsprung weight and low-maintenance


Chassis Features

Independent double A-arm front suspension with 7.1 inches of wheel travel – includes large diameter shock absorbers with 5-way spring preload adjustment

Fully independent, I-beam rear suspension with long suspension travel (7.9 inches) – includes 5-way preload adjustable shock absorbers and large diameter rear stabilizer sway-bar

25-inch Maxxis tires mounted on lightweight steel wheels

Full floorboards with aggressively serrated footpegs and mud drain holes

Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts
Utility/Convenience Features

Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light

High output magneto generator system and large 18-amp maintenance-free battery provides extra power

Large 2.8 liter water resistant front storage compartment – includes new easy-to-open/close screw-on cap

Large 17.5L ( 3.8 imp gal. ) fuel tank positioned for a low center-of-gravity – includes vacuum-operated petcock, ratchet-style fuel cap and bar-type fuel gauge

Rugged steel-tube racks with wrinkle paint finish for increased durability and scratch resistance



Minimum Age: 16 Years Old




2010 Suzuki KingQuad 450AXi Camo – Specifications
Canadian MSRP $ See Dealer for Details

Brakes Front Disc brake, twin
Brakes Rear Sealed oil-bathed multi-disc
Colour Realtree Hardwoods HD Enhanced

Curb Weight 305 kg (672 lbs)
Final Drive Shaft drive
Fuel Tank Capacity 17.5 L (4.6/3.8 US/Imp gal)
Ground Clearance 260 mm (10.2 in)
Overall Length 2115 mm (83.3 in)
Overall Width 1210 mm (47.6 in)
Seat Height 860 mm (33.9 in)
Suspension Front Independent, double wishbone, coil spring, oil damped
Suspension Rear Independent, double wishbone, coil spring, oil damped
Tires Front AT25 × 8-12, tubeless
Tires Rear AT25 × 10-12, tubeless
Transmission Automatic variable ratio (V-belt), with high-/low-range, and reverse
Wheelbase 1280 mm (50.4 in)

Bore Stroke 84.0 mm (3.307 in) x 82.0 mm (3.228 in)
Compression Ratio 10.0 : 1
Engine 454cc (27.7 cu. in), 4-stroke, liquid-cooled, OHC
Fuel System Fuel injection
Ignition Electronic ignition (CDI)
Lubrication Wet sump
Starter Electric and recoil starter

Warranty 12 month limited warranty.
