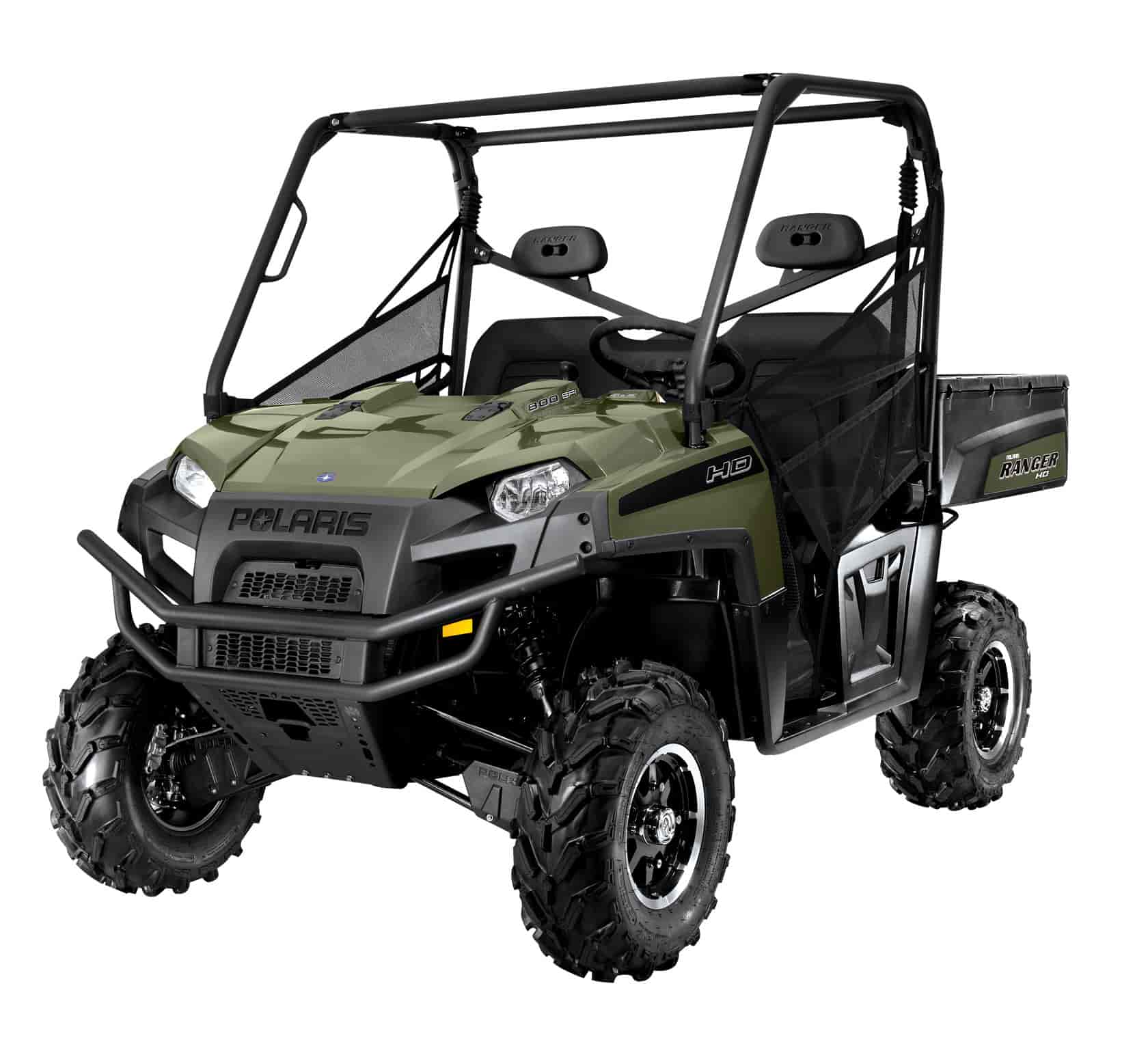

2011 Polaris Ranger HD 800 EPS
– 2011 Polaris Ranger HD 800 EPS
2011 Polaris Ranger HD 800 EPS
The 2011 Polaris RANGER 800 HD® is built and designed with hard-working technology making it the ultimate side-by-side — perfect for farming, ranching, hunting, contracting & construction work.
– 40 HP 760cc Twin-Cylinder EFI Engine
– Self-Leveling Suspension
– Electronic Power Steering (EPS)
– 1,500 lb. (680.4 kg) Payload Capacity
– 2,000 lb. (907.2 kg) Towing Capacity
2011 Polaris Ranger HD 800 EPS Features:
On-Demand True All-Wheel Drive (AWD) With Versatrac Turf Mode
True AWD keeps you moving, automatically engaging all four wheels when you need more forward traction and reverting back to 2WD when you don’t. When in 2WD, the VersaTrac Turf Mode switch unlocks the rear differential for easier, tighter turns that won’t tear up your grass.
Accessory Lift & Carry
The accessory Lift & Carry hydraulic system lets you move, plow, or grapple up to 500-lb. loads. Fully remove the hard-working accessories in less than one minute.
Superior Ergonomics
Cab ergonomics deliver outstanding driver and passenger comfort, including tilt steering with the highest range of motion (10″), extra legroom, and easy cab slide-through design for three adults to get in and out quickly.
Electronic Power Steering (EPS)
The smoothest, most powerful electronic power steering available. Variable Assist for easier steering at lower speeds and greater responsiveness at higher speeds. EPS lets you ride all day with less fatigue.
Proven 800 EFI Engine
800 twin electronic fuel injection engine, cranks out 40 horse power.
Self Leveling Suspension
When the RANGER HD—loaded with up to 1,000 lbs. in the box—starts moving, the Nivomat® rear shocks automatically lift the loaded box to near its unloaded height, maximizing suspension travel and ground clearance, for a smooth ride in heavy-duty work applications.
Large Dump Box With Lock & Ride Cargo System*
Pallet-size rear dump box has gas-assist dumping operation and features exclusive Lock & Ride cargo system that accommodates many hard-working accessories that go on and off in seconds.
2011 Polaris Ranger HD 800 EPS – Specifications
American MSRP $12,599 USD
Canadian MSRP $15,199 CDN
Engine
Engine Type 4-Stroke Twin Cylinder
Displacement 760cc – 40hp
Fuel System Electronic Fuel Injection
Cooling Liquid
Drivetrain
Transmission/Final Drive Automatic PVT H/L/N/R; Shaft
Drive System On-Demand True AWD/2WD/ VersaTrac Turf Mode
Engine Braking System/ Active Descent Control Not Equipped
Suspension
Front Suspension Dual A-Arm 9.6″ (24.4 cm) Travel
Rear Suspension Dual A-Arm, IRS 9″ (22.9 cm) Travel
Brakes
Front/Rear Brakes 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake Hand-Actuated
Tires Wheels
Front Tires / Model 26 x 9-12; PXT
Rear Tires / Model 26 x 11-12; PXT
Wheels Aluminum Mach. Black
Dimensions
Wheelbase 76″ (193 cm)
Dry Weight 1,262 lb (572 kg)
Overall Vehicle Size (LxWxH) 114 x 60 x 76″ (290 x 152 x 193 cm)
Ground Clearance 12″ (30.5 cm)
Capacities
Fuel Capacity 9 gal (34.1 L)
Bed Box Dimensions (LxWxH) 36.5 x 54 x 11.5″ (93 x 137 x 29 cm)
Box Capacity N.A./1,000 lb (453.6 kg)
Payload Capacity 1,500 lb (680.4 kg)
Hitch Towing Rating 2,000 lb (907.2 kg)
Hitch/Type Standard/2″ Receiver
Features
Cargo System Lock & Ride
Lighting 55W low/ 60W high, LED Tail
Electronic Power Steering Standard
Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (2)
