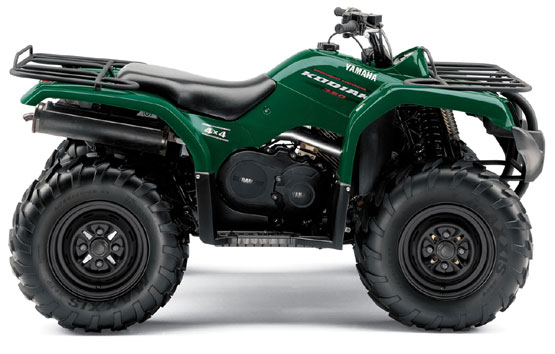

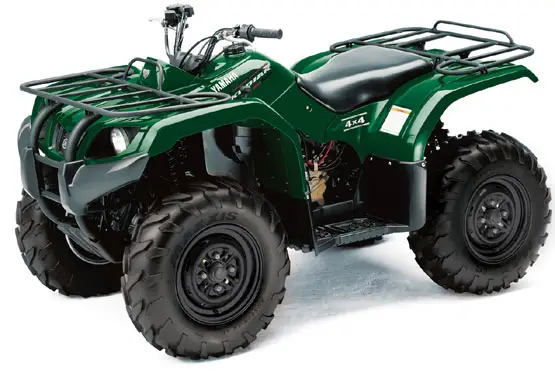

2011 Yamaha Kodiak 350 4x4
2011 Yamaha Kodiak 350 4×4

2011 Yamaha Kodiak 350 4x4
2011 Yamaha Kodiak 350 4×4

2011 Yamaha Kodiak 350 4x4
2011 Yamaha Kodiak 350 4×4

– 2011 Yamaha Kodiak 350 4×4

2011 Yamaha Kodiak 350 4×4

The 2011 Yamaha Kodiak 350 brings together the comfort of Independent Rear Suspension, the traction of Diff-Lock and a rear wet brake for those moments of intense exploration.

The Kodiak 350’s almost indestructible and ultra reliable 348cc air-cooled engine passes power through the Ultramatic transmission to the wheels,

while the three-way On-Command 4WD with Diff-Lock lets you select the drive that matches the ground beneath your wheels. Four-wheel independent suspension, preload-adjustable shocks and 9.6 inches of ground clearance provide a smooth, steady ride over rough ground. The sealed wet brake out back will give you added confidence when the weather decides not to cooperate.


Independent Rear Suspension

Sealed Rear Wet Brake

On-Command 4WD w/diff Lock


Key Features:


The Kodiak 350 shares the same long lasting and well proven 348cc engine from the Bruin 350; durable fuel efficient and versatile.


Fully automatic transmission with engine brake for increased rider confidence, reduced brake component wear, and no freewheeling when off gas or down hills.

On-Command 4WD

Push-button servo-controlled On-Command system allows you to switch between 2WD, limited-slip 4WD and fully locked differential 4WD – all with the simple push of a dash mounted button. Real 4-wheel drive when you need it. With Diff-lock engaged, there’s no need to wait for one wheel to spin. You have traction to all 4 wheels, immediately, puts you in control. You decide when you need 4 wheel drive, the machine doesn’t decide for you.

Electric Start

Convenient electric starting in any gear with recoil backup for added peace of mind.


The dual 30-watt Krypton multi-reflector sealed headlights (with replaceable bulbs) provide excellent lighting. They’re sealed to prevent water from seeping in, which also simplifies maintenance.


Steel reinforced plastic floorboards with raised integrated serrated foot pegs for excellent traction regardless of conditions.

Maxxis Tires

25-inch Maxxis tires with an aggressive tire tread pattern for awesome traction and excellent durability.


The 45° attack angle of the Kodiak allows you to slide over taller obstacles, and the lower front bumper skid plates resists dents and corrosion.

Additional Features

” Independent Rear Suspension (IRS) with sway bar for limited chassis roll and great terrainability
” Spin-on oil filter simplifies oil changes
” High-positioned carburetor air intake, clutch intake and exhaust vents prevent water from sneaking in.
” Grizzly-inspired styling offers excellent mud and splash protection
” Prevent damage caused by sliding over rocks and logs with the full plastic under frame skid plate
” 25-inch Maxxis tires with aggressive tire tread pattern for greater traction and excellent durability
” Marine-style sealed electrical connectors
” Large-capacity racks, front and rear with crinkle coat paint process for superior corrosion resistance
” Steel reinforced plastic floorboards with raised integrated serrated foot pegs for excellent traction regardless of conditions
” Handlebar-mounted choke lever you can operate with gloves or mitts




2011 Yamaha Kodiak 350 4×4 – USA Specifications

Model not available in the USA.




2011 Yamaha Kodiak 350 4×4 – Canadian Specifications
Canadian MSRP* $8,499 CDN

Engine 4-Stroke, SOHC, Single, Air/Oil Cooler w/ Fan
Displacement 348 cc
Bore and Stroke 83mm x 64.5mm
Compression Ratio 9.20:1
Carburetion Mikuni BSR33
Ignition DC – CDI
Starting Electric w/ Recoil Backup
Lubrication wet sump
Oil Capacity 3.10 L
Transmission Yamaha Ultramatic V-Belt / F,N,R
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
Suspension (Front) Double Wishbone
Suspension (Rear) Double Wishbone
Brakes (Front) Dual Disc
Brakes (Rear) Fully Sealed , Oil Bath, Multi Disc
Tires (Front) AT25x8-12
Tires (Rear) AT25x10-12
Length 1,995 mm (78.5″)
Width 1,095 mm (43.1″)
Height 1,120 mm (44.1″)
Wheelbase 1,235 mm (48.6″)
Ground Clearance 245 mm (9.6″)
Seat Height 830 mm (32.7″)
Dry Weight 262.4 kg (578 lb)
Wet Weight 275 kg (606 lb) – ready to ride full of fuel and oil
Fuel Capacity 13.5 litres
Towing Capacity 500 kg (1,100 lb)
Colour(s) Dark Green
Dark Blue

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
