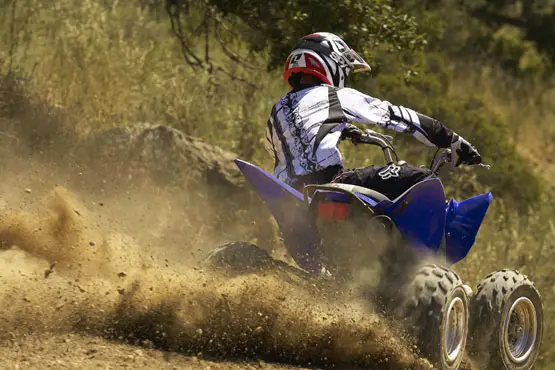

2011 Yamaha Raptor 250

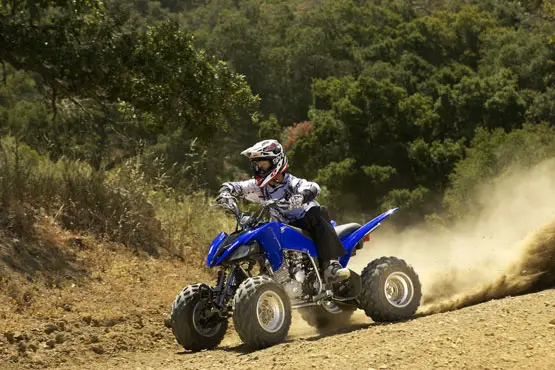

2011 Yamaha Raptor 250

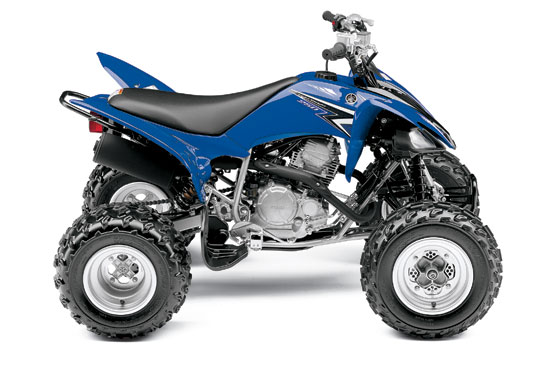

2011 Yamaha Raptor 250
2011 Yamaha Raptor 250

2011 Yamaha Raptor 250
2011 Yamaha Raptor 250

2011 Yamaha Raptor 250
2011 Yamaha Raptor 250

2011 Yamaha Raptor 250
2011 Yamaha Raptor 250

– 2011 Yamaha Raptor 250

2011 Yamaha Raptor 250

Only true 250cc sport ATV in its class, with 5-speed transmission, disc brakes, low-profile tires and more.

Class-leading sport ATV performance.

The 2011 Yamaha Raptor 250 is the very definition of “serious fun” and delivers on that promise with the help of true sport ATV features such as class-exclusive 5-speed manual transmission, long-travel suspension design, disc brakes, low-profile tires and more.

Key Features:

” Aggressive Raptor style and stance gives maximum performance and excellent, all-day sport-riding ergonomics.
” Class-exclusive five-speed manual transmission has a gear for almost any terrain.
” Torquey, durable air-cooled engine puts out plenty of power and starts with the push of a button.
” Low-profile 19-inch rear tires boast outstanding traction and performance.
” Longest suspension travel and lowest seat in its class for true sport handling.
” Lightest weight in its class provides amazingly nimble handling and a great power-to-weight ratio.

” Light and powerful 249cc, air-cooled, SOHC, four-stroke single produces a broad, deep powerband.
” Five-speed gearbox with manual clutch provides the flexibility to tackle pretty much any track or trail.
” Mikuni® 29mm carburetor provides light throttle pull and excellent throttle response across the entire rpm range.
” Electric starting is standard equipment and works in any gear.
” DC-CDI ignition system delivers consistent spark at all rpm levels-for quick throttle response and a smooth, broad powerband.
” Ceramic-composite cylinder liner allows for greatly reduced wear and excellent heat dissipation.
” Oil cooler keeps engine temps down and lubrication up in hot conditions.
” Airbox features no-tools air filter access.
” Three-chamber muffler is light, quiet and boosts low- and midrange performance.

” Light, strong, short-wheelbase chassis creates a quick, super-responsive high-performance package.
” Low, 28.7-inch seat height enhances rider comfort and allows optimal rider movement.
” Independent double-wishbone front suspension with five-way preload-adjustable shocks gives 7.5 inches of wheel travel.
” Rigid and light swingarm rear end is controlled by a shock with adjustable preload and 7.9 inches of wheel travel, for rider comfort.
” Lightweight aluminum wheels reduce unsprung weight for excellent suspension performance, acceleration, deceleration and handling.
” Triple hydraulic disc brakes deliver excellent stopping power even in wet conditions.
” Extra-wide, 45mm footpegs provide excellent grip and rider comfort.
” Easy-to-use, flip-type handlebar-mounted parking brake can be set with one hand.
” Low profile Dunlop® tires deliver outstanding traction for razorsharp handling in a variety of terrain.
” Easy-adjust eccentric chain adjustment feature means hassle-free chain maintenance.
” Flat, composite skidplates provide maximum underbelly protection.
” Rugged steel grab bars front and rear help fend off debris and damage.

Additional Features:
” Dual 30-watt multi-reflector Krypton headlights add the perfect menacing appearance. Taillight has an incorporated brake light for added convenience.
” Waterproof electrical connectors provide outstanding durability and reliability.
” Easy-access grease fittings on all chassis lubrication points simplify maintenance and help extend the life of the Raptor 250.
” Bodywork comes off without the need to disassemble electrical parts, airbox or wiring harness-for easy maintenance.
” A 2.4-gallon fuel tank means less filling up and longer, more enjoyable rides.




2011 Yamaha Raptor 250 – USA Specifications
MSRP* $4,599 (Team Yamaha Blue/White) Available from June 2010
$4,599 (White w/Graphics Kit) Available from June 2010

Type 249cc air/oil-cooled 4-stroke; SOHC, 2 valves

Bore x Stroke 74.0 x 58.0mm

Compression Ratio 9.5:1

Fuel Delivery Mikuni® 29mm BSR

Ignition DC-CDI

Starting System Electric

Transmission 5-speed; wet multiplate clutch

Drive Train 2WD; sealed O-ring chain, eccentric adjustment

Suspension/Front Independent double wishbone; 5-way preload-adjustable shocks, 7.5-in travel

Suspension/Rear Swingarm, preload-adjustable, 7.9-in travel

Brakes/Front Dual hydraulic disc

Brakes/Rear Hydraulic disc

Tires/Front AT20 x 7-10

Tires/Rear AT19 x 10-9

L x W x H 64.0 x 42.1 x 40.9 in

Seat Height 28.7 in

Wheelbase 43.7 in

Ground Clearance 3.9 in

Fuel Capacity 2.4 gal

Wet Weight 330 lb

Lighting Dual 30W Krypton multireflector headlights & 21/5W brakelight

Warranty 6 Month (Limited Factory Warranty)



2011 Yamaha Raptor 250 – Canadian Specifications
Canadian MSRP* $NA

Model not available in Canada

Specifications, appearance, and price of product are subject to change without notice.
