– 2013 Honda FourTrax Rancher 4×4 ES with Electric Power Steering TRX420FPE Review

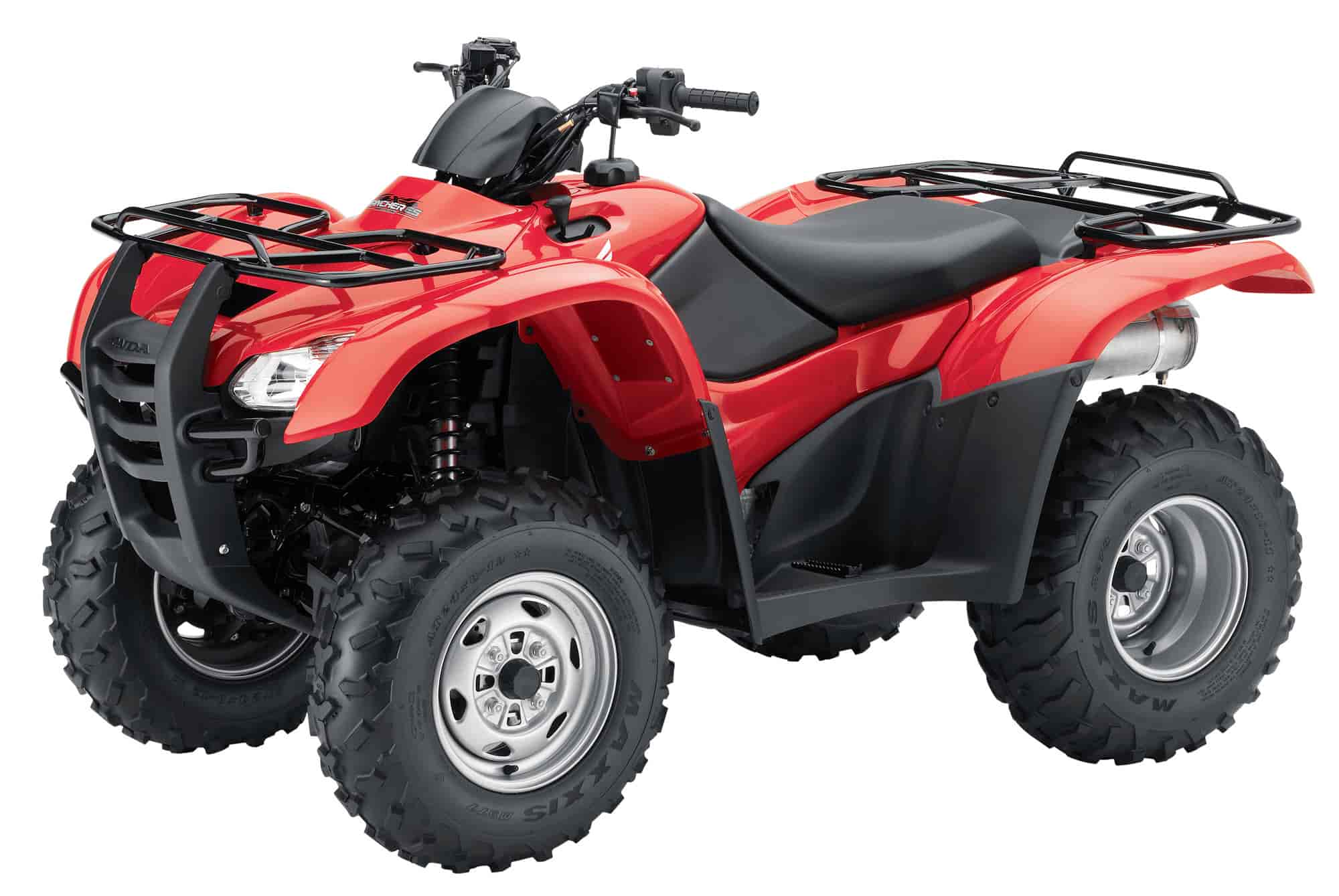

2013 Honda FourTrax Rancher 4×4 ES with Electric Power Steering TRX420FPE
What Kind of Rancher do You Need?
All Rancher features and adds: Electric Shift Program and adds: Electric Power Steering and adds: TraxLok 2WD/4WD.
With six models in our Rancher lineup, we’re sure to have one that suits your needs perfectly. Every one offers Honda’s legendary dependability and quality. Then there’s the lineup itself: You get to choose between selectable 2WD/4WD (TraxLok), Programmed Fuel Injection, two-wheel-drive, four-wheel-drive, and two transmission choices (semi-automatic and electric shift), there’s no shortage of cutting-edge capability and features.
From our tough, no-frills 2WD Rancher through the Rancher 4×4 ES EPS you can be certain there’s a machine for you, and even more important, for whatever chore, hunt, expedition or trail you aim to tackle. Is it any wonder the Ranchers are America’s best-selling ATVs?
2013 Honda FourTrax Rancher 4×4 ES with Electric Power Steering TRX420FPE Key Features
Important Safety Information – Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
Shifting’s Never Been So Easy – With Honda’s optional handlebar-mounted, push-button Electric Shift Program (ESP), quick, crisp gearshifts are just a thumb-tip away.
Two-Wheel Drive? Four-Wheel Drive? You Decide. – This invaluable feature allows a rider to shift, via a front-panel-mounted lever, between 2WD and 4WD for maximum versatility during tough chores or on uneven terrain. Two-wheel drive gives you lighter steering, while four-wheel drive gives you improved traction. It’s the best of both worlds.
Absolute power. Absolute workhorse. – ATV owners work hard, so they need an engine that works hard, too. Like this 420cc fuel-injected taskmaster boasting power, torque and bulletproof Honda reliability.
Accessories as tough as the ATVs they’re on. – When you’re riding the best ATV on the planet, only the best accessories will do—Honda Genuine Accessories. These accessories are designed specifically for your Honda vehicle and feature the same quality and durability you’ve come to expect from Honda.
2013 Honda FourTrax Rancher 4×4 ES with Electric Power Steering TRX420FPE Features and Benefits
Available TraxLok Selectable 2WD/4WD – This invaluable feature allows a rider to shift, via a front-panel-mounted lever, between 2WD and 4WD for maximum versatility during tough chores or on uneven terrain. (4×4 Rancher models only.)
Fuel Injection – The Keihin fuel-injection system, featuring a 34m throttle body, delivers crisp, seamless performance while ensuring hassle-free operation in cold conditions and varying altitudes.
Semi-dry-sump Engine Design – Our semi-dry sump and overhead valve designs give you an engine that’s shorter from top to bottom. The compact engine both lowers the center of gravity and increases ground clearance.
Longitudinal Engine Layout
Shaft Final Drive
Electric Shift Program (ESP) – Upshifting or downshifting is easy and fast—just push one of two handlebar-mounted buttons. ESP is a huge advantage when riding in heavy boots, or if your boots are covered in mud or snow.
Available Electric Power Steering (EPS)
2013 Honda FourTrax Rancher 4×4 ES with Electric Power Steering TRX420FPE – North American Specifications / Technical Details
USA MSRP: $7,099 USD
Canadian MSRP: See dealer for pricing
Engine Type 420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke 86.5mm x 71.5mm
Induction Keihin 34mm throttle-body fuel-injection system
Ignition Full-transistorized type with electronic advance
Starter Electric with optional auxiliary recoil
Transmission ESP five-speed with Reverse
Driveline Direct front and rear driveshafts
CHASSIS / SUSPENSION / BRAKES
Front Suspension Independent double-wishbone; 6.3 inches travel
Rear Suspension Swingarm with single shock; 6.3 inches travel
Front Brakes Dual hydraulic disc
Rear Brakes Sealed mechanical drum
Front Tires 24 x 8-12
Rear Tires 24 x 10-11
Length 80.9 inches
Width 46.1 inches
Height 45.1 inches
Wheelbase 49.2 inches
Seat Height 32.9 inches
Ground Clearance 6.5 inches
Turning Radius 10.5 feet
Curb Weight 608 pounds (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Capacity 3.5 gallons, including 1.0-gallon reserve
Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red, Olive, NaturalGear™Camo
Model Id TRX420FPE
FACTORY WARRANTY INFORMATION
Duration One year
Description Transferable limited warranty; extended coverage available with a Honda Protection Plan.
Specifications, appearance, and price of product are subject to change without notice.
