2008 to 2010 – 8th Generation Suzuki GSX-R750: Multi-mode power adjustments
Page 8 of 9
<< Page BackPage Forward >>

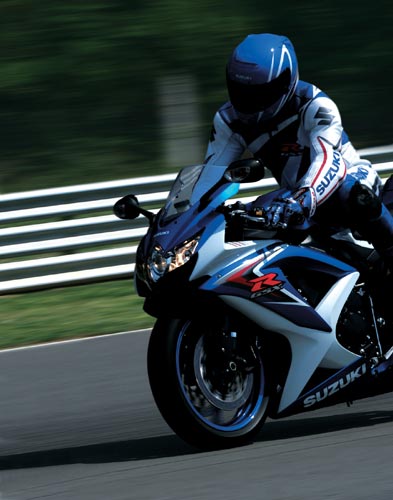

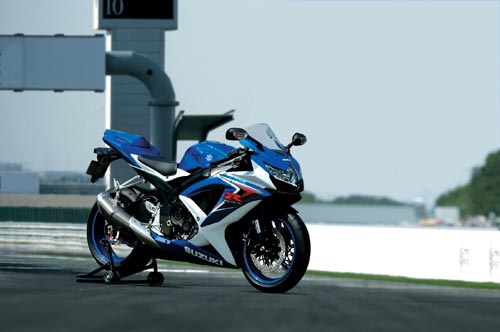

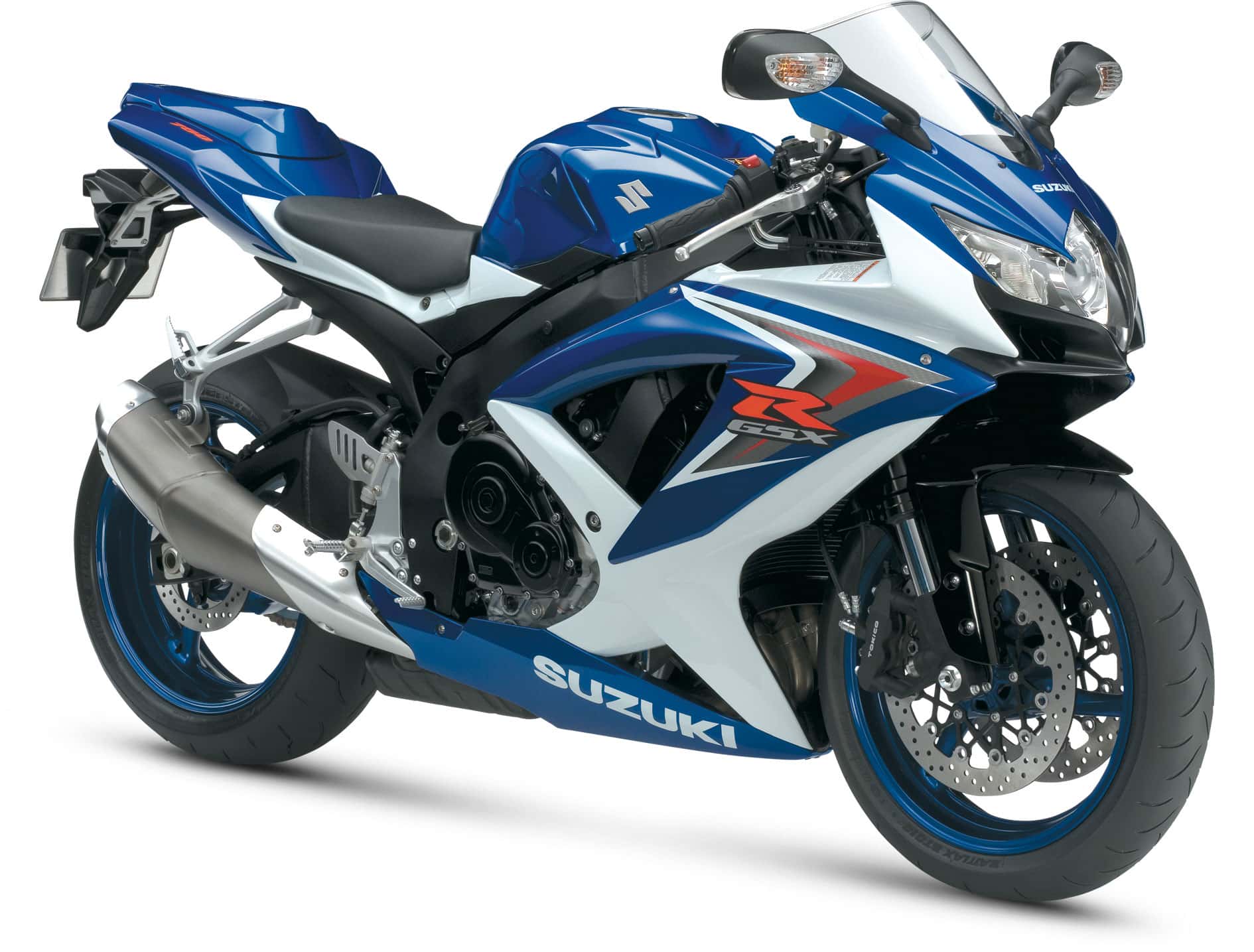

2008 Suzuki GSX-R750
2008 Suzuki GSX-R750

2008 Suzuki GSX-R750
2008 Suzuki GSX-R750



2008 Suzuki GSX-R750K8 8th Generation Suzuki GSX-R750: Multi-mode power adjustments

New model – revised headlights, new engine, new EFI, new S-DMS, new ISC, new SAES, new colors, multi-mode power adjustments and more.

Introducing the 2008 Suzuki GSX-R750. With the most powerful, efficient and cleanest running 750cc four stroke production engine Suzuki has ever produced. A new cast-aluminum-alloy frame. Exciting new bodywork with increased aerodynamics. An advanced engine management and fuel injection system with adjustable on-the-fly mapping. Fully adjustable high-performance suspension, and radial-mount brakes. Delivering open-class racetrack performance in a middleweight-sized package.

It’s as if the talented team of engineers responsible for the GSX-R750 designed a racebike with street equipment like lights, instruments and a horn and mirrors. Which makes it more obvious what the 2008 GSX-R750 really is.

Not just a true race replica

The original race replica, reborn



FEATURES:

New Engine

– New larger 41mm ventilation holes between cylinders to reduce crankcase pressure and mechanical loss

– New electronic fuel injection system features Suzuki Dual Throttle Valve (SDTV) system – with dual fuel injectors per cylinder and new compact 8 hole, fine spray injectors for improved fuel atomization.

– New S-DMS engine management system allows the rider to choose from three engine settings to match riding conditions with a handlebar mounted switch

– Under deceleration the back torque limiting clutch reduces pressure on the clutch plates for smoother downshifting and corner entry

– New clutch cover and oil pan feature new internal ribs for increased rigidity and reduced engine noise

– New Idle Speed Control (ISC) system for improved cold starting, consistent idle quality and reduced emissions

– New high volume Suzuki Advanced Exhaust System (SAES) with an innovative under engine chamber leading to a new large volume muffler with a new distinctly shaped triangular silencer

– New hydraulic cam chain tensioner automatically adjusts while reducing noise and mechanical losses.

– New Ignition coil outer diameter is smaller for reduced weight and the starter motor uses new rare earth magnets for a compact lightweight design

– New 32 bit ECM features 1024 kilobytes of ROM for maximum engine performance working in conjuction with the new S-DMS engine management system


New Chassis

– The 2008 GSX-R750 features a sharp new look utilizing a bold new headlight design, new angular tail section and compact overall layout

– New electronically controlled steering damper uses a solenoid valve to move a tapered needle reducing or increasing oil flow to adjust damping force.

– New lightweight cast aluminum wheels featuring a new angled spoke design for improved rigidity, reduced unsprung weight and improved acceleration

– New Inverted 41mm Showa cartridge front forks are fully adjustable for high and low speed compression, spring preload, and rebound damping

– Radial mount four piston front brake calipers works with new thinner 310mm front brake rotors and a revised front brake master cylinder

– New GSX-R750 fuel tank features an innovative new design and fuel capacity is increased to 17 liters


Engine Features

– Updated Compact 4-stroke, 4-cylinder, liquid-cooled engine designed for optimum combustion efficiency and maximum power delivery

– Cylinder head with narrow valve angles creating a compact combustion chamber design, 12.5:1 compression ratio, large intake and exhaust ports for optimum intake and exhaust efficiency and new
Iridium spark plugs

– Lightweight titanium valves with steel alloy springs and aluminum spring retainers operated by thin-wall hollow camshafts to reduce weight and inertia

– Lightweight forged aluminum alloy pistons with short skirts, cut away sides and an anti-friction surface finish along with shotpeened chrome-moly steel connecting rods for improved strength

– Crankshaft features forged steel construction and a secondary balancer shaft for reduced vibration at high rpm.

– Crankshaft and transmission shafts are positioned to create a compact engine design and the engine itself is rotated slightly forward in the chassis allowing for straighter and shorter intake and exhaust ports

– High capacity large trapezoidal-shaped radiator provide efficient engine cooling – includes compact cooling fan assembly designed for improved air flow

– SRAD ( Suzuki Ram Air Direct) force feeds cool, pressurized air into the airbox at highway speeds, improving engine efficiency and throttle response


Chassis Features

– The lightweight frame is built entirely of aluminum alloy castings and is engineered to deliver optimum rigidity, unmatched accuracy and maximum cornering performance.

– A braced aluminum alloy swingarm features a large 22mm swingarm pivot and is designed for optimum rider feel and maximum rear wheel traction

– Innovative rear suspension linkage utilizes a forged aluminum alloy link and a forged aluminum link rod that reduces side loads and helps the rear shock absorber move in a smooth arc

– Showa 41mm aluminum alloy rear shock with a 16mm rod diameter are fully adjustable for high and low speed compression, spring preload and rebound damping for maximum rider control

– Three way adjustable footpegs now feature die-cast construction and can be moved into three different positions with a 14mm horizontal and vertical range

– Compact, lightweight instrument cluster features a step motor controlled analog tachometer, LCD speedometer, dual trip meters, clock and a convenient gear position indicator
* Specifications and features are subject to change




2008 Suzuki GSX-R750 Specifications

MSRP: $10,599
Specifications GSX-R750
Model Number GSXR750K8
Type Sportbike
Warranty 12 month unlimited mileage limited warranty.
Suggested Retail $10599
SEP $440
Engine type: Water-cooled 749 cc inline-4, DOHC, 16 valves.
Power:
147.8 bhp (110.2 kW) at 13,200 rpm (claimed flywheel brake hp)[2]
Torque:
47 ft·lbf (64 N·m) @ 11,200 rpm
Bore & Stroke 70.0 x 48.7mm
Compression Ratio 12.5:1
Fuel System Fuel Injection
Lubrication Wet Sump
Ignition Digital/transistorized
Starter Electric
Transmission 6-speed, constant mesh
Final Drive #525 chain
Overall Length 2040mm (80.3 in.)
Overall Width 715mm (28.1 in.)
Overall Height 1125mm (44.3 in.)
Seat Height 810mm (31.9 in.)
Ground Clearance 130mm (5.1 in.)
Wheelbase 1400mm (55.1 in.)
Dry Weight 165 kg (363 lbs)
Suspension Front Inverted telescopic, coil spring, fully adjustable spring preload, rebound and 2-way adjustable compression damping
Suspension Rear Link-type, gas/oil damped, fully adjustable spring preload, 2-way adjustable compression and rebound damping
Brakes Front Dual hydraulic disc
Brakes Rear Single hydraulic disc
Tires Front 120/70-ZR-17
Tires Rear 180/55-ZR-17
Fuel Tank Capacity 17.0 liter
Color Blue/White, Orange/Black, Black/Matte Black

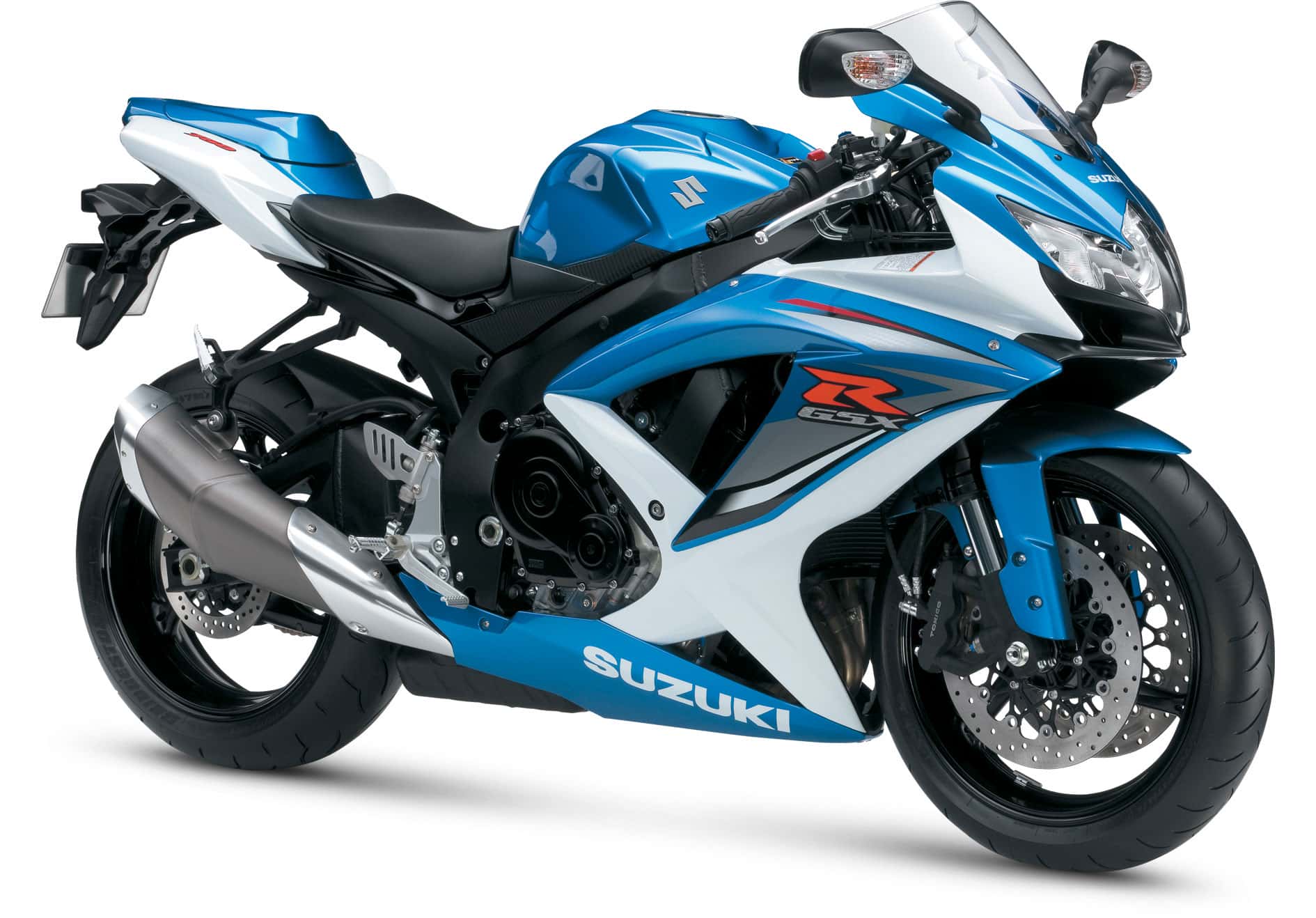

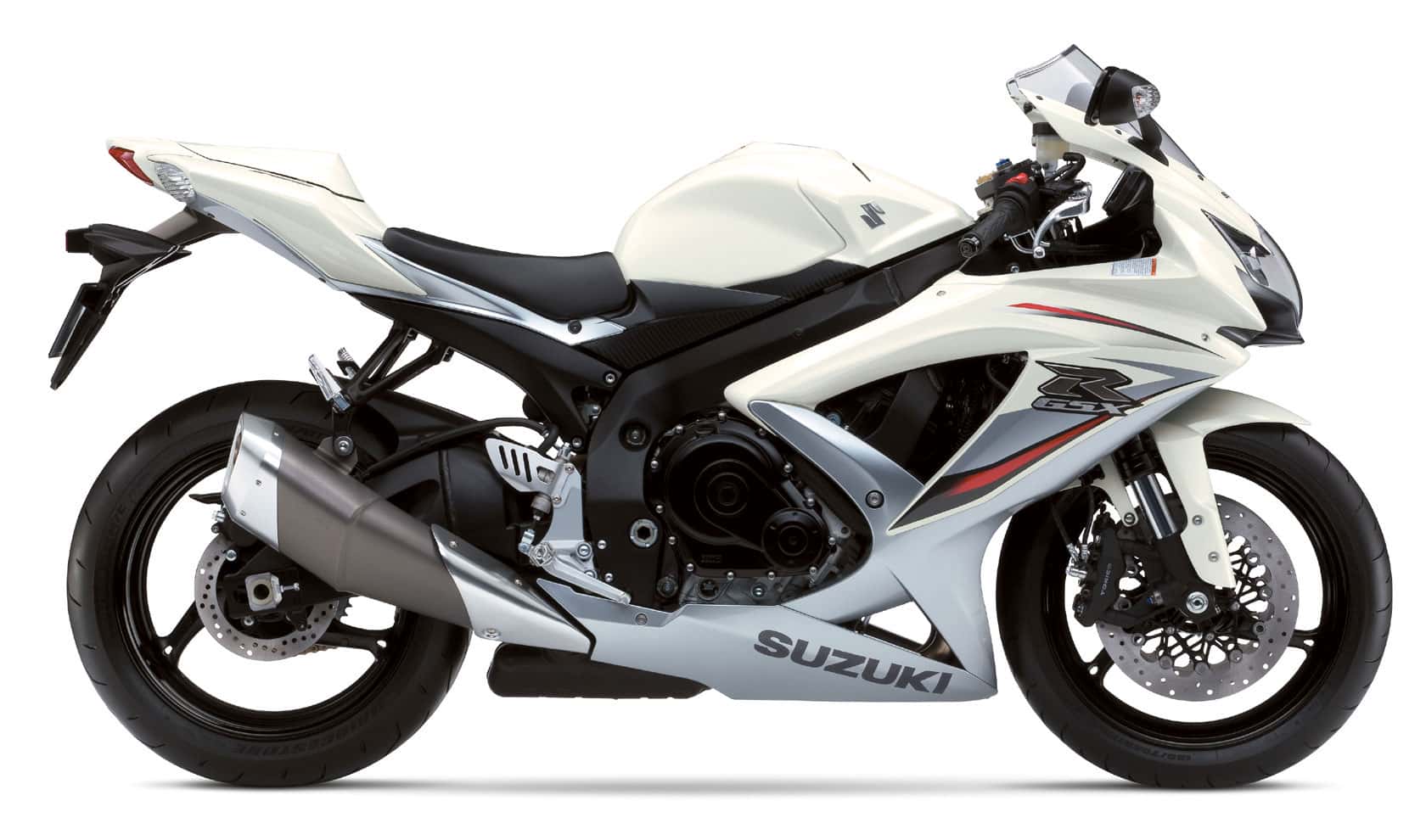

2009 Suzuki GSX-R750
2009 Suzuki GSX-R750

2009 Suzuki GSX-R750
2009 Suzuki GSX-R750



2009 Suzuki GSX-R750K9


Introducing the 2009 Suzuki GSX-R750.

With the most powerful, efficient and cleanest running 750cc four stroke production engine Suzuki has ever produced. A race proven cast-aluminum-alloy frame. Exciting bodywork with increased aerodynamics. An advanced engine management and fuel injection system with adjustable on-the-fly mapping. Fully adjustable high-performance suspension, and radial-mount brakes.

Delivering open-class racetrack performance in a middleweight-sized package. It’s as if the talented team of engineers responsible for the GSX-R750 designed a racebike with street equipment like lights, instruments and a horn and mirrors. Which makes it more obvious what the 2009 GSX-R750 really is. Not just a true race replica The original race replica, reborn.

Engine Features

– Electronic fuel injection system features Suzuki Dual Throttle Valve (SDTV) system – with dual fuel injectors per cylinder and new compact 8 hole, fine spray injectors for improved fuel atomization.

– S-DMS engine management system allows the rider to choose from three engine settings to match riding conditions with a handlebar mounted switch

– Under deceleration the back torque limiting clutch reduces pressure on the clutch plates for smoother downshifting and corner entry

– Aluminum clutch cover and oil pan feature internal ribs for increased rigidity and reduced engine noise

– Suzuki Idle Speed Control (ISC) system for improved cold starting, consistent idle quality and reduced emissions

– High volume Suzuki Advanced Exhaust System (SAES) with an innovative under engine chamber leading to a large volume muffler with a distinctly shaped triangular silencer

– Hydraulic cam chain tensioner automatically adjusts while reducing noise and mechanical losses.

– Ignition coil outer diameter is smaller for reduced weight and the starter motor uses new rare earth magnets for a compact lightweight design

– 32 bit ECM features 1024 kilobytes of ROM for maximum engine performance working in conjuction with the new S-DMS engine management system

– Compact 4-stroke, 4-cylinder, liquid-cooled engine designed for optimum combustion efficiency and maximum power delivery

– Cylinder head with narrow valve angles creating a compact combustion chamber design, 12.5:1 compression ratio, large intake and exhaust ports for optimum intake and exhaust efficiency and new Iridium spark plugs

– Lightweight titanium valves with steel alloy springs and aluminum spring retainers operated by thin-wall hollow camshafts to reduce weight and inertia

– Lightweight forged aluminum alloy pistons with short skirts, cut away sides and an anti-friction surface finish along with shotpeened chrome-moly steel connecting rods for improved strength

– Crankshaft features forged steel construction and a secondary balancer shaft for reduced vibration at high rpm.

– Crankshaft and transmission shafts are positioned to create a compact engine design and the engine itself is rotated slightly forward in the chassis allowing for straighter and shorter intake and exhaust ports

– High capacity large trapezoidal-shaped radiator provide efficient engine cooling – includes compact cooling fan assembly designed for improved air flow

– SRAD ( Suzuki Ram Air Direct) force feeds cool, pressurized air into the airbox at highway speeds, improving engine efficiency and throttle response


Chassis Features

– The 2009 GSX-R750 features a sharp and aggressive look utilizing a bold new headlight design, angular tail section and compact overall layout

– Electronically controlled steering damper uses a solenoid valve to move a tapered needle reducing or increasing oil flow to adjust damping force.

– Lightweight cast aluminum wheels featuring an angled spoke design for improved rigidity, reduced unsprung weight and improved acceleration

– Inverted 41mm Showa cartridge front forks are fully adjustable for high and low speed compression, spring preload, and rebound damping

– Radial mount four piston front brake calipers works with 310mm front brake rotors and a radial pump front brake master cylinder

– ’09 GSX-R750 fuel tank features an innovative design and fuel capacity is 4.5 gallons

– The lightweight frame is built entirely of aluminum alloy castings and is engineered to deliver optimum rigidity, unmatched accuracy and maximum cornering performance.

– A braced aluminum alloy swingarm features a large 22mm swingarm pivot and is designed for optimum rider feel and maximum rear wheel traction

– Innovative rear suspension linkage utilizes a forged aluminum alloy link and a forged aluminum link rod that reduces side loads and helps the rear shock absorber move in a smooth arc

– Showa 41mm aluminum alloy rear shock with a 16mm rod diameter are fully adjustable for high and low speed compression, spring preload and rebound damping for maximum rider control

– Three way adjustable footpegs now feature die-cast construction and can be moved into three different positions with a 14mm horizontal and vertical range

– Compact, lightweight instrument cluster features a step motor controlled analog tachometer, LCD speedometer, dual trip meters, clock and a convenient gear position indicator





2009 Suzuki GSX-R750 Specifications

MSRP: $10,999 USD
Model Number GSXR750K9
Type Sportbike
Warranty
Suggested Retail $10999
Engine type: Water-cooled 749 cc inline-4, DOHC, 16 valves.
Power:
147.8 bhp (110.2 kW) at 13,200 rpm (claimed flywheel brake hp)[2]
Torque:
47 ft·lbf (64 N·m) @ 11,200 rpm
Bore & Stroke 70.0 mm (2.756 in) x 48.7 mm (1.917 in)
Compression Ratio 12.5 : 1
Fuel System Fuel Injection
Lubrication Wet sump
Ignition Electronic ignition (Transistorized)
Starter Electric
Transmission 6-speed constant mesh
Final Drive RK525ROZ5Y, 116 links
Overall Length 2040 mm (80.3 in)
Overall Width 715 mm (28.1 in)
Overall Height 1125 mm (44.3 in)
Seat Height 810 mm (31.9 in)
Ground Clearance 130 mm (5.1 in)
Wheelbase 1405 mm (55.3 in)
Curb Weight 198 kg (437 lbs)
Suspension Front Inverted, telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity 17.0 L (4.5/3.7 US/Imp gal)
Color Black/Matte Black, Blue/White, White/Silver

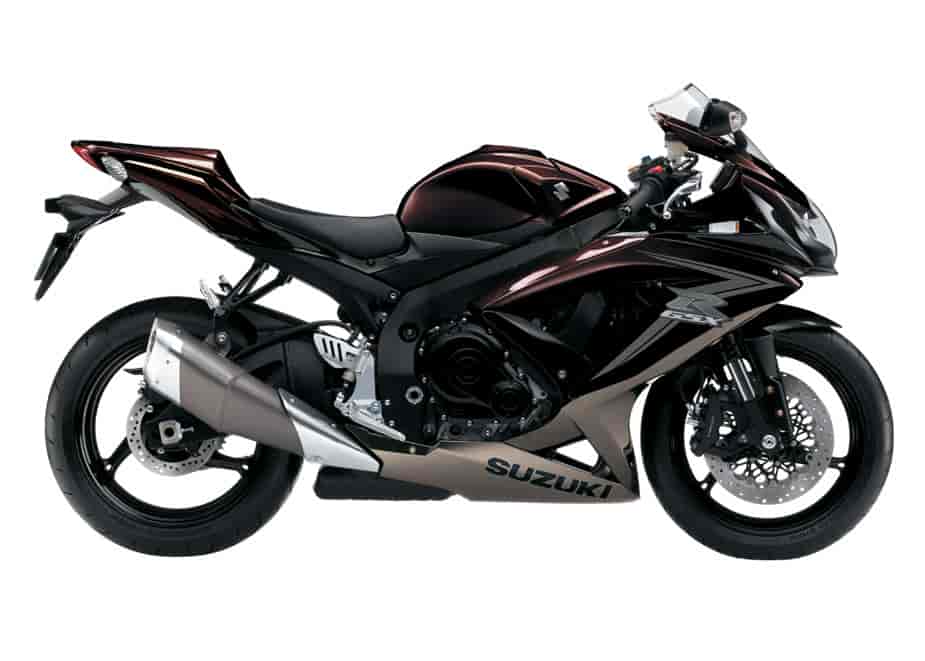

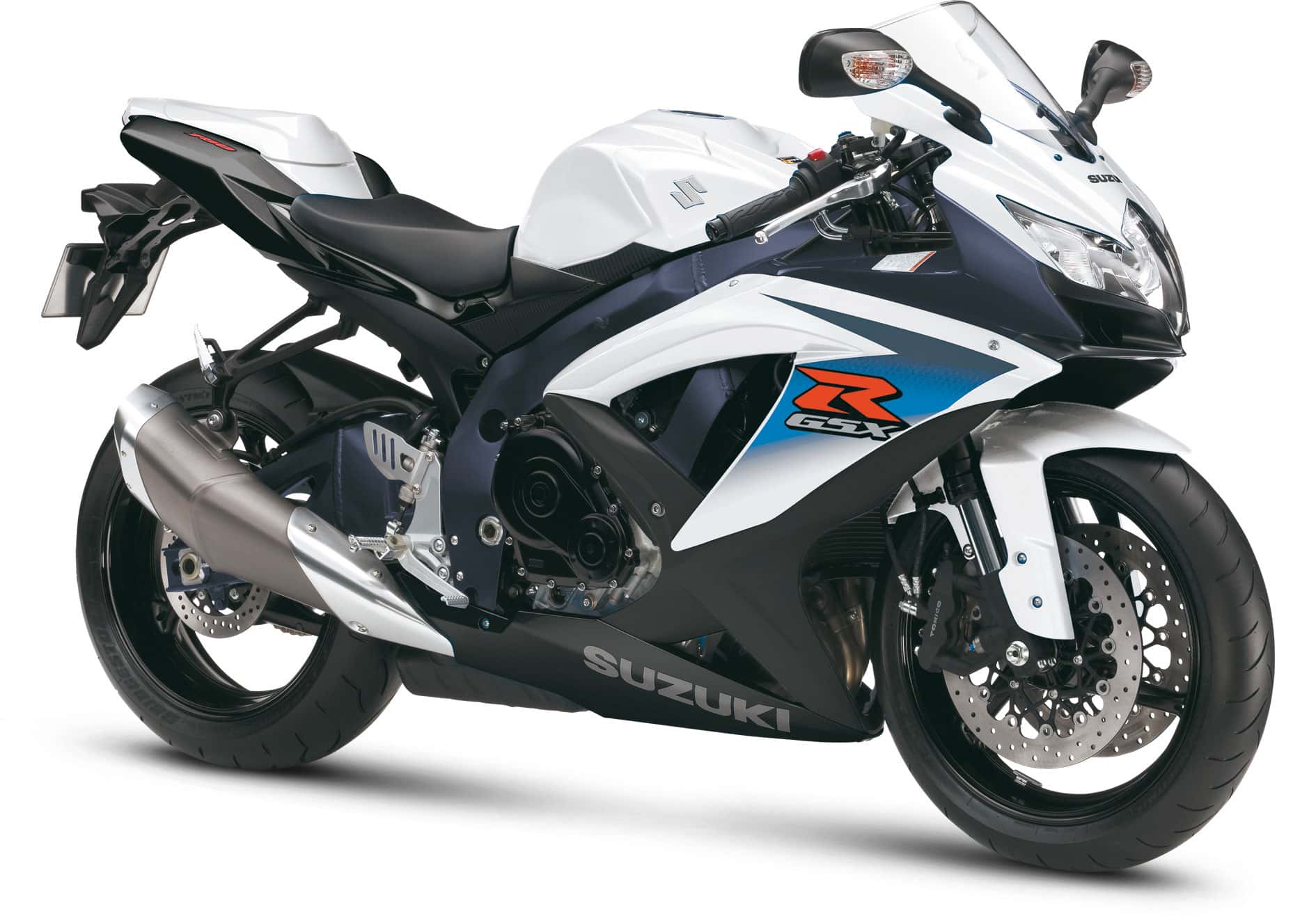

2010 Suzuki GSX-R750
2010 Suzuki GSX-R750

2010 Suzuki GSX-R750
2010 Suzuki GSX-R750



2010 Suzuki GSX-R750L0

The Incredible 2010 Suzuki GSX-R750.

With the most powerful, efficient and cleanest running 750cc four stroke production engine Suzuki has ever produced. A race proven cast-aluminum-alloy frame. Exciting bodywork with increased aerodynamics. An advanced engine management and fuel injection system with adjustable on-the-fly mapping. Fully adjustable high-performance suspension, and radial-mount brakes.

Delivering open-class racetrack performance in a middleweight-sized package. It’s as if the talented team of engineers responsible for the GSX-R750 designed a racebike with street equipment like lights, instruments and a horn and mirrors. Which makes it more obvious what the 2010 GSX-R750 really is. Not just a true race replica The original race replica, reborn.


Key Features:

Compact 4-stroke, 4-cylinder, liquid-cooled engine designed for optimum combustion efficiency and maximum power delivery


Instruments – Compact, lightweight instrument cluster features a step motor controlled analog tachometer, LCD speedometer, dual trip meters, clock and a convenient gear position indicator


Fuel Injection – Electronic fuel injection system features Suzuki Dual Throttle Valve (SDTV) system – with dual fuel injectors per cylinder and new compact 8 hole, fine spray injectors for improved fuel atomization.


Steering Damper – Electronically controlled steering damper uses a solenoid valve to move a tapered needle reducing or increasing oil flow to adjust damping force.


Bold Headlight – The GSX-R750 features a sharp and aggressive look utilizing a bold headlight design, angular tail section and compact overall layout.

High volume exhaust – High volume Suzuki Advanced Exhaust System (SAES) with an innovative under engine chamber leading to a large volume muffler with a distinctly shaped triangular silencer


Titanium Valves -Lightweight titanium valves with steel alloy springs and aluminum spring retainers operated by thin-wall hollow camshafts to reduce weight and inertia


Radial Mount Brakes – Radial mount four piston front brake calipers works with 310mm front brake rotors and a radial pump front brake master cylinder


S-DMS engine managem – S-DMS engine management system allows the rider to choose from three engine settings to match riding conditions with a handlebar mounted switch


Adjustable Footpegs – Three way adjustable footpegs now feature die-cast construction and can be moved into three different positions with a 14mm horizontal and vertical range


LED Tail Light – The LED combination taillight and brake light is built into the rear of the tailsection, featuring a red, mirror lens, covering LED’s.


Features


Engine Features


32 bit ECM features 1024 kilobytes of ROM for maximum engine performance working in conjuction with the new S-DMS engine management system

Aluminum clutch cover and oil pan feature internal ribs for increased rigidity and reduced engine noise

Compact 4-stroke, 4-cylinder, liquid-cooled engine designed for optimum combustion efficiency and maximum power delivery

Crankshaft and transmission shafts are positioned to create a compact engine design and the engine itself is rotated slightly forward in the chassis allowing for straighter and shorter intake and exhaust ports

Crankshaft features forged steel construction and a secondary balancer shaft for reduced vibration at high rpm.

Cylinder head with narrow valve angles creating a compact combustion chamber design, 12.5:1 compression ratio, large intake and exhaust ports for optimum intake and exhaust efficiency and new Iridium spark plugs

Electronic fuel injection system features Suzuki Dual Throttle Valve (SDTV) system – with dual fuel injectors per cylinder and new compact 8 hole, fine spray injectors for improved fuel atomization.

High capacity large trapezoidal-shaped radiator provide efficient engine cooling – includes compact cooling fan assembly designed for improved air flow

High volume Suzuki Advanced Exhaust System (SAES) with an innovative under engine chamber leading to a large volume muffler with a distinctly shaped triangular silencer

Hydraulic cam chain tensioner automatically adjusts while reducing noise and mechanical losses.

Ignition coil outer diameter is smaller for reduced weight and the starter motor uses new rare earth magnets for a compact lightweight design

Lightweight forged aluminum alloy pistons with short skirts, cut away sides and an anti-friction surface finish along with shotpeened chrome-moly steel connecting rods for improved strength

Lightweight titanium valves with steel alloy springs and aluminum spring retainers operated by thin-wall hollow camshafts to reduce weight and inertia

S-DMS engine management system allows the rider to choose from three engine settings to match riding conditions with a handlebar mounted switch

SRAD ( Suzuki Ram Air Direct) force feeds cool, pressurized air into the airbox at highway speeds, improving engine efficiency and throttle response

Suzuki Idle Speed Control (ISC) system for improved cold starting, consistent idle quality and reduced emissions

Under deceleration the back torque limiting clutch reduces pressure on the clutch plates for smoother downshifting and corner entry

Chassis Features

A braced aluminum alloy swingarm features a large 22mm swingarm pivot and is designed for optimum rider feel and maximum rear wheel traction

Compact, lightweight instrument cluster features a step motor controlled analog tachometer, LCD speedometer, dual trip meters, clock and a convenient gear position indicator

Electronically controlled steering damper uses a solenoid valve to move a tapered needle reducing or increasing oil flow to adjust damping force.

The fuel tank features an innovative design and fuel capacity is 17.0 L (3.7 Imp gal)


The GSX-R750 features a sharp and aggressive look utilizing a bold headlight design, angular tail section and compact overall layout.

Innovative rear suspension linkage utilizes a forged aluminum alloy link and a forged aluminum link rod that reduces side loads and helps the rear shock absorber move in a smooth arc

Inverted 41mm Showa cartridge front forks are fully adjustable for high and low speed compression, spring preload, and rebound damping

Lightweight cast aluminum wheels featuring an angled spoke design for improved rigidity, reduced unsprung weight and improved acceleration

Radial mount four piston front brake calipers works with 310mm front brake rotors and a radial pump front brake master cylinder

Showa 41mm aluminum alloy rear shock with a 16mm rod diameter are fully adjustable for high and low speed compression, spring preload and rebound damping for maximum rider control

The lightweight frame is built entirely of aluminum alloy castings and is engineered to deliver optimum rigidity, unmatched accuracy and maximum cornering performance.

Three way adjustable footpegs now feature die-cast construction and can be moved into three different positions with a 14mm horizontal and vertical range

The LED combination taillight and brake light is built into the rear of the tailsection, featuring a red, mirror lens, covering LED’s







2010 Suzuki GSX-R750 Specifications

MSRP: $13,899 CDN
Chassis:
Colour Blue/White, Brown
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Curb Weight 198 kg (437 lbs)
Final Drive Chain
Fuel Tank Capacity 17.0 L (4.5/3.7 US/Imp gal)
Ground Clearance 130 mm (5.1 in)
Overall Length 2040 mm (80.3 in)
Overall Width 715 mm (28.1 in)
Seat Height 810 mm (31.9 in)
Suspension Front Inverted, telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Transmission 6-speed constant mesh
Wheelbase 1405 mm (55.3 in)

Engine:
Bore Stroke 70.0 mm (2.756 in) x 48.7 mm (1.917 in)
Compression Ratio 12.5 : 1
Engine type: Water-cooled 749 cc inline-4, DOHC, 16 valves.
Power:
147.8 bhp (110.2 kW) at 13,200 rpm (claimed flywheel brake hp)[2]
Torque:
47 ft·lbf (64 N·m) @ 11,200 rpm

Fuel System Fuel Injection
Ignition Electronic ignition (Transistorized)
Lubrication Wet sump
Starter Electric

Warranty:
Warranty 12 Month unlimited mileage limited warranty




Page 1Page 2Page 3Page 4Page 5Page 6Page 7Page 8Page 9
