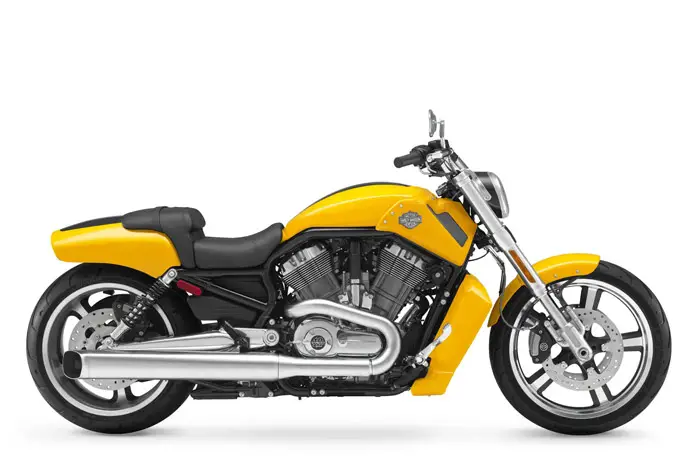

2012 Harley-Davidson VRSCF V-Rod Muscle

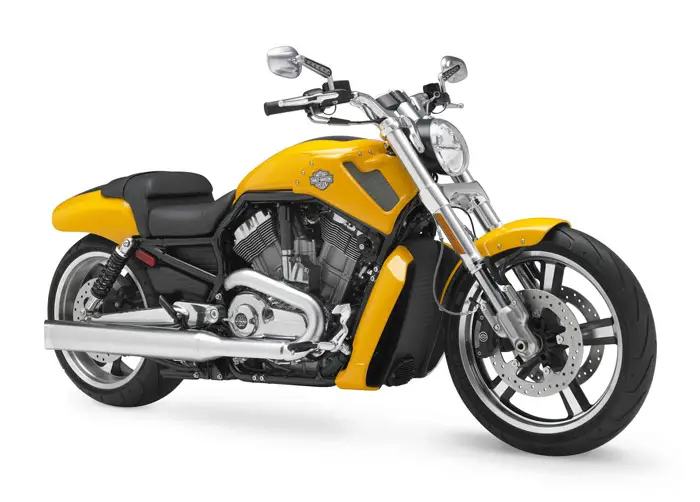

2012 Harley-Davidson VRSCF V-Rod Muscle

2012 Harley-Davidson VRSCF V-Rod Muscle
2012 Harley-Davidson VRSCF V-Rod Muscle

2012 Harley-Davidson VRSCF V-Rod Muscle
2012 Harley-Davidson VRSCF V-Rod Muscle

2012 Harley-Davidson VRSCF V-Rod Muscle
2012 Harley-Davidson VRSCF V-Rod Muscle


– 2012 Harley-Davidson VRSCF V-Rod Muscle

2012 Harley-Davidson VRSCF V-Rod Muscle Review

The menacing look of a raging bull with the brute power of 122 thoroughbreds

The fast, powerful and aggressive V-Rod Muscle™ motorcycle is built for riders who want a little extra beef with their horsepower. Big meaty air scoops, muscle-bound mufflers, 240 mm rear tire, fastback-style tail section and massive airbox compliment the power of the 1250 cc liquid-cooled Revolution engine. Ride the V-Rod Muscle™ and experience the true definition of “power cruiser.” This brawny beast is for performance enthusiasts who crave power and control, with a dash of intimidation, in a package that is all Harley-Davidson.

V-Rod Muscle®

This power cruiser is a brawny beast for performance enthusiasts who crave power and control, with a dash of intimidation. Styling features include a wide airbox cover, side cover scoops, and dual exhausts in satin chrome with fat, turn-out mufflers. An abbreviated tail section and chopped rear fender expose the 240mm rear tire. A deep seat holds the rider firmly in place against the thrust of the Revolution V-Twin engine.



DUAL EXHAUST WITH SATIN CHROME FINISH

The V-Rod Muscle® motorcycle proves that a performance exhaust can still be a beautiful set of pipes. Satin chrome, dual side exhaust with fat turnout mufflers combines the style of a muscle car with top-of-the-line Harley-Davidson performance at every twist of the throttle. Jetting out past the rear axle, these dominating pipes add to the fierce, beefy look of the bike.

FAT REAR TIRE

Behold an ultra-fat, 240mm rear tire for a powerful, no-nonsense look and added grip. Harnessing explosive, off-the-line power, the rear tire on the V-Rod Muscle® motorcycle enhances the pure dragster look with the sticky, high-performance tread you need for staying glued to the pavement.

AIR BOX COVER

Matching the color and angular design of the V-Rod Muscle® model bodywork, the air box cover incorporates side scoops covered with woven wire mesh for a meaty, powerful race bike look. You can’t help but think about the Detroit muscle cars from back in the day.

PREMIUM PAINT

Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects in the denim and pearl colors. Skimping simply is not in our vocabulary.

INSTRUMENT CLUSTER AND CAST, ONE-PIECE BAR

The triple gauge cluster reflects Harley-Davidson’s take on custom performance —bold and sleek, illuminated in yellow, orange and red for a distinct look. Including easy-to-read mph, rpm and fuel gauges, the instrument cluster is built onto an internally wired, meaty 1.5′ angular cast handlebar.

INVERTED FORKS

Race-inspired, 43mm inverted forks help reduce unsprung weight and increase strength and rigidity of the assembly. They add to the wide look that flows all the way through to the tail of the V-Rod Muscle® motorcycle. Strong and sporty—the front end is a testament to the dominating look of a modern muscle car.

RADIATOR DESIGN

Every inch of a Harley-Davidson® motorcycle is created to sync up with the bike’s overall look and performance. The V-Rod Muscle® model is no exception. As the very first water-cooled Harley-Davidson, we turned to styling to make sure the radiator on the V-Rod models became part of the design instead of an interruption to the flow of the eye.

REVOLUTION® ENGINE HERITAGE

From the Strip to the Street. Harley-Davidson has a passion for performance that is rooted in decades of racing and winning championships. So when The Motor Company set out to produce a high-powered, liquid-cooled engine, it began with the VR1000 superbike engine. Its performance is inspired by American-style, big, powerful torque coupled with high-end horsepower. The Revolution® engine is the heart of a machine that attracts a new breed of riders who are fascinated by the heritage and mystique of Harley-Davidson and the power of a high-end street performance motorcycle.

REVOLUTION® ENGINE INNOVATION

Through a partnership with legendary automaker, Porsche, and their world-renowned team of engineers, Harley-Davidson created a revolutionary engine. The final result was something uniquely Harley-Davidson, the industry’s most perfect blend of torque and horsepower in the high revving V-Twin Revolution® engine. Fuel injection. Dual overhead cams. Liquid cooled. 122 horses. Massive, brute power behind pure Harley-Davidson innovation.

PURE HARLEY-DAVIDSON STYLING

Feast your eyes on the Revolution® engine and there’s no mistaking its roots. This is authentic Harley-Davidson® style through and through with an attention to detail you won’t find from any other motorcycle company. The unique, platinum finished Revolution® engine features polished cylinder heads and rocker covers for a one-of-a-kind look, while the machined cooling fin tips give it a stripped down metal finish. It’s a jewel machined out of metal. Pure. Dripping with power.
From the classic edge of the cooling fins to the clean lines of cases and covers—the Revolution® engine makes an ironclad statement to holding on to what’s right and staying true to what satisfies the rider.

CUSTOM POWER AND PERFORMANCE

Tuned to produce 122 horsepower, the 1250cc Revolution® engine on the V-Rod Muscle® model is one of Harley-Davidson’s highest horsepower engine to this day. With dual overhead cams and four valves per cylinder, it provides 86 ft. lbs. of torque at 6500 rpm, while feeling refined and velvety smooth all the way up to the redline.

HIGH MARKS FOR DURABILITY

The Harley-Davidson Revolution® engine is an extremely durable motorcycle engine. It survived the most brutal and aggressive durability test in the industry: the Dusseldorf Test. Simulating a grueling trip along Germany’s notorious Autobahn, the engine endured a wide range of performance tests. From idle states to city speeds, to wide-open throttle and mountain climbing torque, the Revolution engine surpassed the goal of 500 hours of non-stop performance.

HYDROFORMED FRAME

Harley-Davidson’s Chief Styling Officer, Willie G. Davidson, asked for a frame so beautiful it could sit in a museum. And that’s exactly what the Harley-Davidson team of engineers created. Using an innovative process called hydroforming, they were able to form unconventional angles and apply fewer welds by bending and shaping metal pipes with high-pressure water. The result: a sturdy chassis with improved rigidity. To date, The Motor Company is the only major motorcycle manufacturer to use hydroforming to construct frames.

H-D® SMART SECURITY SYSTEM (OPTIONAL)

The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique.
Offered as a part of the ‘Security Package’ (which includes Anti-Lock Brakes).

ARTFULLY HIDDEN TECHNOLOGY

Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.

INTUITIVE CONTROLS

Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.

BREMBO® BRAKES WITH OPTIONAL ABS

Increased confidence. Control. High-performance Brembo® dual-disk brakes offer consistent stopping power at every leg of your journey. Plus, the optional Anti-Lock Braking System (ABS) helps reduce the chance of wheel lock-up if you need to brake suddenly. And since we hid the speed sensor, the bike maintains its clean, slick look. Performance without sacrificing style. That’s what The Motor Company is all about.
The Anti-Lock Brakes are offered as a part of the ‘Security Package’ (which includes the H-D® Smart Security System).

‘SLIPPER’ CLUTCH

Taken from the racetrack to the world of custom. The V-Rod Muscle® motorcycle features a ‘slipper,’ (or ‘slip and assist’) clutch that provides smoother, high-power handling in turns or whenever you downshift. By reducing clutch friction, the slipper clutch helps keep your rear wheel at a controlled clip.

MICHELIN® SCORCHER™ TIRES

The Michelin® Scorcher™ tires provide the superior performance, sensational grip, impressive durability and excellent handling expected on a race-bred bike. The exclusive deep-cut tread design improves grip and water evacuation capability. Grip performance and durability is also enhanced by the tire’s rubber compounds, which use the latest generation of Michelin synthetic polymers. Under the rear rubber, aramid belts are used to stabilize your ride, which helps inspire confidence in handling.

TUNED TO BE RIDDEN

Harley-Davidson® motorcycles are different from any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.

FORWARD-MOUNTED CONTROLS

With the custom forward-mounted controls on the V-Rod Muscle® model, you can kick back a little and stretch your legs for the ultimate power cruise through town or across the state line. It’s time to take in the open road the way you were meant to—on a two-wheeled machine that’s built to outmuscle the rest.

SEAT ENGINEERING AND DESIGN

The seat is home for Harley-Davidson® motorcycle riders. They want a seat that has unique style without sacrificing comfort. Because of that, Harley-Davidson invests a lot of time in researching, designing and testing seats so that every bike has just the right saddle.





In just 10 years, the Harley-Davidson V-Rod family grew to include a number of new models. V-Rod took to the track as the basis for the 2007 Custom Vehicle Operations V-Rod Destroyer, an eight-second factory drag racer. It was also the inspiration for the Harley-Davidson Screamin’ Eagle/Vance & Hines V-Rod, a four-time world champion in Pro Stock Motorcycle professional drag racing. For 2012, Harley-Davidson V-Rod models continue to serve up explosive performance and urban-cool styling for riders seeking a singular power-cruiser experience.

All 2012 V-Rod models are powered by the latest version of the Revolution engine, a 1250cc liquid-cooled V-Twin with dual overhead camshafts, four-valve cylinder heads and Electronic Sequential Port Fuel Injection (ESPFI). The powertrain is equipped with an Assist and Slip clutch, five-speed transmission and high-performance carbon-fiber drive belt. Tires are Michelin Scorcher radials, including a 240mm rear. Brembo® triple-disc performance brakes are available with optional factory-installed anti-lock braking system (ABS). ABS is part of the optional Security Package that also includes the Smart Security System with proximity-based, hands-free security fob.






2012 Harley-Davidson VRSCF V-Rod Muscle Model Highlights

NEW V-Rod® 10th Anniversary emblem
– Rubber-mounted, liquid-cooled, 1250 cc Revolution® engine with Electronic Sequential Port Fuel Injection (ESPFI); 122 hp @ 8,250 rpm; 86 ft. lbs. @ 6,500 rpm. Satin chrome dual exhaust with turn-out mufflers.

– Security Package option including factory-installed Harley-Davidson® Smart Security System with hands-free fob and Anti-Lock Braking System (ABS)
– Michelin® Scorcher® tires
– Platinum powder-coated powertrain with polished covers
– Satin chrome dual exhaust with turn-out mufflers
– Silver, Five-Spoke Cast Aluminum wheels
– Sport front fender with black brace supports and blacked-out rear section
– Polished aluminum handlebar with integrated riser
– Polished forged aluminum triple clamps
– Chopped rear fender
– Angular airbox with side covers
– Color-matched radiator shrouds
– Satin black headlamp bucket
– LED front turn signals integrated in mirror stems
– LED combined stop/tail/turn light integrated within rear fender
– Side-mounted license plate
– 43 mm inverted forks
– Stylized rear shocks with black springs
– Black frame
– Deep, drag-style two-up seat



2012 Harley-Davidson VRSCF V-Rod Muscle Features and Benefits

– High-performance Brembo® triple-disc brakes with available ABS
– Race-bred slip and assist clutch helps ease drive train effort during downshifting
– 240 mm wide rear tire
– Forward-mounted footpegs and controls
– Teardrop reflector-optic headlight
– Electric power accessory connector under seat






2012 Harley-Davidson VRSCF V-Rod Muscle – USA Specifications/Technical Details
US MSRP Price:
Vivid Black $14,999, Solids $15,309 to $15,509 USD

Dimensions
Length 92.8 in. (2357 mm)
Overall Width 40.2 in. (1021 mm)
Overall Height 45.7 in. (1161 mm)
Seat Height:
– Laden2 25.6 in. (650 mm)
– Unladen 26.7 in. (678 mm)
Ground Clearance 4.8 in. (122 mm)
Rake (steering head) 34°
Fork Angle 34°
Trail 5.6 in. (142 mm)
Wheelbase 67.0 in. (1702 mm)

Tires (Michelin® Scorcher® “11” front and rear):
– Front – Scorcher® “11” 120/70ZR-19 60W
– Rear – Scorcher® “11” 240/40R-18 79V
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 0.5 gal.)
Oil Capacity (w/filter) 5.0 qts. (4.7 L)
Coolant Capacity 2.5 qts. (2.4 L)

Weight:
– As Shipped 640 lbs. (290.0 kg)
– In Running Order 673 lbs. (305.0 kg)
– Gross Vehicle Weight Rating 1075 lbs. (488.0 kg)
– Gross Axle Weight Rating
– Front 377 lbs. (171.0 kg)
– Rear 698 lbs. (317.0 kg)

Engine
Engine Liquid-cooled, Revolution®, 60° V-Twin
Valves Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment
Bore x Stroke 4.134 in. x 2.835 in. (105 mm x 72 mm)
Displacement 76.28 cu. in. (1250 cc)
Compression Ratio 11.5:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Down draft intake
Lubrication System Wet-sump, integrated with powertrain crankcase

Drivetrain
Primary Drive Gear, 117/64 ratio
Final Drive Belt, 72/28 ratio
Clutch 9-plate, wet, A&S (Assist & Slip)
Transmission 5-speed
Gear Ratios (overall): U.S.
– 1st 11.752
– 2nd 7.898
– 3rd 6.322
– 4th 5.459
– 5th 4.899

Chassis
Frame Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded
Swingarm Polished, one-piece cast aluminum
Front Forks 43 mm Inverted
Rear Shocks Preload adjustable
Wheels4: Black 5-Spoke Cast Aluminum
– Front 19 in. x 3 in. (483 mm x 76 mm)
– Rear 18 in. x 8 in. (457 mm x 203 mm)

Brakes:
– Caliper Type 4-piston front and rear
– Rotor Type (diameter x width): Patented, one-piece floating rotor (front), uniform expansion rotor (rear)
– Front (dual) 11.81 in. x .2 in. (300 mm x 5.1 mm)
– Rear 11.81 in. x .28 in. (300 mm x 7.1 mm)
– Anti-lock Braking System: Available

Suspension Travel:
– Front Wheel 4 in. (102 mm)
– Rear Wheel 2.9 in. (74 mm)

Performance
Engine Torque5 (per J1349):
– North America 86 ft. lbs. @ 6500 RPM (117 Nm @ 6500 RPM)
Lean Angle (per J1168):
– Right 32°
– Left 32°

Fuel Economy6 (EPA urban/highway test) 37 mpg (6.3 L/100 km)

COLOR OPTIONS
Solids
– Vivid Black
– Black Denim
Two-Tones
– Chrome Yellow featuring Black graphics

U.S. MSRP
Vivid Black $14,999
Solids $15,309
Solids $15,509

Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 0.08 kW electric with direct drive starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 65-watt high beam
– Lights, Turn Signal Integrated LED
– Rear Tail/Stop/Turn Signal Lights Integrated Dual Color LED
– Indicator Lamps: High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7 (optional), coolant temperature, low fuel warnings

Warranty
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and
the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2500 mile (4000 km) intervals. See Owner’s Manual for full details.








2012 Harley-Davidson VRSCF V-Rod Muscle – Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $16,459, Color Option $16,799, Two-Tone Option $17,019, Security Package (Security and ABS) $1,310 CDN

Dimensions
Length: 2,410 mm
Seat Height, Laden: 650 mm
Seat Height, Unladen: 705 mm
Ground Clearance: 105 mm
Rake (steering head) (deg): 34
Trail: 142 mm
Wheelbase: 1,700 mm
Tires, Front Specification: 120/70ZR-19 60W
Tires, Rear Specification: 240/40R-18 79V
Fuel Capacity 3: 18.9 l
Oil Capacity (w/filter): 4.7 l
Weight, As Shipped: 292 kg
Weight, In Running Order: 307 kg
Luggage Capacity -Volume: N/A
Luggage Capacity -Weight: N/A

Engine
Engine 1: Liquid-cooled, Revolution®, 60° V-Twin
Bore: 105 mm
Stroke: 72 mm
Displacement: 1,247 cc
Compression Ratio: 11.5:1
Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

Drivetrain
Primary Drive: Gear, 117/64 ratio
Gear Ratios (overall) 1st: 11.752
Gear Ratios (overall) 2nd: 7.897
Gear Ratios (overall) 3rd: 6.322
Gear Ratios (overall) 4th: 5.459
Gear Ratios (overall) 5th: 4.899
Gear Ratios (overall) 6th: N/A

Chassis
Exhaust: Satin chrome, dual side exhaust system with black end caps
Wheels, Optional Style Type: N/A
Wheels, Front Type: Black, 5-Spoke Cast Aluminum
Wheels, Rear Type: Black, 5-Spoke Cast Aluminum
Brakes, Caliper Type: 4-piston front and rear
Parking Brake: N/A

Performance
Engine Torque Testing Method: J1349
Engine Torque 2: 118 Nm
Engine Torque (rpm): 6,750
Lean Angle, Right (deg.): 32
Lean Angle, Left (deg.): 32
Fuel Economy: Combined City/Hwy: 6.3 l/100 km

Electric
Lights (as per country regulation), Indicator LampsHigh beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings

Gauges
Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer

1: Measurement reflects 180 lb. (81.7 kg) operator weight.
2: Recommended 91 octane or higher fuel (R+M)/2.
3: Values shown are nominal. Performance may vary by country and region.
4: Standard and optional fuel systems may vary by country.
5: Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6: Standard and optional wheels may vary by country and region.
7: North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8: See motorcycle owner’s manual for complete details.








2012 Harley-Davidson VRSCF V-Rod Muscle – Press Release 1

10 YEARS AFTER THE REVOLUTION, V-ROD® POWERS ONWARD

V-Rod® 10th Anniversary Edition and Updated Night Rod® Special Launched for 2012

MILWAUKEE (July 20, 2011) – Harley-Davidson celebrates a decade of pavement-pounding performance with the V-Rod® 10th Anniversary Edition motorcycle, one of three models in a 2012 V-Rod line that also includes an updated Night Rod® Special and the V-Rod Muscle®. Introduced as a 2002 model, the original V-Rod ushered in a new era of Harley-Davidson performance. Its 1130cc 60-degree Revolution® V-Twin engine was the first Harley-Davidson production engine equipped with overhead cam shafts and liquid cooling, and came with a high-winding 9000-RPM redline. Inspired by drag-racing bikes and monster-motor customs, the V-Rod debuted with aluminum disc wheels, a raked out chassis, fast-back seat and anodized aluminum bodywork, a new styling direction for Harley-Davidson.

In just 10 years, the Harley-Davidson V-Rod family grew to include a number of new models. V-Rod took to the track as the basis for the 2007 Custom Vehicle Operations V-Rod Destroyer, an eight-second factory drag racer. It was also the inspiration for the Harley-Davidson Screamin’ Eagle/Vance & Hines V-Rod, a four-time world champion in Pro Stock Motorcycle professional drag racing. For 2012, Harley-Davidson V-Rod models continue to serve up explosive performance and urban-cool styling for riders seeking a singular power-cruiser experience.

All 2012 V-Rod models are powered by the latest version of the Revolution engine, a 1250cc liquid-cooled V-Twin with dual overhead camshafts, four-valve cylinder heads and Electronic Sequential Port Fuel Injection (ESPFI). The powertrain is equipped with an Assist and Slip clutch, five-speed transmission and high-performance carbon-fiber drive belt. Tires are Michelin Scorcher radials, including a 240mm rear. Brembo® triple-disc performance brakes are available with optional factory-installed anti-lock braking system (ABS). ABS is part of the optional Security Package that also includes the Smart Security System with proximity-based, hands-free security fob.

Night Rod Special
Dark and sinister, the restyled Night Rod Special features a new tapered tail section, lighter-weight wheels, and improved ergonomics with reduced reach to both the rider footpegs and handlebar. Inverted front forks and retuned rear suspension enhance ride and handling. This is a blacked-out, dead-on power cruiser that’s at home in a back alley.

Key Night Rod Features:

Rubber-mounted, liquid-cooled, 1250 cc Revolution® engine with Electronic Sequential Port Fuel Injection (ESPFI); 125 hp @ 8,250 RPM; 85 ft. lbs. @ 7,000 rpm.
Straight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield.
NEW Black, split five-spoke cast aluminum wheels are three pounds lighter than previous wheels.
NEW Tapered tail section with flush-mount LED taillight.
NEW Pullback handlebar places controls three inches closer to the rider and optimizes overall feel with a low, wide position.
NEW Reduced reach, forward-mounted rider footpegs.
NEW Inverted front forks.
NEW Two-up seat with custom stitching.
NEW Stylized, black speed screen visor.
NEW Slim design, center-mount license plate.
NEW Graphics options include Sedona Orange or Vivid Black with perforated graphics on the side of the air box and tail section, and Denim Black with orange racing stripes.
Black powder-coated engine with black covers.
Blacked-out frame, handlebar, front fork, triple clamps and covers.
Sport front fender with painted brace supports.
240 mm wide rear tire.

V-Rod 10th Anniversary Edition

A tribute to the original V-Rod that will be offered only in 2012, its Brilliant Silver Pearl bodywork with color-matched frame is exclusive in the V-Rod line. Extra chrome and polished surfaces dazzle on the engine, exhaust and speed screen. This special edition features all of the new additions made to the Night Rod Special for 2012.

Key V-Rod 10th Anniversary Edition Features:

Rubber-mounted, liquid-cooled, 1250 cc Revolution® engine with Electronic Sequential Port Fuel Injection (ESPFI); 125 hp @ 8,250 rpm; 85 ft. lbs. @ 7,000 rpm.
NEW Straight-shot exhaust with dual, chrome slash-cut mufflers and chrome exhaust shield.
NEW Split five-spoke cast aluminum wheels with diamond cut highlights.
NEW Pullback handlebar with polished finish.
NEW Inverted front forks in silver and polished finishes.
NEW Stylized, chrome speed screen visor.
NEW Graphics, including V-Rod 10th anniversary emblem.
NEW Chrome powertrain with platinum crankcase and heads.
240 mm wide rear tire.

V-Rod Muscle®

This power cruiser is a brawny beast for performance enthusiasts who crave power and control, with a dash of intimidation. Styling features include a wide airbox cover, side cover scoops, and dual exhausts in satin chrome with fat, turn-out mufflers. An abbreviated tail section and chopped rear fender expose the 240mm rear tire. A deep seat holds the rider firmly in place against the thrust of the Revolution V-Twin engine.

Key V-Rod Muscle® Features

Rubber-mounted, liquid-cooled, 1250 cc Revolution® engine with Electronic Sequential Port Fuel Injection (ESPFI); 122 hp @ 8,250 rpm; 86 ft. lbs. @ 6,500 rpm. Satin chrome dual exhaust with turn-out mufflers.
NEW V-Rod 10th Anniversary emblem.
Black, five-spoke cast aluminum wheels.
Sport front fender with black brace supports and blacked-out rear section.
Polished aluminum handlebar with integrated riser.
Polished forged-aluminum triple clamps.
Chopped rear fender.
Angular airbox with side covers.
Color-matched radiator shrouds.
LED front turn signals integrated in mirror stems.
LED combined stop/tail/turn light integrated within rear fender.
Side-mounted license plate.
43 mm inverted front forks.
Stylized rear shocks with black springs.
Black frame.
Deep, drag-style two-up seat.





2012 Harley-Davidson VRSCF V-Rod Muscle – Press Release 2

MORE HARLEY-DAVIDSON MODELS WITH TWIN CAM 103™ POWER IN 2012

V-Rod® 10th Anniversary Edition and Dyna® Switchback Bagger Join the Model Line

MILWAUKEE (July 20, 2011) – Harley-Davidson offers more Big Twin performance for 2012 as its Twin Cam 103™ powertrain is standard equipment on Softail® and Touring motorcycle models and most Dyna® motorcycle models. Harley-Davidson will offer two new models for 2012. The V-Rod® 10th Anniversary Edition celebrates a decade of power-cruiser performance, while the new Dyna® Switchback is a convertible custom-touring motorcycle with detachable hard saddlebags and windshield. In addition, the Night Rod Special has significant updates for 2012 with refreshed bodywork and optimized rider ergonomics. Harley-Davidson Custom Vehicle Operations (CVO)TM rolls out the gleaming new CVO Road Glide® Custom, a limited-production, high-performance touring masterpiece.

Harley-Davidson believes every motorcycle it sells can be a custom of one. Harley-Davidson H-D1™ is a comprehensive offering of customization tools for the Harley-Davidson motorcycle owner. H-D1 tools include Harley-Davidson Genuine Motor Accessories listings in print and on-line catalogs, Fit Shop and consultation services at Harley-Davidson dealerships, and factory customization and Bike Builder tools on www.harley-davidson.com. H-D1 offers almost unlimited opportunities to optimize fit, function, style and performance and turn a Harley into a motorcycle that is truly personalized to its owner.

Harley- Davidson heads into 2012 with 32 models, each born of experience that spans generations and a passion for riding that will never diminish.

Highlights of the 2012 Harley-Davidson line include:

The Twin Cam 103™ engine powers all 2012 Dyna®, Softail® and Touring models with the exception of the Dyna Street Bob® and Dyna Super Glide® Custom. This engine produces up to 100 ft lbs. peak torque, an increase of approximately 6 percent over the Twin Cam 96 engine it replaces as standard power for many of these models. The Twin Cam 103 is equipped with automatic compression release. It features identifying badges on the derby cover, timer cover and air cleaner trim ring.

A Security Package that pairs Anti-lock Braking System (ABS) with Smart Security System with proximity-based, hands-free security fob is available for all 2012 V-Rod®, Dyna®, Softail®, Touring and CVO™ models. The Security Package is standard equipment on CVO™ models and on the Road Glide® Ultra, the Electra Glide® Ultra Limited, and the Road King® Classic. The Security Package is a factory-installed option for all other models.

The Night Rod® Special is updated with new tapered tail section, lighter-weight wheels, an inverted front fork and improved ergonomics. Harley-Davidson celebrates a decade of power cruising with the V-Rod® 10th Anniversary Edition motorcycle, finished in Brilliant Silver Pearl bodywork that evokes the anodized aluminum bodywork of the original V-Rod model that introduced the liquid-cooled Revolution V-Twin engine in 2002. All V-Rod models will carry V-Rod 10th Anniversary badges.

The new Dyna Switchback combines hard saddlebags and a windshield with the eager handling and Twin Cam 103 performance of the Dyna chassis. It’s a custom-touring bike ready for a long weekend trip, until the detachable bags and windshield are removed. Then in seconds the Switchback becomes a custom street cruiser with a gleaming headlamp nacelle, five-spoke cast-aluminum wheels and a mini-ape handlebar. This convertible concept makes the versatile Switchback two motorcycles in one.

All Harley-Davidson Softail models get the performance boost of the Twin Cam 103 engine for 2012. The Fat Boy and Fat Boy Lo have a new reduced-reach handlebar for more-comfortable ergonomics. A lower, narrower seat shape places the Fat Boy rider in a new “in the bike” position. The Softail Deluxe and Heritage Softail Classic will be available with a new optional “tubeless” Chrome Aluminum Profile Laced wheel option for ease of tire replacement and repair.

The Twin Cam 103 powertrain gives all Harley-Davidson Touring models assertive power for passing. On Touring models, the Twin Cam 103 is equipped with an oil cooler. All Touring models except the Ultra Limited will offer a new “tubeless” Chrome Aluminum Profile Laced wheel option.

The Harley-Davidson Sportster® line appeals to a broad range of riders with six 2012 models ranging from the race-inspired XR1200X™ to the accessible SuperLow® to Dark Custom roadsters like the Iron 883™, Nightster® and Forty-Eight®. The Sportster® 1200 Custom can be personalized for fit, function and style with H-D1 factory customization, a process that allows customers to use the Bike Builder tool on harley-davidson.com to build the motorcycle from a selection of options that are installed as the bike is assembled by Harley-Davidson Motor Company or are installed by a dealer after the motorcycle is delivered. New 1200 Custom color options have been added to Bike Builder for 2012.

The new CVO Road Glide Custom is one of four limited-production 2012 models from Harley-Davidson Custom Vehicle Operations (CVO)TM, each turned out with bold paint, gleaming chrome, and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles. CVO Road Glide Custom is a hot-rod bagger with a frame-mounted fairing topped with a smoked Wind Splitter windshield, a high-output, amplified Harman/Kardon® Advanced Audio system, and a color-matched, low-profile fuel tank console.


About Michael Le Pard 11021 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.

Be the first to comment

Leave a Reply
