2013 KTM 200EXC Review

2013 KTM 200EXC

Whether in the Extreme Enduro or the E2 World Championship, the KTM 250 EXC is the ultimate victory machine. Built with the ideal combination of performance and weight, this is the enduro to beat when the going gets really tough. Even better rideability thanks to the new DDS clutch enhances the lightest enduro in the E2 class even further. Proof on two wheels that the two-stroke machines from KTM are also to be reckoned with in future.



2013 KTM 200EXC Features and Benefits

AIRBOX

The airbox on the KTM 250 EXC model year 2013 allows maximum air to pass through, but minimal dust and spray. Replacement of the twin-air filter takes approx. 15 seconds, without any tools. Absolutely “READY TO RACE”.

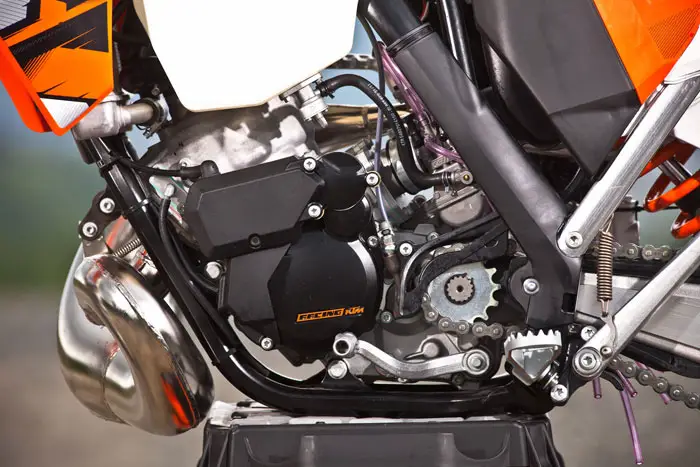

REVAMPED ENGINE

The 250 cc 2-stroke engine excels with new V-Force-4 reed valve blocks and the newly developed DDS clutch. This allows lower operating forces and better controllability at the same time as lower weight (minus 250 g) and greater durability.

NEW DDS CLUTCH

The new DDS clutch (Damped Diaphragm Steel): The one-piece outer clutch hub with primary gear is machined from a single piece of high-strength steel. Unbeatable reliability is the result. It also allows the use of thin steel discs. This results in an extremely compact construction for a narrow engine width. A diaphragm spring enables the implementation of an additional hub damping mechanism – an invaluable benefit in terms of traction and gearbox durability. In conjunction with the diaphragm spring, the hydraulic clutch actuation system from Brembo ensures very smooth and very precise clutch control.

ELECTRIC STARTER AS STANDARD

The KTM 250 EXC is equipped with both kick and electric starters in 2013. This simplifies starting the bike in all situations. With its patented placement in a longitudinal direction above the ignition, the compact starter system is optimally protected and provides a decisive advantage in hard offroad use.

ADJUSTABLE IGNITION CURVE

By opening and closing a plug connection, the choice can be made between the standard ignition curve and a softer version. Those who prefer even greater convenience can buy a switch for the KTM 250 EXC 2013 from the PowerParts range.

LINEAR POWER DEVELOPMENT

Plenty of power from the bottom up and controllable rideability throughout the rev range. The response of the exhaust control system can be individually tuned by means of different springs. This way, everyone can very easily vary the power development of their EXC (also combinable with the two ignition curves) between “soft” and “aggressive” in a matter of seconds. And the new reed valve block on the 2013 250 EXC delivers perceptibly better acceleration and more homogeneous power development.

INDIVIDUAL SUSPENSION SETTING

The KTM 250 EXC has its own individual suspension settings, optimally tuned to weight and engine. At the rear, a PDS shock absorber from WP Suspension works with a direct linkage to the upper side of the swingarm. The wide range of setting options for rebound damping and high- and low-speed compression damping are standard on KTM bikes.

HIGH QUALITY WHEELS

High quality, CNC-machined hubs are standard on all KTM wheels. The now black coated spokes increase corrosion resistance and centre the new, extremely stable, 7050 aluminium rims from GIANT. New MAXXIS FIM tyres – specially developed for KTM – provide excellent traction, very precise directional control and a long service life.

BODYWORK

The KTM 250 EXC has bodywork with extremely slim ergonomics and excellent contact points between rider and machine in MY 2013. It provides unlimited freedom of movement. Newly styled graphics give the models a fresher appearance.










2013 KTM 200EXC – USA Specifications/Technical Details
US MSRP Price: See dealer for pricing.

Model Not Available








2013 KTM 200EXC – Canadian Specifications/Technical Details
Canada MSRP Price: See dealer for pricing.

Model not available

Prices and specifications subject to change without notice.



2013 KTM 200EXC – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £ See dealer for Pricing.

ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 249 cm³
Bore 66.4 mm
Stroke 72 mm
Starting aid Kickstarter and electric starter
Transmission 6 gear, claw shifted
Primary gear 26:72
Final drive 14:50 (13:50)
Clutch Wet multi-disc clutch / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Forks WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm
Suspension travel Rear 335 mm
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm
Brake discs – diameter Rear 220 mm
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheel base 1,482±10 mm
Ground clearance (unloaded) 355 mm
Seat height (unloaded) 960 mm
Total fuel tank capacity approx. 9.5 l
Unleaded premium fuel, mixed with 2-stroke engine oil (1:60)
Weight without fuel approx. 104 kg

Prices and specifications subject to change without notice.




2013 KTM 200EXC – Australian Specifications/Technical Details
AU MSRP Price: See dealer for Pricing AUD

Engine
Engine Type1-cylinder 2-stroke engine, water cooled, with reed intake and exhaust control
Displacement249cm³
Bore / Stroke66.4/72mm
Starter / BatteryKick & Electric Start / 12V 3Ah
Transmission6 gear, claw shifted
Fuel ManagementKeihin PWK 38 S AG
ControlExhaust Control
LubricationMixture oil lubrication
Primary Ratio26:72
Final Drive14:50
CoolingLiquid cooling system
ClutchWet multi-disc clutch / hydraulically operated
IgnitionKokusan

Chassis
FrameCentral tube frame of chrome molybdenum steel tubing
Sub-Frame aluminium
HandlebarNeken aluminium
Front SuspensionWP Suspension USD 4860 MXMA PA
Rear SuspensionWP Suspension PDS 5018 DCC
Suspension Travel – Front / Rear300/335mm
Front / Rear BrakesDisc brake 260mm front / 220mm rear
Front / Rear Rims1.60 x 21″ / 2.15 x 19″ Excel
Front / Rear Tyres90/90-21″ / 120/90-18″
ChainX-Ring 5/8 x 1/4″
Silenceraluminium
Steering Head Angle63.5º
Wheel Base1482 ± 10mm
Ground Clearance355mm
Seat Height960mm
Tank Capacity approx.9.5l
Weight Without Fuel approx.101.9kg

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
