2013 KTM 250XCF-

Back to 2013 KTM Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

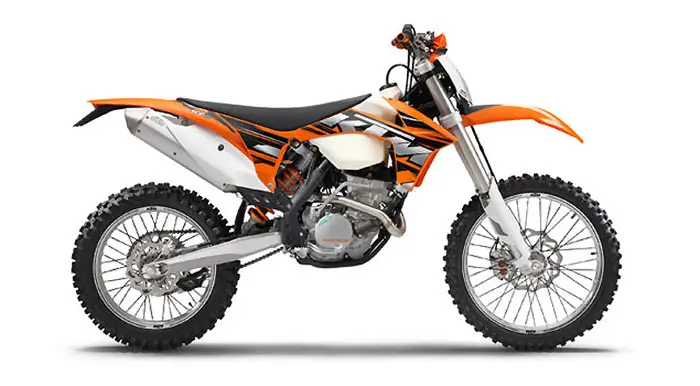

2013 KTM 250XCF-W
2013 KTM 250XCF-W

2013 KTM 250XCF-W
2013 KTM 250XCF-W



2013 KTM 250XCF-W Review

2013 KTM 250XCF-W

It’s an unbelievable handling miracle. It’s been ridden to countless world titles! The KTM 250 XCF-W is an absolute success story. This bike builds up plenty of traction at the bottom of the rev range and pushes hard at the top. And the story continues in 2013! The new model excels with its super-agile chassis thanks to state-of-the-art WP suspension components and its powerful DOHC engine featuring electronic fuel injection. And by the way, the new model comes in new graphics with new dual-comp



2013 KTM 250XCF-W Features and Benefits

NEW AIRBOX

The redesigned airbox on the KTM 250 XCF-W model year 2013 allows maximum air to pass through, but minimal dust and spray. Replacement of the Twin-Air filter takes approx. 15 seconds, without any tools. Absolutely “Ready to Race”.

VALVE TRAIN

Alongside the very small, lightweight (only 8 g (0.28 oz)) cam followers with DLC (diamond-like carbon) coating, the DOHC cylinder head is equipped with four ultra-light titanium valves, allowing very high engine speeds of up to 12,000 rpm. Compared with the SX-F power unit, the camshafts are designed less for maximum power and more enduro-specific for a broad usable rev range.

TRANSPARENT PLASTIC FUEL TANK

The fuel level can be seen directly from the outside on the 9.5 L (2.51 Gal.), transparent plastic tank. A micro-filter in the fuel line keeps even the smallest of particles away from the injection nozzle and now sits in the fuel line’s quick-release coupling between tank and injection valve. Therefore, replacing it is child’s play. 13 L fuel tanks are available for all models from the PowerParts range. The tried and tested bayonet filler cap – including safety mechanism to prevent unintentional twisting – allows the fuel tank to be opened and closed quickly with only a quarter turn.

ENGINE MANAGEMENT

The EMS from Keihin is state-of-the-art. Along with electronic fuel injection and a 42 mm (1.65 in) throttle body, it delivers spontaneous, powerful responsiveness and handling. Automatic temperature and altitude compensation are also to be found on board.

LIGHTWEIGHT ENGINE CASE

Slimmed down: Die-cast instead of sand-cast engine case! This noticeably reduces wall thickness with no reduction in stability. A lighter engine provides better handling. A special, high-strength aluminum alloy provides maximum resistance to damage.

TELESCOPIC FORK

The latest generation of fully adjustable 48 mm (1.89 in) open-cartridge fork “Made in Austria” by WP Suspension provides the highest levels of responsiveness with more constant damping characteristics. Not least due to the use of a new fork oil and new fork seal rings.

HIGH QUALITY WHEELS

High quality, CNC-machined hubs are standard on all KTM wheels. The now black coated spokes increase corrosion resistance and center the new, extremely stable, 7050 aluminum rims from GIANT. Dunlop GEOMAX MX51 tires provide excellent traction, very precise directional control and a long service life.

BODYWORK

The 2013 250 XCF-W has bodywork with extremely slim ergonomics and excellent contact points between rider and machine. It provides unlimited freedom of movement. Newly styled graphics give the models a fresher appearance.

HANDLEBAR

Tapered, extremely stable aluminum handlebars from Neken are paraded on the 2013 enduro bikes. For the 2013 model year, new 2-component grips with KTM logo deliver excellent feeling and improved grip.










2013 KTM 250XCF-W – USA Specifications/Technical Details
US MSRP Price: $8,499 USD

ENGINE
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 248.60 cm³ (15.1706 cu in)
Bore 76 mm (2.99 in)
Stroke 54.80 mm (2.1575 in)
Starting aid Electric starter/kickstarter
Engine lubrication Pressure circulation lubrication with two rotary pumps
Primary transmission 22:68
Final drive 13:50
Cooling Water cooling, permanent circulation of coolant by water pump
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Suspension travel
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 345 mm (13.58 in)
Seat height unloaded 970 mm (38.19 in)
Total fuel tank capacity, approx. Super unleaded (ROZ 95/RON 95/PON 91)
Weight without fuel, approx. 106 kg (234 lb.)






2013 KTM 250XCF-W – Canadian Specifications/Technical Details
Canada MSRP Price: $9,449.00 CDN

ENGINE
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 248.60 cm³ (15.1706 cu in)
Bore 76 mm (2.99 in)
Stroke 54.80 mm (2.1575 in)
Starting aid Electric starter/kickstarter
Engine lubrication Pressure circulation lubrication with two rotary pumps
Primary transmission 22:68
Final drive 13:50
Cooling Water cooling, permanent circulation of coolant by water pump
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Suspension travel
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 345 mm (13.58 in)
Seat height unloaded 970 mm (38.19 in)
Total fuel tank capacity, approx. Super unleaded (ROZ 95/RON 95/PON 91)
Weight without fuel, approx. 106 kg (234 lb.)

Prices and specifications subject to change without notice.



2013 KTM 250XCF-W – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £NA GBP.

Model Not Available

Prices and specifications subject to change without notice.




2013 KTM 250XCF-W – Australian Specifications/Technical Details
AU MSRP Price: See dealer for Pricing AUD

Model Not Available

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
