2013 KTM 250XC-W Review

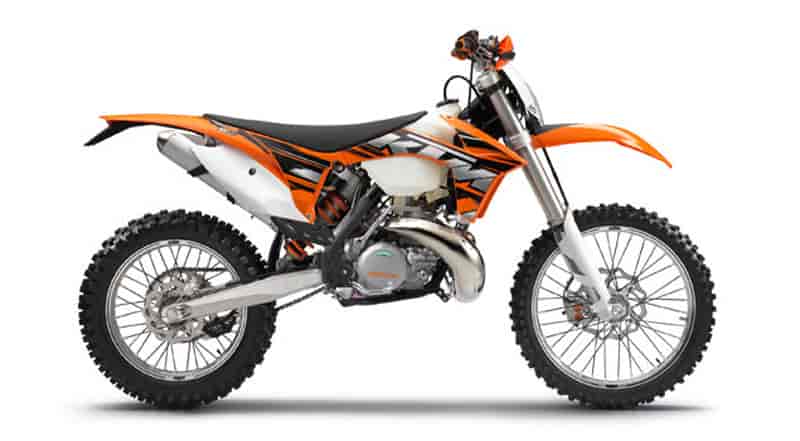

2013 KTM 250XC-W
The KTM 250 XC-W is the ultimate victory machine. Built with the ideal combination of performance and weight, this is the enduro to beat when the going gets tough. The DDS clutch allows better rideability while enhancing the lightest enduro bike even further.
2013 KTM 250XC-W Features and Benefits
AIRBOX
The airbox on the KTM 250 XC-W model year 2013 allows maximum air to pass through, but minimal dust and spray. Replacement of the Twin-Air filter takes approx. 15 seconds, without any tools. Absolutely “READY TO RACE”.
REVAMPED ENGINE
The 250cc 2-stroke engine excels with new V-Force-4 reed valve blocks and the newly developed DDS clutch. This allows lower operating forces and better controllability at the same time as lower weight (minus 250 g (8.82 oz)) and greater durability.
NEW DDS CLUTCH
The new DDS clutch (Damped Diaphragm Steel): The one-piece outer clutch hub with primary gear is machined from a single piece of high-strength steel. Unbeatable reliability is the result. It also allows the use of thin steel discs. This results in an extremely compact construction for a narrow engine width. A diaphragm spring enables the implementation of an additional hub damping mechanism – an invaluable benefit in terms of traction and gearbox durability. In conjunction with the diaphragm spring, the hydraulic clutch actuation system from Brembo ensures very smooth and very precise clutch control.
ELECTRIC-STARTER AS STANDARD
The KTM 250 XC-W is equipped with both kick and electric starters in 2013. This simplifies starting the bike in all situations. With its patented placement in a longitudinal direction above the ignition, the compact starter system is optimally protected and provides a decisive advantage in hard offroad use.
ADJUSTABLE IGNITION CURVE
By opening and closing a plug connection, the choice can be made between the standard ignition curve and a softer version. Those who prefer even greater convenience can buy a switch for the KTM 250 XC-W 2013 from the PowerParts range.
LINEAR POWER DEVELOPMENT
Plenty of power from the bottom up and controllable rideability throughout the rev range. The response of the exhaust control system can be individually tuned by means of different springs. This way, everyone can easily vary the power development of their XC-W (can be used in-conjunction with the two ignition curves) between “soft” and “aggressive” in a matter of seconds. And the new reed valve block on the 2013 250 XC-W delivers perceptibly better acceleration and more homogeneous power development.
INDIVIDUAL SUSPENSION SETTING
The KTM 250 XC-W has its own individual suspension settings, optimally tuned to weight and engine. At the rear, a PDS shock absorber from WP Suspension works with a direct linkage to the upper side of the swingarm. The wide range of setting options for rebound damping and high- and low-speed compression damping are standard on KTM bikes.
HIGH QUALITY WHEELS
High quality, CNC-machined hubs are standard on all KTM wheels. The now black coated spokes increase corrosion resistance and center the new, extremely stable, 7050 aluminum rims from GIANT. Dunlop GEOMAX MX51 tires – provide excellent traction, very precise directional control and a long service life.
BODYWORK
The KTM 250 XC-W has bodywork with slim ergonomics and excellent contact points between rider and machine. It provides unlimited freedom of movement. Newly styled graphics give the models a fresher appearance.
2013 KTM 250XC-W – USA Specifications/Technical Details
US MSRP Price: $8,199 USD
ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 249 cm³ (15.19 cu in)
Stroke 72 mm (2.83 in)
Bore 66.4 mm (2.614 in)
Starting aid Kick starter and electric starter
Gearbox 6-gear, claw shifted
Primary transmission 26:72
Secondary ratio 13:50
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 355 mm (13.98 in)
Seat height unloaded 960 mm (37.8 in)
Total fuel tank capacity, approx. 10 l (2.6 US gal)
Super unleaded gasoline, mixed with 2-stroke engine oil (1:60)
Weight without fuel, approx. 102 kg (225 lb.)
2013 KTM 250XC-W – Canadian Specifications/Technical Details
Canada MSRP Price: $9,049.00 CDN
ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 249 cm³ (15.19 cu in)
Stroke 72 mm (2.83 in)
Bore 66.4 mm (2.614 in)
Starting aid Kick starter and electric starter
Gearbox 6-gear, claw shifted
Primary transmission 26:72
Secondary ratio 13:50
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 355 mm (13.98 in)
Seat height unloaded 960 mm (37.8 in)
Total fuel tank capacity, approx. 10 l (2.6 US gal)
Super unleaded gasoline, mixed with 2-stroke engine oil (1:60)
Weight without fuel, approx. 102 kg (225 lb.)
Prices and specifications subject to change without notice.
2013 KTM 250XC-W – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £NA GBP.
Model Not Available
Prices and specifications subject to change without notice.
2013 KTM 250XC-W – Australian Specifications/Technical Details
AU MSRP Price: See dealer for Pricing AUD
Model Not Available
Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
