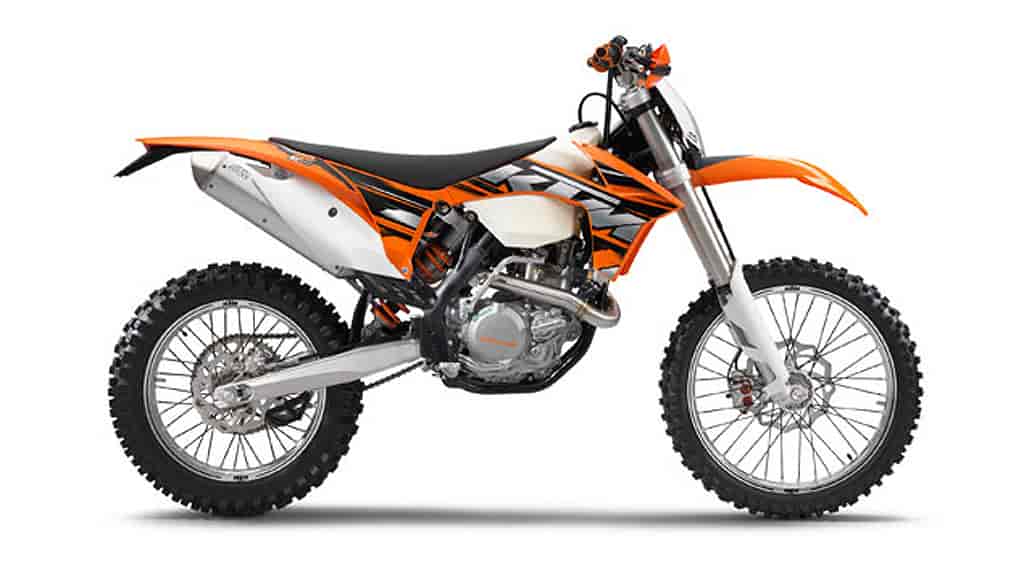

2013 KTM 500XC-W
2013 KTM 500XC-W

2013 KTM 500XC-W
2013 KTM 500XC-W

2013 KTM 500XC-W
2013 KTM 500XC-W



2013 KTM 500XC-W Review

2013 KTM 500XC-W

For all those who are forever seeking a little bit more. Perfectly controllable power in extravagant proportions, low weight and an unsurpassed chassis characterize an enduro of remarkable versatility: a sensational fighting machine and absolutely reliable workhorse rolled into one, the indisputable benchmark in terms of weight and rideability – the KTM 500 XC-W.





2013 KTM 500XC-W Features and Benefits

CLUTCH

The one-piece outer clutch hub with primary gear is machined from a single piece of high-strength steel. Unbeatable reliability is the result. It also allows the use of thin steel discs. This results in an extremely compact construction for a narrow engine width. A diaphragm spring enables the implementation of an additional hub damping mechanism – an invaluable benefit in terms of traction and gearbox durability. In conjunction with the diaphragm spring, the hydraulic clutch actuation system from Brembo ensures very smooth and very precise clutch control.

CYLINDER HEAD

The SOHC cylinder head is equipped with an overhead camshaft that actuates the titanium intake valves and steel exhaust valves. The whole configuration has been perfectly tuned to the Keihin EFI system for outstanding rideability and performance of the 2013 KTM 500 XC-W.

BALANCER SHAFT

Through ingenious design work, KTM engineers succeeded in developing a small laterally positioned balancer shaft that also acts as a drive for the water pump.

FRAME

In keeping with KTM tradition, the frames are made from high quality, lightweight, chromoly steel profiles. In conjunction with the rear PDS damping system, they are designed for optimum absorption of shocks introduced into the frame by the rear wheel. In response to the trend for aluminum frames followed by our rivals, we supply a high-tech steel frame that weighs approx. 0.5 kg (1.1 lb.) less than the lightest competitor. Moreover, it’s easier to maintain, simplier to work on, and provides more space for the fuel tank and other components.

FORK

All KTM XC-W models are fitted with the latest generation of fully adjustable 48 mm (1.89 in) open-cartridge forks “Made in Austria” by WP Suspension. Each model is individually tuned and the new fork oil provides improved responsiveness with more constant damping characteristics.

NEW WHEELS

The high-quality KTM wheels with CNC-machined hubs are standard on KTM bikes. They are equipped with new, extremely stable, 7050 aluminum rims from GIANT and the spokes are now furnished with a premium black coating, representing an improvement in terms of corrosion resistance. Dunlop GEOMAX MX51 tires provide excellent traction, very precise directional control and a long service life.

BRAKES

Brakes from Brembo® are standard equipment on KTM offroad bikes and, together with lightweight wave-type brake discs, they are recognized as the measure of all things in terms of application and brake performance. The further refined rear brake master cylinder has a new internal mechanism that ensures less wear at the rubber seal for greater durability.

BODYWORK

One of the main aims was to develop bodywork with ultra-slim ergonomics and excellent contact points between rider and machine. It provides unlimited freedom of movement. Newly styled graphics give the new models a fresher appearance










2013 KTM 500XC-W – USA Specifications/Technical Details
US MSRP Price: $9,649 USD

ENGINE
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 510.4 cm³ (31.147 cu in)
Bore 95 mm (3.74 in)
Stroke 72 mm (2.83 in)
Starter Electric starter/kick starter
Engine lubrication Pressure circulation lubrication with two rotary pumps
Primary transmission 32:76
Final drive 13:50
Cooling Water, permanent circulation of coolant by water pump
Clutch Multidisc clutch in oil bath / hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 345 mm (13.58 in)
Seat height unloaded 970 mm (38.19 in)
Total fuel tank capacity, approx. 8.5 l (2.25 US gal)
Super unleaded (ROZ 95/RON 95/PON 91)
Weight without fuel, approx. 112 kg (247 lb.)








2013 KTM 500XC-W – Canadian Specifications/Technical Details
Canada MSRP Price: $10,399.00 CDN

ENGINE
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 510.4 cm³ (31.147 cu in)
Bore 95 mm (3.74 in)
Stroke 72 mm (2.83 in)
Starter Electric starter/kick starter
Engine lubrication Pressure circulation lubrication with two rotary pumps
Primary transmission 32:76
Final drive 13:50
Cooling Water, permanent circulation of coolant by water pump
Clutch Multidisc clutch in oil bath / hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 345 mm (13.58 in)
Seat height unloaded 970 mm (38.19 in)
Total fuel tank capacity, approx. 8.5 l (2.25 US gal)
Super unleaded (ROZ 95/RON 95/PON 91)
Weight without fuel, approx. 112 kg (247 lb.)

Prices and specifications subject to change without notice.



2013 KTM 500XC-W – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £NA GBP.

Model not available

Prices and specifications subject to change without notice.




2013 KTM 500XC-W – Australian Specifications/Technical Details
AU MSRP Price: See dealer for Pricing AUD

See above specs

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
