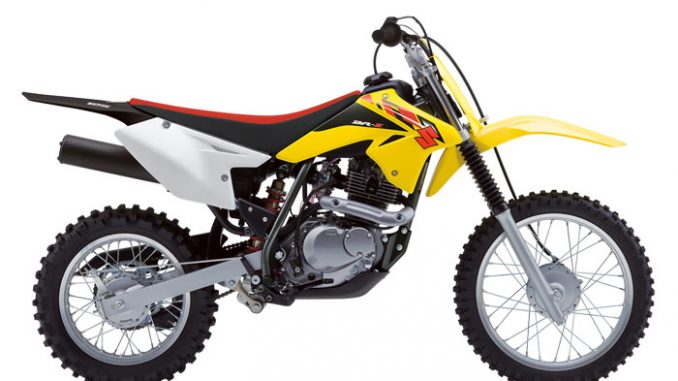

2013 Suzuki DR-Z125

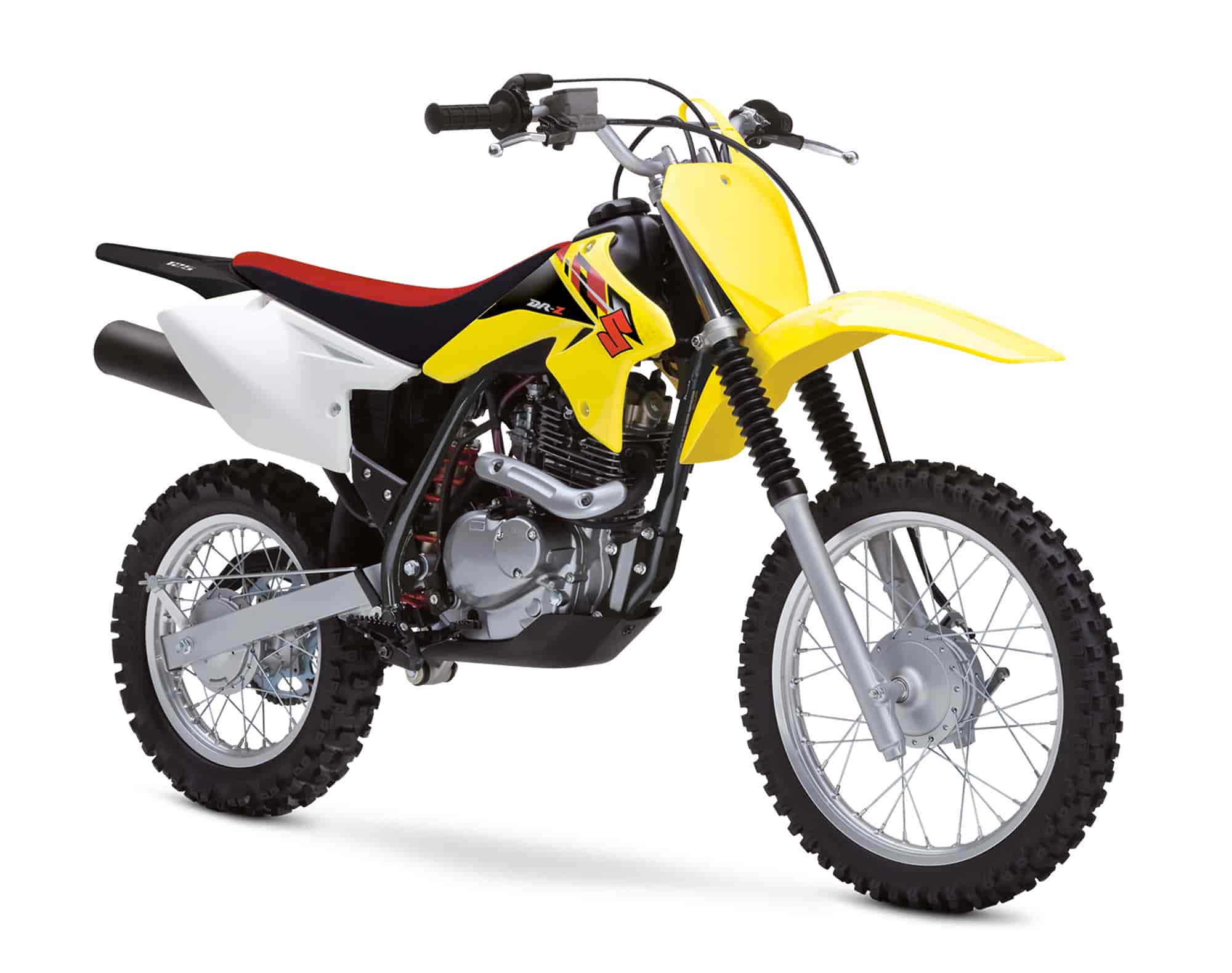

2013 Suzuki DR-Z125

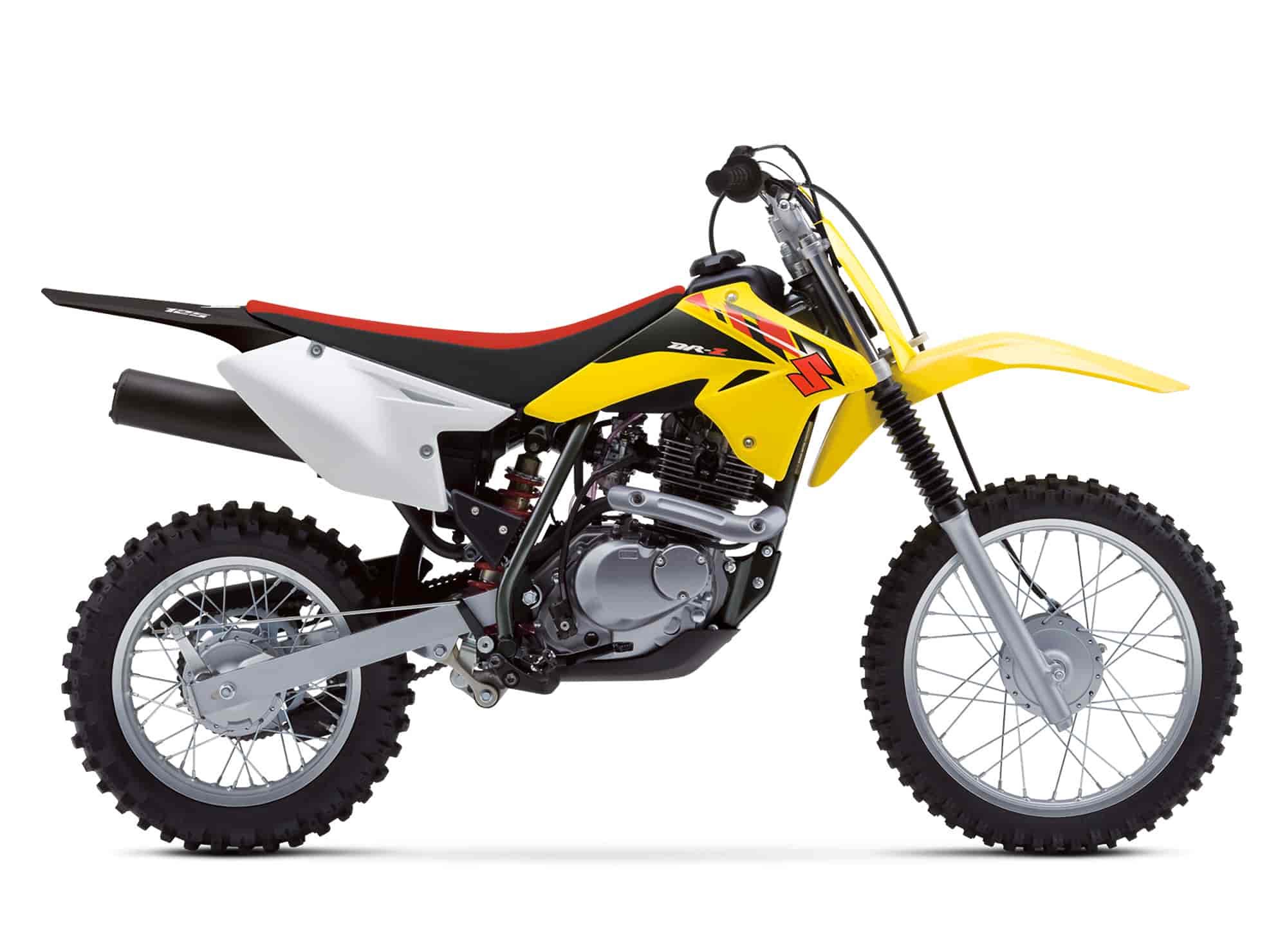

2013 Suzuki DR-Z125
2013 Suzuki DR-Z125


2013 Suzuki DR-Z125 Review

2013 Suzuki DR-Z125

Inspired by Suzuki’s championship-winning RM-Z motocross bikes, the DR-Z125 has sharp-looking fenders, number plates, and frame covers. It’s lightweight and strong powerband allows the DR-Z to rise to any challenge. When you’ve got a DR-Z, the whole world looks a little different. You start seeing whoops, jumps, and washboards everywhere you look.

Rev up. When you’ve got a DR-Z, the whole world looks a little different. You start seeing whoops, jumps, and washboards everywhere you look. Even a rainy day just means more mud to play in.





2013 Suzuki DR-Z125 Key Features

Aggressively styled bodywork, number plates and graphics built to look exactly like the race winning RM-Z competition models




2013 Suzuki DR-Z125 Features and Benefits

ENGINE FEATURES

Compact 124cc 4-stroke, SOHC, single-cylinder, air-cooled engine provides a strong low-to-mid range power range that can be easily handled.

Precise digital CDI ignition system with an ignition-timing map tuned to optimize the engine’s power characteristics.

MIKUNI VM20SS carburetor contributes to excellent throttle response.

Suzuki Composite Electrochemical Material (SCEM) – plated cylinder for durability, lightweight and superior heat transfer.



TRANSMISSION FEATURES

Five-speed transmission with link-type gearshift system for precise operation and positive feel.



CHASSIS FEATURES

Lightweight, high rigidity steel pipe frame and rear swingarm are designed specifically to create a compact, fully-sized off road machine.

The seat and bodywork design provides a seamless surface for easy maneuverability.

Strong braking performance provided by lightweight front and rear drum brakes.

Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action for enhancing enjoyable, comfortable ride.

The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions.

A lightweight plastic skid plate helps protect the bottom of the engine.



ADDITIONAL FEATURES

30.5 inch seat height.

Lightweight aluminum rims (17-inch front/14-inch rear) for reduced weight provide agile handling and improved suspension performance.










2013 Suzuki DR-Z125 – USA Specifications/Technical Details
US MSRP Price: $3,099 USD

Chassis
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Drum brake
Brakes Rear Drum brake
Tires Front 70/100-17 40M, tube type
Tires Rear 90/100-14 49M, tube type
Fuel Tank Capacity 1.1 US – Including Reserve
Color Champion Yellow / Solid Black

Dimensions and Curb Weight
Overall Length 1835 mm (72.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1085 mm (42.7 in)
Wheelbase 1245 mm (49.0 in)
Ground Clearance 260 mm (10.2 in)
Seat Height 775 mm (30.5 in)
Curb Weight 88 kg (194 lbs)

Drive Train
Transmission 5-speed constant mesh
Final Drive DID 428HG, 122 links

Electrical
Ignition Electronic ignition (CDI)

Engine
Engine 124cc, 4-stroke, air-cooled, OHC
Bore x Stroke 2.244.60 in x 1.921 in
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS
Starter Primary Kick
Lubrication Wet sump

Warranty
Warranty 12 month unlimited mileage limited warranty.



All information is subject to change without notice. At Total Motorcycle, we want every ride to be safe and enjoyable. So always wear a helmet, eye protection and protective clothing. Never ride under the influence of alcohol or other drugs. Avoid excessive speeds. Never engage in stunt riding. Study your owner’s manual and always inspect your Suzuki before riding. Take a riding skills course or the course nearest you call the Motorcycle Safety Foundation at 1-800-446-9227.

Suggested Starting Price shown does not include tax, title, or destination charge. Dealer prices may vary.








2013 Suzuki DR-Z125 – Canadian Specifications/Technical Details
Canada MSRP Price: $3,099 CDN

Chassis
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Drum brake
Brakes Rear Drum brake
Tires Front 70/100-17 40M, tube type
Tires Rear 90/100-14 49M, tube type
Fuel Tank Capacity 6.2L (1.6 US gal)
Color Champion Yellow/Sold Black
DimensionsandCurbWeight
Overall Length 1835 mm (72.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1085 mm (42.7 in)
Wheelbase 1245 mm (49.0 in)
Ground Clearance 260 mm (10.2 in)
Seat Height 775 mm (30.5 in)
Curb Weight 88 kg (194 lbs)
DriveTrain
Transmission 5-speed constant mesh
Final Drive DID 428HG, 122 links
Electrical
Ignition Electronic ignition (CDI)
Engine
Engine 124cc, 4-stroke, air-cooled, OHC
Bore Stroke 96.0mm x 62.1mm (2.24in x 1.92in)
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS
Starter Primary Kick
Lubrication Wet sump
Warranty
Warranty 12 Month unlimited mileage limited warranty




2013 Suzuki DR-Z125 – UK/Europe Specifications/Technical Details
UK MSRP Price: £TBA

TBA

All specifications subject to change without notice by Suzuki.




2013 Suzuki DR-Z125 – Australian Specifications/Technical Details
Australia MSRP Price: TBA

TBA
