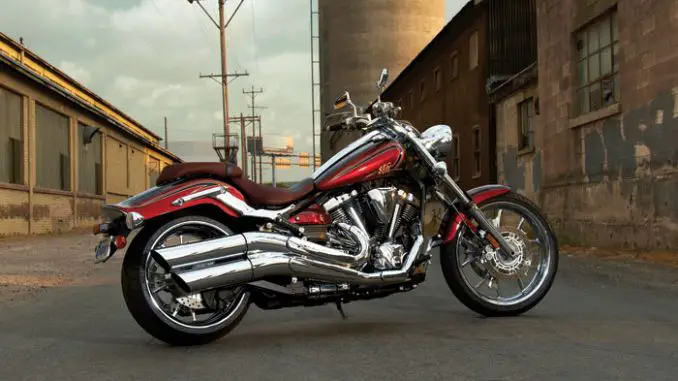

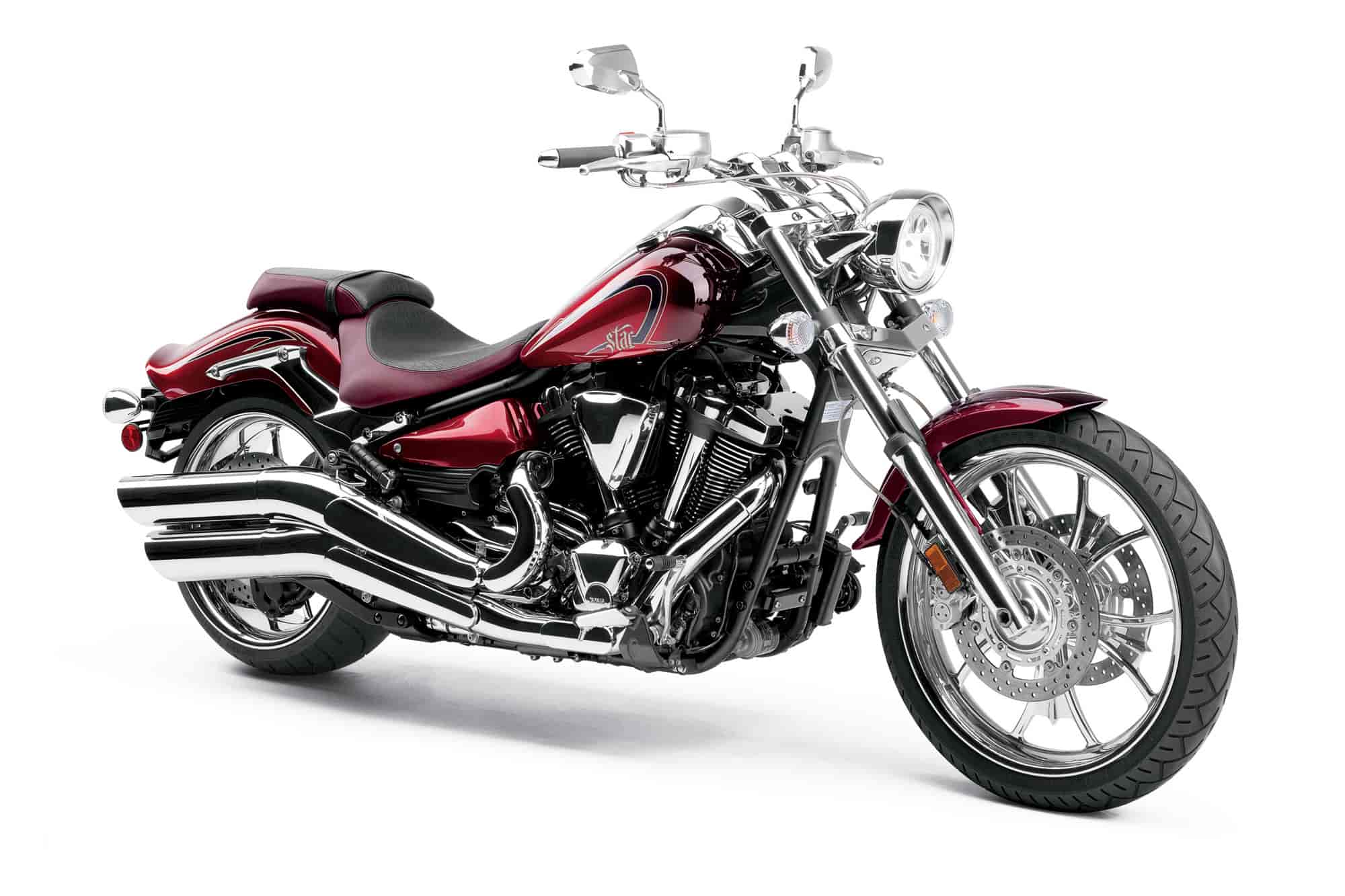

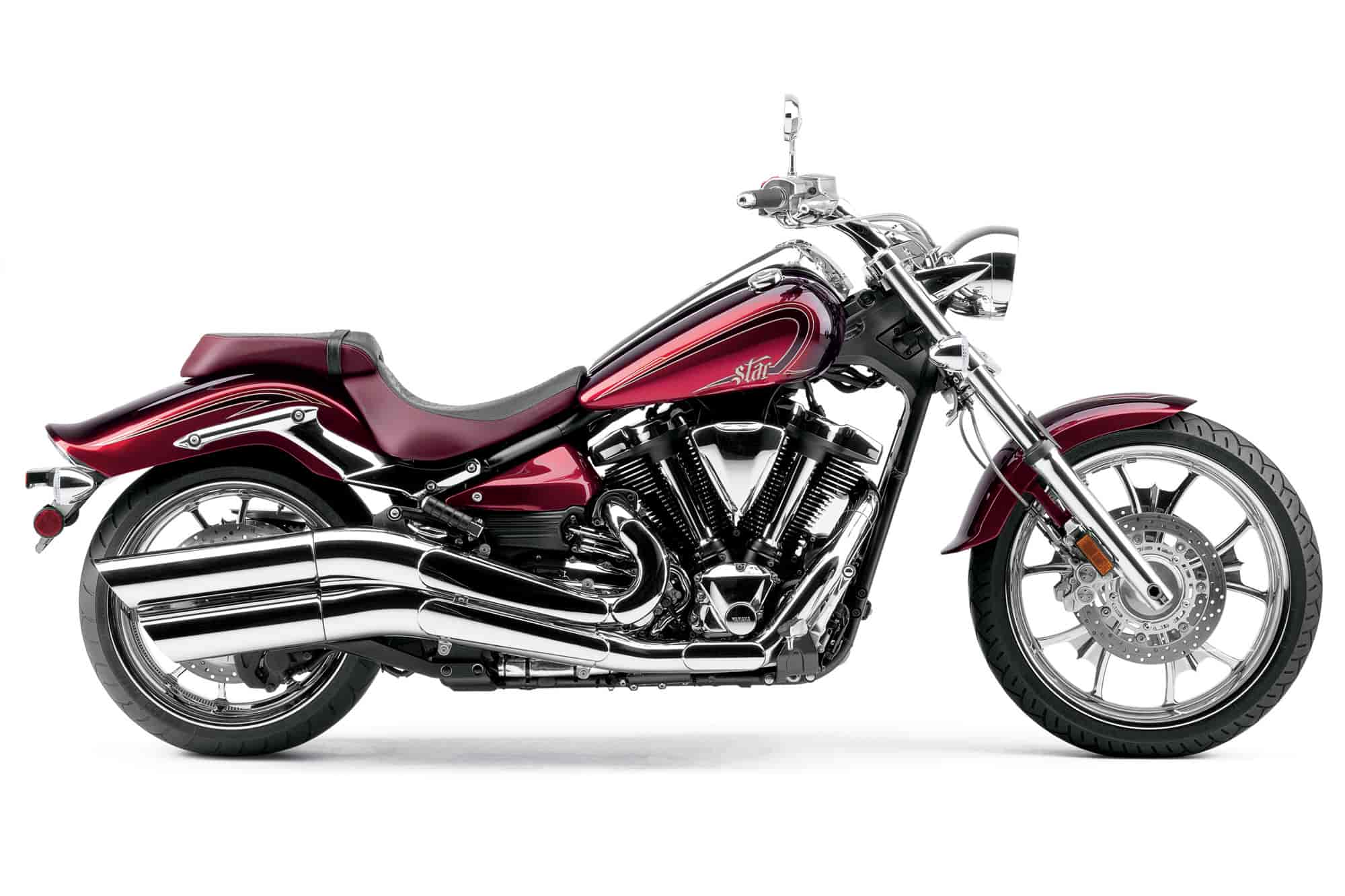

2013 Yamaha Raider SCL

2013 Yamaha Raider SCL

2013 Yamaha Raider SCL

2013 Yamaha Raider SCL Review

2013 Yamaha Raider SCL

Very limited edition Raider SCL for ultimate culmination of style, power and performance…

Introducing the new 2013 Yamaha Raider SCL, a very special, very limited production Raider for those wanting a truly unique chopper inspired machine. Only 500 will be built and will feature everything that makes the Raider SCL one of the world’s great performance cruisers and more.







2013 Yamaha Raider SCL Key Features

US MPG Fuel Consumption: 42 mpg

•The limited production Raider SCL is loaded with premium cruiser features. Crafted for riders who value exclusivity, only 500 of these exceptional machines will be built.

•The 2013 Raider SCL features newly developed, rich Crimson Red paint accented with an Intense Black color. The bike is hand-painted by skilled craftsmen to deliver premium quality the discerning rider is looking for. The 2013 Raider SCL simply stands out from the crowd.

•Stainless steel mesh throttle cables as well as clutch and brake lines give this bike a premium look.

•Custom 5-spoke chrome wheels co-developed by Star and Performance Machine, with matching chrome pulley and chrome belt guard, help elevate the Raider SCL to a true production custom.

•Great attention to detail was taken into consideration when designing the genuine leather two-tone seat with embroidered SCL logo, and matching beige stitching – keeping the discerning cruiser customer in mind. Over time, the seat will develop a character of its own and will be unlike any other. The top panels of the seat have crocodile-pattern embossing on the leather for 2013.

•An exclusive metal SCL badge with hologram is placed on top of the fuel tank as a constant reminder to its owner that only 500 of these unique machines exist.

New for 2013:

•Clutch has light, easy-pull operation — 20% less effort at the lever than before.

The limited production Raider SCL is loaded with premium cruiser features. Crafted for riders who value exclusivity, only 500 of these exceptional machines will be built.

The 2013 Raider SCL features newly developed, rich Crimson Red paint accented with an Intense Black color. The bike is hand-painted by skilled craftsmen to deliver premium quality the discerning rider is looking for. The 2013 Raider SCL simply stands out
from the crowd.

Stainless steel mesh throttle cables as well as clutch and brake lines give this bike a premium look.

Custom 5-spoke chrome wheels co-developed by Star and Performance Machine, with matching chrome pulley and chrome belt guard, help elevate the Raider SCL to a true production custom.

Great attention to detail was taken into consideration when designing the genuine leather two-tone seat with embroidered SCL logo, and matching beige stitching – keeping the discerning cruiser customer in mind. Over time, the seat will develop a character of its own and will be unlike any other. The top panels of the seat have crocodile-pattern embossing on the leather for 2013.

An exclusive metal SCL badge with hologram is placed on top of the fuel tank as a constant reminder to its owner that only 500 of these unique machines exist.





2013 Yamaha Raider SCL Features and Benefits

Engine:

•113-cubic-inch (1854cc) air-cooled, OHV with 4 valves per cylinder, pushrod 48-degree V-twin pumps out max torque at just 2500 rpm and max power at 4500 rpm for powerful, relaxed cruising.

•Four pushrod-activated valves and two spark plugs per cylinder provide optimum combustion efficiency along with classically beautiful engine architecture.

•Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life.

•9.5:1 compression ratio and aggressive cam timing increase power output across the board.

•Computer-controlled, twin-bore fuel injection monitors multiple engine parameters to calculate perfect mixture under all conditions; wide-angle 12-hole fuel injectors provide excellent atomization.

•A 3.5-liter airbox is hidden in the area below the fuel tank for great performance and clean styling.

•Two-into-one-into-two exhaust with Exhaust Ultimate Power valve (EXUP®) inside boosts torque in the 2500~3500-rpm range.

•Special custom-machining of the cooling fin edges gives a jewel-like appearance to the engine as light hits it from different angles.



Chassis and Suspension:

•All-aluminum cast frame is light, rigid, and tuned for light, athletic handling. A light, Controlled-Fill, aluminum swingarm casting complements the bike’s lithe style.

•Low, sculpted rider and passenger seat of exclusive, two-toned genuine leather with orange stitching set this bike apart while maintaining the Raider SCL’s casual, urban cruising style ergonomics.

•A 6-degree yoke angle—the first ever on a street-legal Star Motorcycle—makes it possible to achieve that custom look as well as neutral handling and straight-line cruisability: 33-degree rake plus 6 degrees yoke angle gives total rake of 39 degrees and 102mm of trail.

•Custom 5-spoke wheels co-developed by Star and Performance Machine are chrome plated for uncommon custom beauty. There’s 120/70-21-inch tire up front, and a wide, 210/40-18 out back—the tallest and widest ever on a Star.

•46mm fork tubes serve a sweet appearance and an excellent ride through 5.1 inches of wheel travel.

•A tucked-out-of-sight single shock out back provides a smooth ride under varying loads.

•The flangeless fuel tank gets two-tone Crimson Red/Intense Black paint for a rich, high quality look. It carries a full 4.2 gallons of fuel for an excellent cruising range.

•Front brake master cylinder with integrated lever operates a pair of 298mm front discs squeezed by strong monoblock calipers for excellent power and feel, with a 310mm disc out back.

•Strong, light and narrow belt final drive contains embedded carbon fiber for even greater strength.

•Wiring harness uses super-slim wires for compactness and lighter weight, and switchgear wiring is routed inside the handlebar for a clean appearance.



Additional Features:

•Left-thumb operated high-beam switch, and right-thumb activated accessory driving light switch for great visibility.

•Jewel-like fit and finish, and Star quality paint, chrome and attention to detail are evident all over the Raider SCL.

•Cool, tank-mounted instrumentation complements the custom look, and contains analog speedometer and fuel gauge, along with twin digital tripmeters, odometer and self-diagnostics.

•Bright multireflector headlight, LED taillight, and amber turn signals behind clear lenses give a custom look.

•02 sensor and three-way catalyst reduce emissions.



---



2013 Yamaha Raider SCL – USA Specifications/Technical Details
US MSRP Price: $19,990 (Crimson Red/Intense Black) Available from December 2012

Engine
Type 113-cubic-inch (1854cc) air-cooled V-twin OHV, 4 valves/cylinder
Bore x Stroke 100.0 x 118.0mm
Compression Ratio 9.5:1
Fuel Delivery Twin-Bore electronic fuel injection; throttle position sensor
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed, multiplate wet clutch
Final Drive Belt

Chassis
Frame Double cradle
Suspension / Front Telescopic fork; 5.1-in travel
Suspension / Rear Swingarm; 3.5-in travel
Brakes / Front Dual hydraulic disc, 298mm
Brakes / Rear Hydraulic disc, 310mm
Tires / Front 120/70-21M/C 62H
Tires / Rear 210/40-18M/C 73H
Wheels Custom 5-spoke chrome

Dimensions
Length 101.2 in
Width 36.4 in
Height 45.9 in
Seat Height 27.4 in
Ground Clearance 5.7 in
Wheelbase 70.9 in
Fuel Capacity 4.2 gal
Fuel Economy** 42 mpg
Wet Weight*** 750 lb

Other
Warranty 1 Year (Limited Factory Warranty)

*Prices and specifications subject to change without notice. Please read your Owner’s Manual and all labels before operation.
**Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha. Your actual mileage will vary depending on road
conditions, how you ride and maintain your vehicle, accessories, cargo, and operator/passenger weight.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel.





---



2013 Yamaha Raider SCL – Canadian Specifications/Technical Details
Canada MSRP Price: $NA CDN

Model Not Available in Canada

± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.

---

2013 Yamaha Raider SCL – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £ See dealer for Pricing.

More information to follow shortly



---

2013 Yamaha Raider SCL – Australian Specifications/Technical Details
AU MSRP Price: $TBA AUD

More information to follow shortly





Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
