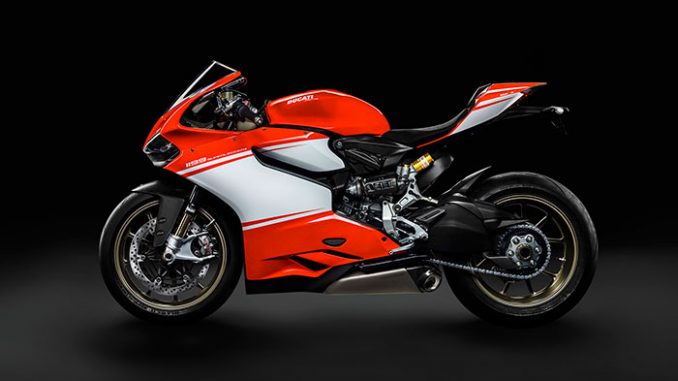

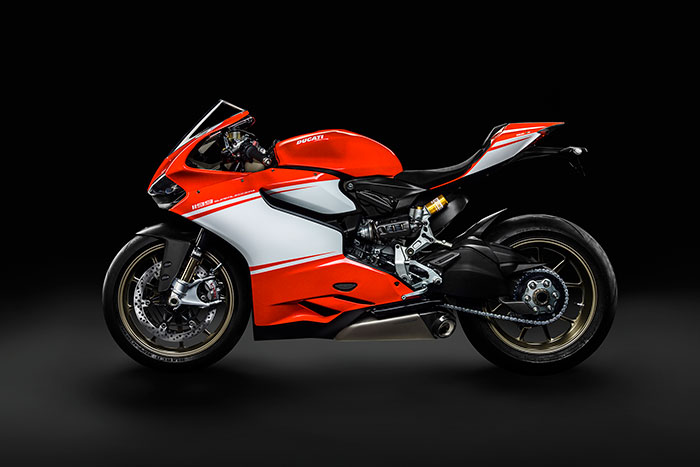

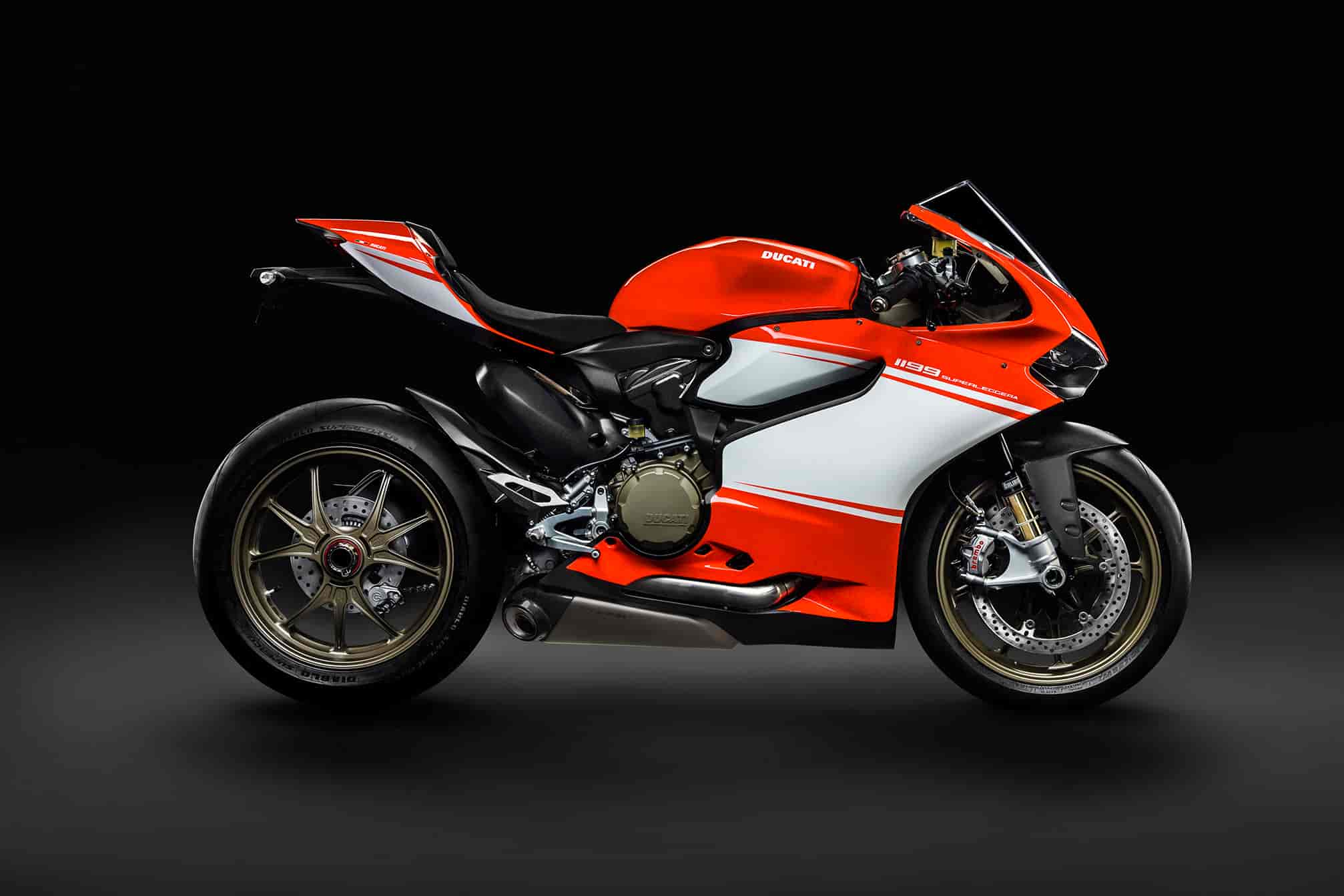

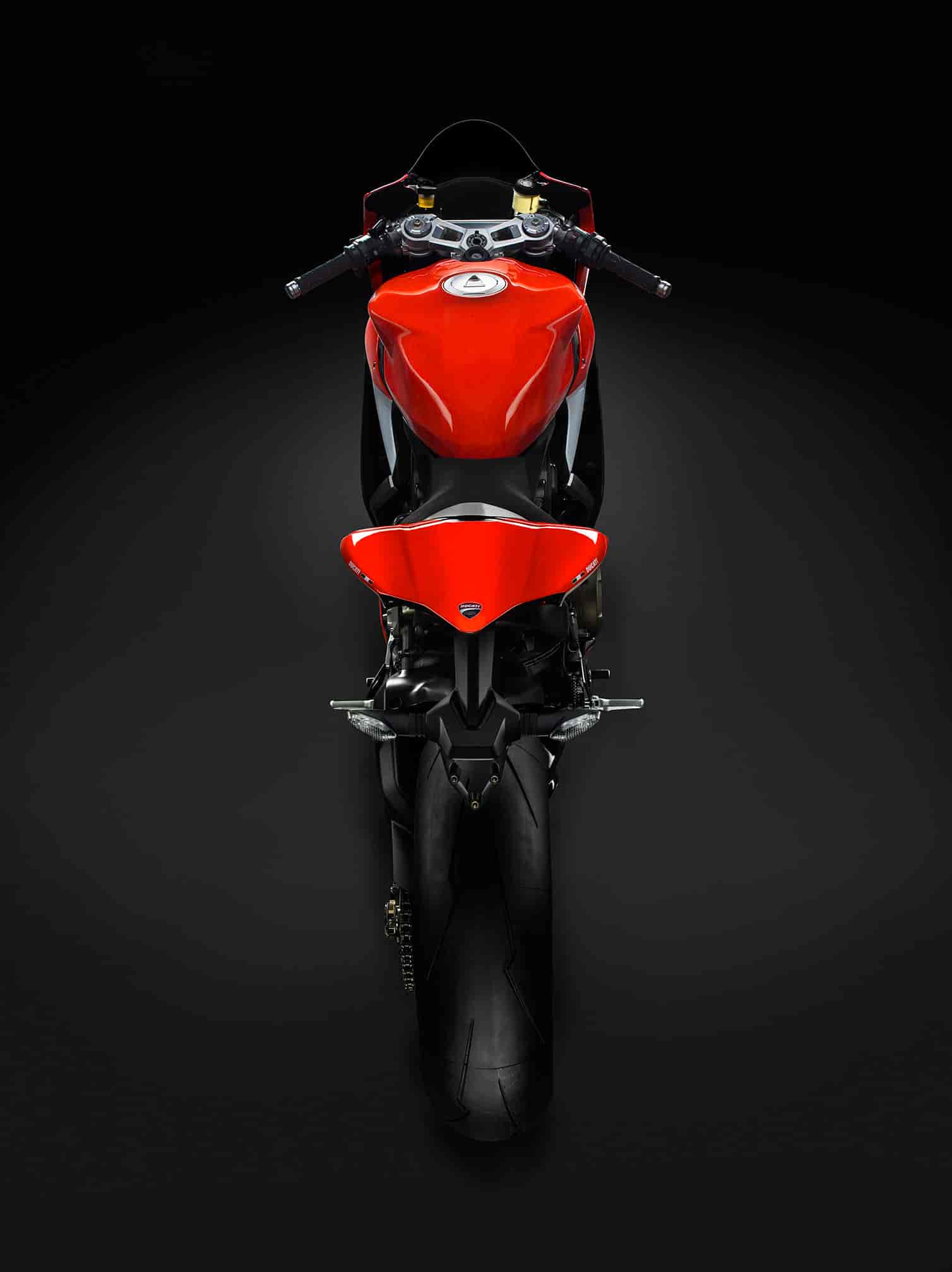

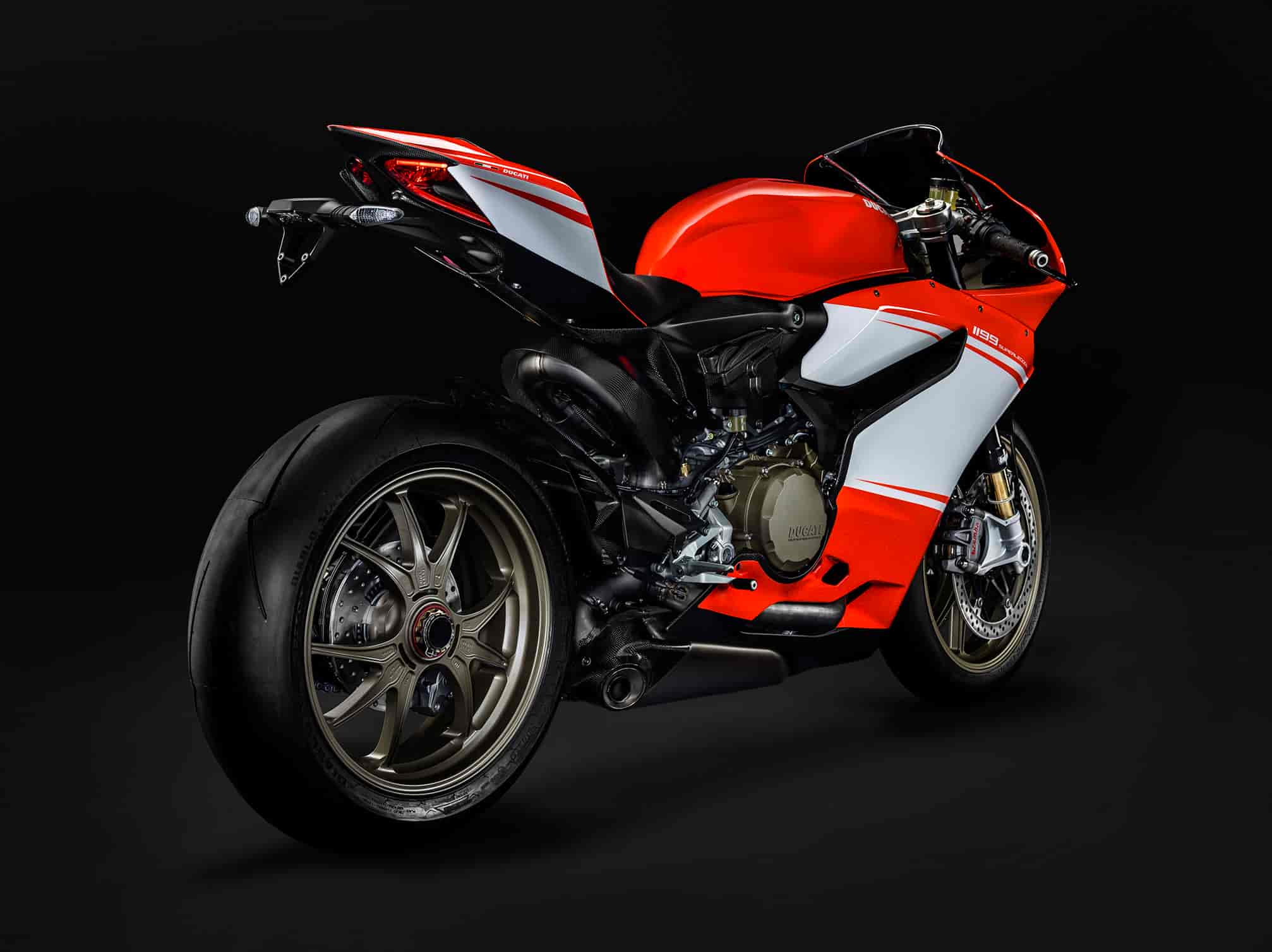

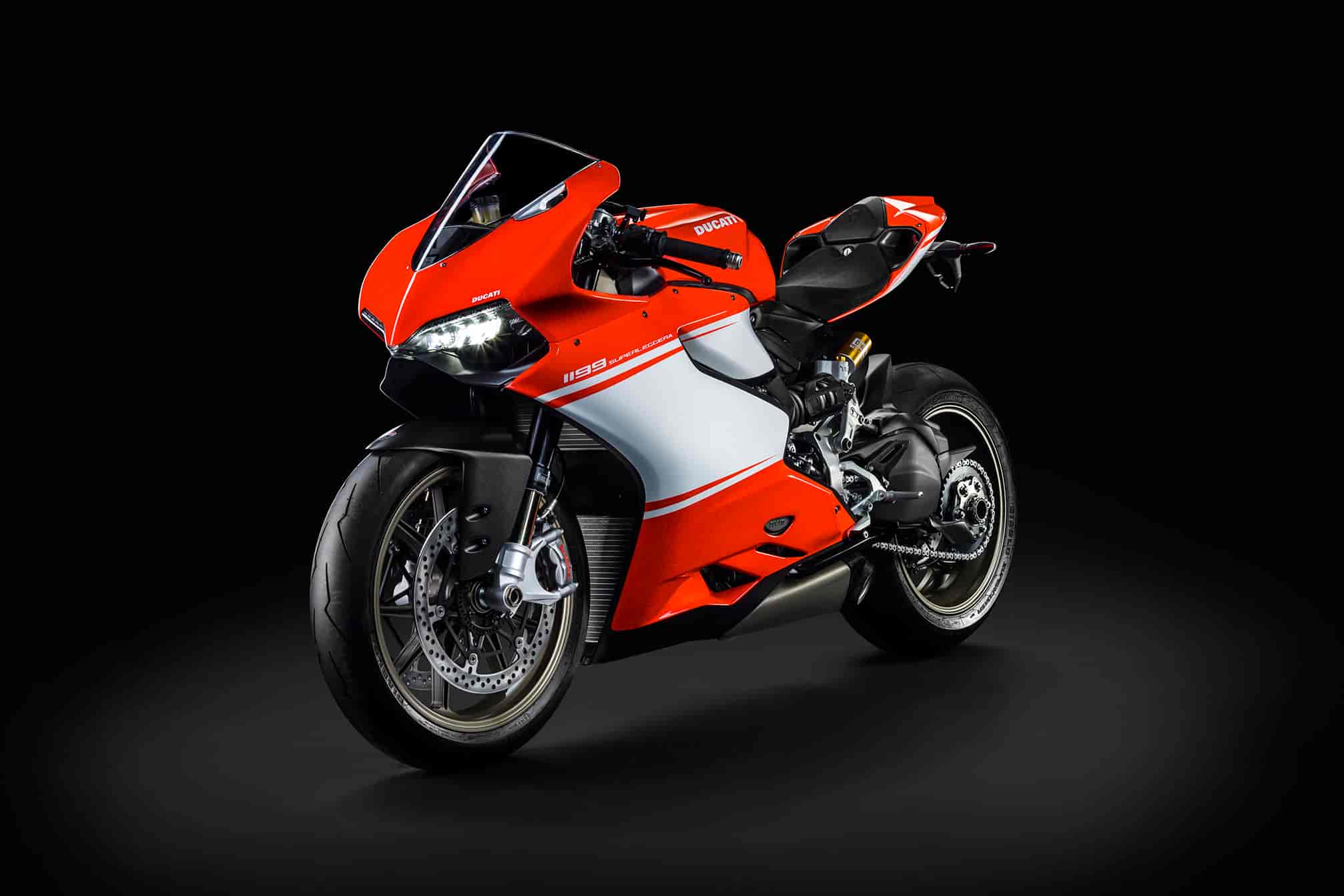

2014 Ducati Superbike 1199 Superleggera Review
The 2014 Ducati Superbike 1199 Superleggera on Totalmotorcycle.com
Created without limits, to inspire unlimited desire…
Celebrating the Italian manufacturer’s commitment to performance technology and lightweight construction, Ducati now proudly introduces its latest limited edition dream model, the highly exclusive 1199 Superleggera. The new machine combines a precious cocktail of materials such as titanium, magnesium and carbon fibre to set the highest power-to-weight ratio of any production motorcycle in history. Producing more than 200hp and weighing-in at just 155kg* (341.7lb*), Ducati showcase their innovative engineering and stylish approach to design, while affirming the maxim: “Authentic Italian Performance”.
The Superleggera follows in the successful wheel tracks of previous iconic limited editions, like the Desmosedici RR, with its exclusivity boldly underlined with just 500 examples of this extraordinary machine being assembled at Ducati’s headquarters in Bologna, Italy, each with its own individual number inscribed on the top clamp.

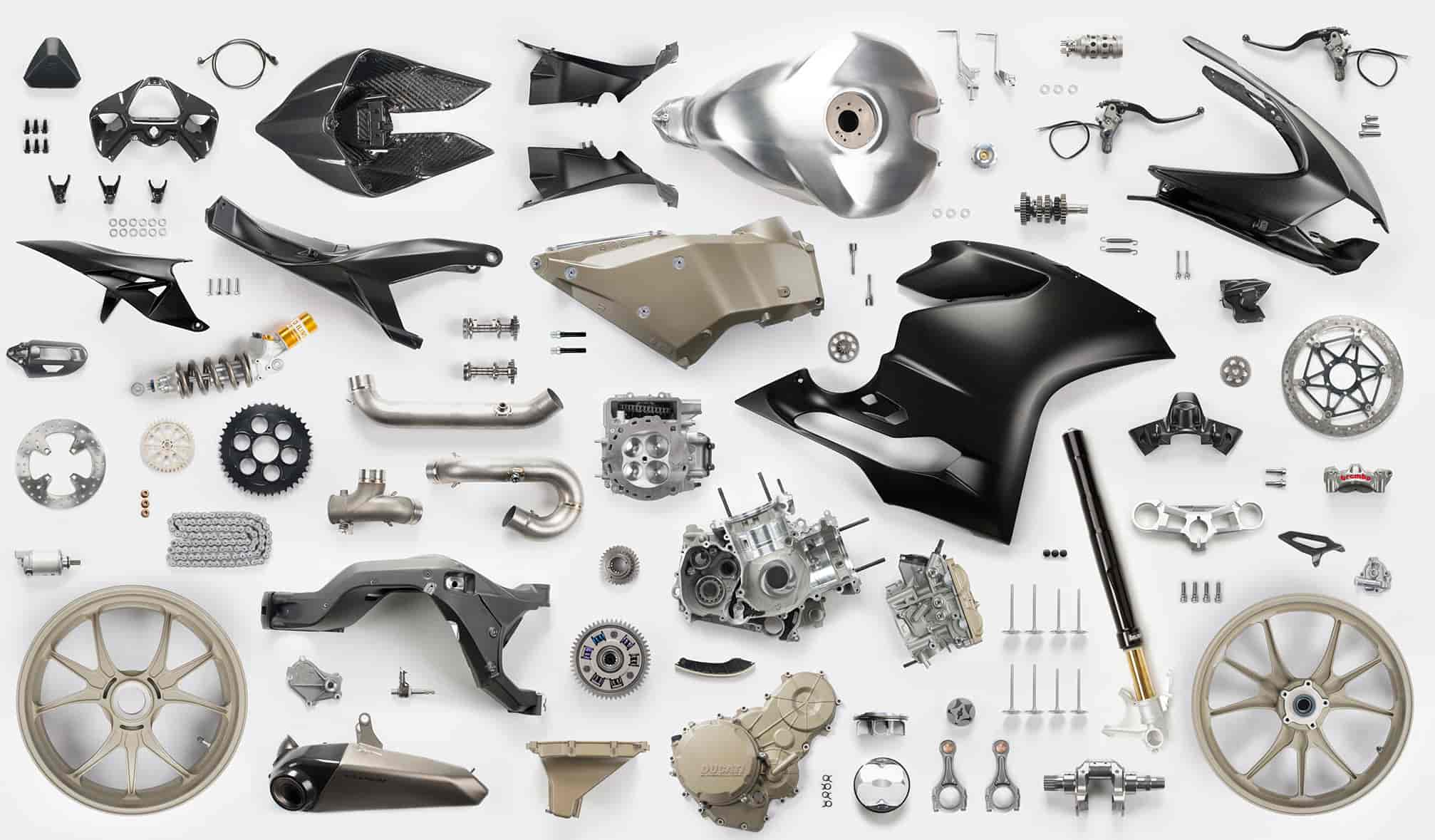

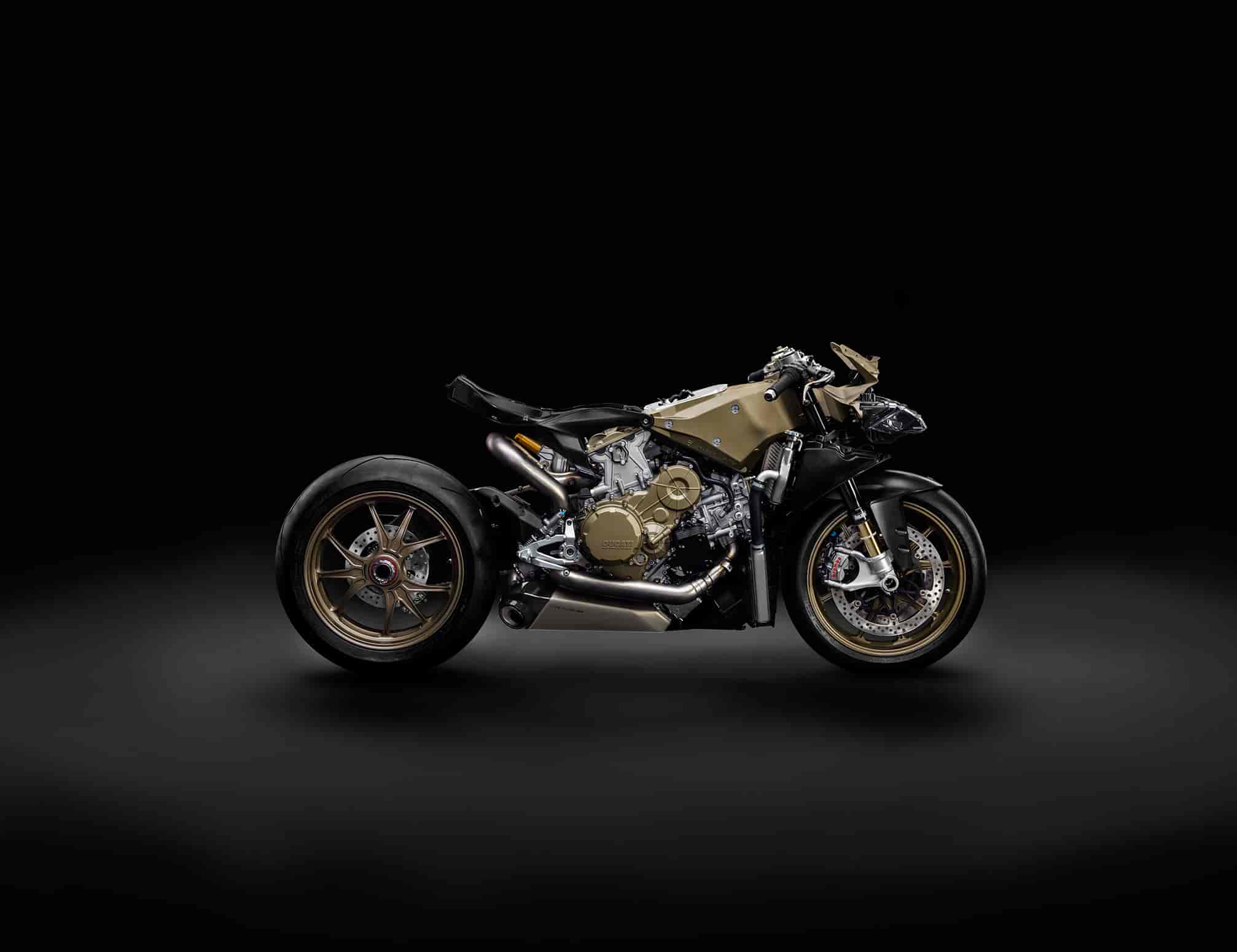

With its baseline starting from the already impressive 1199 Panigale ‘R’ specification, the Superleggera incorporates a magnesium monocoque frame and forged Marchesini magnesium wheels before taking lightweight to the extreme with a carbon fibre rear sub-frame and bodywork, lithium-ion battery (LIB) and full titanium exhaust system with stainless steel headers. Many of the bolts and fasteners on both engine and chassis are also fashioned in titanium. Additional enhancements include lightweight Ã–hlins FL916 front suspension with fully-machined fork bottoms and an Ã–hlins TTX36 rear suspension with titanium spring. The Superleggera’s Brembo M50 Monobloc brakes inherit a racing-style MCS 19-21 front master cylinder and remote adjuster and its final drive gets upgraded with a lightweight Ergal rear sprocket, and World Superbike-spec 520 drive chain. Finer attention to detail is hidden in the shape of the carbon fibre body work, which is moulded with the same high-penetration form normally provided by the “R” spec add-on aero-kit.
The Superquadro engine, which sports titanium con-rods and inlet valves, now adds titanium exhaust valves, and, for the first time on a Ducati street engine, special two-ring pistons. These pistons, usually found on racing Superbikes, use short skirts and only two rings (compression and oil), allowing them to dramatically reduce mass and friction. To further increase performance, the combustion chamber is also modified to Superbike specs by a new piston crown that increases compression ratio. Added to this is a super-lightened crankshaft, precision balanced using dense tungsten inserts. The enhancements result in an incredible output of more than 200hp as it rolls out of Ducati’s Borgo Panigale factory in Bologna, Italy.
The Superleggera’s outstanding power-to-weight ratio can be enhanced even further with the supplied track-only Race Kit**. The kit, which increases power by 5hp and reduces weight by 2.5kg (5.5 lb), consists of a titanium AkrapoviÃ¨ race exhaust system including silencers and 2-in-1 collector, high racing windscreen, dedicated dust cover, front and rear paddock stands, machined mirror fill-caps, and removal kits for the registration plate holder, and sidestand.
The model’s electronics are also upgraded thanks to the new system for managing front-wheel lift Ducati Wheelie Control (DWC) which is based on an Inertial Platform. This DWC system, along with Ducati Traction Control (DTC) and Engine Brake Control (EBC), is optimized with new automatic calibration of rear-tyre size and final transmission ratio. The Ducati Data Analysis+ (DDA+) system adds an additional sensor and software channel to record and display vehicle lean angles. This impressive array of included electronics is completed by a set of race-derived, handlebar mounted control buttons to enable rapid, on-track adjustments to the levels of the pre-selected channels of DTS, DWC, or EBC.
Appropriate to its highly exclusive status as one of the most exotic and desirable Ducatis of all time, the 1199 Superleggera is exquisitely dressed in Ducati Corse Red base livery, complemented with forged and machined magnesium wheels. *Dry weight **Track use only
2014 Ducati Superbike 1199 Superleggera Totalmotorcycle.com Key Features
2014 Ducati Superbike 1199 Superleggera Totalmotorcycle.com Features and Benefits
– Magnesium monocoque
– Magnesium wheels
– Carbon-fibre rear sub-frame
– Ã–hlins FL916 front suspension
– Ã–hlins TTX36 rear suspension with titanium spring
– Single-sided swingarm with 4-way adjustable pivot
– Brembo MCS 19-21 front master cylinder
– Carbon fibre bodywork
– Individual number engraved on the top clamp
– Superquadro: L-twin cylinder, 4 titanium valves per cylinder, Desmodromic, liquid cooled
– World Superbike-style pistons with 2 rings and crown modified for an increased compression ratio
– Lightweight crankshaft with tungsten balance inserts
– Titanium connecting rods
– Full titanium exhaust system
– Ducati Traction Control with automatic tyre size recalibration (DTC)
– Ducati Wheelie Control (DWC)
– Dedicated handlebar buttons for on-track adjustment of DTC, DWC or EBC
– Ducati Data Analyser+ with lean sensor (DDA+)
– Ducati Quick Shifter (DQS)
– Engine Brake Control (EBC)
– Riding Modes
– Full LED lighting
– Full TFT instrumentation
– Lithium-ion battery (LIB)
– Dust cover
– Front and rear paddock stands
– License plate holder removal kit
– High racing windscreen
– Sidestand removal kit
– Machined mirror fill-caps
– Full race exhaust system by Akrapovic.
2014 Ducati Superbike 1199 Superleggera – Totalmotorcycle.com Global Specifications/Technical Details
International MSRP Price: $See dealer for pricing
Type Superquadro: L-twin cylinder, 4 titanium valves per cylinder, Desmodromic, liquid cooled, titanium con-rods
Bore x Stroke 112 x 60.8mm
Compression Ratio 13.2:1
Power >200hp (149kw) @ 11,500rpm
Torque 98.8lb-ft (134Nm) @ 10,200rpm
Fuel injection Mitsubishi electronic fuel injection system.Twin injectors per cylinder.Full ride-by-wire elliptical throttle bodies.
Exhaust 2-1-2 system in titanium with catalytic converter and 2 lambda probes
Emissions Euro 3
Gearbox 6 speed
Ratio 1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Primary drive Straight cut gears, Ratio 1.77:1
Final drive Chain 520; Front sprocket 15; Rear sprocket 41
Clutch Slipper and self-servo wet multiplate clutch with hydraulic control
Frame Magnesium monocoque
Front suspension Ã–hlins FL916 43mm with TiN, fully adjustable usd fork.
Front wheel travel 120mm (4.72in)
Front wheel 3-spoke forged in magnesium 3.50″ x 17″
Front tyre 120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear suspension Fully adjustable Ohlins TTX36 unit with titanium spring.Adjustable linkage: Progressive/flat.Aluminum single-sided swingarm.4-point adjustable pivot.
Rear wheel travel 130mm (5.12in)
Rear wheel 3 spoke forged in magnesium 6.00″ x 17″
Rear tyre 200/55 ZR17 Pirelli Diablo Supercorsa SP
Front brake 2 x 330mm semi-floating discs, radially mounted BremboMonobloc M50 4-piston callipers with 19-21 MCS pump. Bosch 9ME ABS
Rear brake 245mm disc, 2-piston calliper
Fuel tank capacity 17l (4.5 gallon US)
Dry weight 155kg (341.7lb)
*Wet weight 177kg (390.2lb)
Seat height 830mm (32.48in)
Max height 1100mm (43.31in)
Max length 2075mm (81.69in)
Ducati electronics DDA+, DTC, DQS, DWC, EBC, LIB, Riding Modes
Warranty 2 years unlimited mileage
Additional equipment Full race, titanium exhaust system by Akrapovi?, dedicated dust cover, front & rear paddock stands, machined mirror fill-caps, removal kits for registration plate holder, sidestand.
*Wet weight Wet weight includes all fluids and fueled to at least 90% of useable tank capacity. (93/93/CE)
*GBP Prices quoted are SRP’s including 20% VAT and the cost of pre-delivery inspection.
